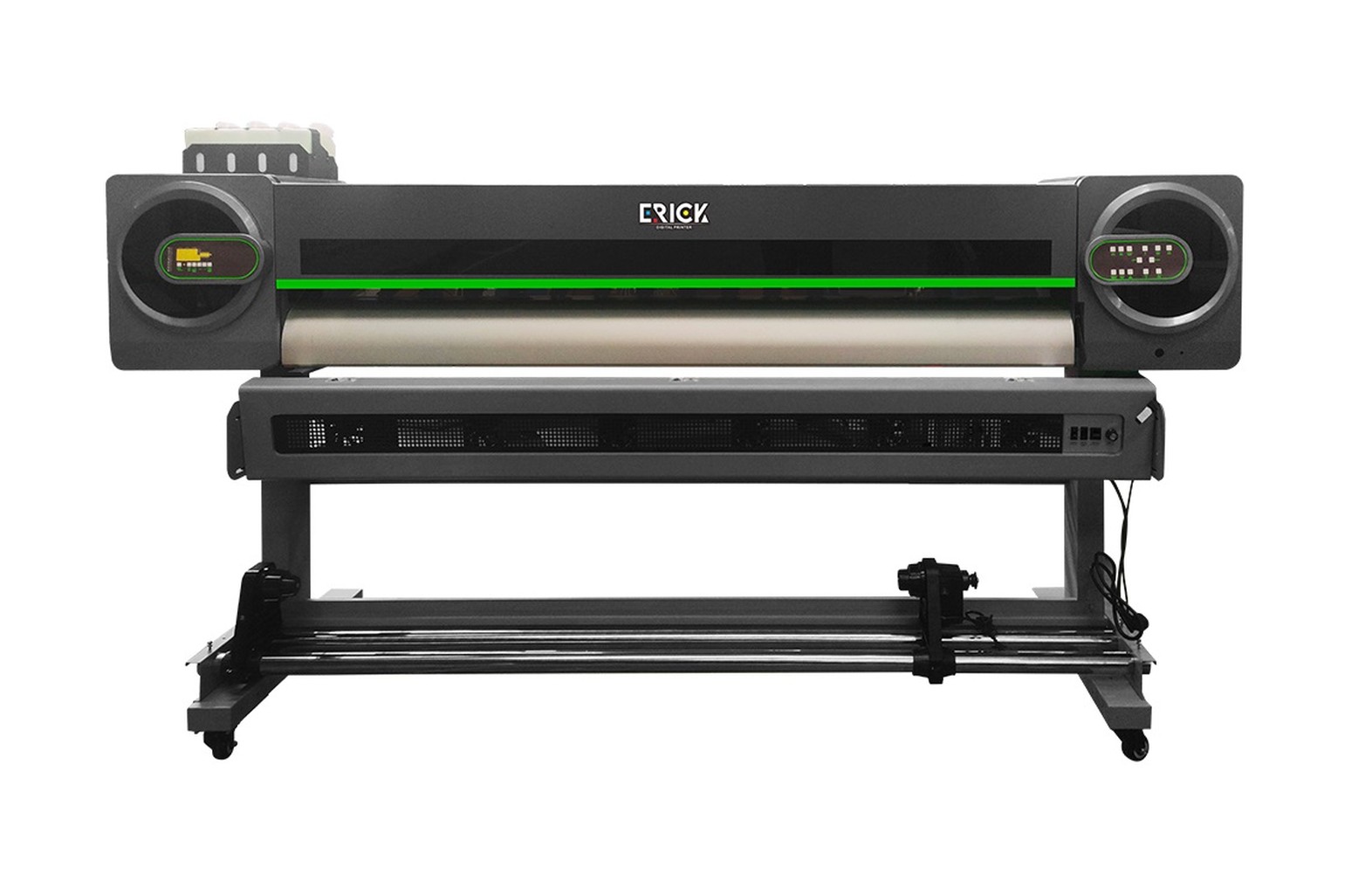

eRICK ER-UR1902E UV Roll to Roll Printer (2× Epson i3200-U1)

eRICK ER-UR1902E UV Roll to Roll Printer (2× Epson i3200-U1) – Overview

The eRICK ER-UR1902E doubles the UV engine: two Epson i3200-U1 heads on the 1.9-metre roll body run CMYK at 14 m²/h in 720×1200 dpi 4-pass production (10 m²/h at 720×1800 dpi; 8/6 m²/h with White – official platform data). UV LED curing means backlit film, transparent window film and wallpaper leave the machine fully cured, waterproof and scratch-resistant, ready for immediate finishing. The platform keeps the features that matter in daily UV work: DC servo drive, adjustable two-foot pinch rollers, lifting capping station, anti-collision device, lack-of-material alarm and a positive-pressure bulk ink system, with LAN/USB connectivity and up to 2400 dpi resolution.

The ER-UR-1902E runs daily commercial UV work on UV vinyl stickers & decals, soft film & stretch-ceiling graphics, backlit film & backlit boards, transparent & window film graphics, wallpaper & wall coverings, PET film, reflective media, vehicle & fleet graphics and promotional display films. Dual heads keep same-day finishing realistic even with White ink in the laydown.

Key Features

• 2 × Epson i3200-U1 UV heads – dual-head production speed
• 14 m²/h (≈151 sqft/hr) CMYK 4-pass – official platform data
• CMYK + White, optional Varnish channel for spot-gloss effects
• UV LED curing – instant dry, waterproof, scratch-resistant output
• Intelligent bulk ink supply, positive pressure continuous feed
• DC servo drive, adjustable pinch rollers, lifting capping station
• Anti-collision device + lack-of-material alarm protect the heads
• Up to 2400 dpi; LAN / USB; rolls to 1.9m wide

Print Speed (ER-UR1902E · official ERICK/Aily platform data)

Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.

Technical Specifications

Applications

Typical work: UV vinyl stickers & decals, soft film & stretch-ceiling graphics, backlit film & backlit boards, transparent & window film graphics, wallpaper & wall coverings, PET film, reflective media, vehicle & fleet graphics and promotional display films. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.

Why Buy from Unified Engineering Dynamics?

• Genuine eRICK machines – original ERICK UV roll-to-roll printers (Aily Group factory configuration), supplied with full warranty and genuine Epson i3200-U1 print heads.
• Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
• After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
• Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.

Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
