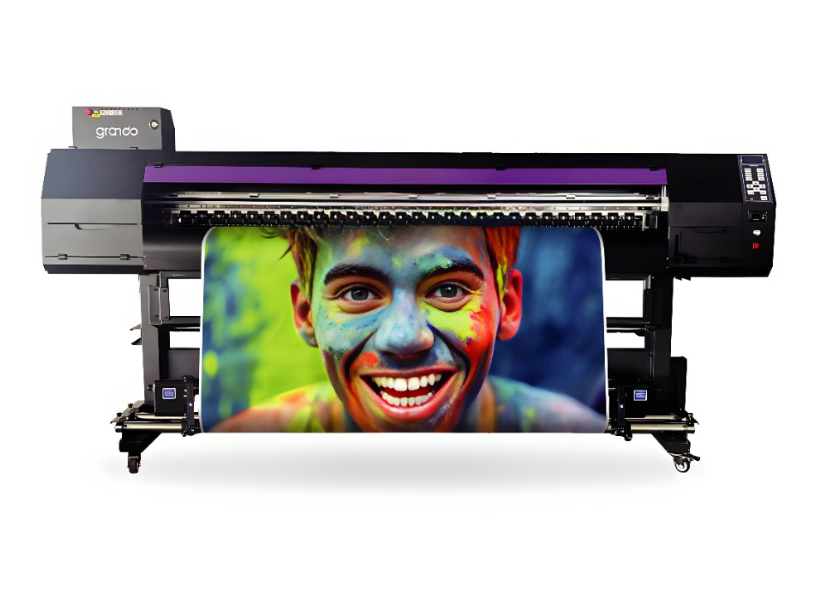

The Grando GD-2202UV is a professional-grade UV LED printer designed for businesses that require high-quality, durable, and versatile printing solutions. With a wide 2.2-meter format and dual-head configuration, it delivers exceptional speed, precision, and flexibility for both rigid and flexible media.
✅ UV LED Ink Technology – Prints directly on glass, acrylic, PVC, metal, wood, foam board, and more
✅ Large Format Printing (2.2m) – Ideal for signage, panels, and oversized graphics
✅ Dual Print Head Design – Achieves faster output without compromising quality
✅ Vivid & Long-Lasting Colors – Scratch-resistant, waterproof, and fade-proof prints
✅ Supports White Ink & Varnish – Perfect for layered printing, textured effects, and premium finishes
✅ Energy-Efficient UV Curing – Instant drying with low power consumption
Applications: Signboards, decorative panels, exhibition displays, customized promotional items, interior décor, and industrial printing solutions.
The Grando GD-2202UV UV Printer combines efficiency, versatility, and industrial-grade performance, making it the perfect investment for print shops and manufacturers looking to expand their printing capabilities.
Product Details:
| Printing Speed |
CMYK:
4 pass (720*1200 dpi): 34 ㎡/h
6 pass (720*1800 dpi): 21 ㎡/hCMYK+W:
4 pass (720*1200 dpi): 17 ㎡/h
6 pass (720*1800 dpi): 11 ㎡/h |
| Model No. |
GD-2202UV |
| Print Head |
2PCS I3200-U1 Print Heads |
| Printing Technology |
Piezoelectric Inkjet |
| Acceptable Media |
Width: 87 in. (2220 mm)
Thickness: Maximum 59 mil (1.5 mm)
Weight: 176 lb. (80 kg) |
| Printing Width |
86.6 in. (2200 mm) |
| Ink Type |
UV Ink |
| Ink Supply |
Bulk ink supply system with 1.5L ink tank |
| Color |
CMYK / CMYK+W |
| Printing Resolution |
Maximum 2400 dpi |
| Curing Unit |
Wind-cooling UV lamp |
| Data Transfer |
Ethernet |
| Power Supply |
AC 220V ±10%, 50/60Hz |
| Weight (With Stand) |
617 lb. (280 kg) |
| Packing Size |
161.4(W) × 29.9(D) × 27.9(H) in.
(4100(W) × 760(D) × 710(H) mm) |
| Packing Weight |
771.6 lb. (350 kg) |
| Environment |
Power on: 59℉ to 90℉ (15℃ to 32℃) / Humidity: 35 to 80% (no condensation)
Power off: 41℉ to 104℉ (5℃ to 40℃) / Humidity: 20 to 80% (no condensation) |
