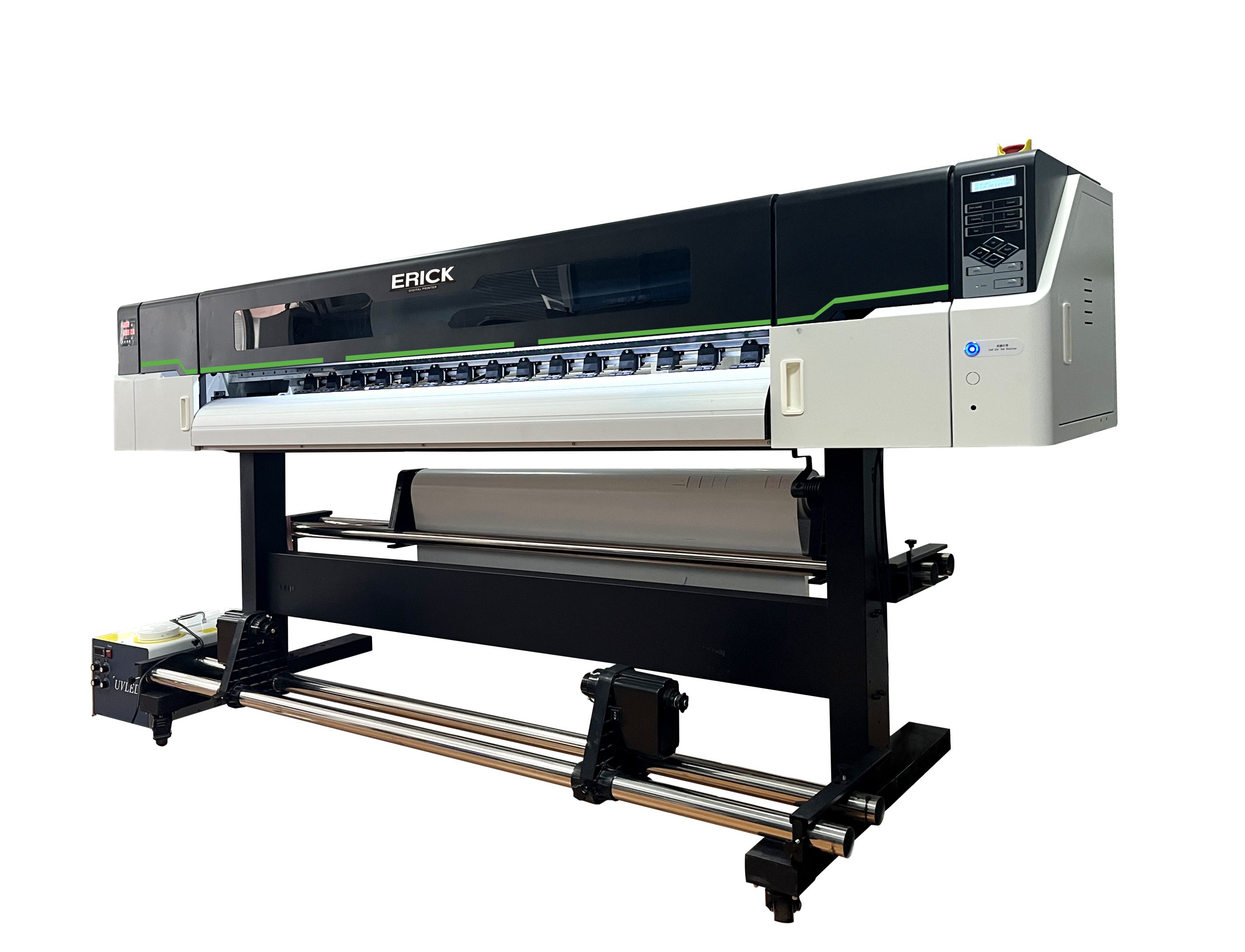

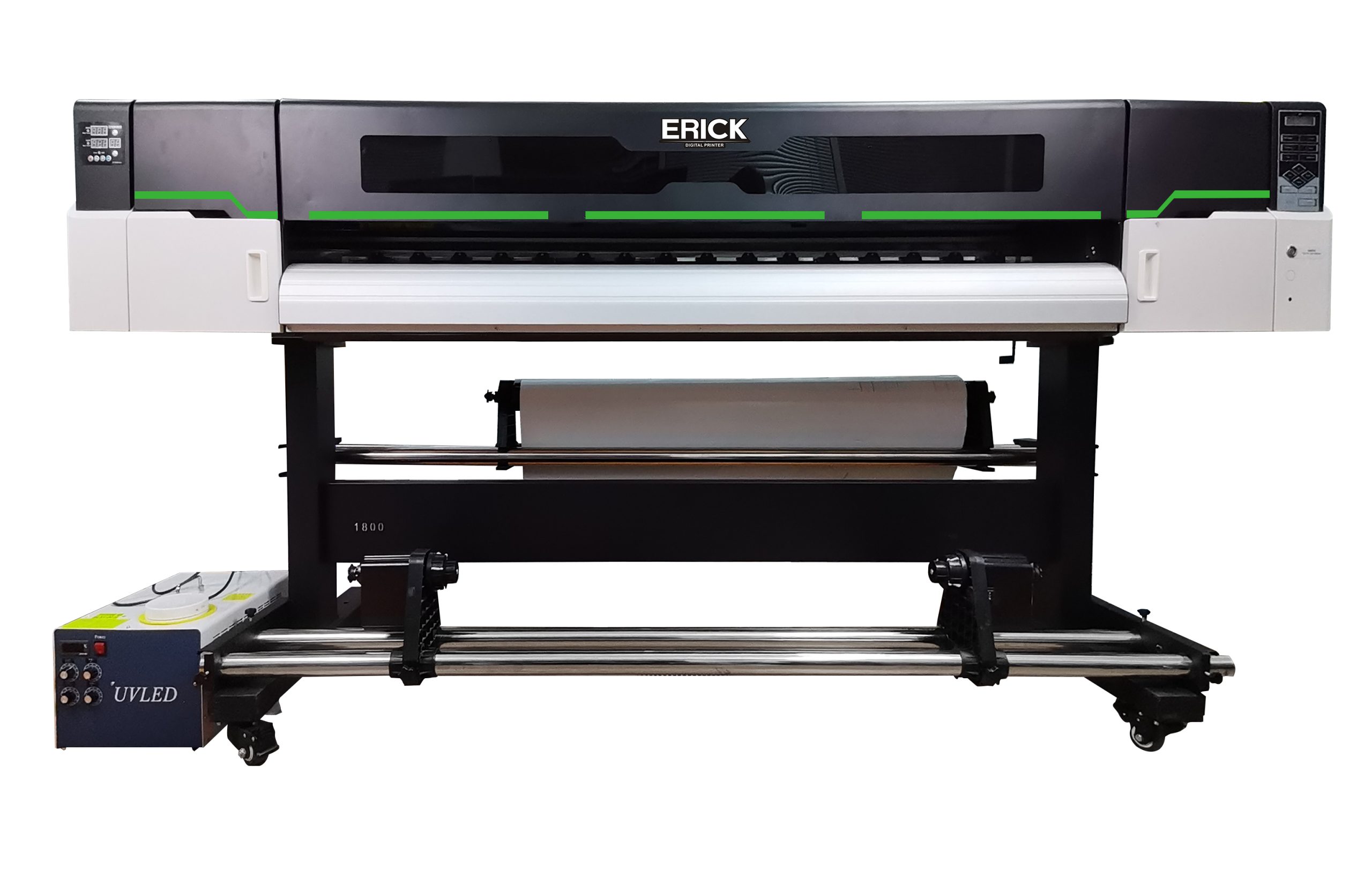

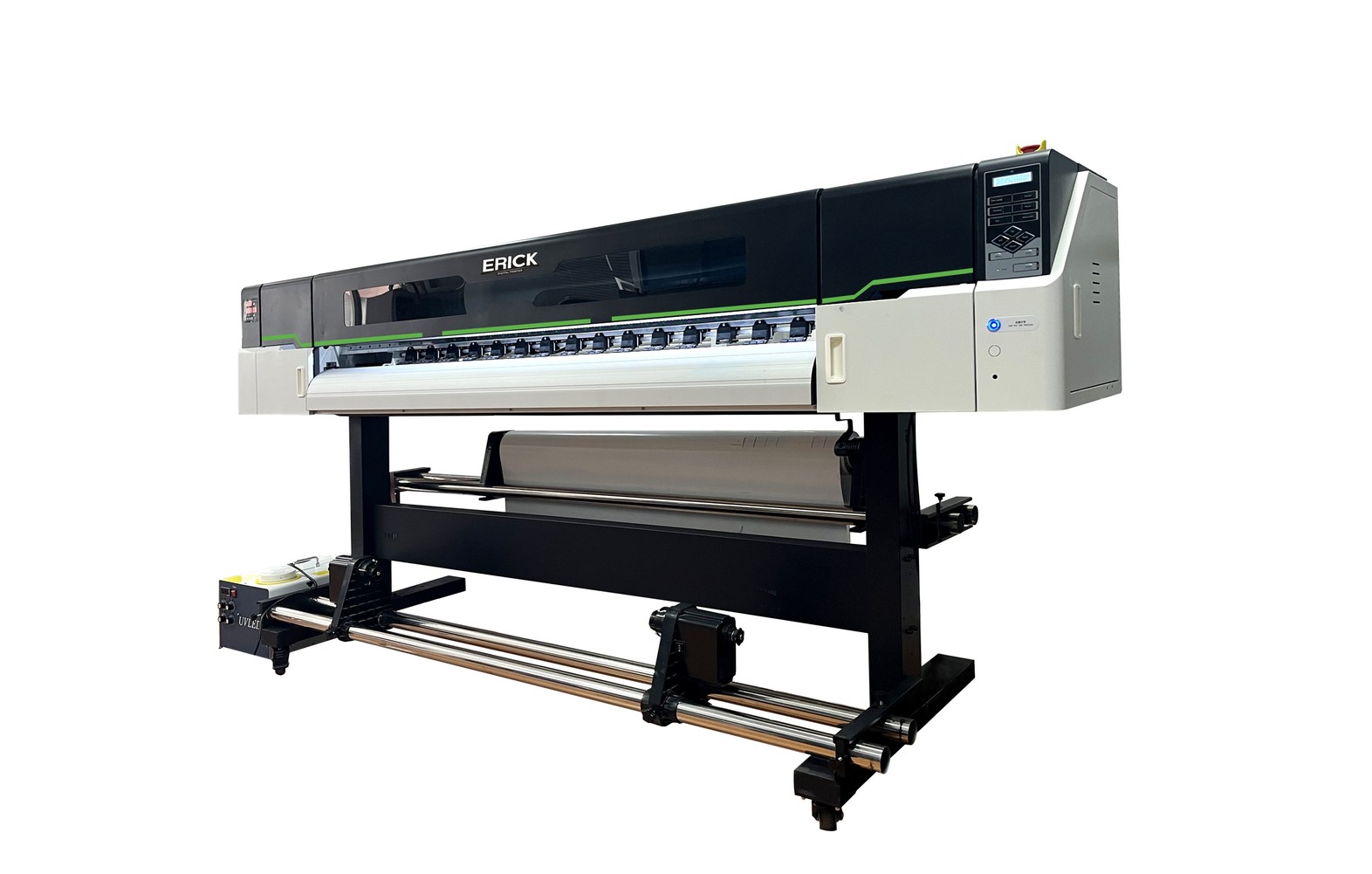

eRICK ER-UR1802 PRO UV Roll to Roll Printer (2× i3200-U1) – Overview
The eRICK ER-UR1802 PRO puts dual Epson i3200-U1 UV heads on the heavy PRO roll chassis – the same industrial body the factory certifies for its 4-head UR1804 PRO: Hoson control system, 2L positive-pressure bulk ink tanks, external UV LED curing unit, SAi PhotoPrint / Ripprint workflow over 3.0 LAN, and 110V/220V flexibility on a 1350W-class power budget. Head height adjusts 1–5mm and rolls up to 25–30kg feed straight through the pinch-roller line. Choose it when you want the PRO build without the 4-head budget: dual-head UV throughput in CMYK at dual-head class speeds, with White available in the ink set.
The ER-UR-1802PRO covers UV vinyl stickers & decals, soft film & stretch-ceiling graphics, backlit film & backlit boards, transparent & window film graphics, wallpaper & wall coverings, PET film, reflective media, vehicle & fleet graphics and promotional display films on the heavy PRO chassis. Rows marked (class) are dual-head platform figures confirmed in writing with your quotation.
Key Features
- 2 × Epson i3200-U1 UV heads on the industrial PRO chassis
- Heavy PRO body – Hoson control board as standard
- UV LED curing unit – instant dry on films, vinyl, wallpaper
- 2L positive-pressure continuous bulk ink system
- 1–5mm head-height adjustment; 25–30kg roll capacity
- SAi PhotoPrint / Ripprint RIP over 3.0 LAN
- Windows 7/10 control PC workflow, 110V/220V input
- CMYK UV ink set (White channel available by configuration)
Print Speed (ER-UR1802 PRO · dual i3200-U1 UV class data)
| Print Mode | Output Speed |
|---|---|
| 2× i3200-U1 · CMYK · 720×1200 dpi · 4 pass (class) | ≈14 m²/h (≈151 sqft/hr) |
| 2× i3200-U1 · CMYK · 720×1800 dpi · 6 pass (class) | ≈10 m²/h (≈108 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-UR1802 PRO |
| Print Heads | 2 × Epson i3200-U1 (UV) |
| Max Print Size | 1800 mm |
| Printing Resolution | Standard 720×1200 dpi (up to 2400 dpi class) |
| Control System | Hoson |
| Ink | UV LED curable ink, CMYK (W by configuration); 2L tank, positive pressure continuous supply (bulk system) |
| Max Media / Head Height | 25 ± 5 kg rolls / 1–5 mm |
| RIP Software | SAi PhotoPrint / Ripprint |
| Interface / OS | 3.0 LAN; Windows 7 / Windows 10 |
| Voltage / Power | 110V / 220V; 1350 W class |
| Machine Size | 3025 × 824 × 1476(H) mm (PRO platform) |
| Working Environment | 15–28 °C |
| Package | Wooden case |
Applications
Typical work: UV vinyl stickers & decals, soft film & stretch-ceiling graphics, backlit film & backlit boards, transparent & window film graphics, wallpaper & wall coverings, PET film, reflective media, vehicle & fleet graphics and promotional display films. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV roll-to-roll printers (Aily Group factory configuration), supplied with full warranty and genuine Epson i3200-U1 print heads.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
