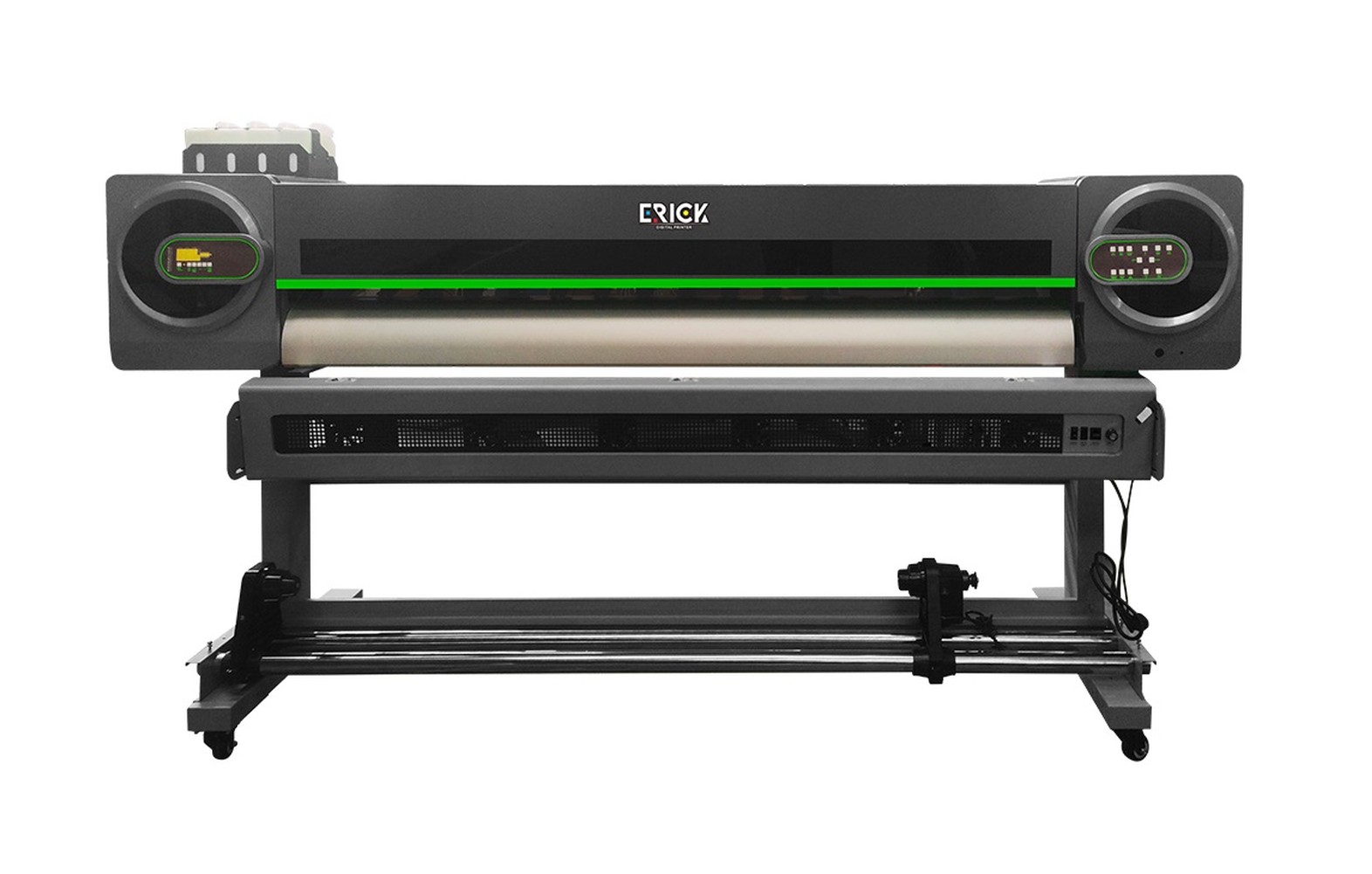

eRICK ER-UR1901E UV Roll to Roll Printer (1× Epson i3200-U1) – Overview
The eRICK ER-UR1901E is the single-head entry into UV roll-to-roll production: a 1.9-metre machine running one Epson i3200-U1 PrecisionCore UV head at up to 2400 dpi in CMYK plus White. UV LED lamps cure the ink the instant it lands, so soft ceiling films, PET, transparent window film and wallpaper come off the take-up fully dry, scratch-resistant and waterproof – no outgassing wait, no lamination urgency. The 1.9m roll body rides on the factory’s shared roll platform: high-quality DC servo drive, adjustable two-foot pinch rollers, lifting capping station, lack-of-material alarm and a positive-pressure bulk ink system, with LAN/USB job delivery from PhotoPrint-class RIPs.
The ER-UR-1901E prints UV vinyl stickers & decals, soft film & stretch-ceiling graphics, backlit film & backlit boards, transparent & window film graphics, wallpaper & wall coverings, PET film, reflective media, vehicle & fleet graphics and promotional display films. White ink under CMYK on clear and dark films opens premium window graphics and coloured-media work; rows marked (class) are platform-class figures confirmed at order time.
Key Features
- 1 × Epson i3200-U1 UV head – 3200 nozzles, 600 npi native
- CMYK + White ink set; up to 2400 dpi photographic output
- UV LED curing – prints are dry & ready to finish instantly
- Intelligent bulk ink system with positive pressure supply
- High-quality DC servo motor + adjustable pinch rollers
- Lifting capping station, anti-collision device, lack-material alarm
- Roll-to-roll on vinyl, soft film, backlit, transparent film, PET, wallpaper
- LAN / USB interface – drops into any Windows print room
Print Speed (ER-UR1901E · single i3200-U1 UV class data)
| Print Mode | Output Speed |
|---|---|
| 1× i3200-U1 · 720×1200 dpi · 4 pass (class) | ≈7 m²/h (≈75 sqft/hr) |
| 1× i3200-U1 · 720×1800 dpi · 6 pass (class) | ≈5 m²/h (≈54 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-UR1901E |
| Print Head | 1 × Epson i3200-U1 (UV) |
| Max Print Width | 1900 mm |
| Resolution | Up to 2400 dpi |
| Ink | UV LED curable ink, CMYK + White; intelligent bulk supply |
| Curing | UV LED lamp system |
| Media | Vinyl, PET film, backlit film, soft film, wallpaper, transparent film, specialty rolls |
| Platform Functions | Anti-collision device, lifting capping station, adjustable pinch rollers, lack-material alarm |
| Drive | High-quality DC servo motor, roll-to-roll take-up |
| Interface / OS | LAN / USB; Windows |
| Body Footprint / Power | 2827 × 770 × 1478 mm working space; 1500–1900 W class |
| Working Environment | 20–28 °C |
Applications
Typical work: UV vinyl stickers & decals, soft film & stretch-ceiling graphics, backlit film & backlit boards, transparent & window film graphics, wallpaper & wall coverings, PET film, reflective media, vehicle & fleet graphics and promotional display films. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV roll-to-roll printers (Aily Group factory configuration), supplied with full warranty and genuine Epson i3200-U1 print heads.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
