Gethray C8 Flex Printing Machine – Overview
The Gethray C8 Flex Printing Machine is the heavy-body sibling of the C4 – same Konica platform, but engineered for punishing duty cycles. A welded square-pipe main girder, 4200 mm thickened aluminium carriage beam, Taiwan Hiwin linear guides with dual mute sliders and individual CMYK purging make it the printer you buy when downtime costs you contracts. Head options cover Konica 512i (30 pl) for speed and KM 1024i (13 pl) for finer imagery.
The Gethray C8 runs all day on flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Heavy welded frame (N.W. approx. 700 kg, G.W. 850 kg) – zero vibration at speed
- Konica 512i-4H / KM 1024i-4H / KM 512-4H head options on BYHX electronics
- 24 precision aluminium pinch rollers + adjustable vacuum bed
- Individual ink purging system per colour + subtank heater
- Ink-supply alarm lamp (flash + buzzer) – no mid-print ink surprises
- One-click smart start/stop and metal-induction home sensor
- Honsoff UltraPrint / MainTop RIP workflow, Win XP–10 support
Print Speed (Konica 512i configuration (BYHX platform))
| Print Mode | Output Speed |
|---|---|
| 2 pass (480×360 dpi) | up to 240 m²/h |
| 3 pass (480×540 dpi) | up to 160 m²/h |
| 4 pass (480×720 dpi) | up to 125 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.
Technical Specifications
| Model | Gethray C8 |
| Print Head Options | Konica 512i / Konica KM 1024i / Konica 512 (4H–8H configurations) |
| Max. Print Width | 3.2 m |
| Ink Type | Solvent ink (Konica 30 pl / 13 pl) |
| Colours | CMYK, 4 colours |
| Control Board | BYHX with Honsoff software |
| RIP Software | MainTop 6.1 / UltraPrint / PhotoPrint |

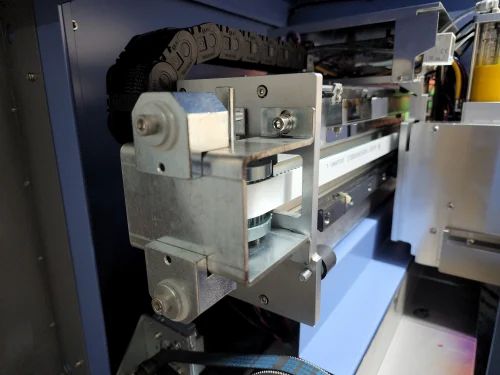

| Carriage Beam | 4200 mm thickened aluminium beam |
| Linear Guide | Taiwan Hiwin linear guide, dual mute sliders |
| Printing Bed | 200 mm wide bed with adjustable vacuum suction |
| Heating | Rear cover – printing bed – front cover, 4-in-1 control |
| Drive | Leadshine motor; Megadyne (Italy) belt; Igus (Germany) chain & LVDS cable; NSK bearings; Autonics sensors |
| Machine Size | 4600 × 900 × 1470 mm (L×W×H) |
| Packing Size | 4710 × 1150 × 1580 mm |
| Weight | N.W. 700 kg · G.W. 850 kg |
| Operating Environment | 15–30 °C, 40–65% RH |
Applications
Typical work: flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
