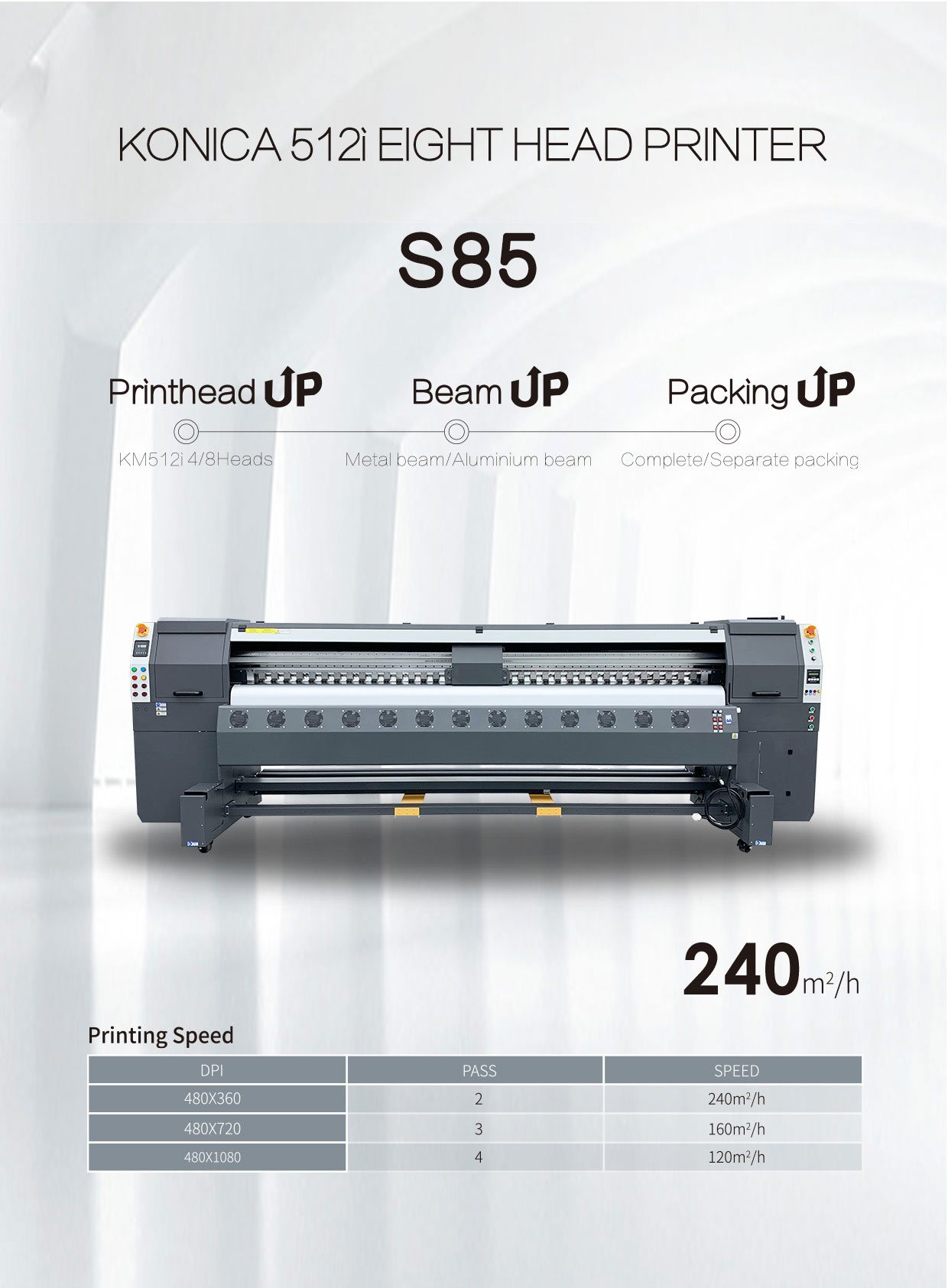

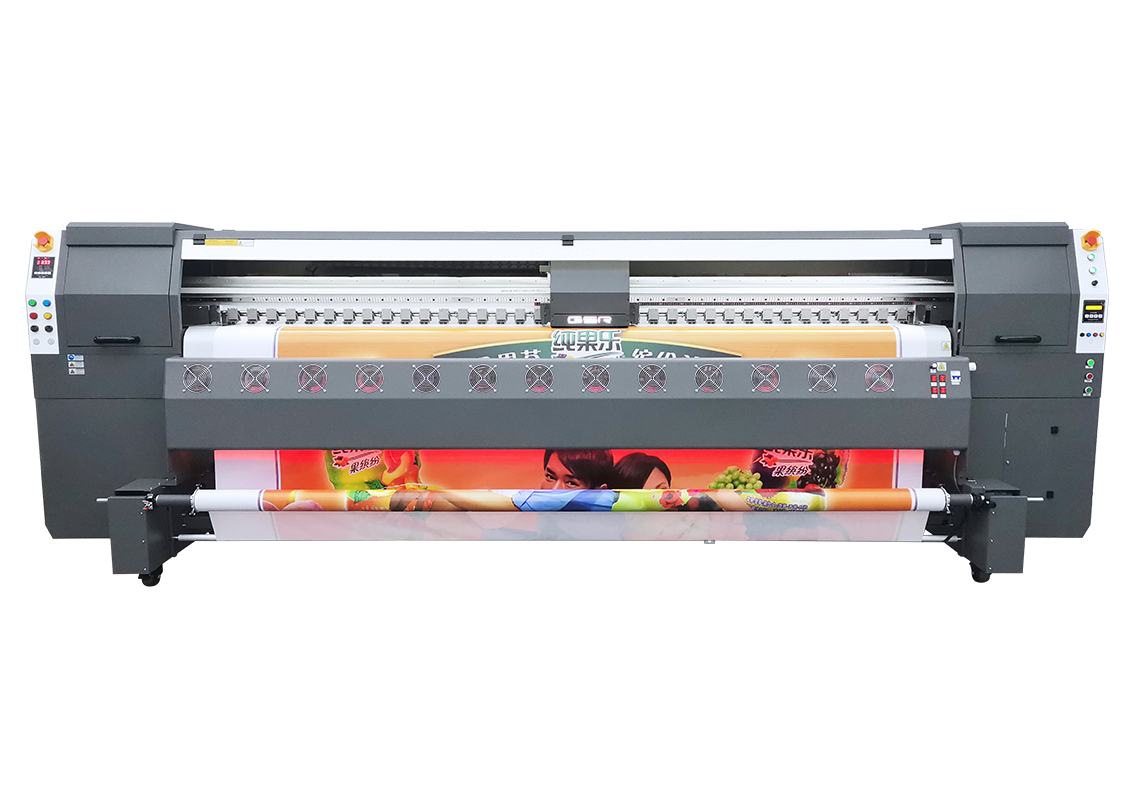

Gethray S85 Solvent Printer – Overview
The Gethray S85 Solvent Printer (factory model S3208Si30) sits at the top of the Gethray solvent line. Eight Konica 512i heads deliver the kind of throughput that lets you commit to next-morning delivery on 3.2 m hoardings. The S-series adds the luxury hardware layer: 3400 mm multi-function roll feeding with black-and-white detect sensors, positive/negative pressure ink system with solenoid-valve subtanks, anti-solvent 3-way magnetic valves and suction-type waste-ink handling – everything a 2-shift production floor needs.
The Gethray S85 runs all day on flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 8 × Konica Minolta 512i (30 pl) heads – maximum flex productivity

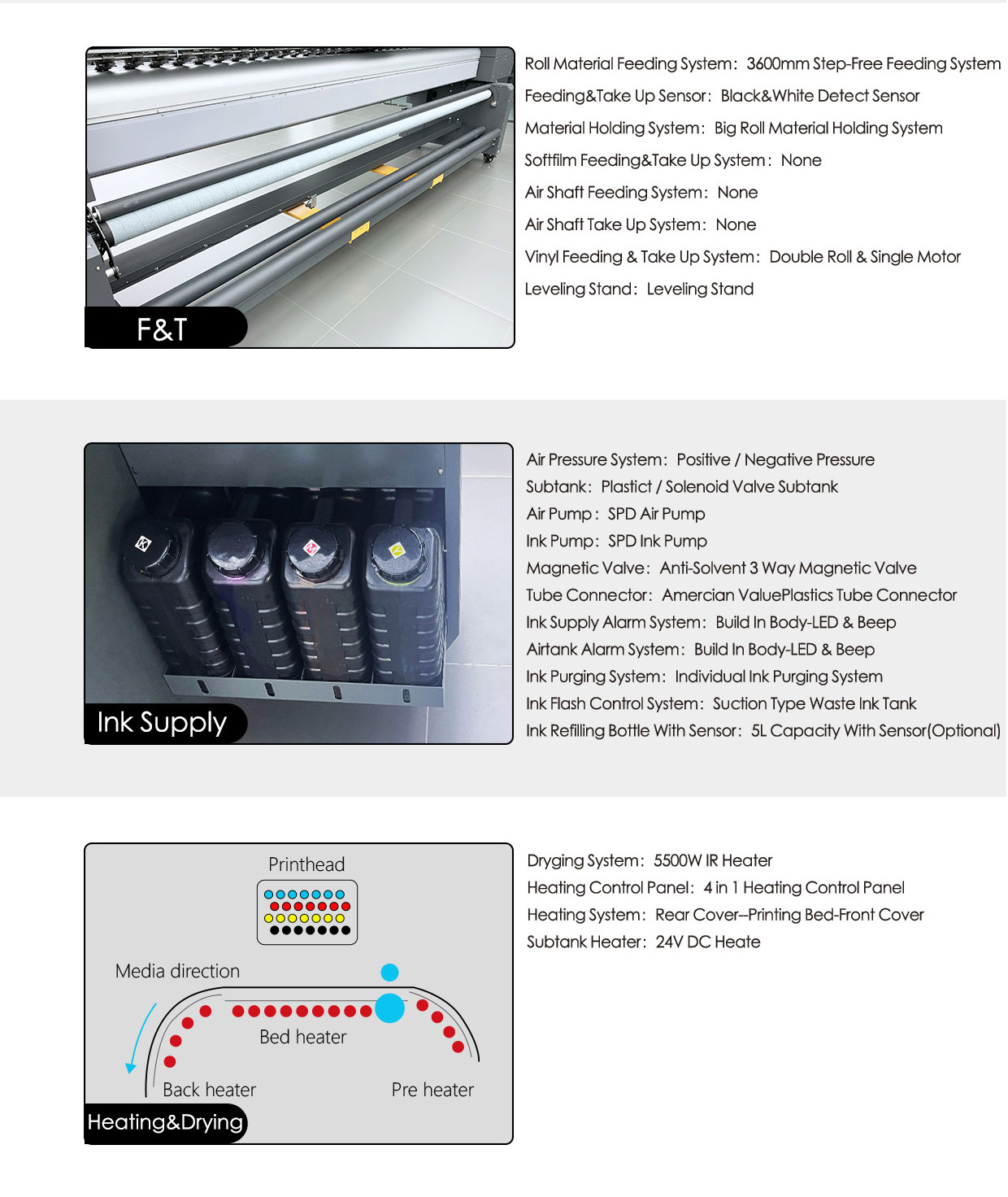

- 3400 mm multi-function feeding + take-up with media-detect sensors
- Positive/negative pressure ink system, solenoid-valve subtanks
- SPD air & ink pumps; anti-solvent 3-way magnetic valves
- Individual ink purging + ink-supply & air-tank alarms in software
- 3500 W IR heater + rear/bed/front three-zone heating, 24 V subtank heater
- MainTop 6.1 / PhotoPrint RIP, LAN interface, Windows 10 64-bit
Print Speed (8-head configuration, manufacturer conditions)
| Print Mode | Output Speed |
|---|---|
| 2 pass (360×360 dpi) | up to 240 m²/h |
| 3 pass (360×540 dpi) | up to 200 m²/h |
| 4 pass (480×720 dpi) | up to 160 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.
Technical Specifications
| Model | Gethray S85 (S3208Si30) |
| Print Head | 8 × Konica Minolta 512i (30 pl) |
| Max. Print Width | 3.2 m |
| Media Feeding | 3600 mm step-free multi-function feeding & take-up system |
| Ink Type | Solvent ink |
| Colours | CMYK (CMYK×2 / W+CMYK / CMYK+W configurations) |
| Printing Resolution | Up to 720×1440 dpi |
| RIP Software | MainTop 6.1 / PhotoPrint |
| Interface | LAN |
| Heating & Drying | Rear + bed + front heaters (5500 W class) + IR drying |
| Power Supply | AC 220 V, 50/60 Hz · system 1800 W + heater 5500 W |
| Machine Size | 4730 × 1070 × 1565 mm (L×W×H) |
| Weight | N.W. approx. 1000 kg · G.W. 1220 kg |
| Operating System | Windows 10, 64-bit |
| Operating Environment | 15–30 °C, 40–65% RH |
Applications
Typical work: flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
