SPT T8 PRO PLUS 320Li Flex Printing Machine – Overview
The SPT T8 PRO PLUS 320Li is the top-spec member of the PLUS family, built around industrial high-speed printhead configuration (Konica 1024-class, 13PL/30PL) on the 3.2m negative-pressure chassis. Designed for superior print quality at true industrial tempo, it answers the question every growing flex plant asks: how do we print more square metres per shift without adding a second machine?
The SPT-T8PROPLUS-320LI runs daily production on flex banners, vinyl hoardings, backlit flex displays, one-way vision film, mesh banners, PVC vinyl stickers & vehicle graphics, canvas, reflective media and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Industrial high-speed head configuration (Konica 1024-class, 13PL/30PL options)
- Official high-speed table (8-head): up to 600 m²/h 1-pass draft, 280 m²/h 2-pass production
- Negative-pressure ink supply – stable firing across full shifts
- BYHX board with touch screen & bracket
- Segmented intelligent infrared heating + front & rear heaters
- Heavy industrial frame (~1200kg net class), 220V supply
- Superior print quality for premium flex, vinyl & backlit work
- Built for 24×7 production environments and big-order deadlines
Print Speed (8-head high-speed configuration · official SPT spec sheet)
| Print Mode | Output Speed |
|---|---|
| 1 pass, 360×360 dpi (draft) | up to 600 m²/h |
| 1 pass, 480×360 dpi | up to 480 m²/h |
| 2 pass, 360×720 dpi | up to 280 m²/h |
| 2 pass, 480×720 dpi | up to 240 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.

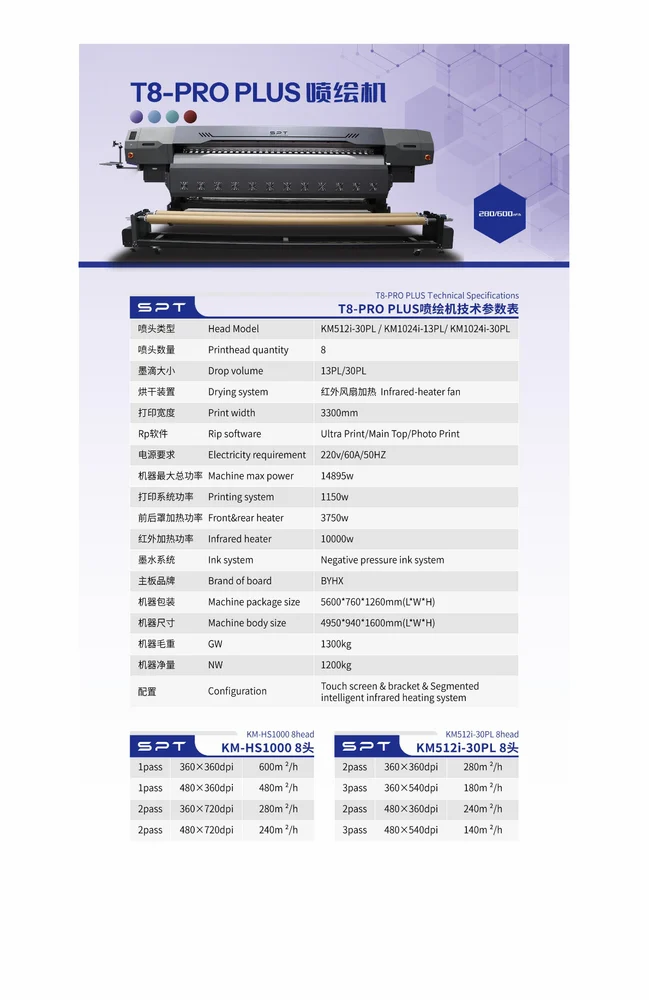

Technical Specifications
| Model | SPT T8 PRO PLUS 320Li |
| Head Configuration | Industrial high-speed heads – KM1024i 13PL / 30PL class (8-head) |
| Print Width | ~3200 mm |
| Colours | 4 colours – CMYK |
| Ink Type | Solvent ink |
| Ink System | Negative-pressure ink system |
| Control Board | BYHX + touch screen |
| Drying | Segmented infrared heating; front & rear heaters |
| RIP Software | UltraPrint / MainTop / PhotoPrint |

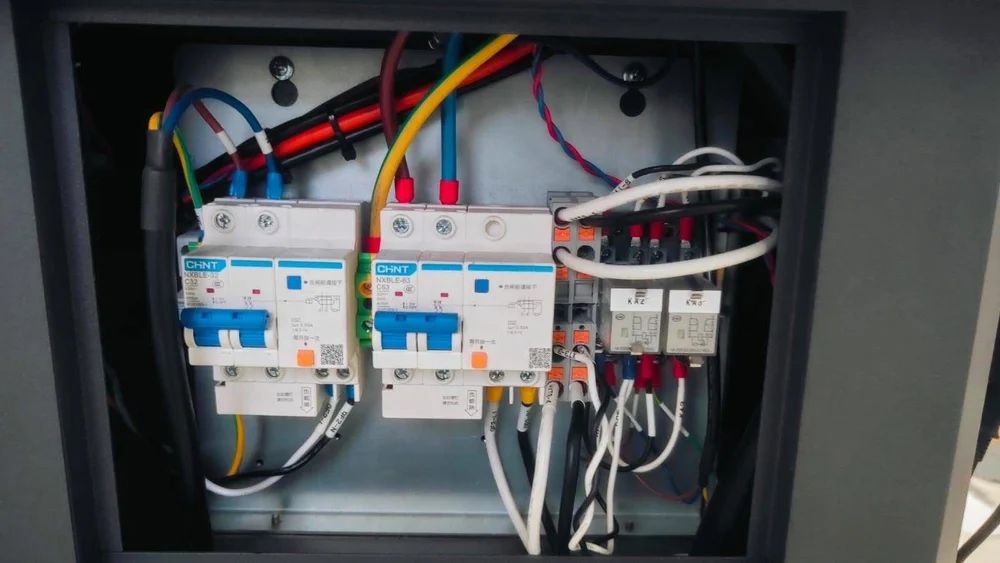

| Power Supply | 220V / 60A / 50Hz |
| Machine Size (platform) | 4950 × 940 × 1600 mm class |
| Weight | ~1200 kg net class |
| Operating Environment | 20–28 °C recommended, 20–80% RH (non-condensing) |
Applications
Typical work: flex banners, vinyl hoardings, backlit flex displays, one-way vision film, mesh banners, PVC vinyl stickers & vehicle graphics, canvas, reflective media and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Genuine imported SPT machines – original factory configuration with standard electronics and manufacturer-backed warranty support, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
