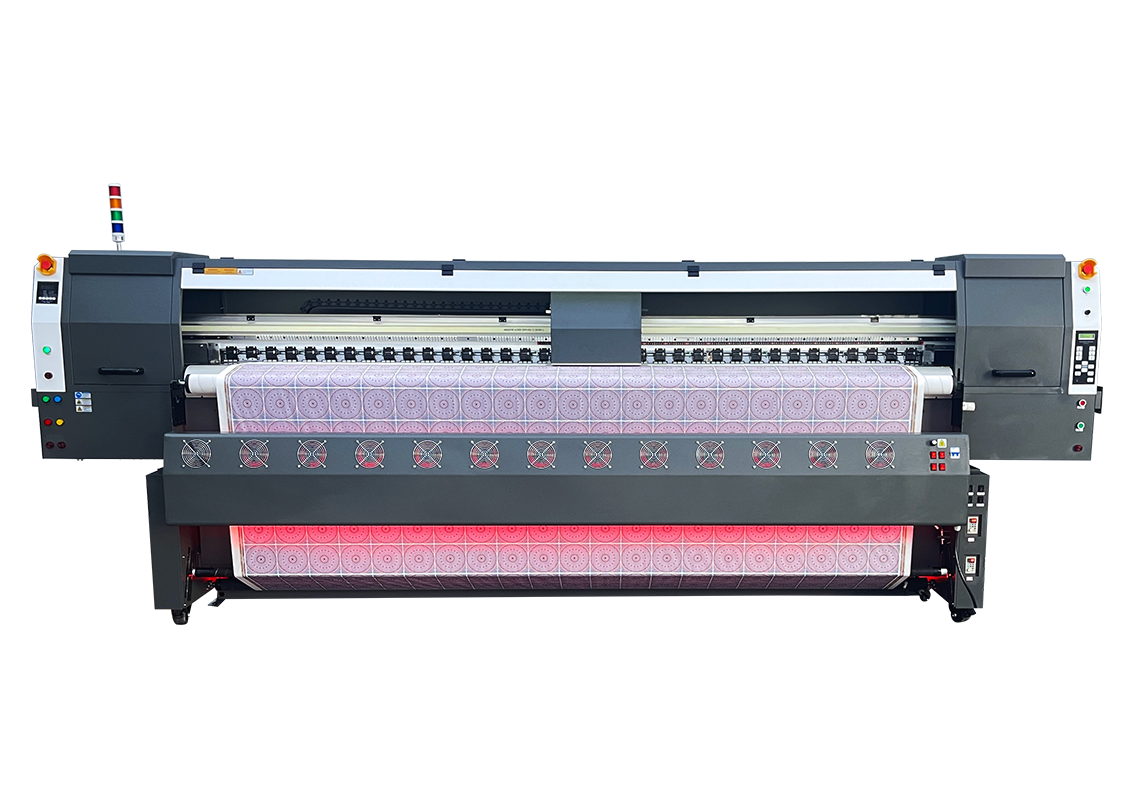

Gethray 1024i Solvent Printer – Overview
The Gethray 1024i Solvent Printer is the higher-production, higher-fidelity member of the family. The Konica KM 1024i head fires a 13 pl drop – less than half the volume of the classic 512i 30 pl – which means visibly smoother gradients and finer type at billboard scale, with industrial firing frequencies that keep speeds in production territory. Media handling stretches from thin films to 2–8 mm thick boards-class flexible media, so one machine covers flex, vinyl, one-way vision, backlit and mesh.
The Gethray 1024I runs all day on flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Konica KM 1024i (13 pl) heads – fine-detail solvent production
- Up to 8-head configurations for higher throughput
- BYHX standard electronics – familiar to every Indian technician
- Panasonic motor and driver for steady carriage control
- Media thickness support up to 8 mm (flexible media with liner)
- Three-zone heating + IR drying for instant-dry output
- MainTop / UltraPrint / PhotoPrint RIP options
Print Speed (configuration dependent (4H / 8H))
| Print Mode | Output Speed |
|---|---|
| 2 pass, 8 heads | up to ~240–480 m²/h |
| 3 pass, 8 heads | up to ~160–200 m²/h |
| 4 pass quality | up to ~100–125 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.
Technical Specifications
| Model | Gethray 1024i (GT3208Ti family) |
| Print Head | Konica Minolta KM 1024i, 13 pl (4/8 head configurations) |
| Max. Media Width | 3300 mm |
| Max. Print Width | 3.2 m |
| Ink Type | Solvent ink |
| Colours | CMYK, 4 colours |
| Printing Resolution | Up to 1440×720 dpi class |
| Media Thickness | 2–8 mm (flexible media with liner) |
| Media | Flex, vinyl, banner, backlit flex, mesh, one-way vision |
| Control | Standard BYHX electronics |
| Drive | Panasonic motor & driver |
| RIP Software | MainTop 6.1 / UltraPrint / PhotoPrint |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Operating Environment | 15–30 °C, 40–65% RH |
Applications
Typical work: flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
