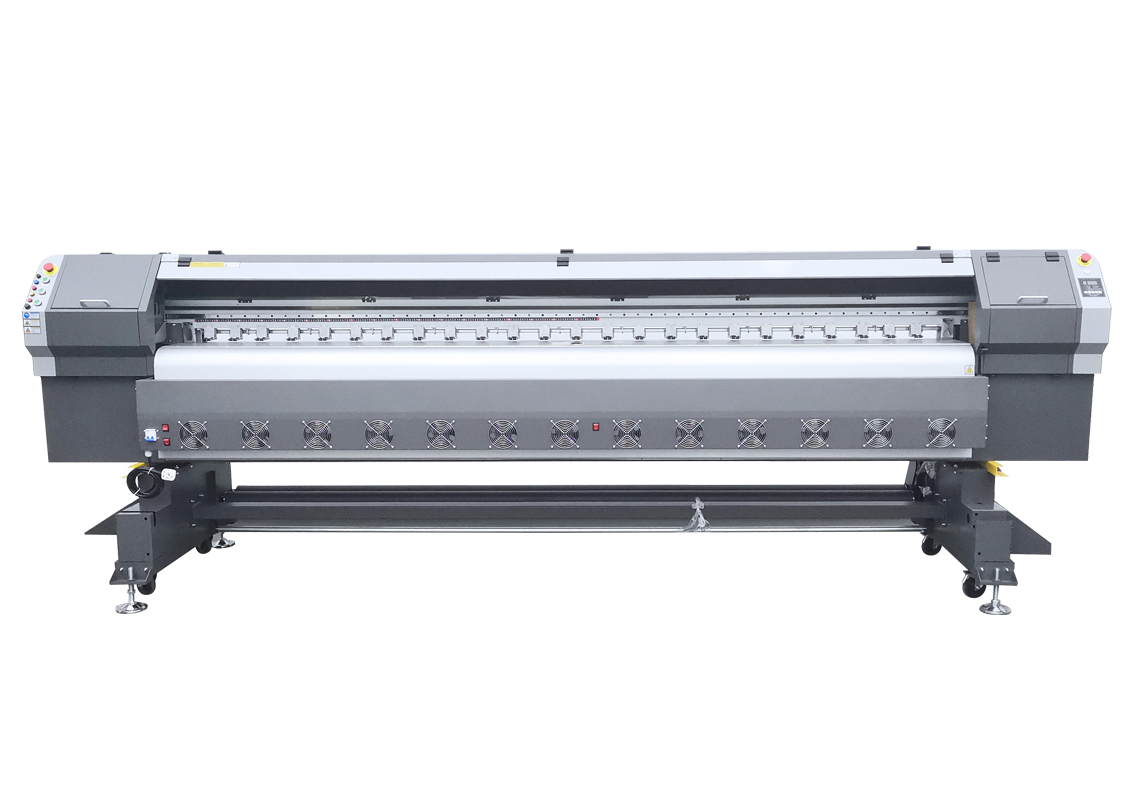

Gethray C45 Solvent Printer – Overview
The Gethray C45 Solvent Printer is the flexible one: one chassis, two head technologies. Choose Konica KM 1024i (13 pl) when your orders include close-viewing retail graphics, or Konica 512i (30 pl) when the day is all about bulk flex volume – or run a mixed fleet strategy on the same platform. Four or eight head slots are available; the 8-head 2-pass configuration reaches up to 480 m²/h under factory conditions. With front, bed and rear heating plus infrared drying and fan assist, prints go straight to finishing.
The Gethray C45 runs all day on flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Konica KM 1024i (13 pl) or Konica 512i (30 pl) heads – 4H / 8H layouts
- Up to 480 m²/h (8 heads, 2-pass, manufacturer conditions)
- 3.2 m width – flex, vinyl, banner, mesh, one-way vision, PVC & PP media
- Front + printing-bed + rear heaters, IR dryer and dual fan rows
- UltraPrint RIP with infrared drying integration
- 220 V ± 10% supply, >20 A – standard Indian industrial power
- Windows 7 / 8 / 10 / 11 compatible workflow
Print Speed (manufacturer conditions)
| Print Mode | Output Speed |
|---|---|
| 2 pass, 4 heads | up to 240 m²/h |
| 2 pass, 8 heads | up to 480 m²/h |
| 4 pass, 4 heads (480×720) | up to 125 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.
Technical Specifications
| Model | Gethray C45 |
| Print Head Options | Konica KM 1024i (13 pl) / Konica 512i (30 pl) – 4 or 8 heads |
| Max. Print Width | 3.2 m |
| Ink Type | Solvent ink |
| Colours | CMYK, 4 colours |
| Printing Resolution | Up to 1440×720 dpi |
| Heating & Drying | Front + bed + rear heaters; infrared drying with fans |
| RIP Software | UltraPrint / MainTop / PhotoPrint |
| Media | Flex, vinyl, banner, mesh, one-way vision, backlit, PP/PVC media |
| Power Supply | AC 220 V ± 10%, >20 A, 50 Hz |
| Machine Size | 4580 × 980 × 1550 mm (L×W×H) |
| Weight | N.W. 890 kg · G.W. 1040 kg |
| Operating System | Windows 7 / 8 / 10 / 11 (32 & 64-bit) |
| Operating Environment | 15–35 °C, 40–65% RH |
Applications
Typical work: flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
