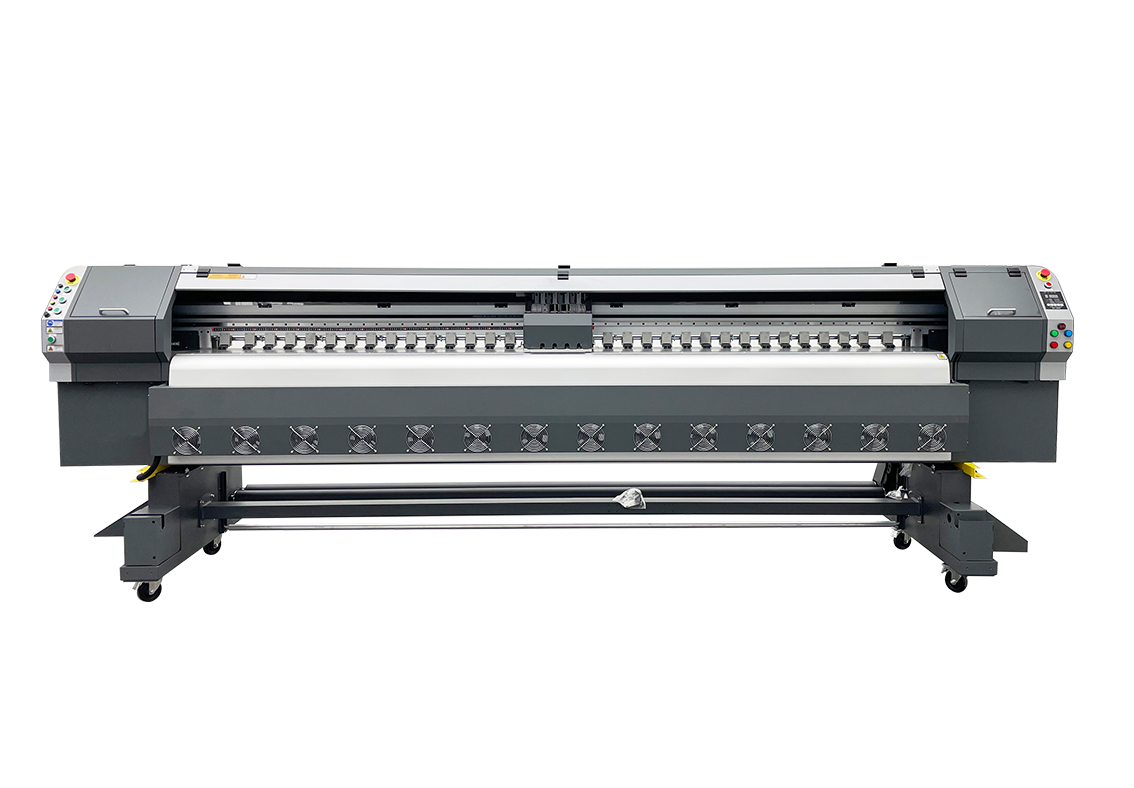

Gethray C85 Flex Printer – Overview
The Gethray C85 Flex Printer is for buyers who equate weight with reliability – correctly so. The heavy-body chassis keeps the carriage rail geometry true for years, which is what protects print quality long after lighter machines start banding. Ink-system hardware is industrial throughout: SPD air and ink pumps, anti-solvent 3-way magnetic valves, American ValuePlastics tube connectors, individual ink purging and a suction-type waste-ink tank. Add three-zone heating, a 3500 W IR dryer and 24 V subtank heating, and the C85 runs cold monsoon mornings as happily as May afternoons.
The Gethray C85 runs all day on flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Heavy-body 3.2 m chassis – long-term mechanical accuracy
- 3400 mm multi-function feeding with black & white media sensors
- Positive/negative pressure ink system with solenoid subtanks
- Ink-supply and air-tank alarms shown on board and in RIP software
- 3500 W IR heater + rear/bed/front heating zones
- Optional 5 L refill bottles with liquid-level sensors
- MainTop 6.1 / PhotoPrint RIP, LAN, Windows 10 64-bit

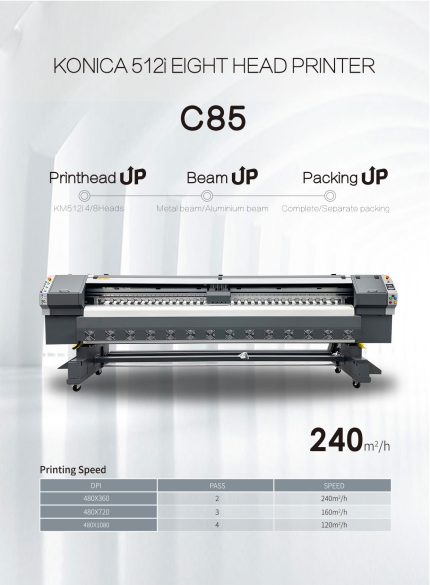

Print Speed (manufacturer test conditions (head configuration dependent))
| Print Mode | Output Speed |
|---|---|
| 2 pass production | up to 240 m²/h |
| 3 pass production | up to 160 m²/h |
| 4 pass quality | up to 125 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.

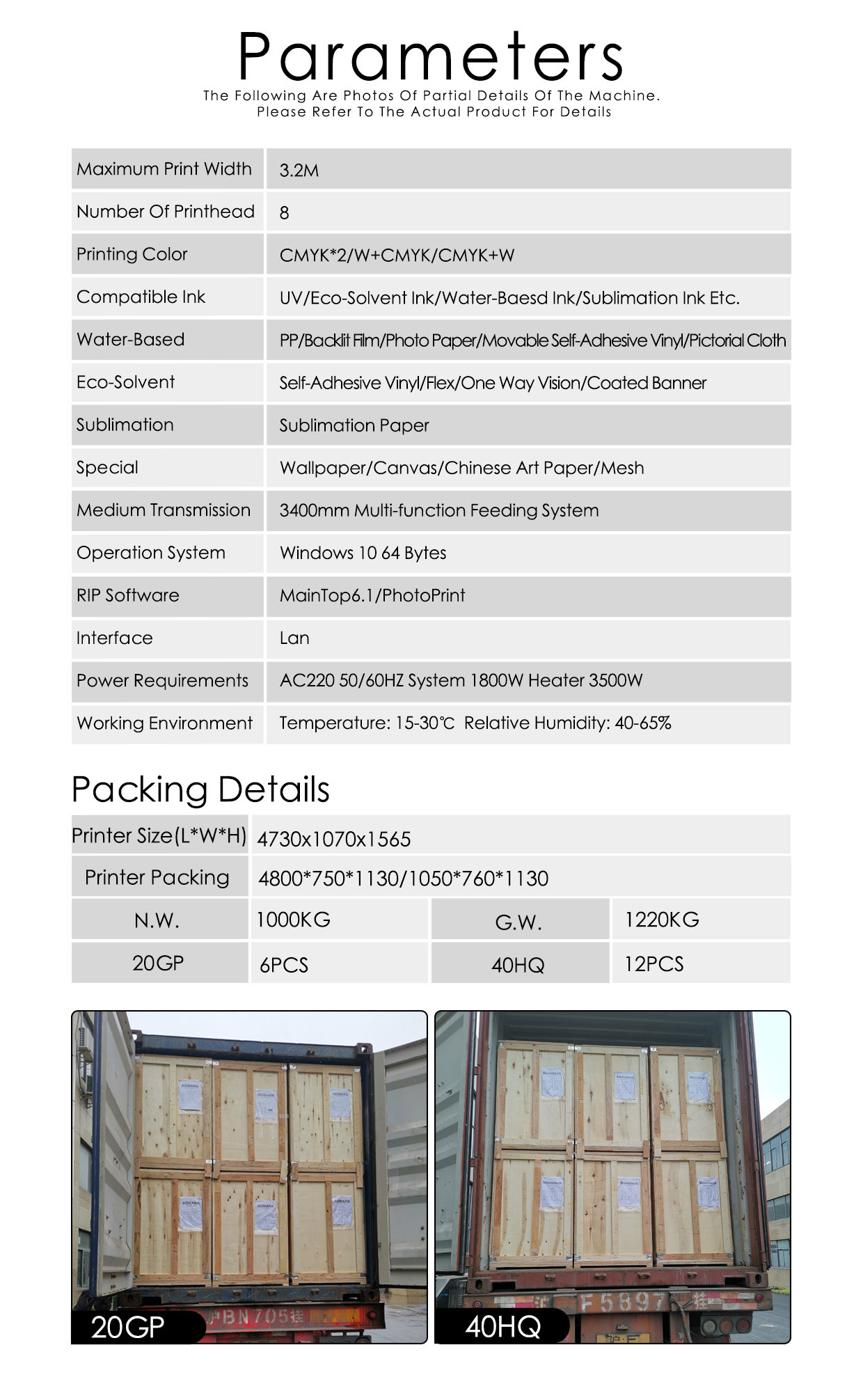

Technical Specifications
| Model | Gethray C85 |
| Print Head | Konica 512i solvent configuration (30 pl) |
| Max. Print Width | 3.2 m |
| Media Feeding | 3400 mm multi-function feeding & take-up, black/white detect sensors, levelling stand |
| Ink Type | Solvent ink |
| Colours | CMYK, 4 colours |
| Printing Resolution | Up to 720×1440 dpi |

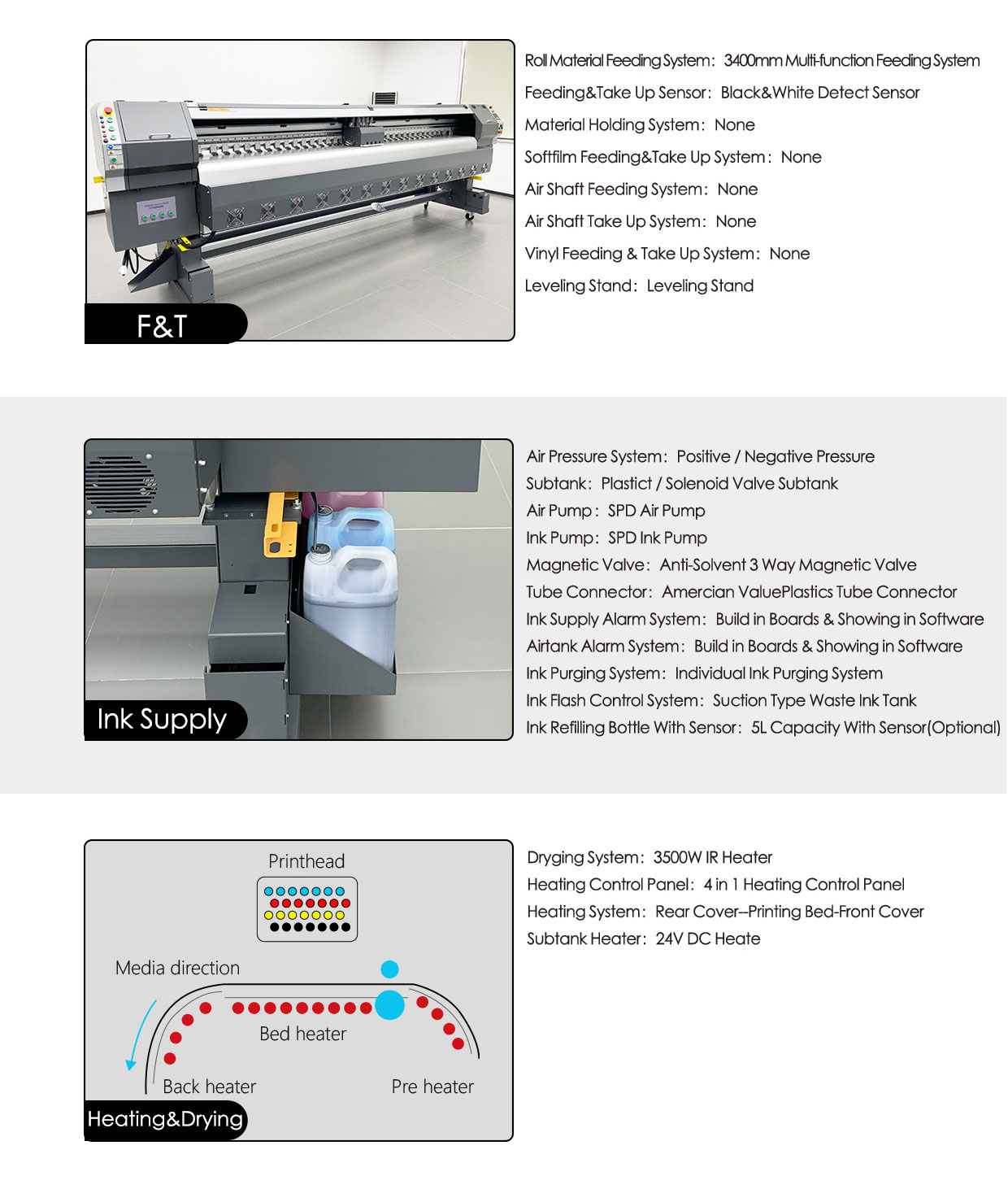

| Ink System | SPD air & ink pumps, anti-solvent 3-way magnetic valves, ValuePlastics connectors, individual purging |
| Heating & Drying | 3500 W IR heater; rear – bed – front heating; 24 V DC subtank heater |
| RIP Software | MainTop 6.1 / PhotoPrint |
| Interface | LAN |
| Power Supply | AC 220 V, 50/60 Hz |
| Operating System | Windows 10, 64-bit |
| Weight | approx. 1000 kg class (configuration dependent) |
| Operating Environment | 15–30 °C, 40–65% RH |
Applications
Typical work: flex banners, vinyl hoardings, self-adhesive vinyl, one-way vision film, mesh, backlit flex, coated banner, PVC and PP media, canvas and fabric backdrops. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
