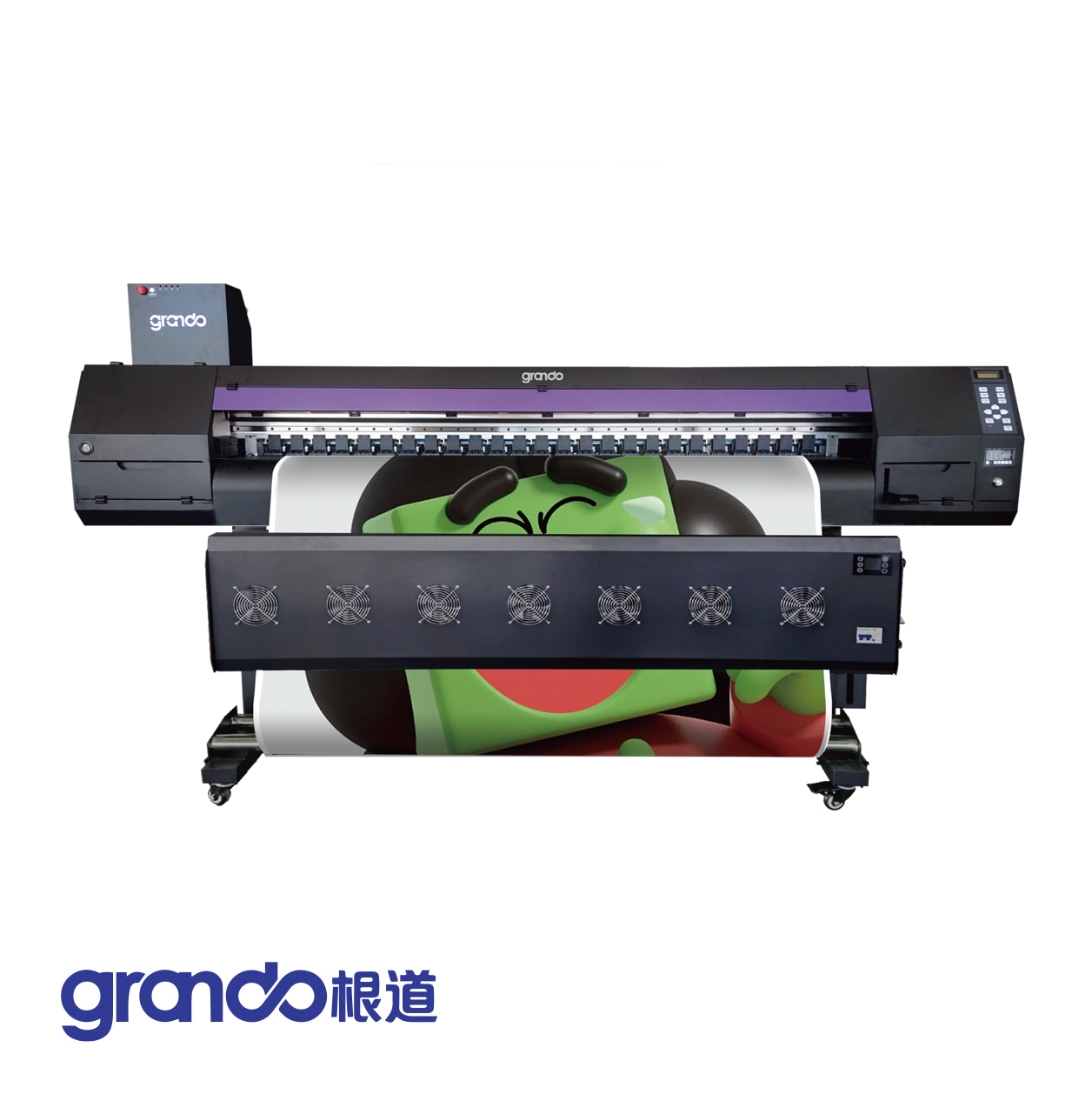

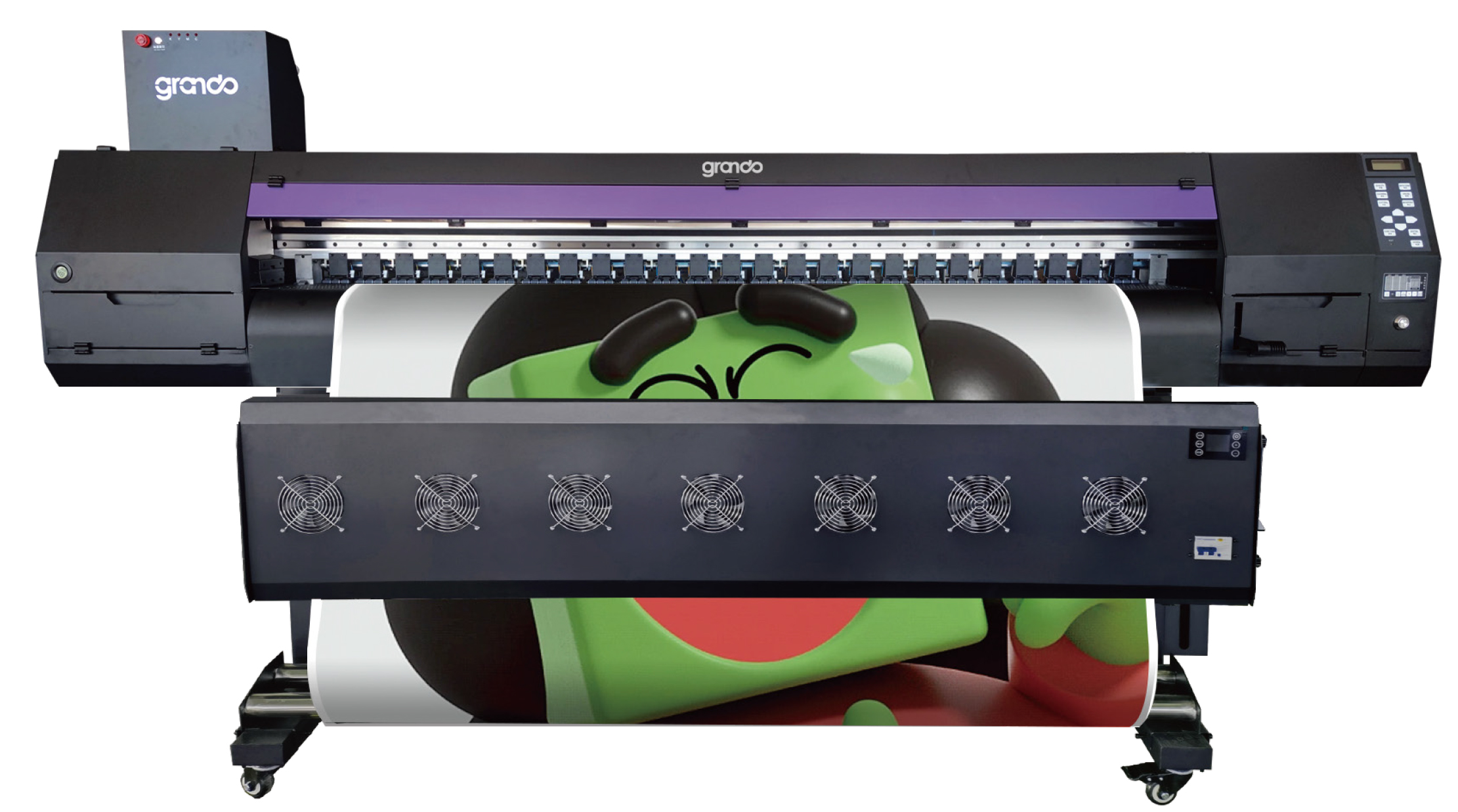

GRANDO GD-2202 Eco Solvent Printer – Overview
The GRANDO GD-2202 Eco Solvent Printer is the sweet spot of the 2.2 m Grando range: two Epson I3200-E1 print heads for real production speed, plus a feature set you normally see only on premium European machines. The GD-2202 supports AI voice dialogue – switch the printer on, control lighting and fan status by voice – and a remote control system that lets you power up and monitor the machine from your mobile phone, whether you are at home or in the office.
Designed as a true roll-to-roll production machine, the GD-2202 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.
Key Features
- Two Epson I3200-E1 print heads – up to 38 m²/h in 4-pass production mode

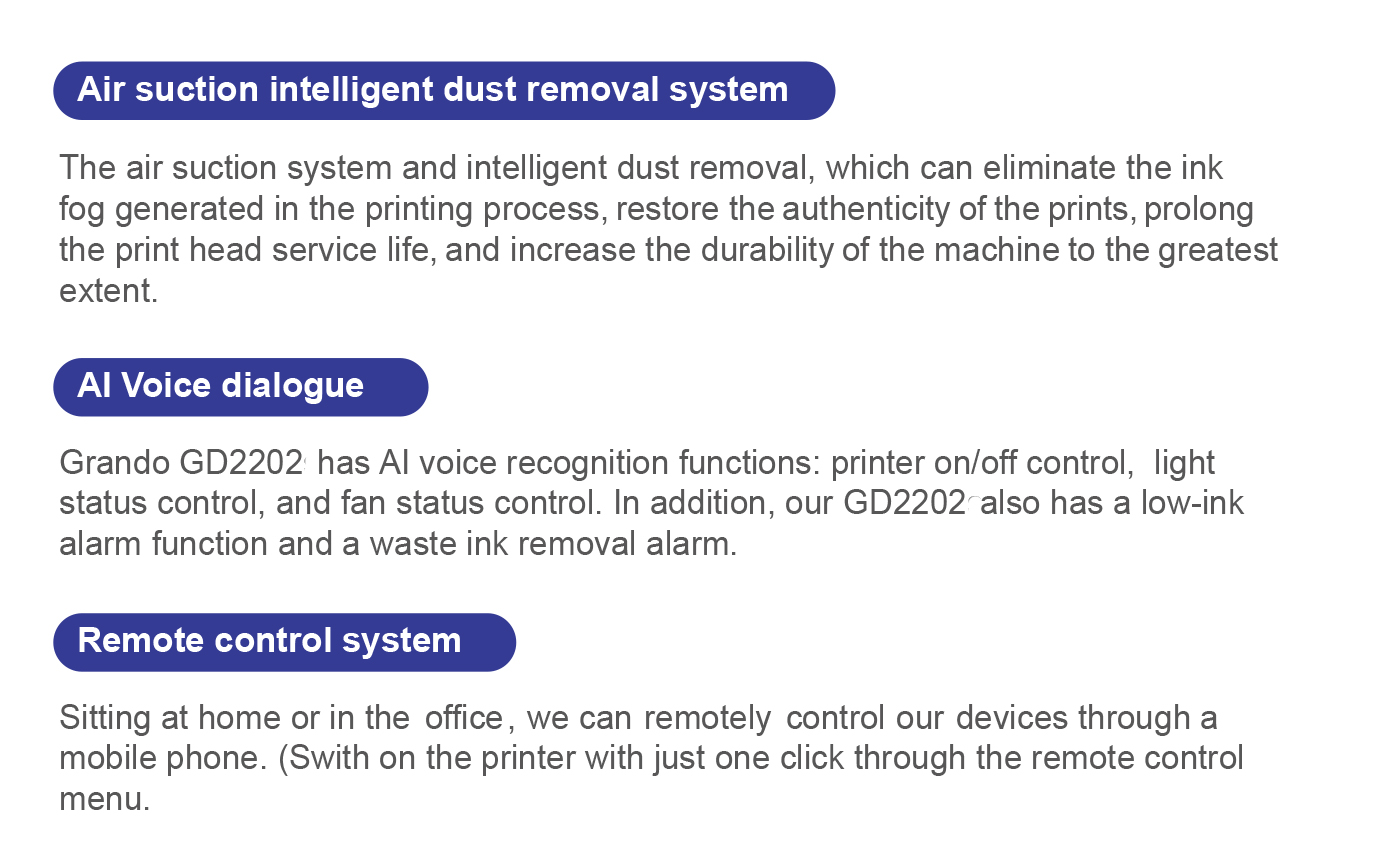

- AI voice recognition: printer on/off, light and fan control
- Remote mobile control – one-click power-on from anywhere

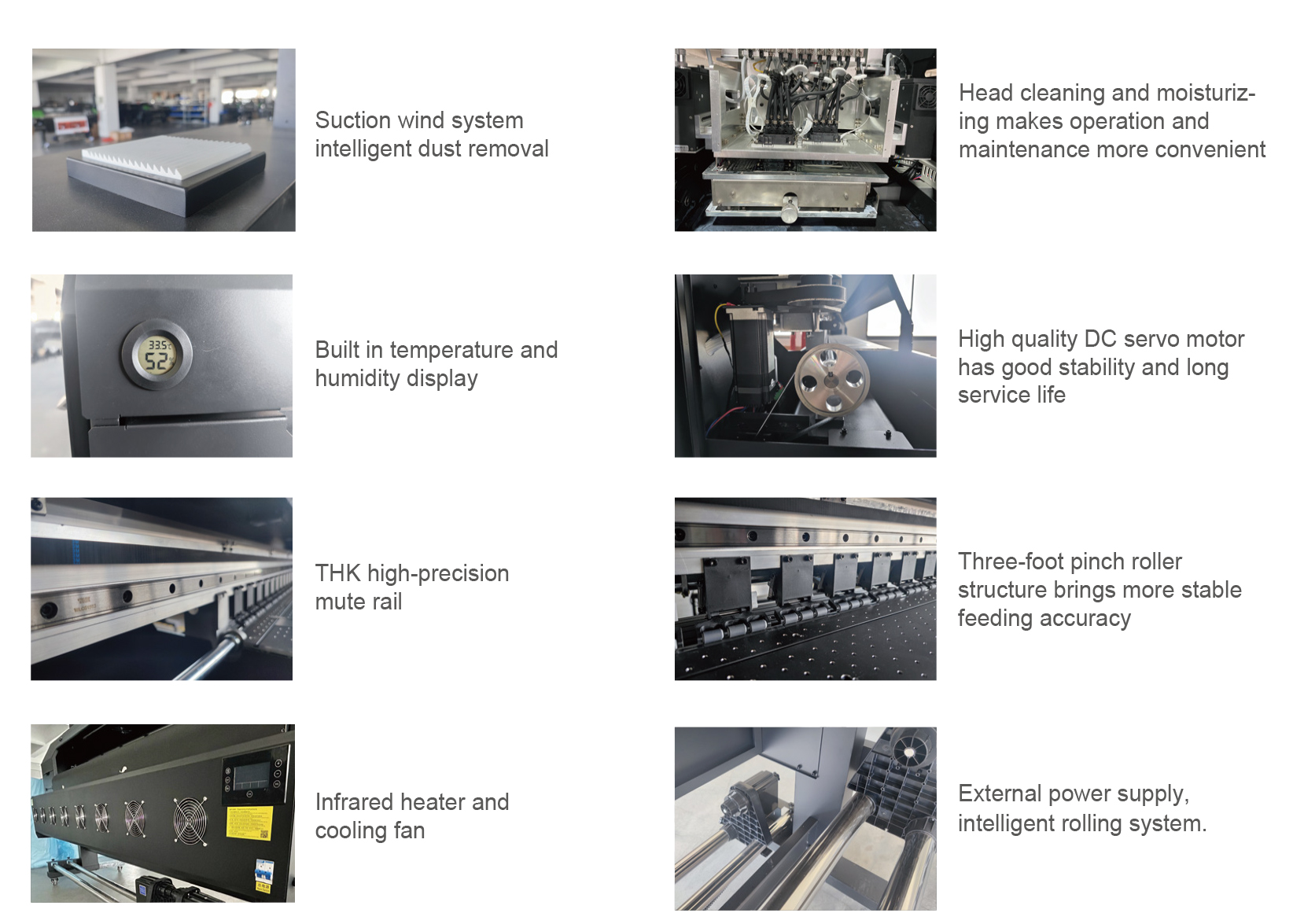

- Air-suction intelligent dust removal eliminates ink mist for sharper, truer colour
- THK high-precision mute rail + quality DC servo motor for silent, stable carriage motion
- Three-foot pinch roller structure for accurate, wrinkle-free media feeding
- Built-in temperature & humidity display
- 3 L bulk ink tank + 220 ml secondary cartridges; low-ink and waste-ink alarms
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 38 m²/h |
| 6 pass (720×1800 dpi) | 27 m²/h |
| 8 pass (720×2400 dpi) | 19 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | GD-2202 |
| Print Head | Two Epson I3200-E1 print heads |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 2200 mm |
| Acceptable Media | Width 2230 mm · Thickness max. 1 mm · Weight max. 100 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 220 ml secondary ink cartridges with 3 L bulk ink tank |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Integrated post heater + infrared dryer + cooling fan system |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz · 6500 W |
| Dimensions (with stand) | 2861 (W) × 806 (D) × 900 (H) mm |
| Weight (with stand) | 480 kg |
| Package Dimensions | 3270 (W) × 790 (D) × 1000 (H) mm |
| Package Weight | 580 kg (entirety) / 470 kg (split packing) |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | Stand, take-up & discharge device, cold-air drying system, large ink supply system, RIP software, manual |
Applications
The GD-2202 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
