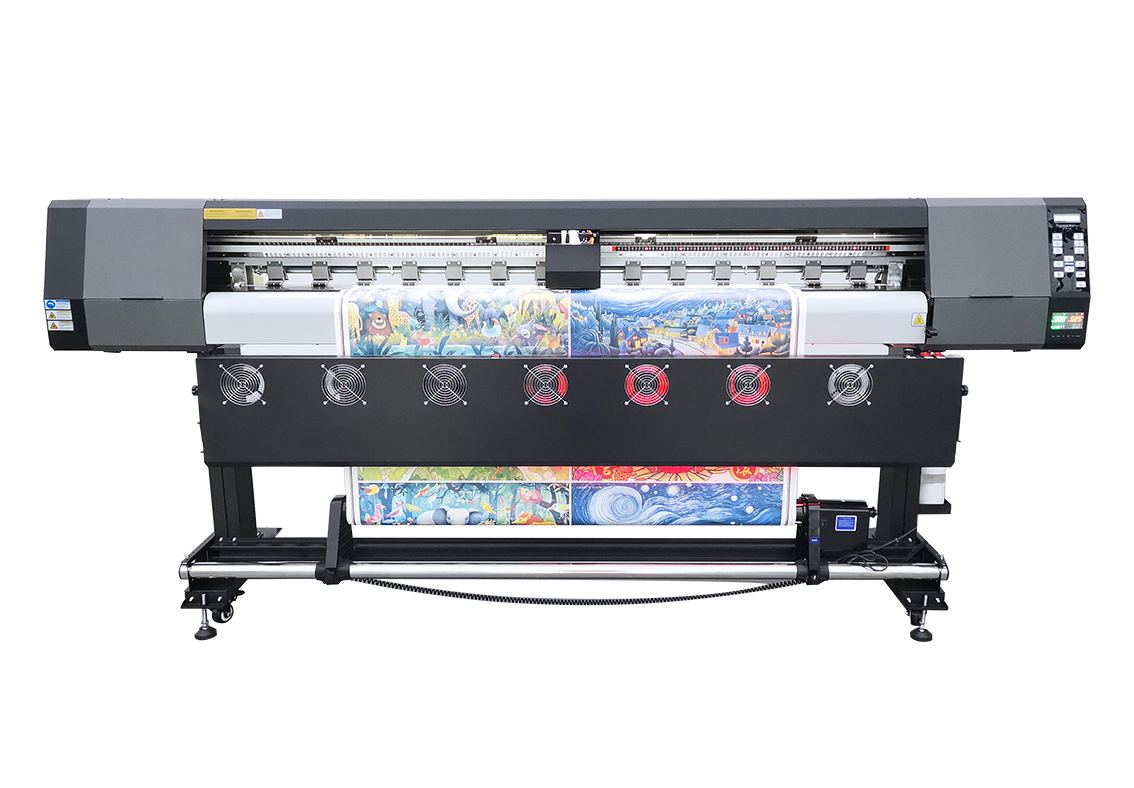

Gethray EP1601 Eco Solvent Printer – Overview
The Gethray EP1601 Eco Solvent Printer brings the Epson i3200 generation to the small-shop format. Piezo-electric nozzles with 3.8 pl variable drops produce the smooth gradients and crisp small text that solvent machines cannot touch, while eco-solvent ink keeps prints outdoor-tough. The EP platform (EP1601 / EP1801 / EP2101) shares a rigid 160×60 mm square-tube girder, 13 precision pinch rollers, adjustable vacuum bed and automatic capping & wiping – so head health stays protected with basic daily discipline.
The Gethray EP1601 runs all day on self-adhesive vinyl stickers, car decals, PP & photo paper posters, backlit film, canvas prints, wallpaper and coated banner. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Epson i3200 micro-piezo head, 3.8–8.7 pl variable droplet (3 levels)
- Speeds to 24.5 m²/h – fast enough for same-day sticker & banner jobs
- Bulk ink supply system keeps ink cost per m² low
- Adjustable vacuum suction bed + LED bed lighting
- Italy Megadyne belt + Germany Igus data/power cables
- 180 dpi (9730) encoder – accurate step handling, no banding
- Automatic capping & wiping station protects the head between jobs
Print Speed (single i3200 head, manufacturer conditions)
| Print Mode | Output Speed |
|---|---|
| 3 pass (360×1800 dpi) | up to 24.5 m²/h |
| 4 pass (720×1200 dpi) | up to 18 m²/h |
| 6 pass (720×1800 dpi) | up to 12.5 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.

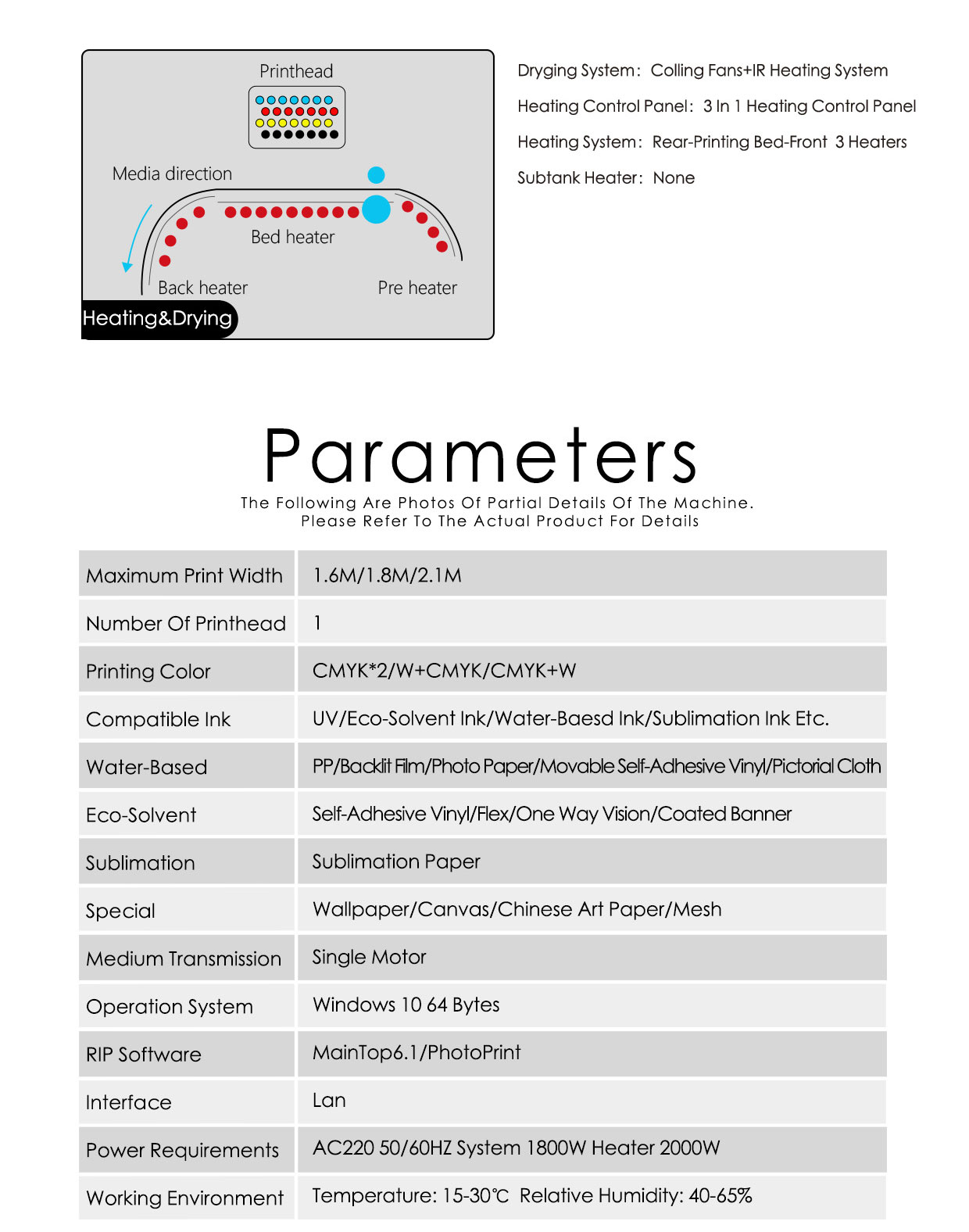

Technical Specifications
| Model | Gethray EP1601 (EP1601 / EP1801 / EP2101 family) |
| Print Head | Epson i3200 (1 head; 2-head versions available) |
| Droplet | 3.8 pl minimum, 3-level variable drop |
| Max. Print Width | approx. 1.5–1.6 m (EP1601); 1.8 / 2.1 m siblings |
| Ink Type | Eco-solvent ink, bulk supply system |
| Colours | CMYK, 4 colours |
| Media | All coated media – vinyl, PP, backlit film, photo paper, canvas |
| Frame | 160×60×3 mm square tube girder; metal carriage beam |
| Motion | Single linear guide with one block; Y-axis 20 mm; 180 dpi encoder |
| Printing Bed | 144 mm wide bed, adjustable vacuum suction, LED lighting |
| Pinch Rollers | 13 pcs precision pinch rollers |
| Capping | Automatic capping & wiping system |
| Carriage Lifting | Manual screw-type height adjustment |
| Interface | LAN |
| Operating Environment | 15–30 °C, 40–65% RH |
Applications
Typical work: self-adhesive vinyl stickers, car decals, PP & photo paper posters, backlit film, canvas prints, wallpaper and coated banner. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
