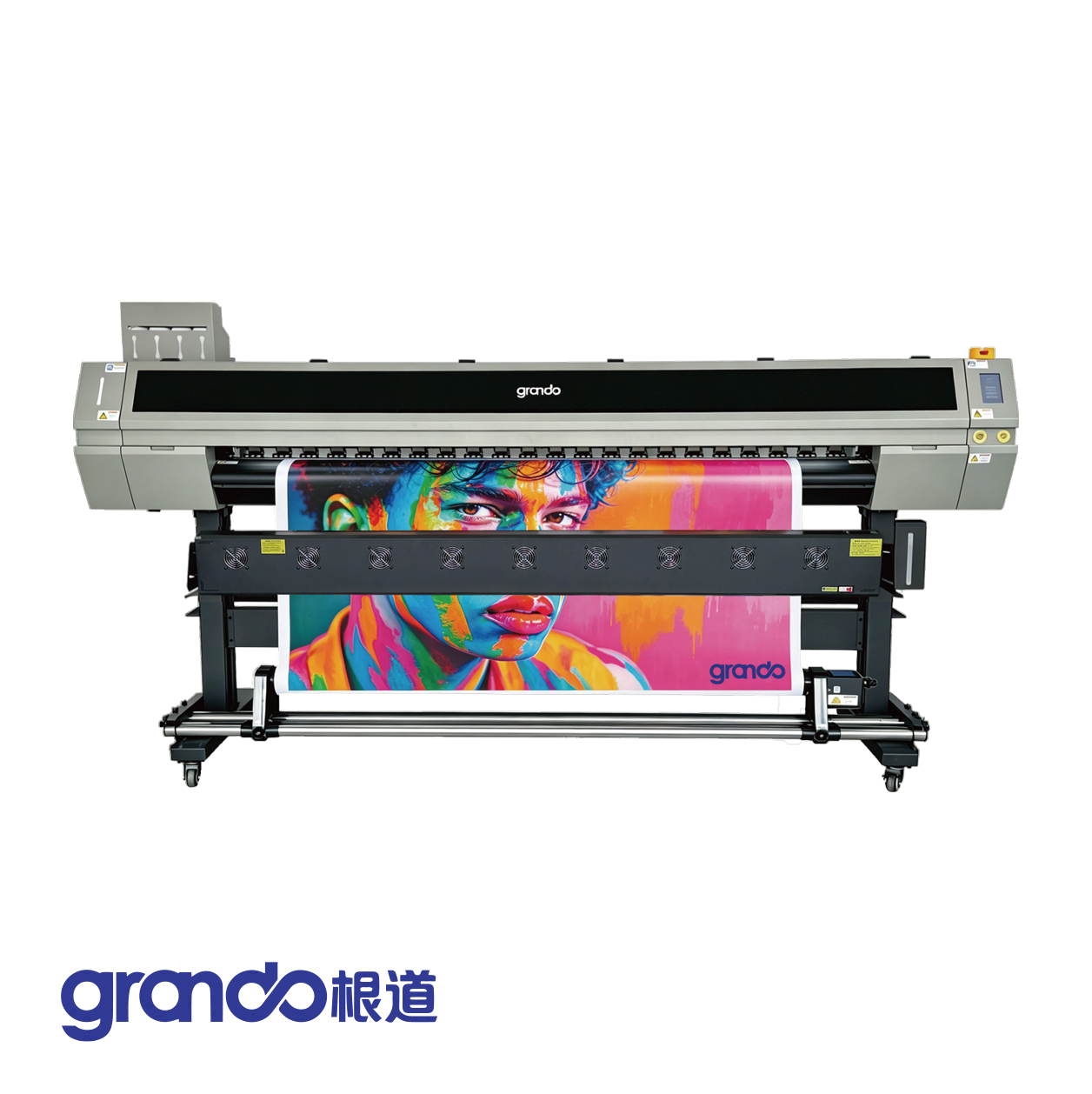

GRANDO GD-2201S Eco Solvent Printer – Overview
The GRANDO GD-2201S Eco Solvent Printer is engineered for print businesses that need 2.2-metre output on a sensible budget. Instead of forcing you into a multi-head machine, the GD-2201S pairs one high-performance Epson I3200 precision head with a heavily built, integrated welded frame, THK high-precision mute guide rail and magnetic encoder positioning – so it stays stable and drift-free even on long unattended print runs.
Designed as a true roll-to-roll production machine, the GD-2201S prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.
Key Features
- Single Epson I3200 (I3200/I3200HD) print head – 2400 dpi class image quality
- Print speeds up to 27.4 m²/h (4 pass) – ideal for daily banner & sticker workloads
- Integrated post heater, infrared dryer & fan system for fast drying on vinyl and flex
- 4×4 CISS (220 ml cartridges + 1.5 L tank); optional 8×8 CISS for 8-colour printing
- Touchscreen control, electric pinch rollers, LED lighting and 3-colour status indicator
- Low-ink alarm and waste-ink alarm for worry-free overnight printing
- Dense vacuum-hole reinforced platform + adjustable carriage for different media thicknesses
- Dual-motor take-up system for neat, tight rolls on long jobs
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (720×1200 dpi) | 27.4 m²/h |
| 6 pass (720×1800 dpi) | 18.3 m²/h |
| 8 pass (720×2400 dpi) | 13.7 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | GD-2201S |
| Print Head | Single Epson I3200 (I3200 / I3200HD) print head |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 2200 mm |
| Acceptable Media | Width 2200 mm · Thickness max. 1 mm · Weight max. 100 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 4×4 CISS (220 ml cartridge with 1.5 L ink tank); 8×8 CISS (8-colour) optional |
| Colours | CMYK (CMYK Lc Lm Lk Llk 8-colour optional) |
| Printing Resolution | 720×1200 / 720×1800 / 720×2400 dpi (max. 2400 dpi) |
| Media Heating | Integrated post heater + infrared dryer + cooling fan system |
| Interface | TCP network port (LAN) |
| Power Supply | AC 220 V ± 10%, 50/60 Hz · 4000 W |
| Dimensions (with stand) | 2861 (W) × 806 (D) × 900 (H) mm |
| Weight (with stand) | 480 kg |
| Package Dimensions | 3270 (W) × 620 (D) × 1700 (H) mm |
| Package Weight | 580 kg (entirety) / 470 kg (split packing) |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | Stand, take-up & discharge device, cold-air drying system, bulk ink supply system, USB cable, media clamp, drain bottle, RIP software, manual |
Applications
The GD-2201S is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
