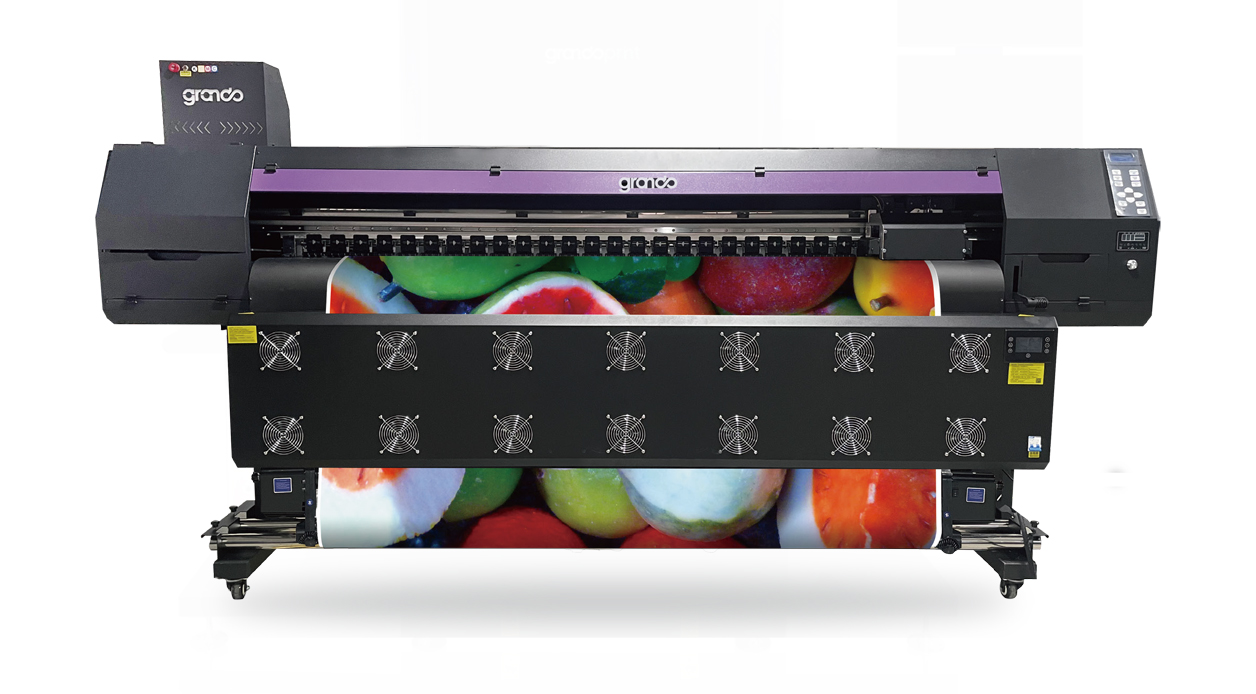

GRANDO GD-2204 Eco Solvent Printer – Overview
The GRANDO GD-2204 Eco Solvent Printer is built for volume. Four Epson I3200-E1 heads on a THK high-precision mute rail deliver up to 75 m²/h in 4-pass mode – that is roughly 30+ full flex banners per hour – while variable-droplet technology (min. 3.5 pl) keeps photographic quality intact up to 2400 dpi. For growing Indian signage businesses, it is the machine that turns one-machine shops into production houses.
Designed as a true roll-to-roll production machine, the GD-2204 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.

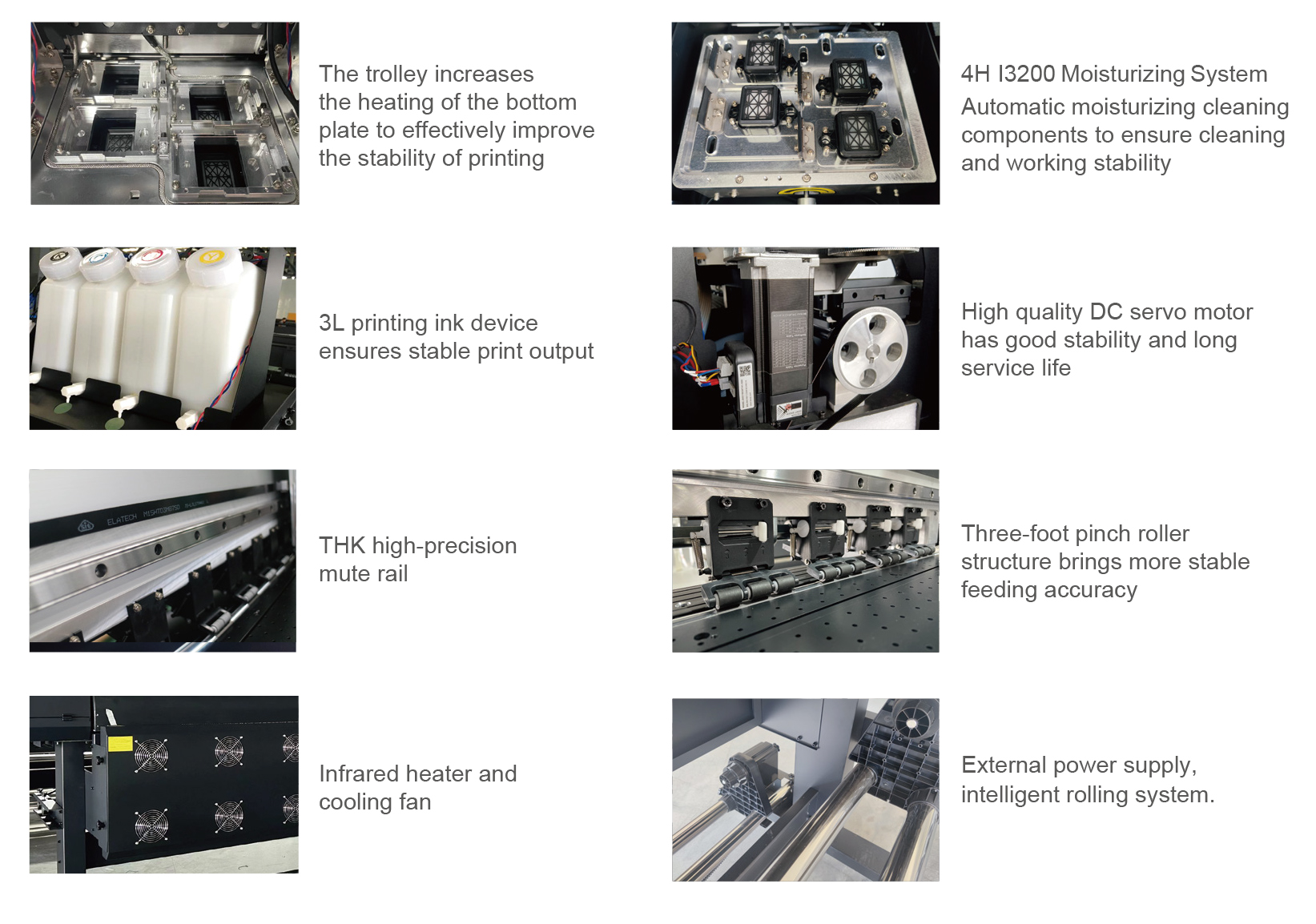

Key Features
- Four Epson I3200-E1 print heads – production speeds up to 75 m²/h
- Variable ink droplet (min. 3.5 pl) for photographic gradients and sharp small text
- 4H I3200 moisturising system – automatic cleaning & capping keeps heads healthy
- Air-suction intelligent dust-removal system removes ink fog during printing
- Trolley base-plate heating improves print stability on PVC and vinyl
- 3 L bulk ink device + cartridge system for stable long-run output
- Three-foot pinch roller structure for high feeding accuracy
- Infrared heater + cooling fan; external power, intelligent rolling system
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 75 m²/h |
| 6 pass (720×1800 dpi) | 54 m²/h |
| 8 pass (720×2400 dpi) | 38 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | GD-2204 |
| Print Head | Four Epson I3200-E1 print heads |
| Printing Technology | Piezoelectric inkjet · min. 3.5 pl variable droplet |
| Max. Printing Width | 2200 mm |
| Acceptable Media | Width 2230 mm · Thickness max. 1 mm · Weight max. 100 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 3 L bulk ink tank system |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Three-stage heating system (pre / print / rear) + trolley base heating |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz · 7500 W |
| Dimensions (with stand) | 3260 (W) × 914 (D) × 1618 (H) mm |
| Weight | N.W. 350 kg · G.W. 450 kg |
| Package Dimensions | 3350 (W) × 760 (D) × 1040 (H) mm |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | Stand, take-up & discharge device, cold-air drying system, large ink supply system, RIP software, manual |
Applications
The GD-2204 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
