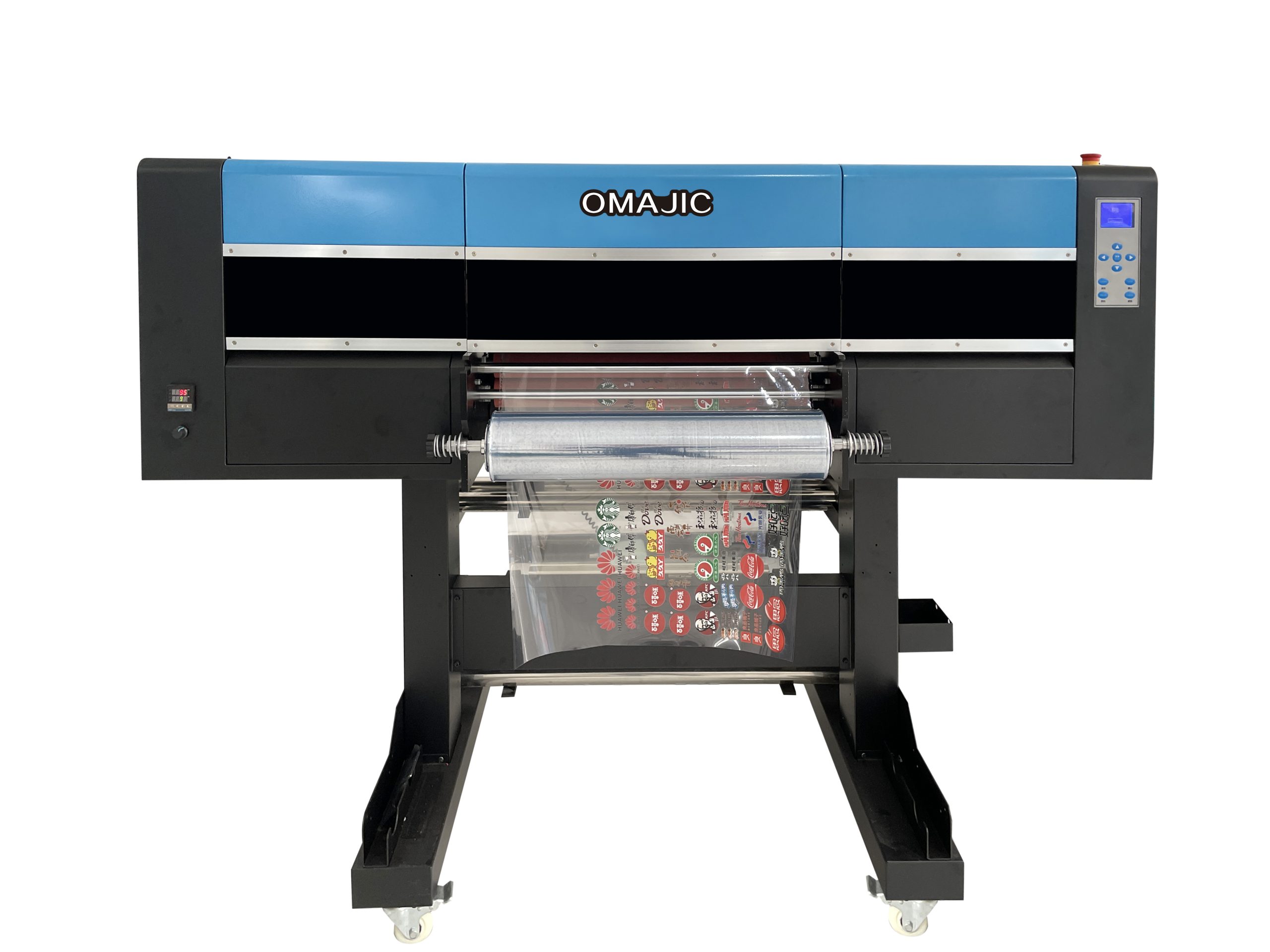

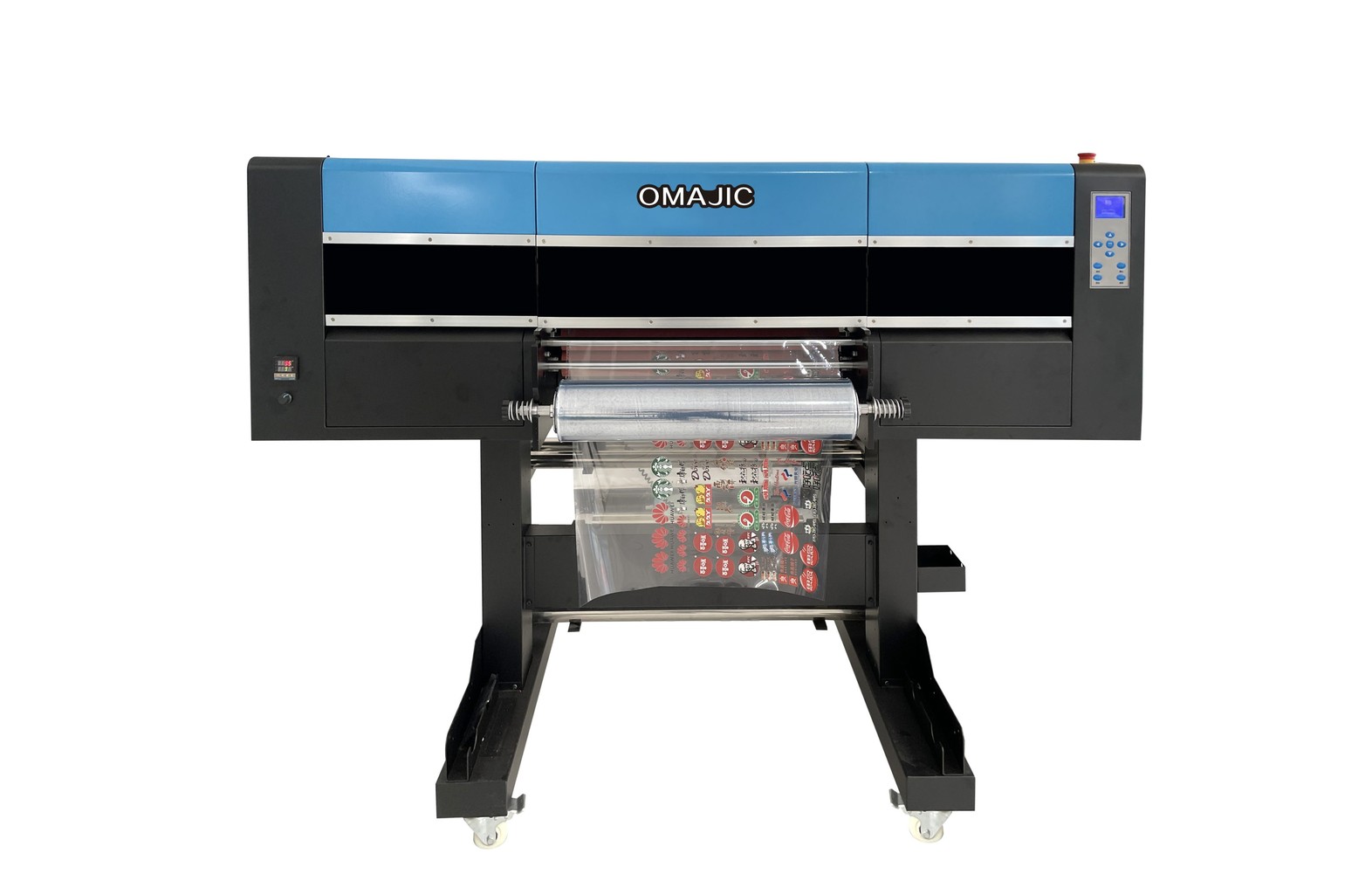

OMAJIC A1 UV DTF Printer (3–4× i3200-U1) – Overview
The OMAJIC A1 UV DTF printer produces premium crystal (cold-transfer) stickers in a single pass: 3–4 Epson i3200-U1 heads lay CMYK + White + Varnish straight onto A-film with UV-instant curing; laminate with B-film and transfer onto practically any hard surface – flat, curved or irregular. No typesetting, no engraving, no heat press: just glossy, 3D-effect, scratch-proof labels on demand.
The OM-UVDTFA1 handles daily production on custom stickers & crystal labels for bottles, tumblers, helmets, glassware, wooden products, laptops, gift boxes, phone cases, awards and any hard or irregular surface. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- 3–4 × Epson i3200-U1 UV heads – direct print, high accuracy, vivid colour, no colour difference
- Negative-pressure circulating ink circuit – smooth, uninterrupted printing
- Three-dimensional glossy patterns with no typesetting or engraving
- Ultra-quiet guide rail + strong aluminium-alloy beam, integrated moulded platform for stability
- Anti-collision trolley protects heads through long production runs
- Roll-to-roll AB-film workflow – print, laminate, peel & stick
- Stickers apply to glass, metal, plastic, wood, ceramic, leather – flat or curved
- Compact A1 footprint with stand; easy single-operator workflow
Print Speed (3–4× i3200-U1 · 60cm film, class figures)
| Print Mode | Output Speed |
|---|---|
| 3 heads, production 6 pass | up to ~6–8 m²/h (class) |
| 4 heads, production 6 pass | up to ~8–12 m²/h (class) |
| High quality / gloss varnish | up to ~4–6 m²/h (class) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC A1 UV DTF |
| Print Heads | 3–4 × Epson i3200-U1 (UV) |
| Print Width | A1 / ~600mm roll-to-roll film |
| Process | UV DTF AB-film (print A-film → laminate B-film → cold transfer) |
| Ink Type | UV DTF ink |
| Ink Colours | CMYK + White + Varnish (same-pass) |
| Curing | UV LED instant cure |
| Ink Circuit | Negative-pressure continuous circulation |
| Construction | Aluminium-alloy beam, ultra-quiet rail, moulded platform |
| Protection | Anti-collision head trolley |
| RIP Software | Maintop / Photoprint, Windows 7 / 10 |
| Machine Size | 1950 × 960 × 1660 mm (with stand) |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Operating Environment | 20–28 °C recommended, 40–60% RH, dust-controlled |
Applications
Typical work: custom stickers & crystal labels for bottles, tumblers, helmets, glassware, wooden products, laptops, gift boxes, phone cases, awards and any hard or irregular surface. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
