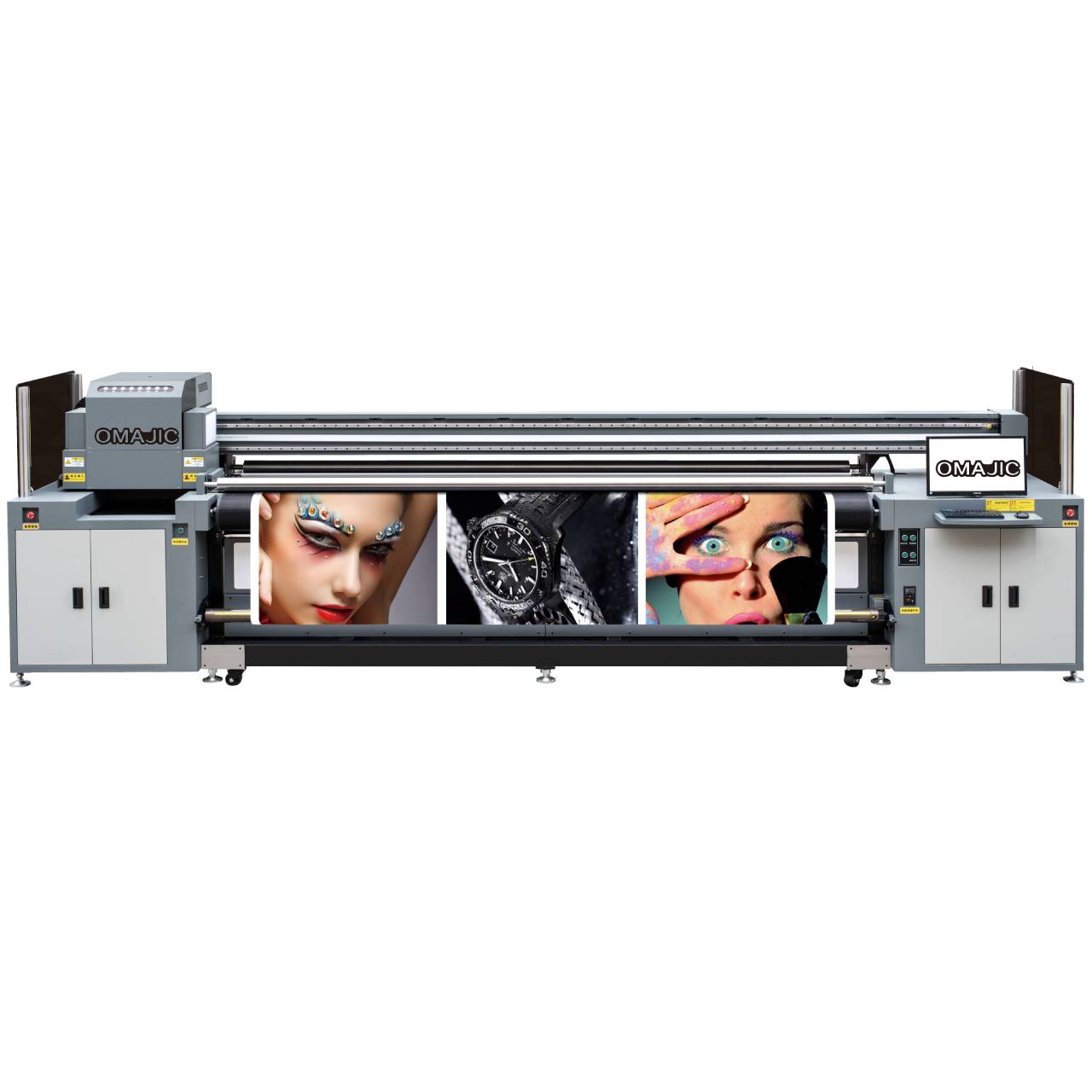

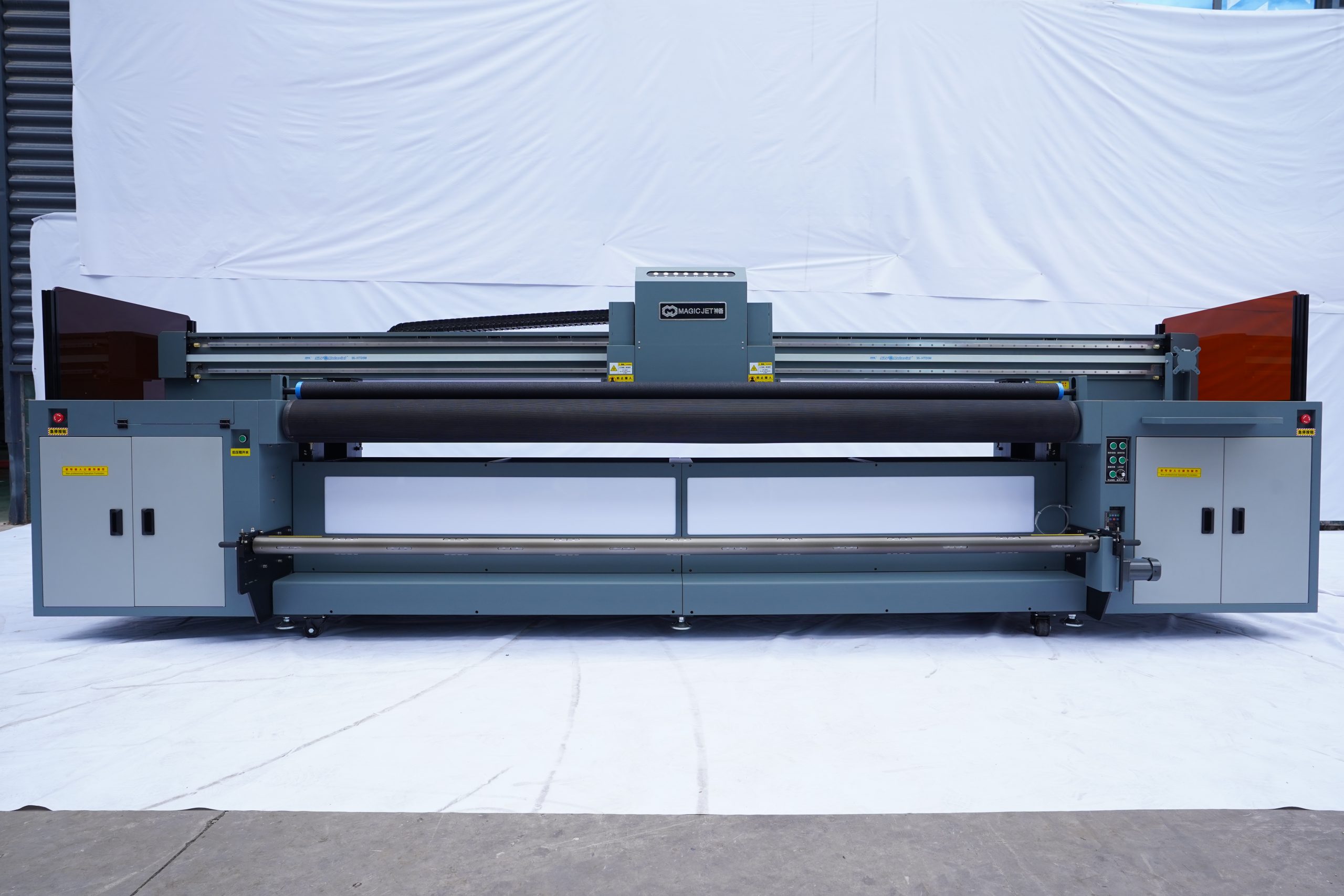

OMAJIC 2.5/3.2m Hybrid UV Printer (G5 / G6 / 1024A) – Overview
The OMAJIC 2.5/3.2m Hybrid UV is the configurable production giant of the range: choose your width (2500 or 3200mm), your head platform (Epson i3200-U1, Ricoh Gen5/Gen6 or Konica 1024A) and your head count (3–16) to build exactly the roll + board UV capacity your plant needs. A milled beam on THK guides, anti-crash head protection and multiple colour/white/varnish solutions make it as safe as it is fast.
The OM-UVHY32 handles daily production on flex banners, vinyl stickers, soft film & ceiling film, wallpaper, leather, canvas, polyester fabric as well as rigid boards like PVC, acrylic, KT board and foam sheet. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- Widths 2500mm or 3200mm; 3–16 heads to order (Ricoh Gen5/Gen6, Konica 1024A or i3200-U1)
- True hybrid – flexible roll stock and rigid boards on one machine
- Multiple colour solutions: CMYK, +Lc+Lm, +White, +Varnish combinations
- Anti-crash device protects heads and media
- Milling beam + THK guides – stable, precision carriage movement at speed
- Scalable configuration – start with fewer heads, expand later (class)
- Industrial UV LED curing for waterproof, UV-stable outdoor output
- Ideal for high-volume soft film, banner, wallpaper AND board décor work
Print Speed (head platform & count dependent · class figures)
| Print Mode | Output Speed |
|---|---|
| 3–4 heads, production | up to ~30–50 m²/h (class) |
| 6–8 heads, production | up to ~60–90 m²/h (class) |
| 12–16 heads (1024A/G6), production | up to ~100–150 m²/h (class) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC 2.5m / 3.2m Hybrid UV |
| Print Head Options | Ricoh Gen5, Ricoh Gen6, Konica 1024A (Epson i3200-U1 on request) |
| Head Count | 3 – 16 (configuration to order) |
| Print Widths | 2500 mm / 3200 mm |
| Media Handling | Roll-to-roll + rigid board hybrid belt feed |
| Ink Type | UV LED curable ink (flexible & rigid sets) |
| Colour Solutions | CMYK, +Lc +Lm, +White, +Varnish – multiple layouts |
| Curing | Industrial UV LED, water cooled |
| Motion | Milling beam, THK linear guides, anti-crash sensors |
| RIP Software | Maintop / Photoprint / Ripprint, Windows |
| Power Supply | Three-phase as configured, 50/60Hz |
| Machine Size (3.2m) | 4730 × 1250 × 1650 mm / ~540 kg class (per official listing) |
| Operating Environment | 20–28 °C recommended, 40–60% RH, dust-controlled |
Applications
Typical work: flex banners, vinyl stickers, soft film & ceiling film, wallpaper, leather, canvas, polyester fabric as well as rigid boards like PVC, acrylic, KT board and foam sheet. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
