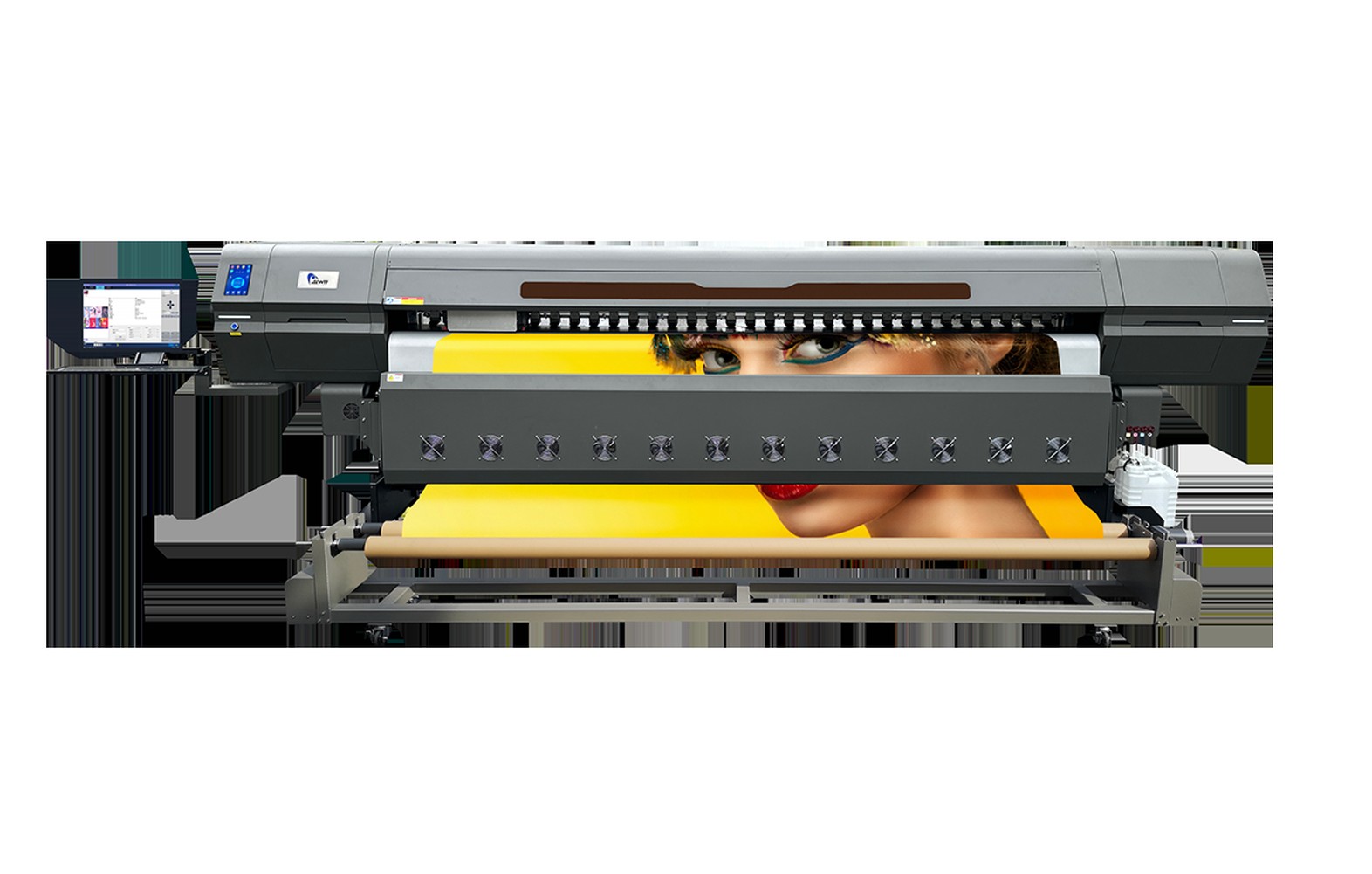

UED 3.2m Solvent Printer (8× HS1000 Heads) – Overview
The UED 1024i is the flagship of the 3.2-metre class: eight Konica HS1000 / 6988H high-speed print heads (30PL/13PL drop range) propel output to a genuine 600 m²/h in 1-pass draft and 240 m²/h at true sale-quality 480×720 dpi – that’s roughly 6450 sqft of banners per hour. Each 72.2mm head prints 11% more length per pass and its 360dpi physical nozzle precision with 20% more ink volume is engineered to eliminate banding on heavy solid colours. It runs the same industrial platform as the PRO 512i: THK mute dual rails, optional linear motor, intelligent infrared drying and a negative-pressure ink system.
The UED-32-08H-HS runs daily production on flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 8 × Konica HS1000 / 6988H high-speed heads, 30PL/13PL drop volume
- Up to 600 m²/h (≈6450 sqft/hr) 1-pass; 240 m²/h at 480×720 dpi 2-pass
- HS1000 head: 72.2mm coverage, +11% per-pass length, 360dpi physical precision
- 20% more ink volume per nozzle – band-free heavy solid colour jobs
- Standard negative-pressure ink supply – continuous jetting at top speed
- THK mute dual guide rails + optional linear motor; stepless head height
- Intelligent infrared drying; capping station with waste-ink collection tank
- Head anti-collision protection + reflective photoelectric black-media sensor
Print Speed ( · HS1000/6988H, 8 heads · official UED data)
| Print Mode | Output Speed |
|---|---|
| 1 pass, 360×360 dpi | 600 m²/h (≈6450 sqft/hr) |
| 1 pass, 480×360 dpi | 480 m²/h (≈5160 sqft/hr) |
| 2 pass, 360×720 dpi | 280 m²/h (≈3010 sqft/hr) |
| 2 pass, 480×720 dpi | 240 m²/h (≈2580 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED 3.2m Solvent Printer (8× HS1000 Heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | 8 × Konica HS1000 / 6988H (30PL / 13PL) |
| Print Width | 3250 mm |
| Media | Flex, frontlit, backlit, vinyl/SAV, mesh, black-back banner, fabrics |
| Ink | Solvent ink, CMYK; negative-pressure bulk supply |
| Drying System | Infrared heater fan (intelligent auto start/stop) |
| Rail & Drive | THK mute double guide rails; linear motor optional |
| RIP Software | MainTop / PhotoPrint |
| Power | AC 220V / 60A / 50Hz – machine max power 13295W (printing 1145W, front & rear heaters 3750W, IR 8400W) |
| Body / Package | 4840 × 940 × 1400 mm body; 5600 × 760 × 1270 mm package |
| Weight | Net 1035 kg / Gross 1135 kg |
| Operating Environment | 20–30 °C, 20–80% RH |
Applications
Typical work: flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation?Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
