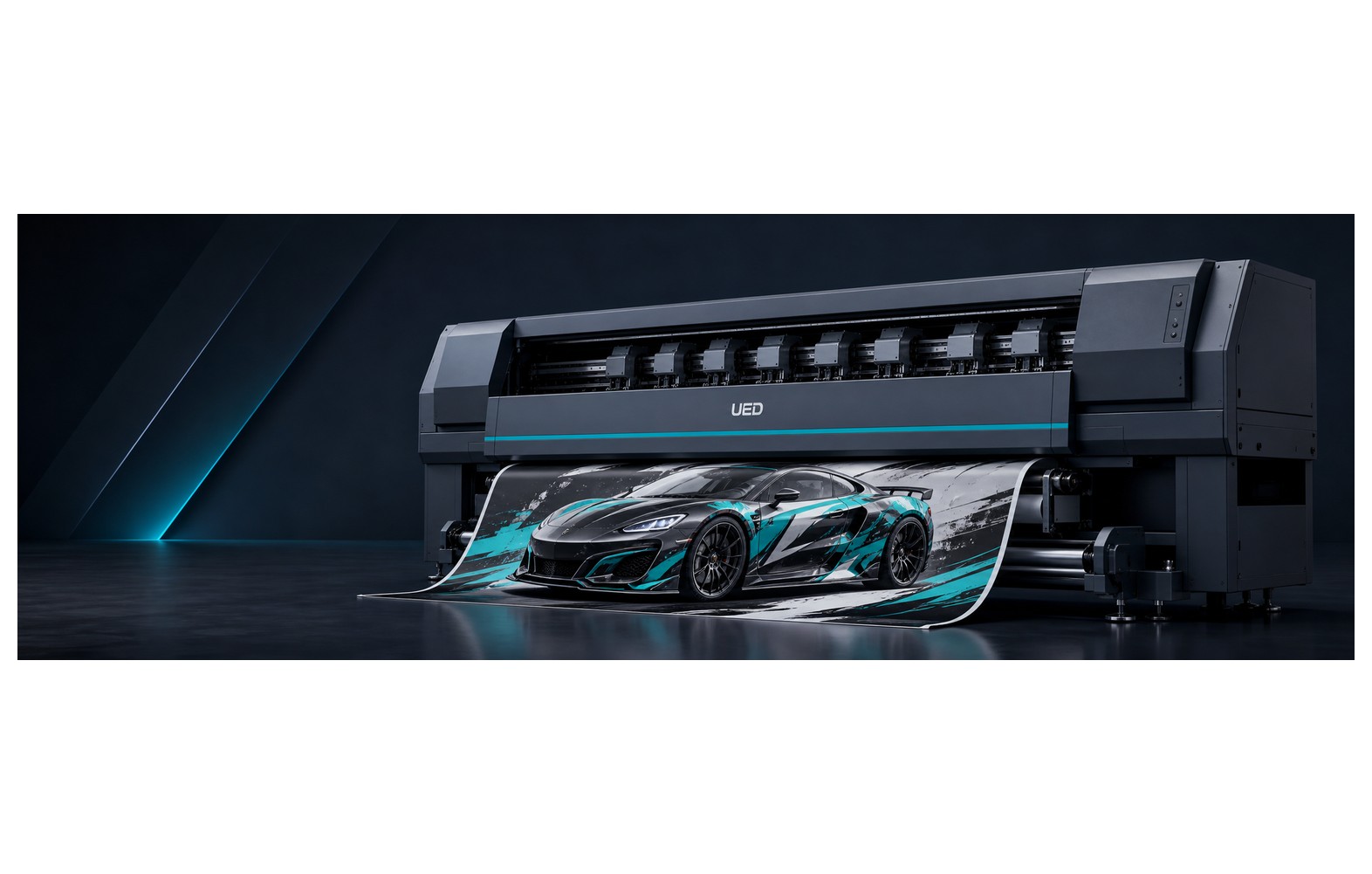

UED Solvent Printer (4-head / 8-head, 4/8 Heads) – Overview
Elevate your signage printing experience with the ultra-modern UED – a groundbreaking 3.2-metre solvent printer designed to revolutionize indoor and outdoor signage production. Equipped with 8 high-speed Konica Minolta heads, it sets a new benchmark for upgradability and delivers breathtaking quality at an impressive 2217 sqft/hr. PGT (Precision Gantry Tracking) technology keeps jet-to-bed deviation under 0.1mm across the entire print span, so every metre of vinyl, banner or backlit media comes off the roll with consistent, sell-ready quality.
This UED machine runs daily production on flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 4 or 8 high-speed KM industrial heads (4-head / 8-head) – upgradable 4 to 8 in the field
- Up to 2217 sqft/hr (8 heads, 2-pass); 1232 sqft/hr on 4 heads
- PGT gantry-precision technology – under 0.1mm jet-to-bed deviation over 3.2m span
- EdgeGuard – precise media-border printing, smoother carriage changeover, less wear
- Digital viscosity optimization – stable jetting waveform, constant print quality
- Pressure declogger button – efficient cleaning, minimal ink waste
- Efficient IR drying system + advanced capping station + Suction-Boost technology
- 3-way heating mechanism; Professional RIP software; high-speed USB
Print Speed (KM industrial heads · manufacturer test data (4H / 8H))
| Print Mode | Output Speed |
|---|---|
| 2 pass, 360×360 dpi | 1232 sqft/hr / 2217 sqft/hr |
| 3 pass, 360×540 dpi | 830 sqft/hr / 1496 sqft/hr |
| 4 pass, 360×720 dpi | 664 sqft/hr / 1205 sqft/hr |
| 4 pass, 720×720 dpi | 348 sqft/hr / 635 sqft/hr |
| 6 pass, 720×1080 dpi | 232 sqft/hr / 420 sqft/hr |
| 8 pass, 720×1440 dpi | 177 sqft/hr / 322 sqft/hr |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED – 4-head (4 heads) / 8-head (8 heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | High-speed industrial KM jetting assemblies (upgradable 4 to 8) |
| Media Width | 3300 mm (129 in) |
| Print Width | 3200 mm (126 in) max |
| Media | SAV, PAV Banner, Backlit Film, Window Film, Fabric (solvent base) |
| Roll Capacity | Outer Ø 300 mm, weight to 90 kg, 76.2 mm (3 in) core |
| Ink | Solvent / mild-solvent, 4 colours CMYK |
| Max Resolution | 1440 dpi |
| Distance Accuracy | ±0.3% of travel or ±0.3 mm |
| Heating | Pre/post heaters 30–60 °C, dryer 30–60 °C, 3-way heating mechanism |
| Connectivity | High-speed USB |
| Power | AC 220V ±10%, 20A, 50/60Hz |
| Dimensions / Weight | 4700 × 1000 × 1450 mm / Net 550 kg, Gross 742 kg |
| RIP Software | Professional RIP software |
| Operating Environment | 18–28 °C, 20–40% RH power ON (non-condensing) |
Applications
Typical work: flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
