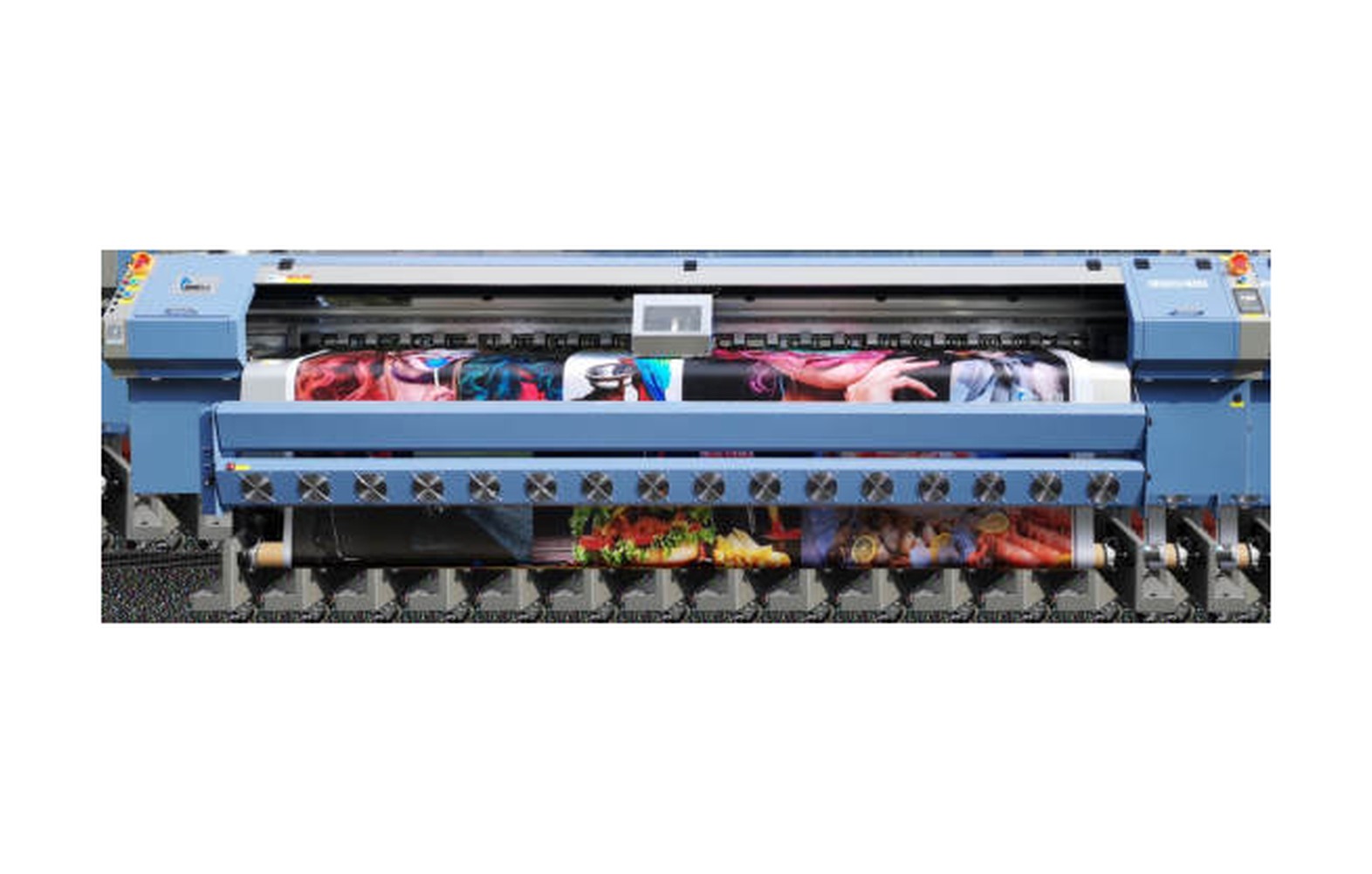

UED 3.3m Solvent Printer (8× HS1000 Heads) – Overview
The UED builds on the legendary with an improved function configuration and a faster head platform. The standard machine ships with 8 Konica KM512i 30PL heads delivering up to 280 m²/h; specify the HS1000 (Konica 1024i-class) high-speed headset and it becomes a blistering 600 m²/h production monster with 80% higher physical nozzle precision to keep solid colours band-free. Intelligent infrared drying, movable media fixing, negative-pressure ink supply and anti-collision head protection all come standard.
The UED-33-08H-HS runs daily production on flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 8 × Konica KM512i 30PL heads – 280 m²/h 2-pass production
- Optional KM HS1000 / 6988H high-speed heads – up to 600 m²/h 1-pass
- HS1000 advantage: 72.2mm head, +11% print length per pass, 360dpi physical precision, −banding
- Standard negative-pressure ink supply – continuous printing without nozzle dropout
- Intelligent infrared drying system – auto start/stop with the print
- Built-in movable media fixing + eco-style pinch rollers for perfect stitching
- THK-grade full-length dual guide rails; linear motor option for the carriage
- Reflective photoelectric switch for black banner; anti-collision head protection
Print Speed ( · official UED data (KM512i 8H / HS1000 8H))
| Print Mode | Output Speed |
|---|---|
| KM512i · 2 pass, 360×360 dpi | 280 m²/h / 600 m²/h (HS1000, 1 pass) |
| KM512i · 3 pass, 360×540 dpi | 180 m²/h / 480 m²/h (HS1000, 1 pass) |
| KM512i · 2 pass, 480×360 dpi | 240 m²/h / 280 m²/h (HS1000, 2 pass) |
| KM512i · 3 pass, 480×540 dpi | 140 m²/h / 240 m²/h (HS1000, 2 pass) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED 3.3m Solvent Printer (8× HS1000 Heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | 8 × Konica KM512i 30PL or 8 × KM HS1000 / 6988H (30PL/13PL) |
| Print Width | 3300 mm |
| Media | Flex, frontlit, backlit, vinyl/SAV, mesh, black-back banner, fabrics |
| Ink | Solvent inks, 4 colours CMYK; bulk supply with multi-filtration |
| Drying & Heating | Intelligent infrared heater + heater fans |
| Ink Delivery | Standard negative-pressure system |
| Rail & Drive | Full-length dual guide rails, high-speed servo; linear motor optional |
| RIP Software | UltraPrint / MainTop / PhotoPrint / PrintFactory |
| Power | AC 220V / 60A / 50Hz – machine max power up to 13295W (IR 8400W configuration) |
| Package Size / Weight | 5000 × 1050 × 1630 mm; body 4840 × 940 × 1400 mm / Net 1035 kg, Gross 1135 kg |
| Operating Environment | 20–30 °C, 20–80% RH |
Applications
Typical work: flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation?Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
