eRICK UV1216 UV Flatbed Printer (3× Epson i3200-U1, 1.2×1.6m) – Overview

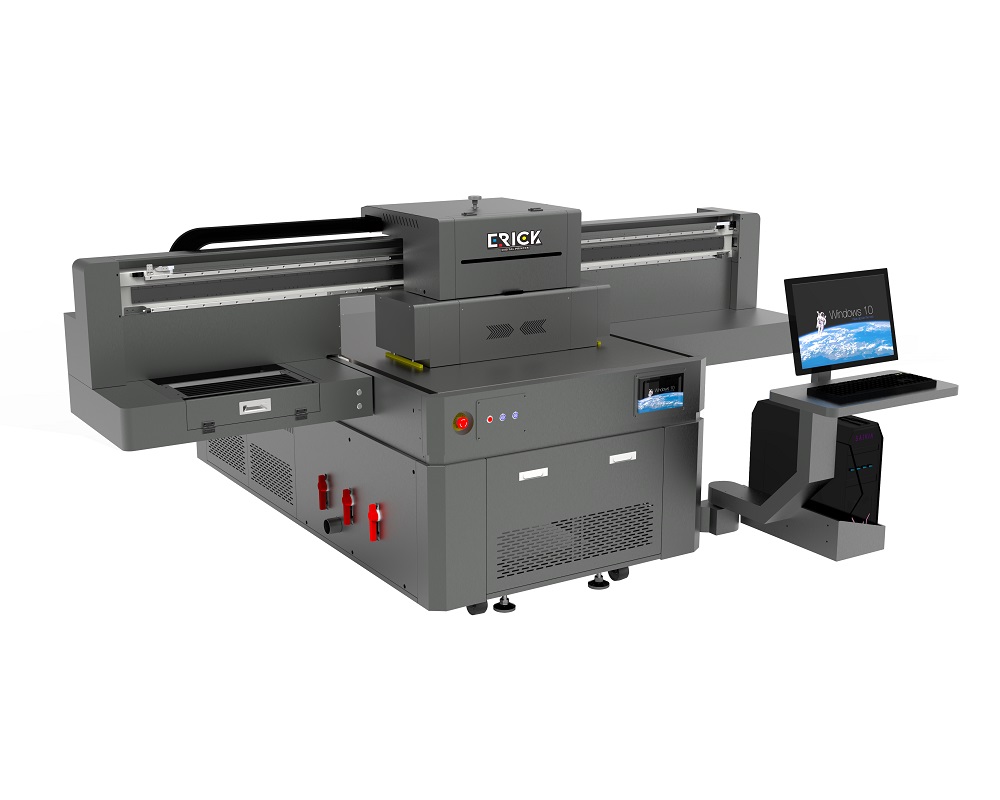

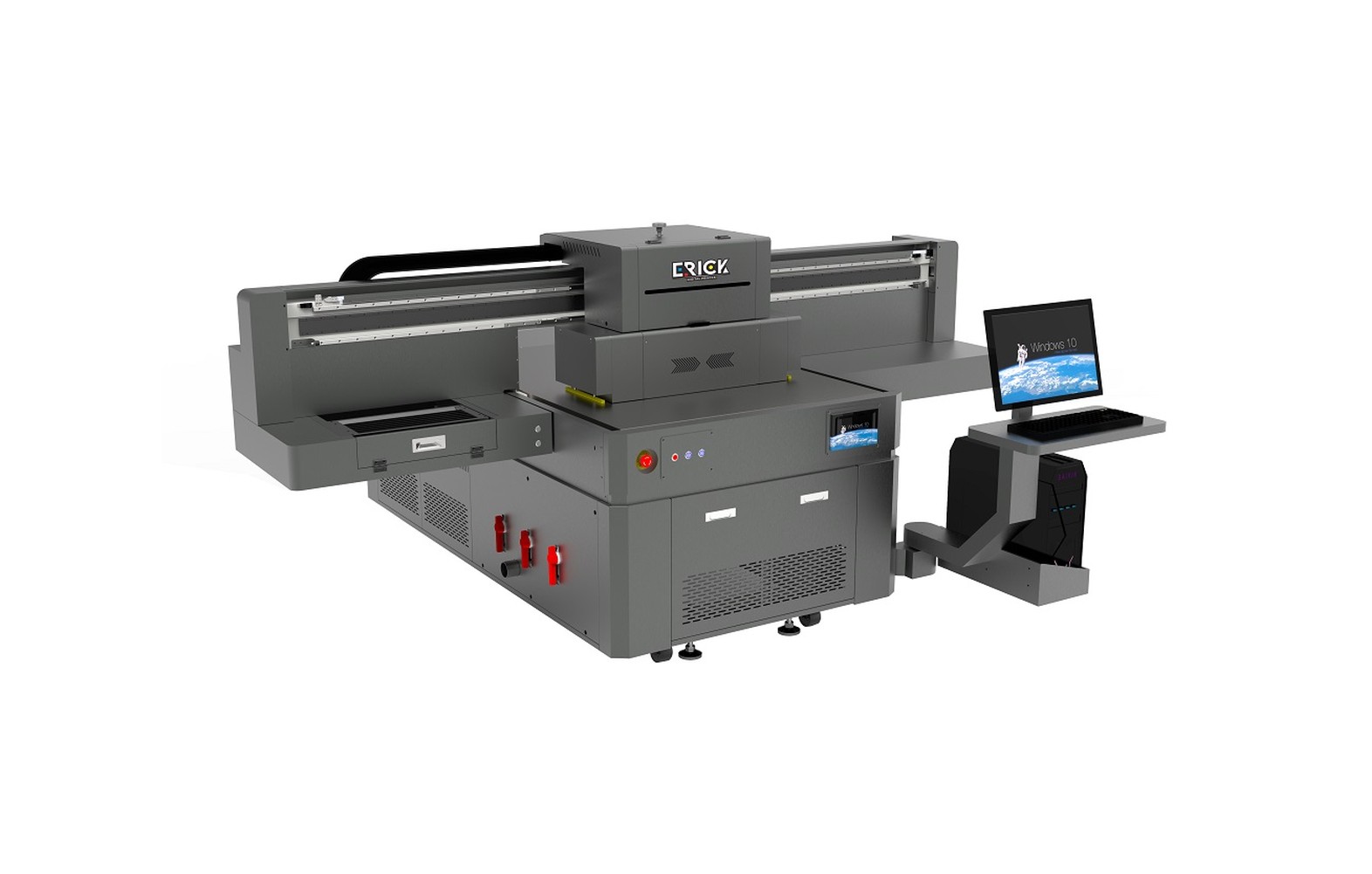

The eRICK UV1216 is the mid-size step in the ERICK UV flatbed family: a 1.2×1.6-metre gantry platform running 3 Epson i3200-U1 UV heads in CMYK + White + Varnish – big enough for full décor panels and batch merchandising, compact enough for a single-room studio. The family chassis brings separated vacuum suction zones that switch by area for small or shaped items, a laser-sensed anti-collision system that parks the carriage before it strikes a warped board, Hiwin linear rails with Leadshine servo drive, and a maintenance-free negative-pressure ink supply. Prints are cured instantly by UV LED, waterproof and scratch-resistant off the bed, and the factory’s 1200 dpi AI carriage scanner option auto-detects item position for jig-free batch printing. Product photos show the shared ERICK 1016/1316 family body; the 1216 is supplied to order.
The ER-UV-1216 prints daily on acrylic & ACP boards, glass & mirrors, wood & MDF panels, ceramic tiles, metal sheets, PVC / sunboard / foam board, KT board, leather & fabric sheets, phone cases & gadget covers, packaging prototypes, promotional merchandise and personalised décor items. Rows marked (class)/(est.) are family-platform values confirmed in writing with your quotation – we never guess when you ask.
Key Features
- 3 × Epson i3200-U1 UV heads – CMYK + White + Varnish
- 1.2×1.6 m print area – full décor panels and batch-run merchandising
- Separated vacuum suction zones – energy-smart small-item printing
- Anti-collision system guards heads on warped or thick media
- Hiwin linear guide rails + Leadshine servo motion
- Negative-pressure ink supply – no routine maintenance
- Up to ~8 m²/h class output at 720×1800 dpi (class)
- Optional 1200 dpi AI carriage scanner – jig-free positioning
Print Speed (eRICK UV1216 · family platform (class) data)
| Print Mode | Output Speed |
|---|---|
| 3× i3200-U1 · 720×1200 dpi · 6 pass (class) | ≈8 m²/h (≈86 sqft/hr) |
| 3× i3200-U1 · 720×1800 dpi · 8 pass (class) | ≈6 m²/h (≈65 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class)/(est.) are platform-class figures confirmed in writing with your quotation.
Technical Specifications
| Model | eRICK UV1216 (channel designation, 1.2×1.6 m) |
| Print Heads | 3 × Epson i3200-U1 (class) |
| Print Area | 1200 × 1600 mm class, print height up to 130 mm (platform) |
| Ink Colours | CMYK + White + Varnish (UV LED curable) |
| RIP Software | Ripprint / PhotoPrint |
| Vacuum Bed | Separated suction zones (area on/off) |
| Mechanics | Hiwin guide rails, Leadshine servo, positive capping stations (platform) |
| Ink System | Maintenance-free negative-pressure supply; independent ink heating |
| Options | 1200 dpi UV carriage AI scanner; all-in-one i7 touchscreen computer |
| Power / Environment | 2000 W class; 25–30 °C, 50–70% RH (platform) |
| Package | Est. ~2.5 m³ class, ~350 kg (est.) – confirmed at order |
Applications
Typical work: acrylic & ACP boards, glass & mirrors, wood & MDF panels, ceramic tiles, metal sheets, PVC / sunboard / foam board, KT board, leather & fabric sheets, phone cases & gadget covers, packaging prototypes, promotional merchandise and personalised décor items. One flatbed serves signage fabricators, interior décor studios, advertising agencies, gift personalisers, packaging prototypers and industrial marking lines that need direct-to-substrate UV printing on rigid and semi-rigid materials.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV flatbed printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
