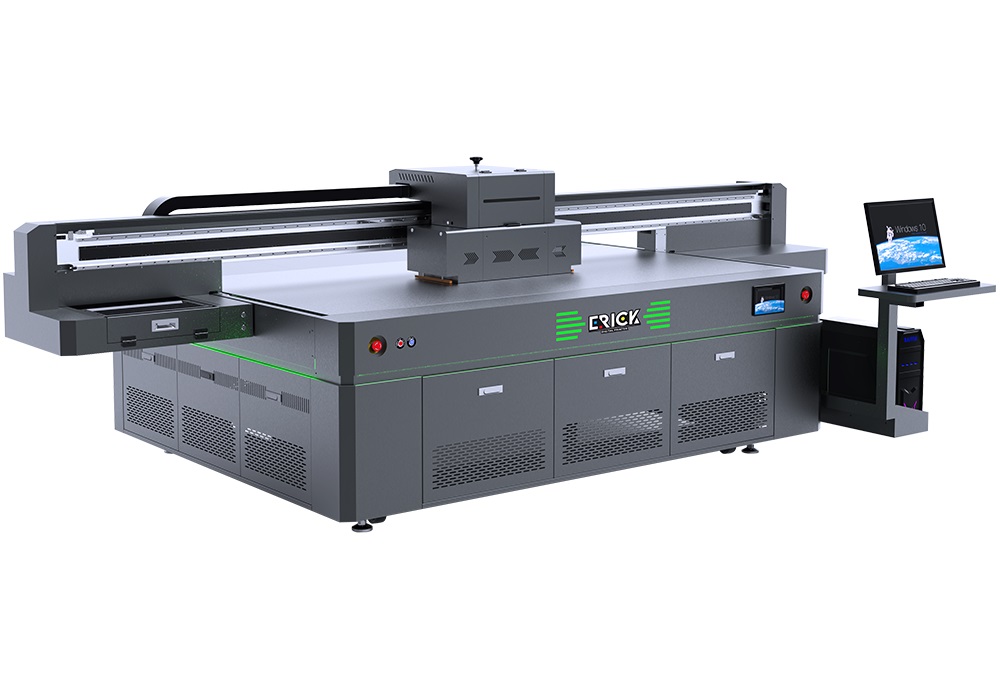

eRICK UV2513 UV Flatbed Printer (Ricoh G5/G6, 2.5×1.3m) – Overview
The eRICK UV2513 is the 2.5×1.3-metre UV flatbed India’s professional shops standardise on: it takes 3 to 16 Ricoh Gen5/Gen6 heads on an advanced magnetic-levitation transmission whose grating ruler feeds back carriage position in real time – no backlash artefact, no banding at speed. A BYHX inkjet control board, Hiwin rails, Leadshine servo motor and German-imported tank chain carry production day after day; 4 separated suction areas hold anything from A4 giveaways to full boards; and independent constant-temperature ink heating with a negative-pressure supply keeps every head jetting. Official platform figures rate the G6 configuration at 18 m²/h 4-pass (12 m²/h 6-pass) in CMYK + White + Varnish, driven from Caldera or PhotoPrint. Anti-collision, print-height sensor and lack-ink alarm are factory standard.
The ER-UV-2513 is production plant for acrylic & ACP boards, glass & mirrors, wood & MDF panels, ceramic tiles, metal sheets, PVC / sunboard / foam board, KT board, leather & fabric sheets, phone cases & gadget covers, packaging prototypes, promotional merchandise and personalised décor items. Magnetic-levitation drive and up to 16 G6 heads keep the 2.5×1.3m bed earning all shift.
Key Features
- 3–16 × Ricoh Gen5/Gen6 heads – scale heads to your volume
- Official platform output: 18 m²/h (≈194 sqft/hr) G6 4-pass
- Advanced magnetic-levitation transmission + grating ruler
- Oxidation-treated high-precision platform – 5× scratch resistance
- 4 separated suction areas – full boards to odd shapes
- BYHX board, Hiwin rails, Leadshine servo, German tank chain

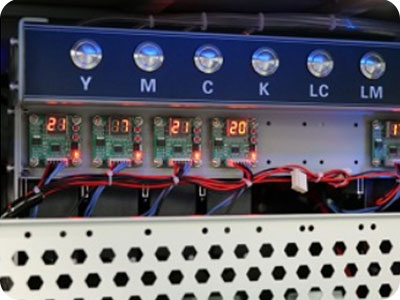

- Constant-temperature ink heating + negative-pressure supply
- CMYK W V inks; Caldera / PhotoPrint; anti-collision standard
Print Speed (eRICK UV2513 · official ERICK/Aily platform data)
| Print Mode | Output Speed |
|---|---|
| Ricoh G6 · 720-class dpi · 4 pass | 18 m²/h (≈194 sqft/hr) |
| Ricoh G6 · 720-class dpi · 6 pass | 12 m²/h (≈129 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class)/(est.) are platform-class figures confirmed in writing with your quotation.
Technical Specifications
| Model | eRICK UV2513 (factory platform MJ-UV2513 / ERICK 2513) |
| Print Heads | 3–16 × Ricoh Gen5 / Gen6 (up to 4 rows) |
| Print Area | 2500 × 1300 mm |
| Ink Colours | CMYK W V (UV LED curable) |
| Machine Functions | Lack-ink alarm, anti-collision device, independent ink-heating control, negative ink supply, print-height sensor, 4 separated suction areas |
| Machine Configuration | Hiwin guide rail, Leadshine motor, BYHX board, Germany imported tank chain, all-in-one computer (optional) |
| All-in-One Computer (optional) | 8th-gen i7-8750H, 64/128 GB, 15.6-in 1920×1080 touchscreen |
| RIP Software | Caldera / PhotoPrint |
| Power / Environment | 6000 W; 25–30 °C, 50–70% RH |
| Package | 4700 × 2300 × 1850 mm, 1350 kg (official) |
Applications
Typical work: acrylic & ACP boards, glass & mirrors, wood & MDF panels, ceramic tiles, metal sheets, PVC / sunboard / foam board, KT board, leather & fabric sheets, phone cases & gadget covers, packaging prototypes, promotional merchandise and personalised décor items. One flatbed serves signage fabricators, interior décor studios, advertising agencies, gift personalisers, packaging prototypers and industrial marking lines that need direct-to-substrate UV printing on rigid and semi-rigid materials.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV flatbed printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
