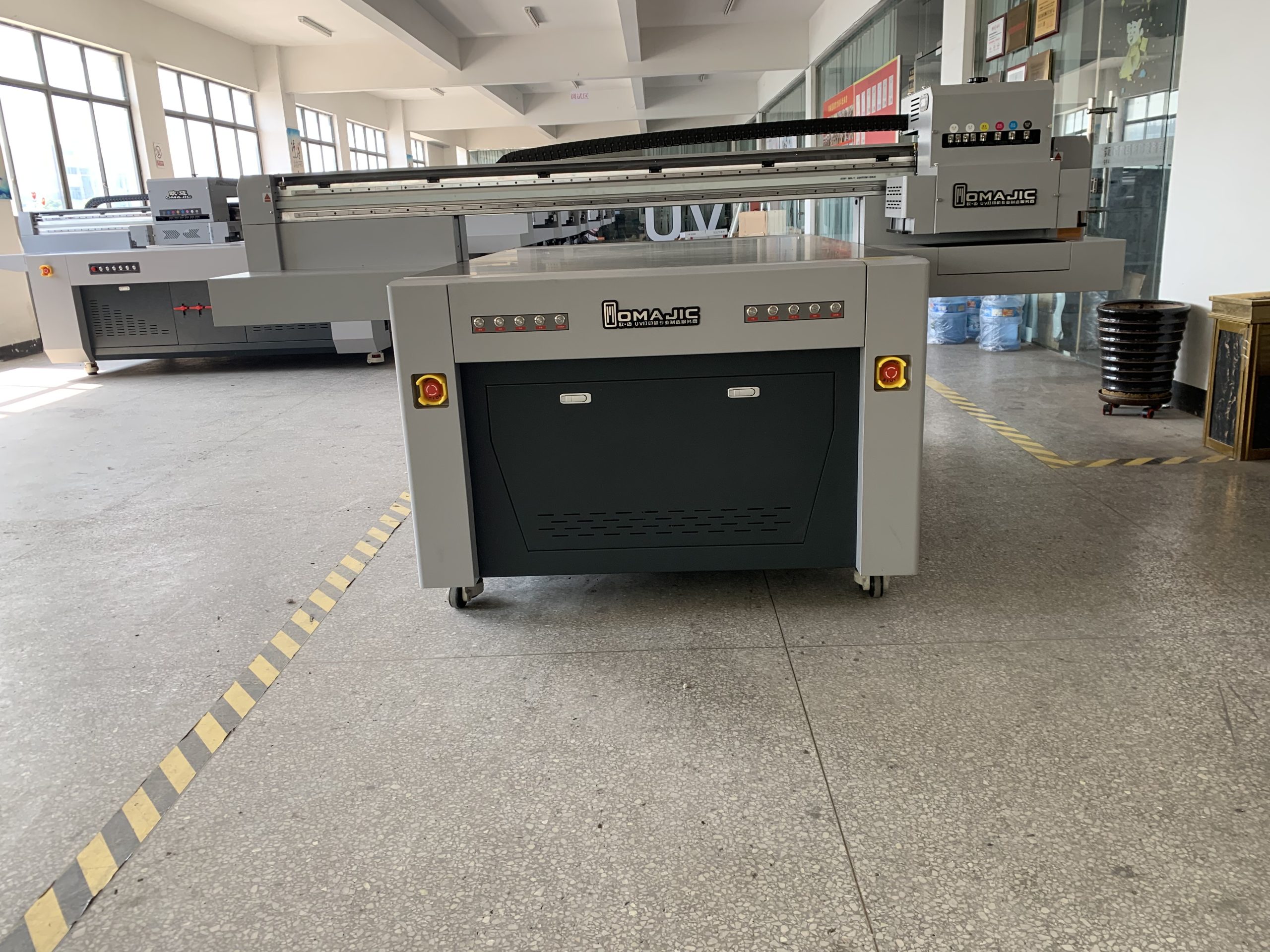

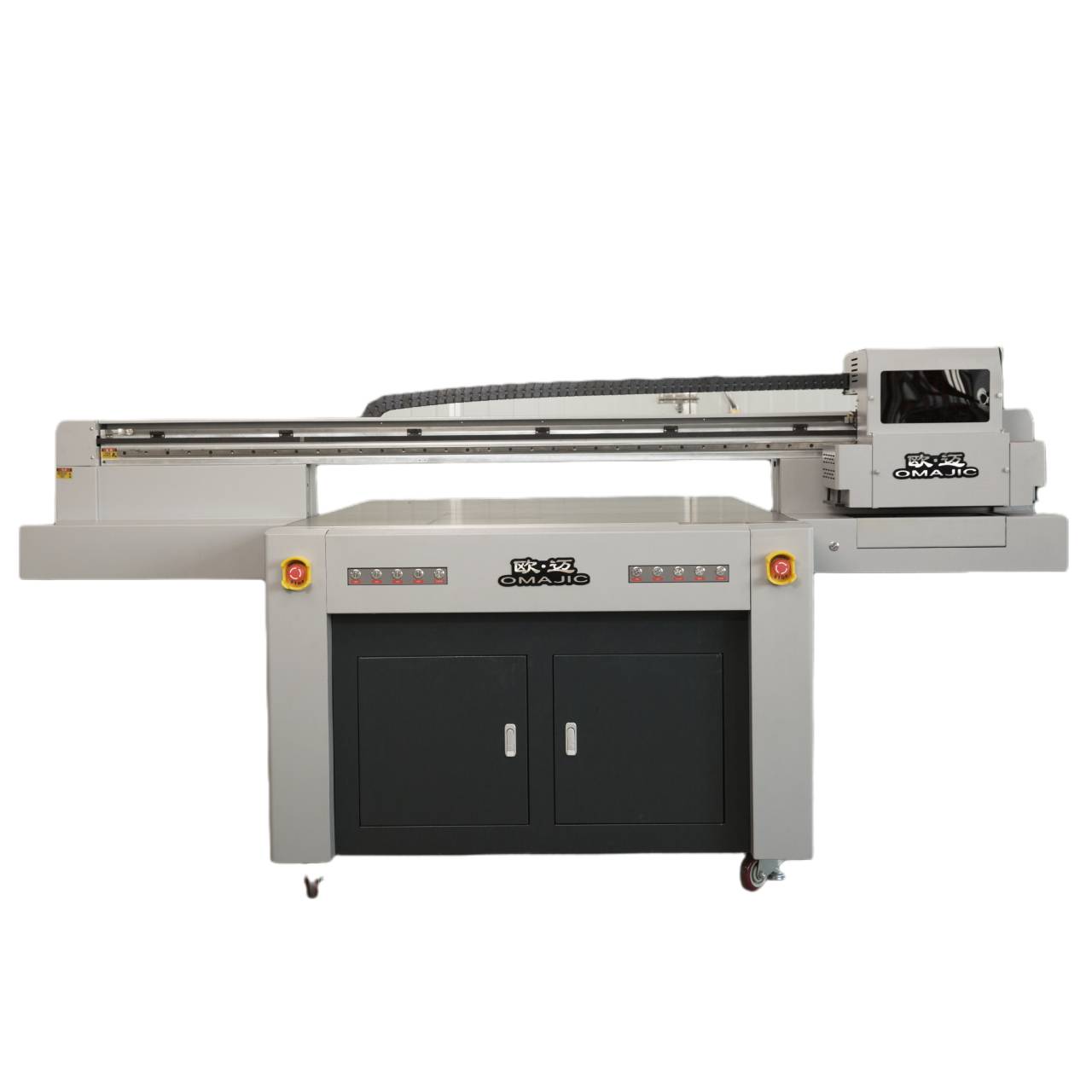

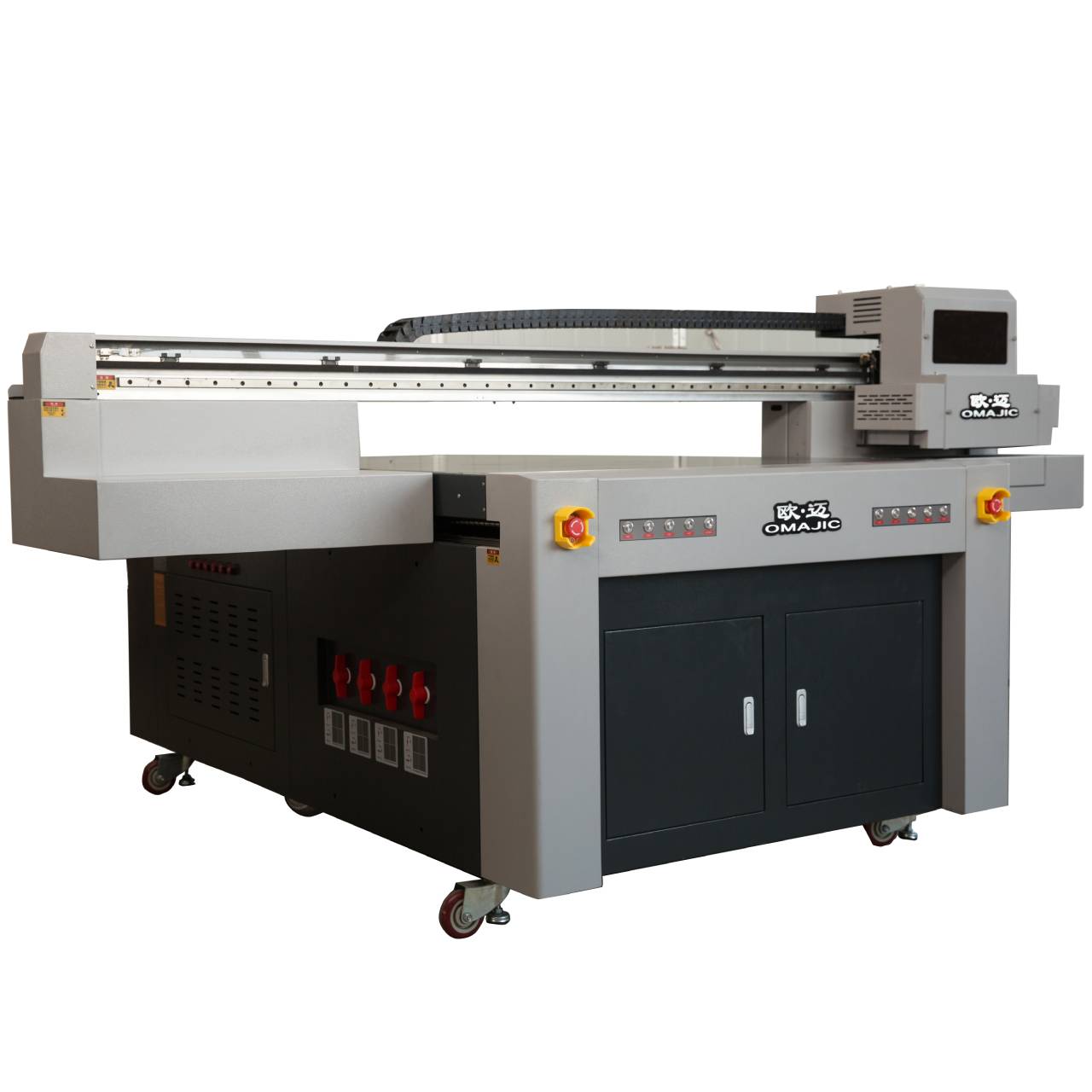

OMAJIC UV1316 Flatbed UV Printer (2–4× i3200-U1) – Overview
The OMAJIC UV1316 bridges compact and full-production UV flatbeds: a 1300×1600mm bed driven by 2–4 Epson i3200-U1 UV heads. Full-colour images complete in one pass with photo-quality gradients, pin-point positioning and near-zero rejection, while white + varnish layering produces embossed, three-dimensional glossy effects straight off the bed.
The OM-UV1316 handles daily production on acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- 2–4 × Epson i3200-U1 UV print heads – 3200 nozzles per head
- One-pass full colour – photo-quality gradients, accurate positioning, near-zero rejection
- Embossed 3D effect printing – white + varnish layering
- CMYK + White + Varnish printed simultaneously
- UV LED instant cure – waterproof, sun-screen, scratch-resistant output
- Simple workflow – new operators productive in ~30 minutes
- Zoned vacuum suction platform for thin & heavy sheets
- Windows RIP workflow (Photoprint / Maintop), LAN/USB connectivity
Print Speed (i3200-U1 head count dependent · platform class figures)
| Print Mode | Output Speed |
|---|---|
| 2 heads, production 4–6 pass | up to ~12–18 m²/h (class) |
| 3 heads, production 4–6 pass | up to ~18–25 m²/h (class) |
| 4 heads, production 4–6 pass | up to ~25–35 m²/h (class) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC UV1316 |
| Print Heads | 2–4 × Epson i3200-U1 (UV) |
| Max Print Area | 1300 × 1600 mm |
| Max Media Thickness | up to ~100 mm (class) |
| Ink Type | UV LED curable ink |
| Ink Colours | CMYK + White + Varnish (same-pass) |
| Curing | Water-cooled UV LED |
| Vacuum Bed | Zoned suction platform |
| Media | Acrylic, glass, metal sheets, ceramic tiles, wood, MDF, PVC/foam board |
| RIP Software | Photoprint / Maintop, Windows 7 / 10 |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Machine Size | 2200 × 2700 × 1400 mm |
| Package Size | 2250 × 2850 × 1600 mm (wooden case) |
| Operating Environment | 20–28 °C recommended, 40–60% RH, dust-controlled |
Applications
Typical work: acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
