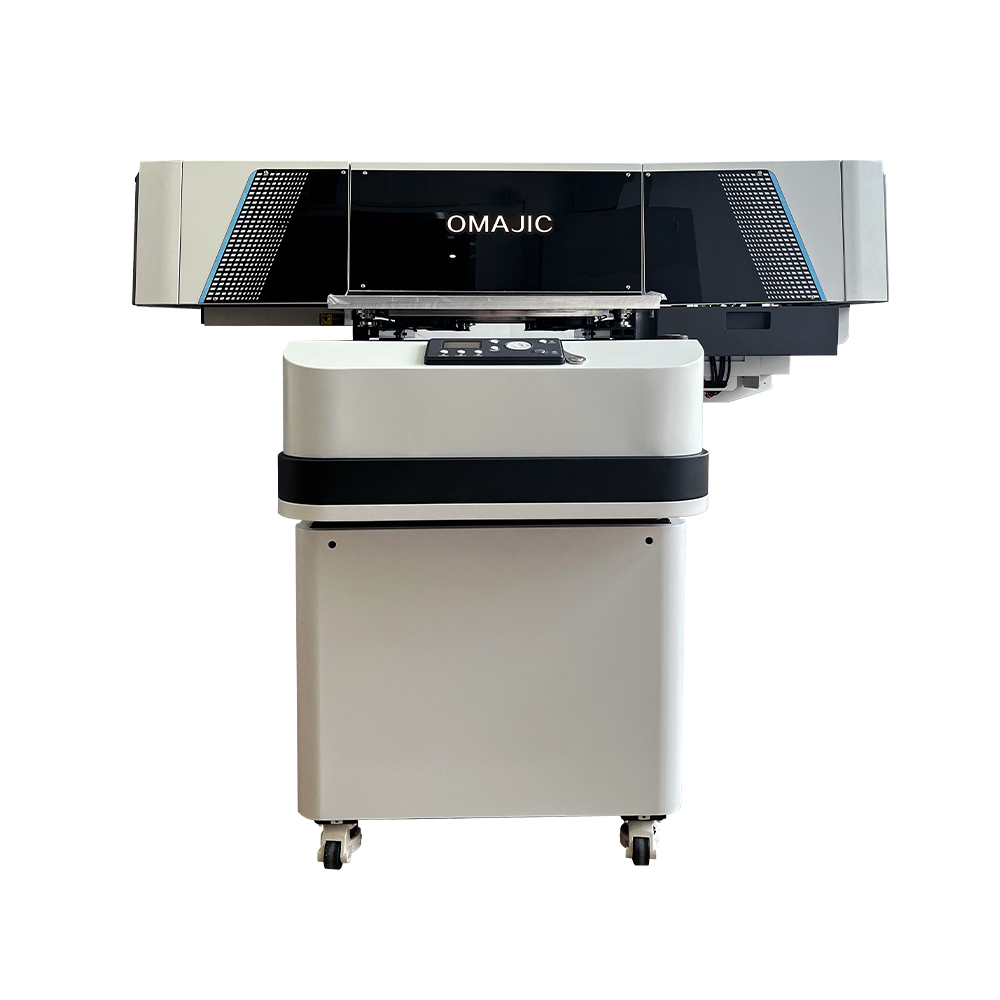

OMAJIC UV6090 / UV6090 Pro Flatbed UV Printer (XP600 / G5i) – Overview
The OMAJIC UV6090 family is the workhorse of personalization and sign shops: a 600×900mm flatbed UV printer offered as the value UV6090E (3× Epson XP600 or industrial Ricoh G5i heads) and the upgraded UV6090 Pro with a vacuum suction platform, redesigned panel, staggered-head carriage and heated, circulating ink supply. Both print CMYK + White (+ Varnish option) with 100% colour reproduction on virtually any flat item up to 15cm thick.
The OM-UV6090 handles daily production on acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- Choice of 3× Epson XP600 or industrial Ricoh G5i print heads
- CMYK + W five-colour and CMYK + W + V six-colour highly synchronous printing
- Pro: vacuum suction platform keeps warped media perfectly flat
- Pro: intelligent staggered ink-cart design + dual air-cooled UV lamps
- Pro: internal ink heating & circulation – no pigment settling, consistent white
- Pro: self-locking carriage, dedicated flash-jet station & air purification
- Auto or manual print setup; panel or computer control
- Automatic ink-circuit cleaning & anti-clog nozzle flash – easy maintenance
- Rotary attachment option for bottles & cylinders (60–150mm dia.)
Print Speed (3-head configurations · manufacturer full-bed test prints (class))
| Print Mode | Output Speed |
|---|---|
| 3× XP600, 6 pass, 360×1080 dpi | ~7.5 min per 60×90cm full bed |
| 3× XP600, 8 pass, 720×720 dpi | ~10.5 min per 60×90cm full bed |
| 3× G5i, 6 pass, 720×900 dpi | ~6.5 min per 60×90cm full bed |
| 3× G5i, 8 pass, 720×1200 dpi | ~7.5 min per 60×90cm full bed |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC UV6090E / UV6090 Pro |
| Print Heads | 3 × Epson XP600 or 3 × Ricoh G5i (industrial) |
| Max Print Area | 600 × 900 mm |
| Max Media Thickness | up to ~150 mm (Pro: suction platform) |
| Ink Type | UV LED curable ink |
| Ink Colours | CMYK + White (+ Varnish option) |
| Print Resolutions | 720×360 / 720×720 / 360×1080 / 720×1080 / 720×1440 / 1440×1440 dpi |
| Curing | UV LED lamp (Pro: dual air-cooled lamps), ~20,000 h life |
| Media | Acrylic, glass, metal, wood, ceramic, leather, plastic, bottles (rotary opt.) |
| RIP Software | Ultraprint / Photoprint / Maintop, Windows 7 / 10 |
| Interface | USB 2.0 |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Machine Size / Weight | 1570 × 1400 × 650 mm / ~140 kg |
| Package Size / Weight | 1670 × 1500 × 830 mm / ~230 kg (wooden case) |
| Operating Environment | 20–28 °C recommended, 40–60% RH, dust-controlled |
Applications
Typical work: acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
