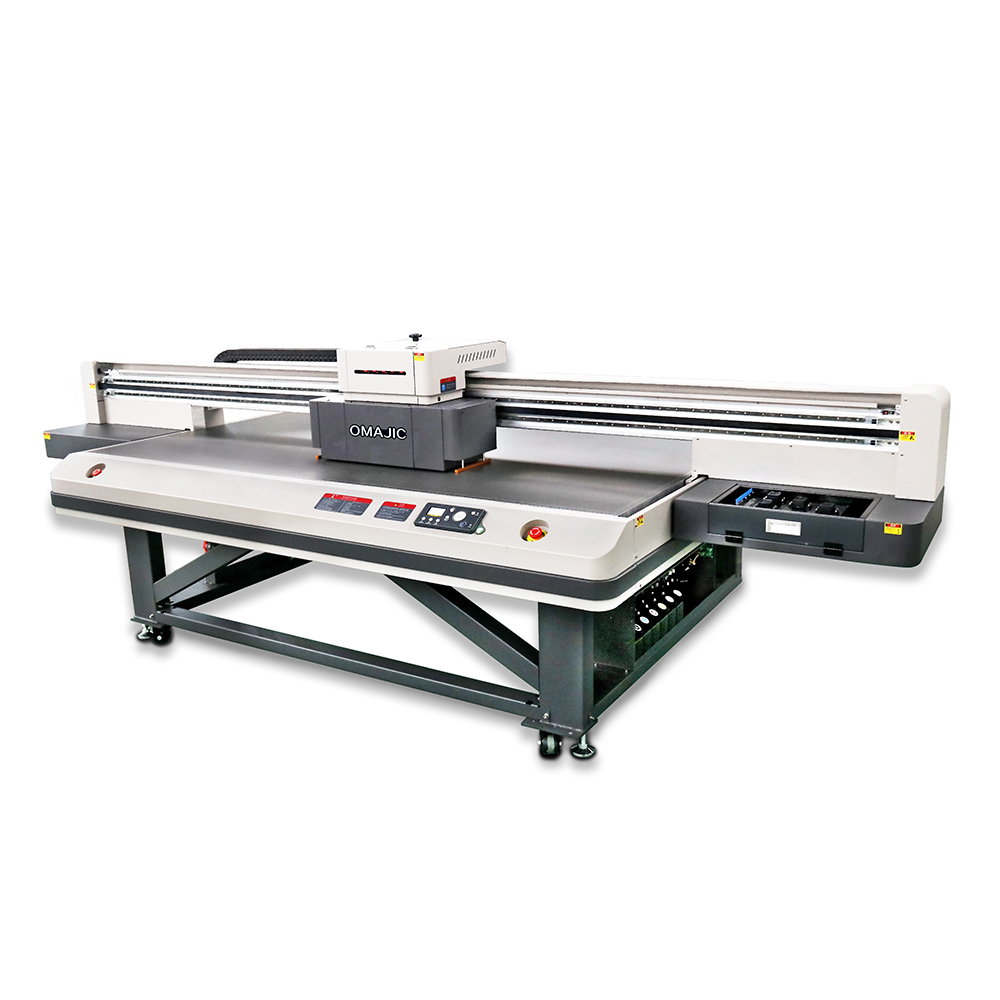

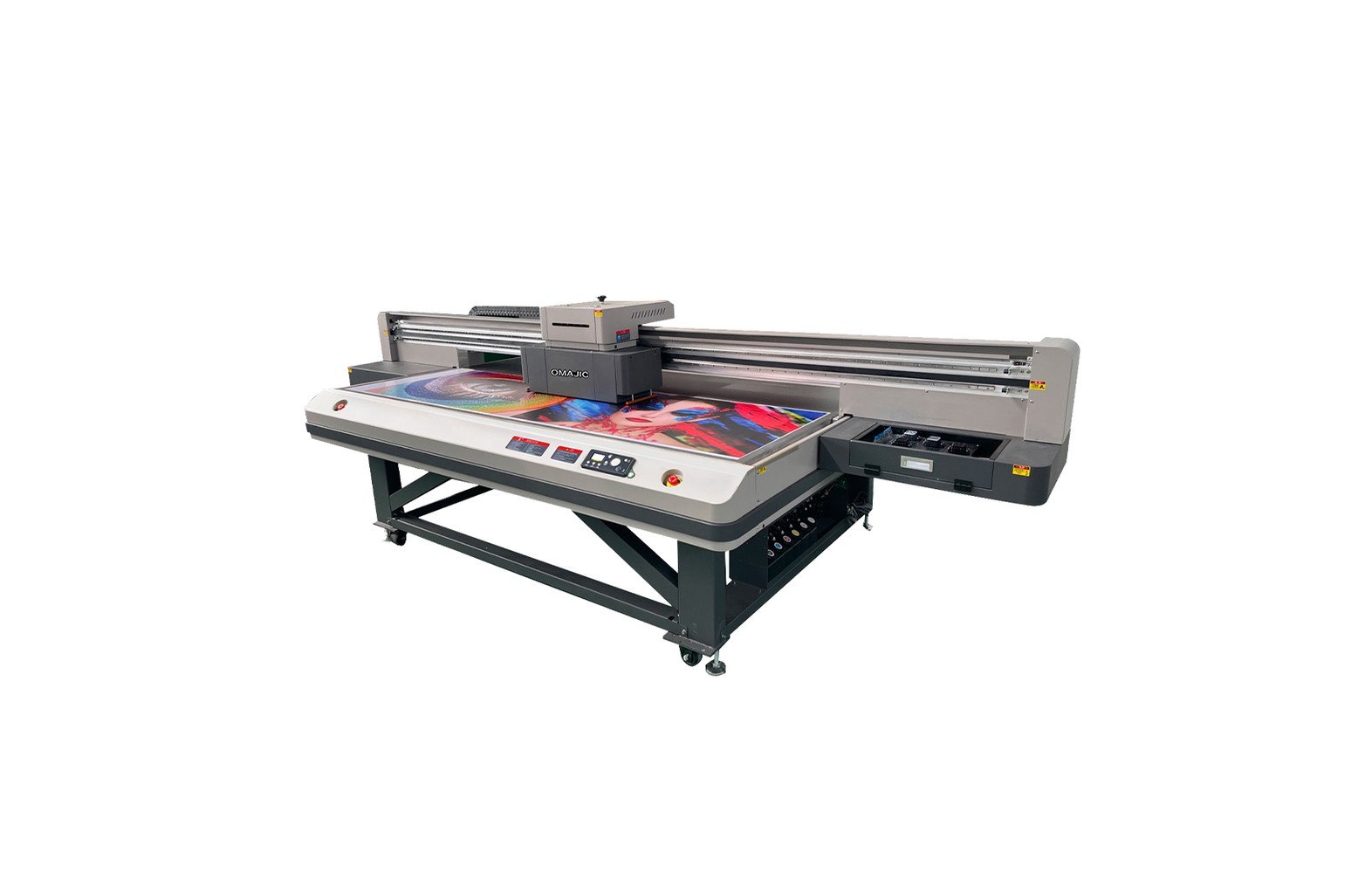

OMAJIC UV2513Pro Flatbed UV Printer (4× i3200-U1) – Overview
The OMAJIC UV2513Pro is the high-speed 8×4-feet flatbed of the range: four Epson i3200-U1 heads push up to 32 m²/h while the 2500×1300mm vacuum bed swallows full sheets of acrylic, ACP, glass, ceramic and MDF up to 120mm thick. Six-colour (CMYK+Lc+Lm) plus White and Varnish channels cover everything from billboards and light-boxes to appliance panels and phone covers at production cost.
The OM-UV2513PRO handles daily production on acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- 4 × Epson i3200-U1 UV heads – 12,800 nozzles total
- Up to 32 m²/h sketch / 20 m²/h production / 12 m²/h high quality
- Large 2500 × 1300mm bed – full 8×4 ft sheets, 0–120mm thickness
- Ink sets: CMYK+Lc+Lm+W, CMYK+W, CMYK+W+V
- Water-cooled UV LED – up to 20,000–30,000 h lamp life
- ICC colour management with curve & density adjustment
- Vacuum suction platform holds warped & thin sheets flat
- USB 2.0, Windows 7/10; TIFF/JPEG/PS3/EPS/PDF workflow
Print Speed (4× i3200-U1 · manufacturer conditions)
| Print Mode | Output Speed |
|---|---|
| Sketch mode (EPS heads) | up to 32 m²/h |
| Production mode | up to 20 m²/h |
| High-quality mode | up to 12 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC UV2513Pro |
| Print Heads | 4 × Epson i3200-U1 (UV) |
| Max Print Area | 2500 × 1300 mm (8 × 4 ft) |
| Media Thickness | 0 – 120 mm |
| Max Media Weight | ~25 kg (full-bed average) |
| Ink Type | UV LED curable ink |
| Ink Colours | C/M/Y/K/Lc/Lm + W, C/M/Y/K + W, C/M/Y/K + W + V |
| Resolutions | 600×600 / 600×900 / 600×1200 dpi |
| Curing | Water-cooled UV LED, 1500W max, 20,000–30,000 h life |
| Vacuum Platform | 1500W suction bed |
| Data Interface | USB 2.0, Windows 7 / 10 |
| File Formats | TIFF, JPEG, Postscript 3, EPS, PDF |
| Power Supply | AC 220V: host 1350W max + UV lamp 200–1500W + vacuum 1500W |
| Machine Size / Weight | 4050 × 2100 × 1260 mm / ~800 kg |
| Package Size / Weight | 4150 × 2250 × 1650 mm / ~1100 kg (wooden case) |
| Operating Environment | 20–28 °C, 60–80% RH |
Applications
Typical work: acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
