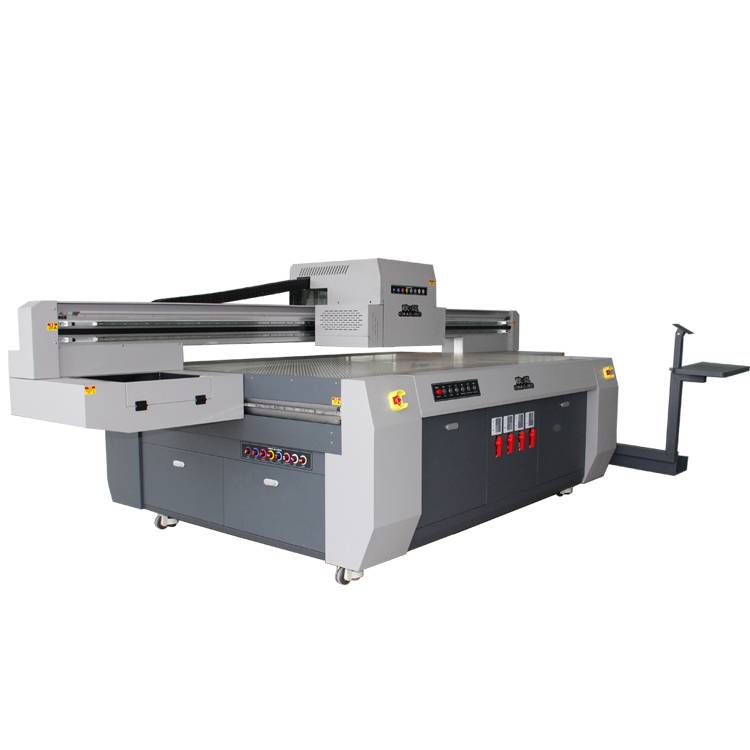

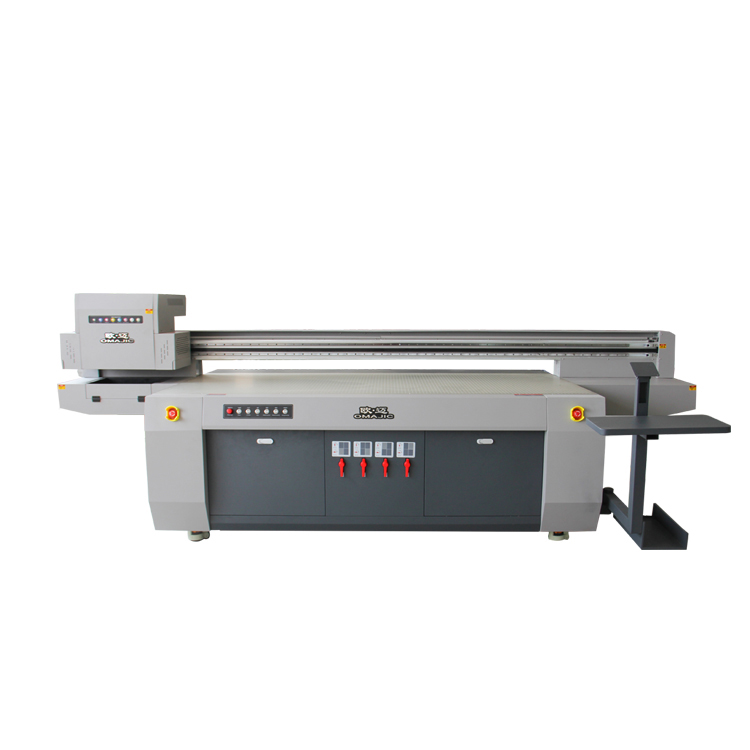

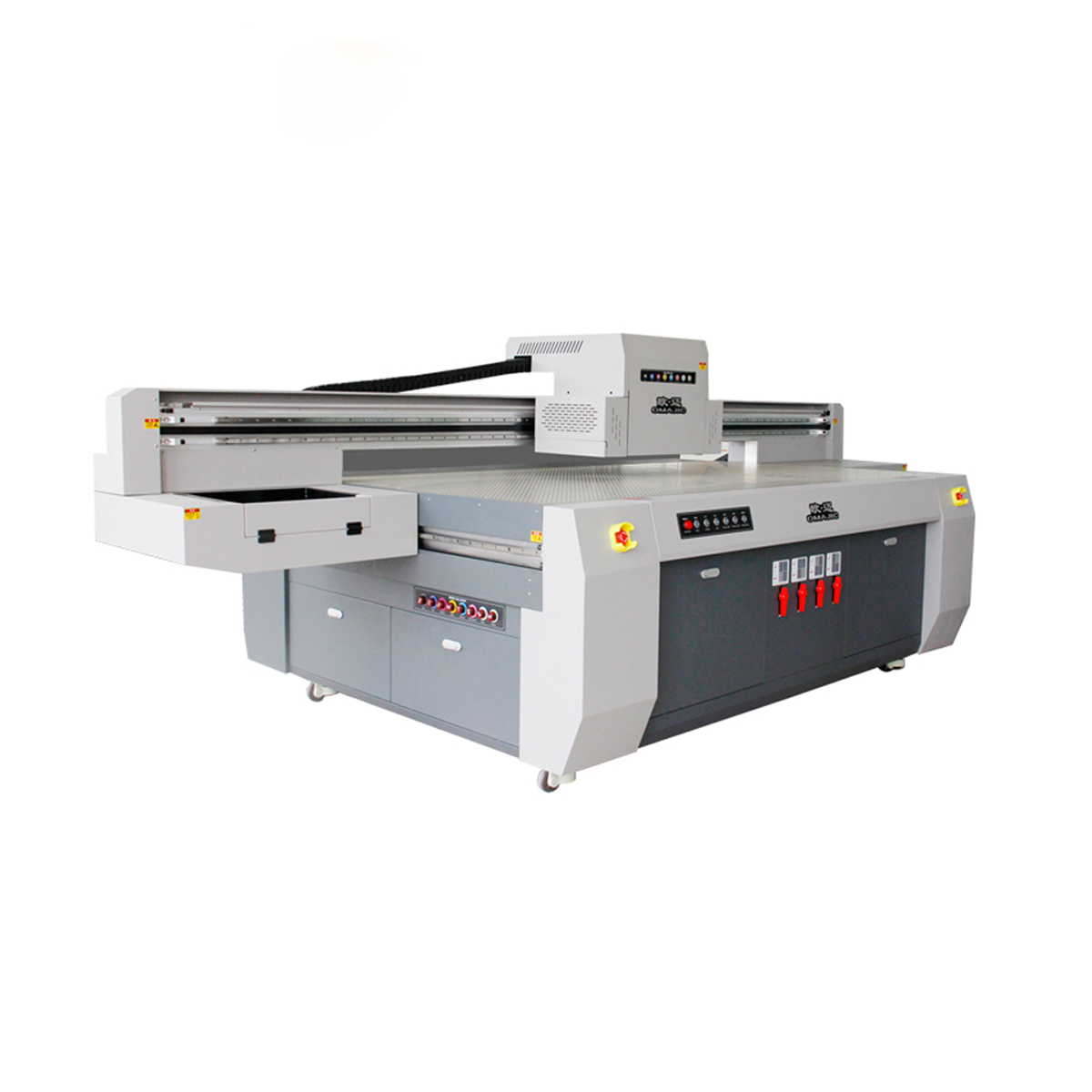

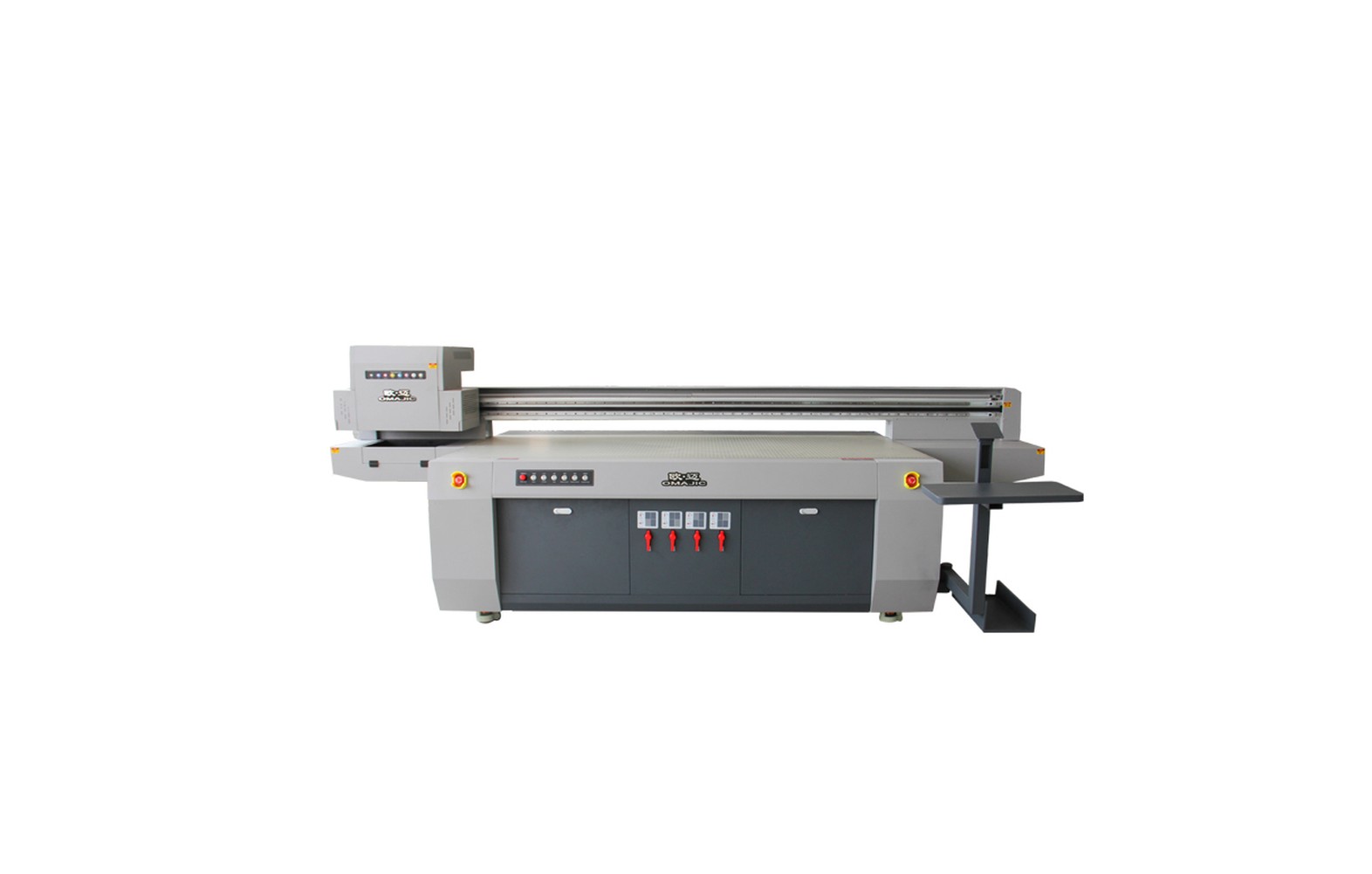

OMAJIC UV2513 G5/G6 Flatbed UV Printer (2–8× Ricoh) – Overview
The OMAJIC UV2513 G5/G6 is the industrial-grade variant of the 8×4-feet platform, built around long-life Ricoh Gen5/Gen6 greyscale heads – 2 to 8 pieces to match your budget and volume. It prints CMYK + White + Varnish simultaneously on a gantry-milled beam with dual THK linear guides, while the anti-static device keeps acrylic and glass work dust-free and rejection-free.
The OM-UV2513G handles daily production on acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- 2–8 × Ricoh Gen5 / Gen6 industrial greyscale heads – high precision, long service life, faster jetting
- CMYK + White + Varnish printed at the same time
- Up to 48 m²/h sketch / 25 m²/h production (Ricoh configuration, official platform data)
- Anti-static device – eliminates media static for clean, dust-free prints
- Gantry-milled beam + dual THK guides – stable, precise carriage movement
- Universal flatbed – prints almost all flat items except textile
- Zoned vacuum suction platform with independent pumps
- Water-cooled UV LED curing; Windows RIP workflow
Print Speed (Ricoh G5/G6 configuration · official platform data)
| Print Mode | Output Speed |
|---|---|
| Sketch mode (Ricoh heads) | up to 48 m²/h |
| Production mode | up to 25 m²/h |
| High-quality mode | up to 16 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC UV2513 G5/G6 (UV2513PRO-G) |
| Print Heads | 2–8 × Ricoh Gen5 / Gen6 (greyscale, 7pl class) |
| Max Print Area | 2500 × 1300 mm (8 × 4 ft) |
| Media Thickness | up to ~100 mm (class) |
| Ink Type | UV LED curable ink |
| Ink Colours | CMYK + White + Varnish (same-pass, configurations per head count) |
| Curing | Water-cooled UV LED |
| Motion | Milling beam, dual THK linear guides |
| Static Control | Anti-static device fitted |
| RIP Software | Photoprint / Maintop (ICC colour management), Windows 7 / 10 |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Media | Acrylic, glass, metal, ceramic, wood, PVC/foam board, ACP, packaging stock |
| Operating Environment | 20–28 °C recommended, 40–60% RH, dust-controlled |
| Installation | Wooden-case export packing, on-site installation by UED |
Applications
Typical work: acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
