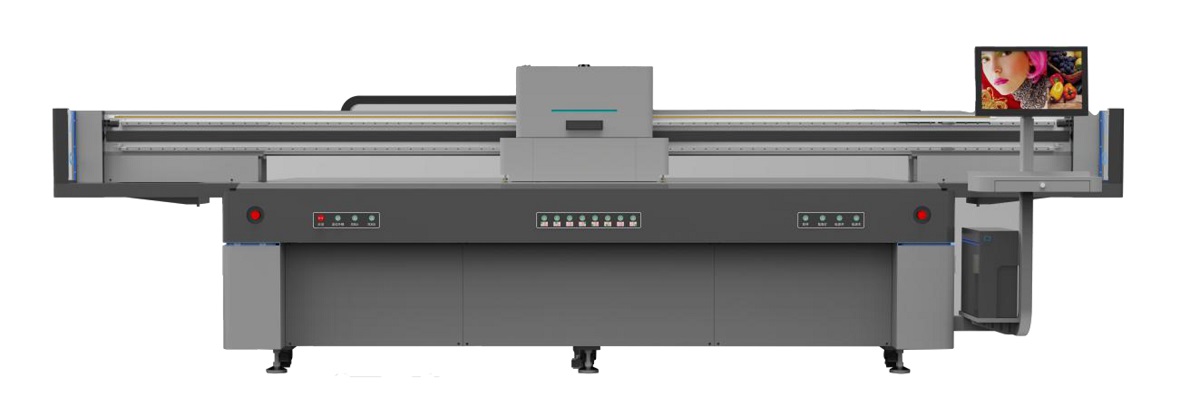

eRICK UV3220 UV Flatbed Printer (Ricoh G5/G6, 3.2×2.0m) – Overview
The eRICK UV3220 is the factory-floor monster of the ERICK flatbed line: a 3.2×2.0-metre bed that swallows full 8×4 boards with room to work, driven by 3–16 Ricoh Gen5/Gen6 heads. Eight button-matched suction zones flip on/off by area so jigs and odd shapes run back-to-back without wasting vacuum; the automatic powerful waste-ink wiping capping station keeps heads unclogged; and built-in media alignment pins drop every board perfectly square to the print. Independent constant-temperature ink heating, negative-pressure supply and an anti-collision system are factory standard, CMYK LC LM W V inks run from Caldera/PhotoPrint, and the platform supports eye-catching UV fluorescent colour solutions for fashion and footwear work.
The ER-UV-3220 turns acrylic & ACP boards, glass & mirrors, wood & MDF panels, ceramic tiles, metal sheets, PVC / sunboard / foam board, KT board, leather & fabric sheets, phone cases & gadget covers, packaging prototypes, promotional merchandise and personalised décor items into grand-scale factory output. Rows marked (class) are platform-class figures confirmed in writing with your quotation.
Key Features
- 3–16 × Ricoh Gen5/Gen6 heads on a 3.2×2.0m bed
- 8 separated suction zones – 8 buttons, non-stop loading

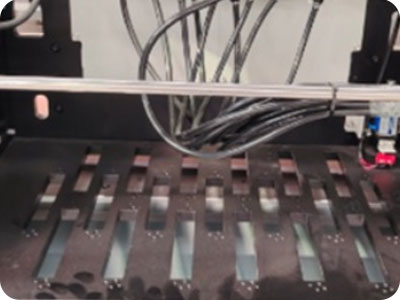

- Automatic waste-ink wiping + built-in capping station
- Built-in media alignment pins – boards register square
- Fluorescent UV colour option – fashion & footwear effects
- Independent constant-temperature ink heating per channel
- BYHX board, Hiwin rails, Leadshine servo, German tank chain
- CMYK LC LM W V; Caldera / PhotoPrint; i7 touchscreen option
Print Speed (eRICK UV3220 · platform (class) data)
| Print Mode | Output Speed |
|---|---|
| Ricoh G6 · 4 pass (class) | 18 m²/h (≈194 sqft/hr) |
| Ricoh G6 · 6 pass (class) | 12 m²/h (≈129 sqft/hr) |
| Print-row architecture | Up to 4 head rows – matches all production needs |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class)/(est.) are platform-class figures confirmed in writing with your quotation.
Technical Specifications
| Model | eRICK UV3220 (factory platform MJ-UV3220) |
| Print Heads | 3–16 × Ricoh Gen5 / Gen6 (up to 4 rows) |
| Print Area | 3200 × 2000 mm |
| Ink Colours | CMYK LC LM W V (UV LED curable); fluorescent options |
| Machine Functions | Lack-ink alarm, anti-collision device, independent ink-heating control, negative ink supply, print-height sensor, 8 separated suction areas |
| Machine Configuration | Hiwin guide rail, Leadshine motor, BYHX board, Germany imported tank chain, all-in-one computer (optional) |
| All-in-One Computer (optional) | 8th-gen i7-8750H, 64/128 GB, 15.6-in 1920×1080 touchscreen |
| RIP Software | Caldera / PhotoPrint |
| Power / Environment | 7000 W; 20–28 °C, 40–70% RH |
| Package | 5250 × 2300 × 2530 mm, 2800 kg (official) |
Applications
Typical work: acrylic & ACP boards, glass & mirrors, wood & MDF panels, ceramic tiles, metal sheets, PVC / sunboard / foam board, KT board, leather & fabric sheets, phone cases & gadget covers, packaging prototypes, promotional merchandise and personalised décor items. One flatbed serves signage fabricators, interior décor studios, advertising agencies, gift personalisers, packaging prototypers and industrial marking lines that need direct-to-substrate UV printing on rigid and semi-rigid materials.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV flatbed printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
