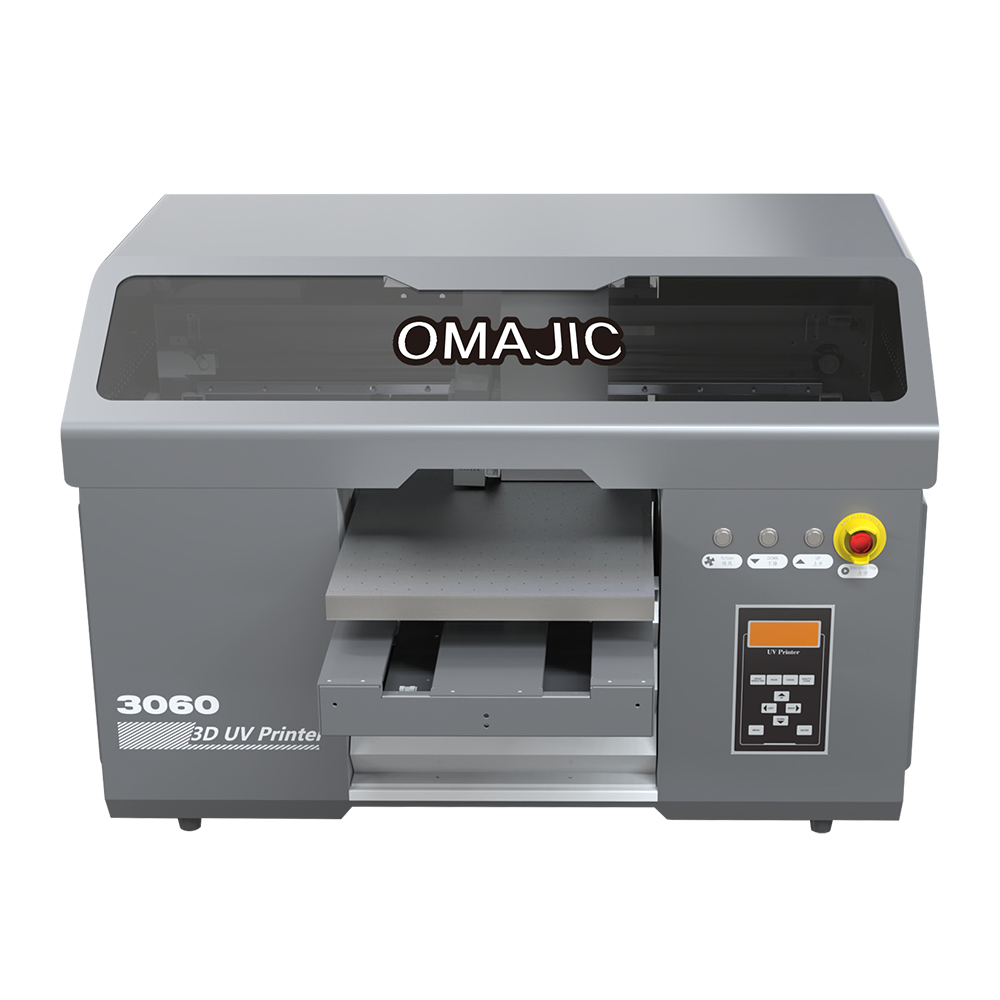

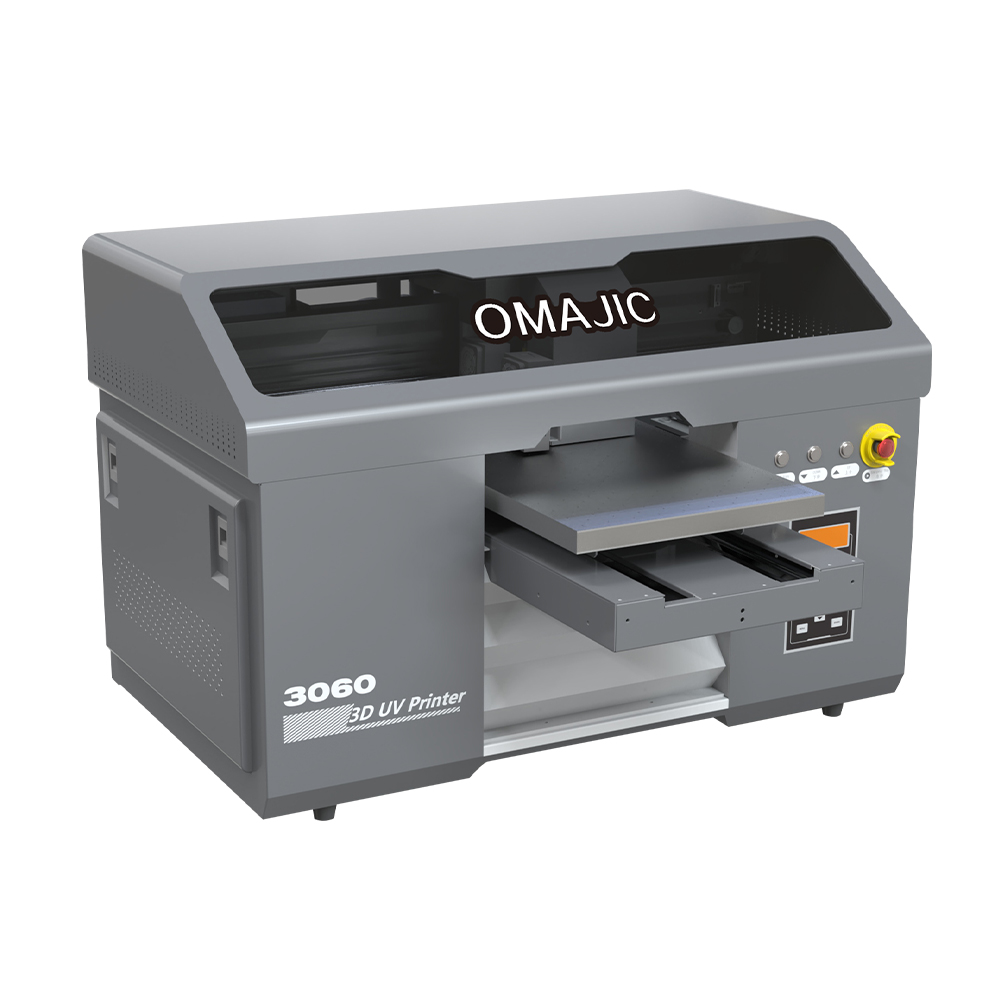

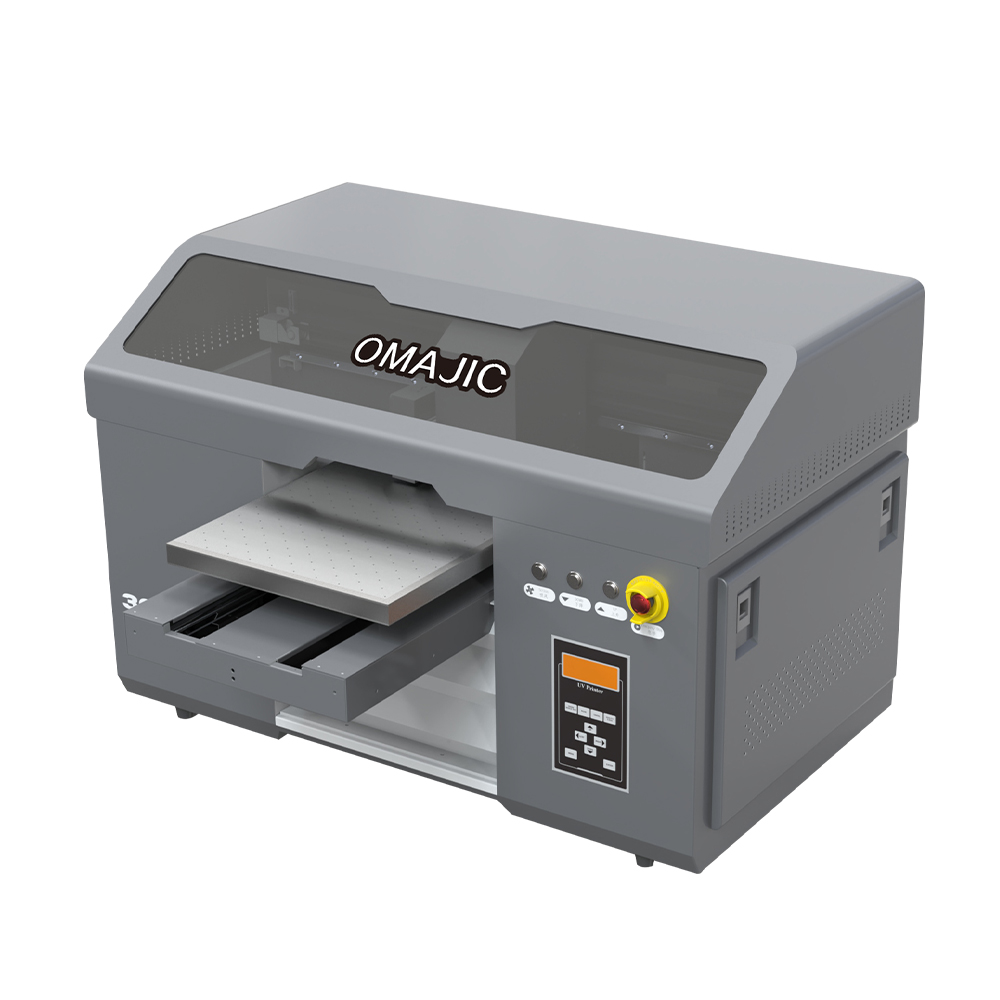

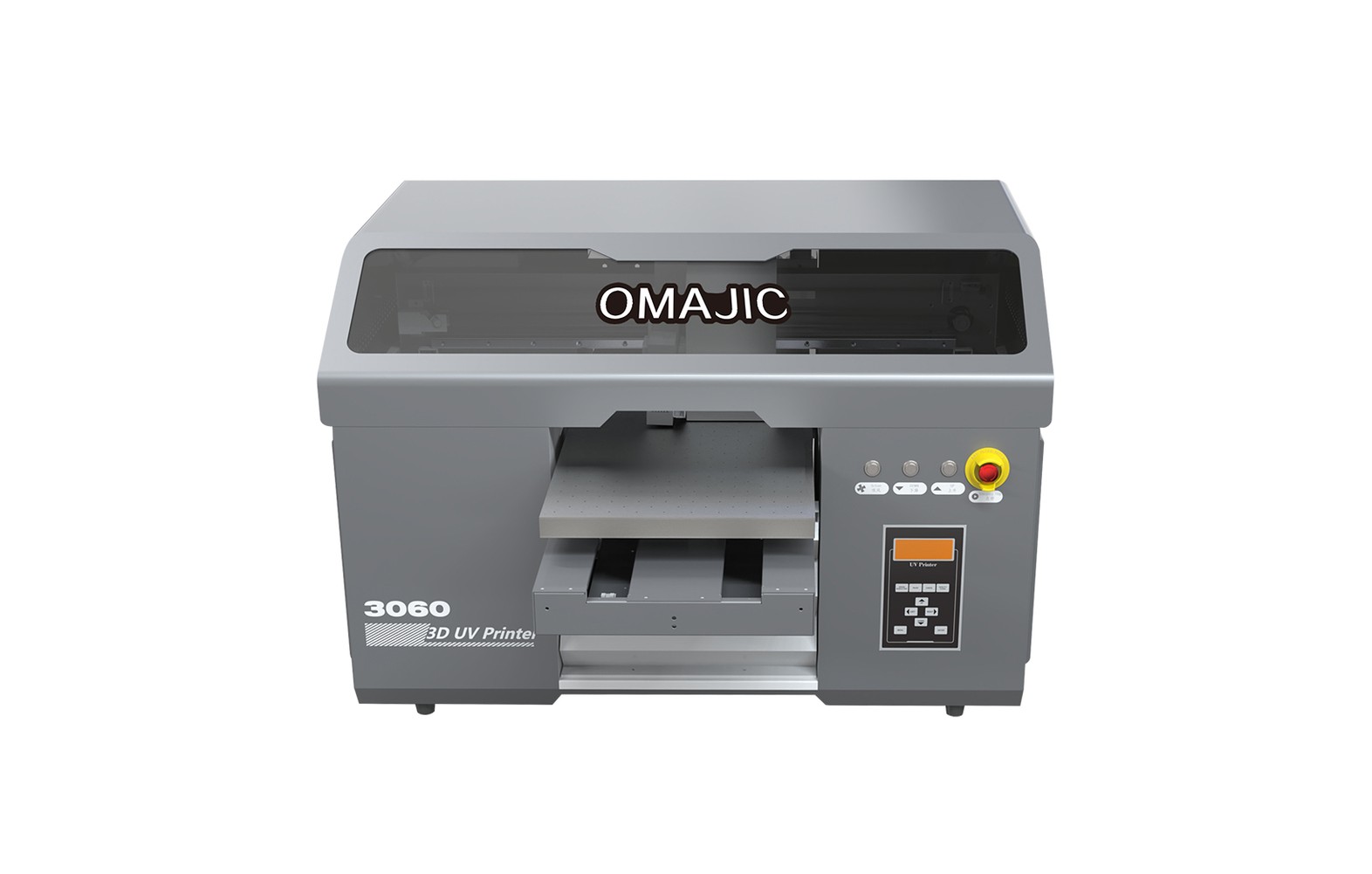

OMAJIC UV3060E Flatbed UV Printer (2× XP600) – Overview
The OMAJIC UV3060E is the compact entry model of the OMAJIC UV flatbed range – a 300×600mm (A3+) industrial UV printer built on a rigid tabletop chassis with 2 Epson XP600 print heads and 1.5pl variable-droplet accuracy. It prints CMYK, White and Varnish in one pass onto almost any rigid or cylindrical object up to booklet height, and ships with a rotary jig for bottles, tumblers and jars.
The OM-UV3060E handles daily production on acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- 2× Epson XP600 print heads – high precision & stability, easy maintenance
- 1.5pl minimum droplet for photo-quality small-format output
- CMYK + White + Varnish printed simultaneously in one pass
- Rotary jig equipped standard – print cylindrical bottles, tumblers, jars
- UV LED instant curing – waterproof, scratch- and fade-resistant prints
- Universal flatbed – prints almost any flat item except textile
- Compact footprint – fits studios, gift shops and personalization counters
- Photoprint / Maintop RIP – Windows 7/10, USB 2.0 connectivity
Print Speed (2× XP600 · full-bed print times, manufacturer test conditions (class))
| Print Mode | Output Speed |
|---|---|
| Draft mode – CMYK only, 300×600mm bed | ~3–5 min per full bed (class) |
| Production – CMYK + White + Varnish | ~6–10 min per full bed (class) |
| High-quality – fine detail / gloss | ~12–15 min per full bed (class) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC UV3060E |
| Print Heads | 2 × Epson XP600 (micro-piezo) |
| Max Print Area | 300 × 600 mm |
| Ink Type | UV LED curable ink |
| Ink Colours | CMYK + White + Varnish (same-pass) |
| Min Droplet Size | 1.5 pl (variable dot) |
| Curing | UV LED lamp, instant cure |
| Rotary / Cylinder Printing | Yes – rotary jig supplied |
| Printable Media | Acrylic, glass, metal, ceramic, wood, PVC, phone covers, bottles (rotary) |
| RIP Software | Photoprint / Maintop, Windows 7 / 10 |
| Interface | USB 2.0 |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Operating Environment | 20–28 °C recommended, 40–60% RH, dust-controlled |
| Footprint Class | Compact desktop / stand-mount chassis |
Applications
Typical work: acrylic sheets, glass panels, aluminium & metal boards, ceramic tiles, PVC & foam board, wood, MDF, phone covers, leather, USB drives, gift items, corporate plaques and packaging prototypes. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
