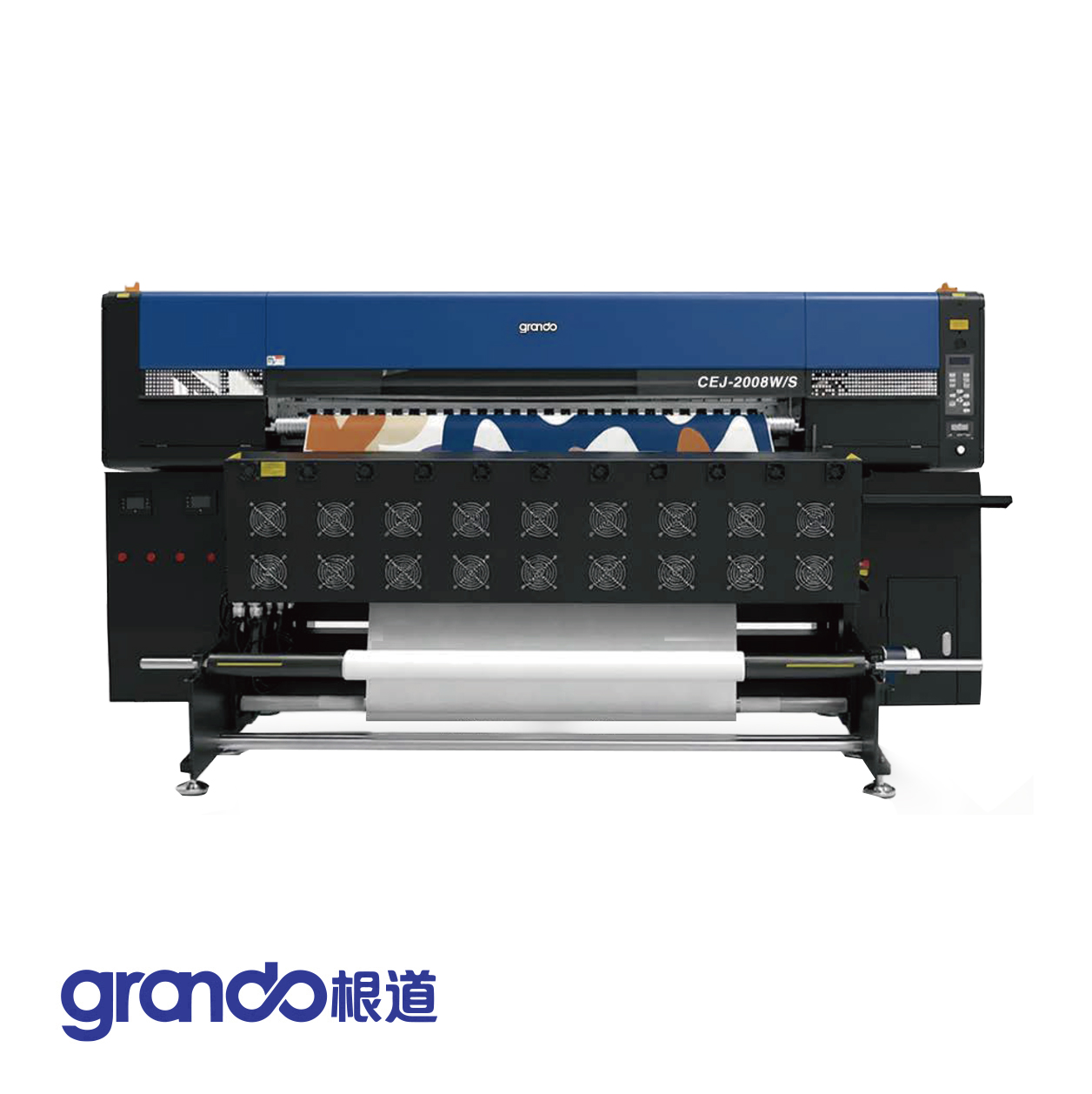

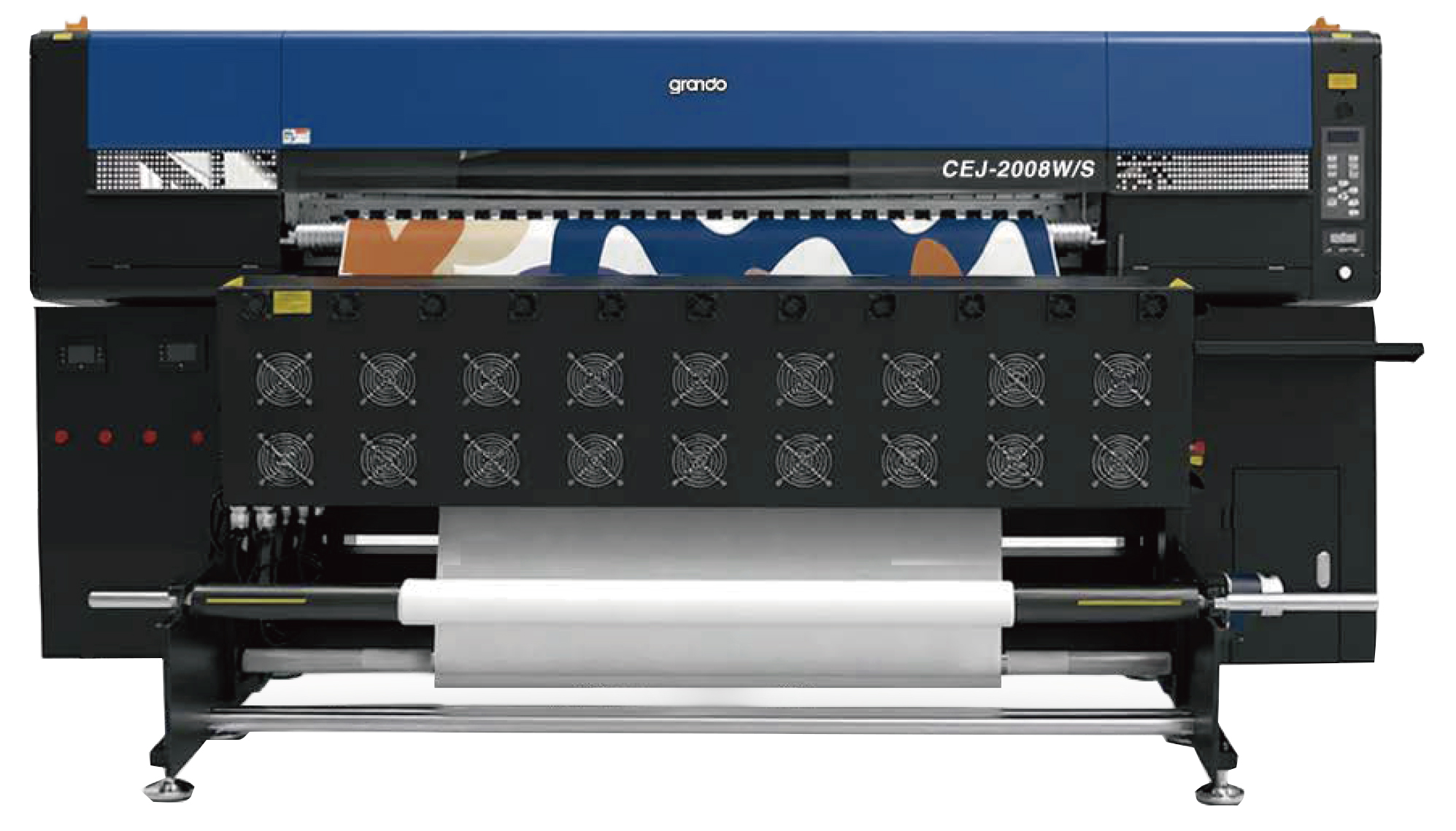

GRANDO GD-2008W/S Eco & Water-based Printer – Overview
The GRANDO GD-2008W/S is the fastest machine in the Grando eco-solvent family: an 8-head, 2.0-metre wide-format printer that replaces multiple smaller machines in one footprint. Its dual ink-path design accepts eco-solvent or water-based ink (CMYK or CMYK+S1S2S3S4 8-colour), so one machine can serve outdoor signage work and indoor photographic/poster work with a simple ink changeover. A siphon ink-path system with automatic refill keeps all eight heads fed at full speed.
Designed as a true roll-to-roll production machine, the GD-2008W/S prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.

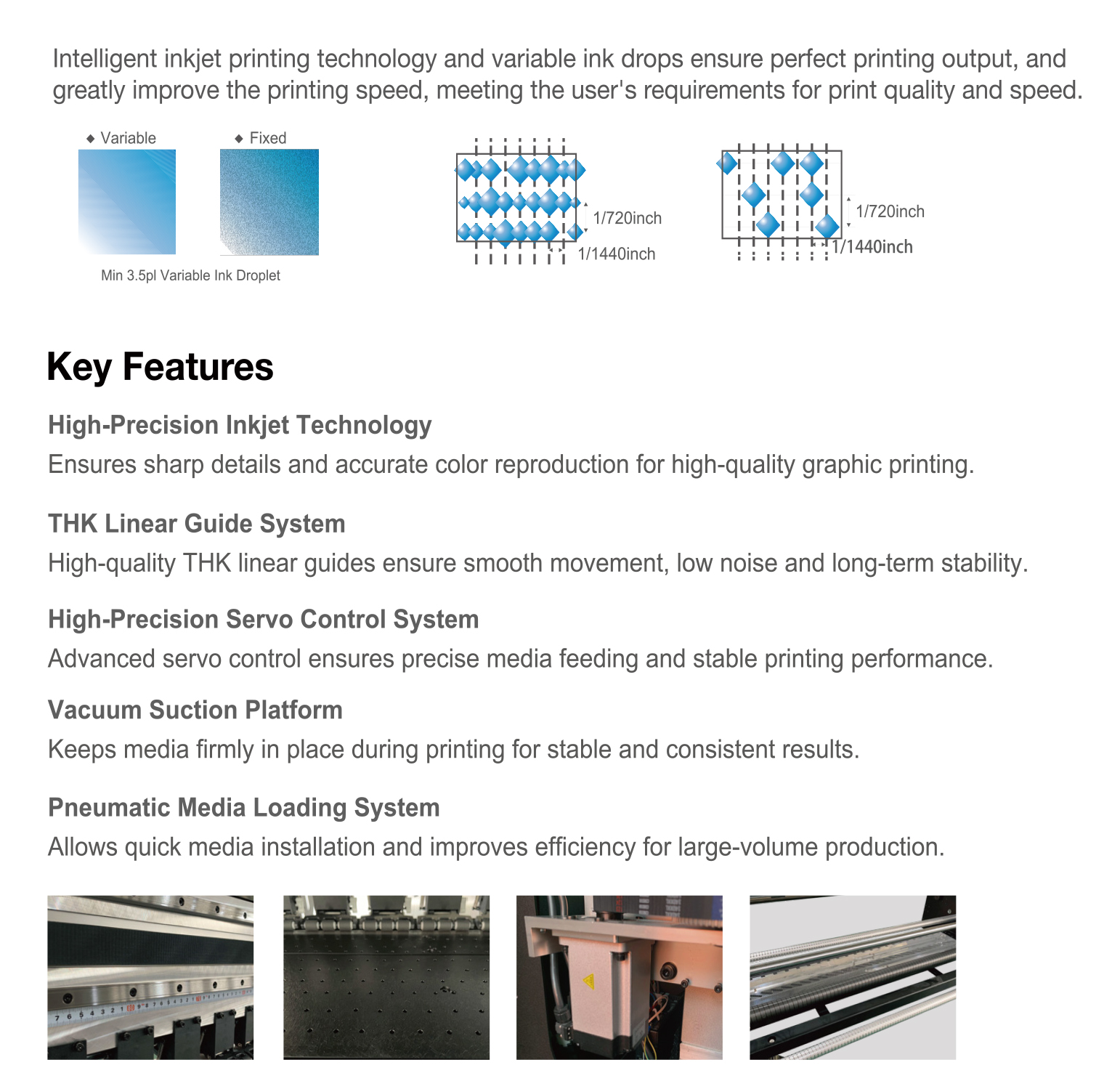

Key Features
- 8 × Epson I3200 A1/E1 heads, 3.5 pl droplets – production speed up to 180 m²/h
- Eco-solvent or water-based ink on the same platform – maximum job flexibility
- Pneumatic dual-shaft automatic take-up handles heavy rolls without sagging
- External air & heat integrated dryer (max. 8000 W) – prints are dry at full speed
- Automatic cleaning & moisturising system protects all eight heads
- Vacuum suction platform keeps thin films perfectly flat
- Wide RIP support: RIIN / Maintop / ONYX / NeoStampa / PrintFactory / PhotoPrint
- THK linear guides + high-precision servo control for band-free output at speed
Print Speed
| Print Mode | Output Speed |
|---|---|
| Production mode | up to 180 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.

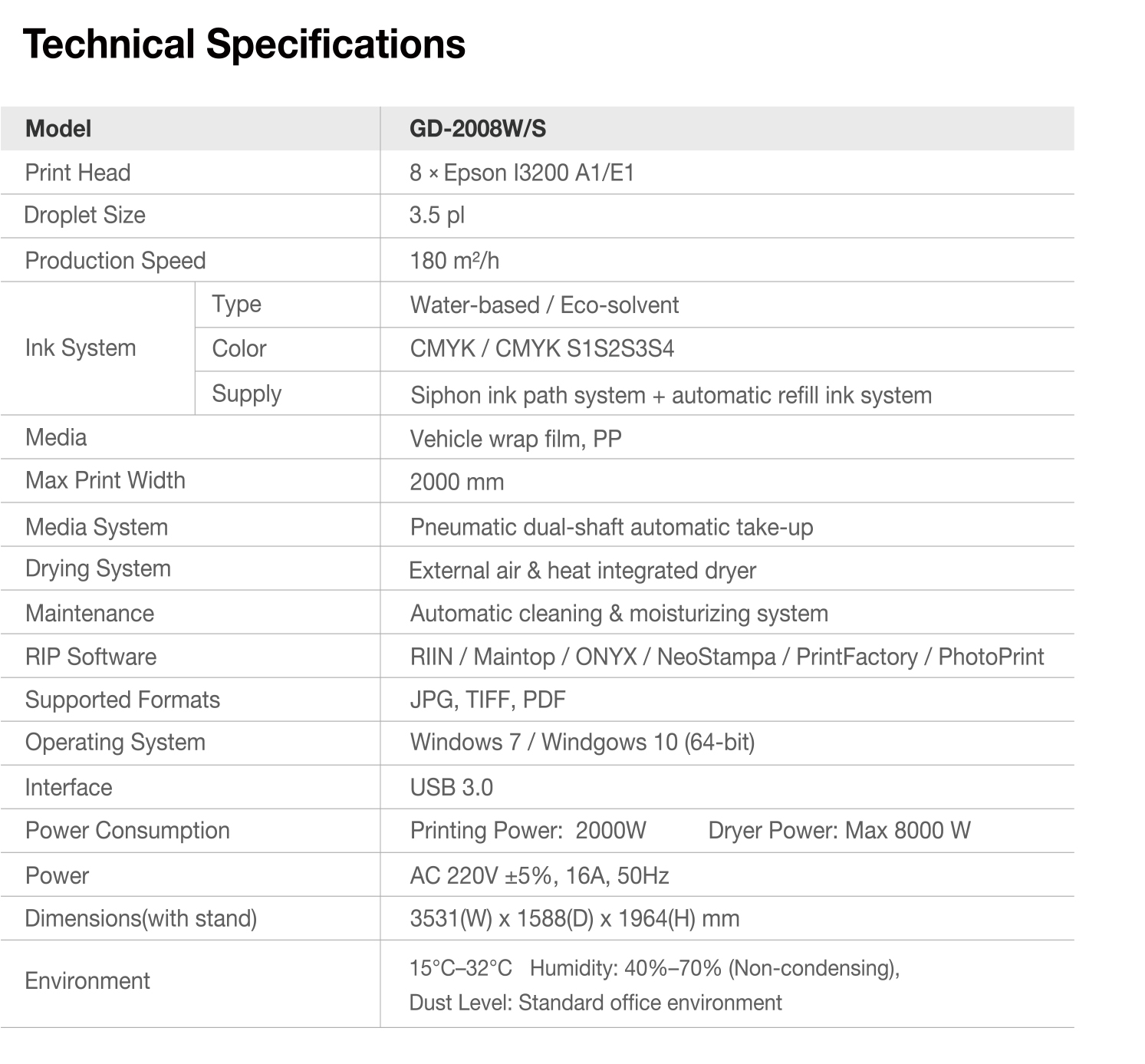

Technical Specifications
| Model | GD-2008W/S |
| Print Head | 8 × Epson I3200 A1/E1 |
| Droplet Size | 3.5 pl |
| Production Speed | Up to 180 m²/h |
| Ink Type | Water-based / Eco-solvent |
| Ink Colours | CMYK / CMYK + S1 S2 S3 S4 |
| Ink Supply | Siphon ink-path system + automatic refill |
| Max. Print Width | 2000 mm |
| Media | Vehicle wrap film, PP and common roll media |
| Media System | Pneumatic dual-shaft automatic take-up |
| Drying System | External air + heat integrated dryer |
| Maintenance | Automatic cleaning & moisturising system |
| RIP Software | RIIN / Maintop / ONYX / NeoStampa / PrintFactory / PhotoPrint |
| Supported Formats | JPG, TIFF, PDF |
| Operating System | Windows 7 / Windows 10 (64-bit) |
| Interface | USB 3.0 |
| Power Consumption | Printing 2000 W · Dryer max. 8000 W |
| Power Supply | AC 220 V ± 5%, 16 A, 50 Hz |
| Dimensions (with stand) | 3531 (W) × 1588 (D) × 1964 (H) mm |
| Operating Environment | 15–32 °C, 40–70% RH (non-condensing) |
Applications
The GD-2008W/S is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
