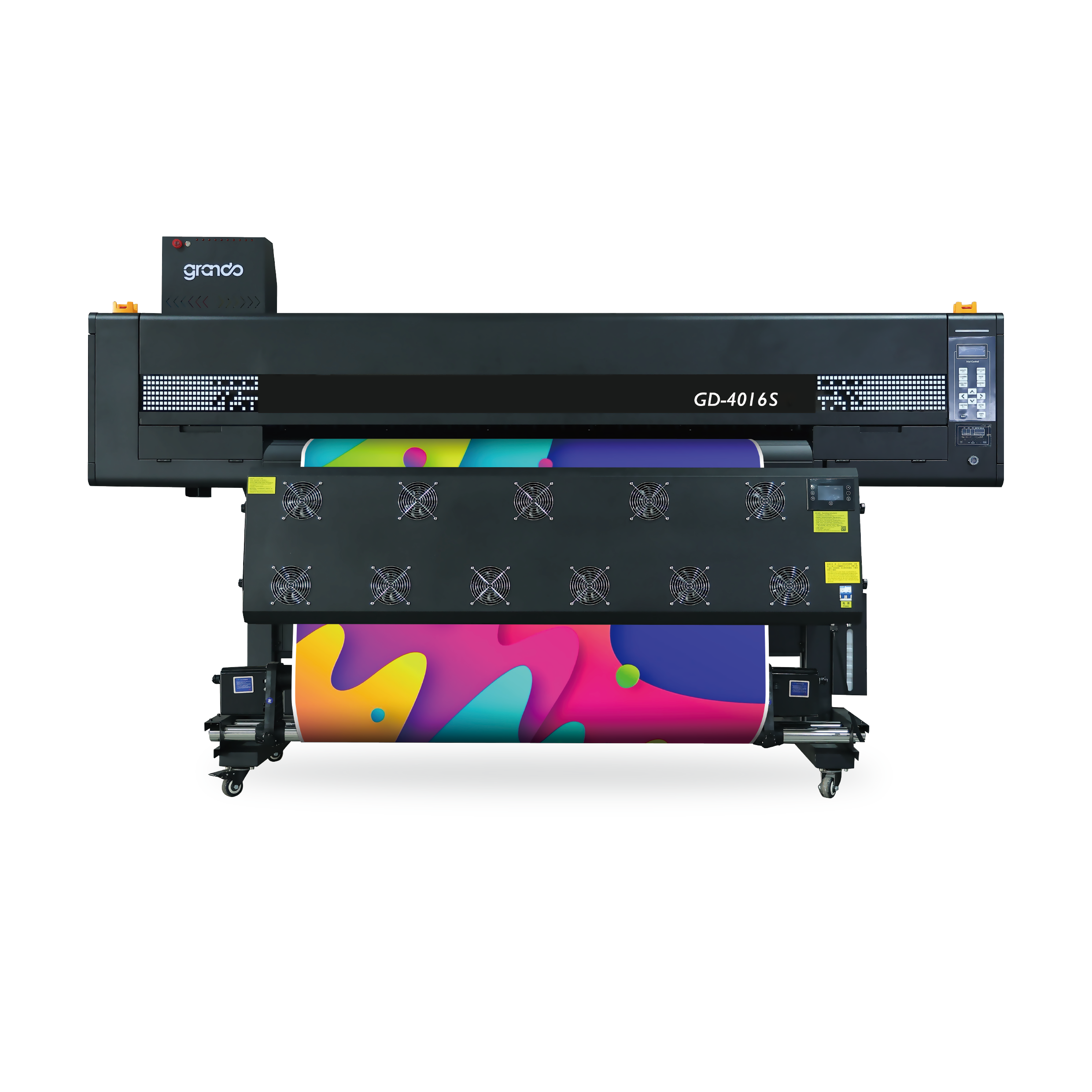

GRANDO GD-4016S Eco Solvent Printer – Overview
The GRANDO GD-4016S Eco Solvent Printer is the upgraded high-performance 1.6 m model in the Grando line-up, fully optimised for printing performance, stability, safety and user experience. By mounting four Epson PrecisionCore I3200-E1 heads (3.5 pl) on a reinforced, high-flatness platform, the GD-4016S delivers production-class speed in the most popular machine size in India – ideal for signage, posters, vehicle wraps and art-frame printing businesses upgrading from dual-head machines.
Designed as a true roll-to-roll production machine, the GD-4016S prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.

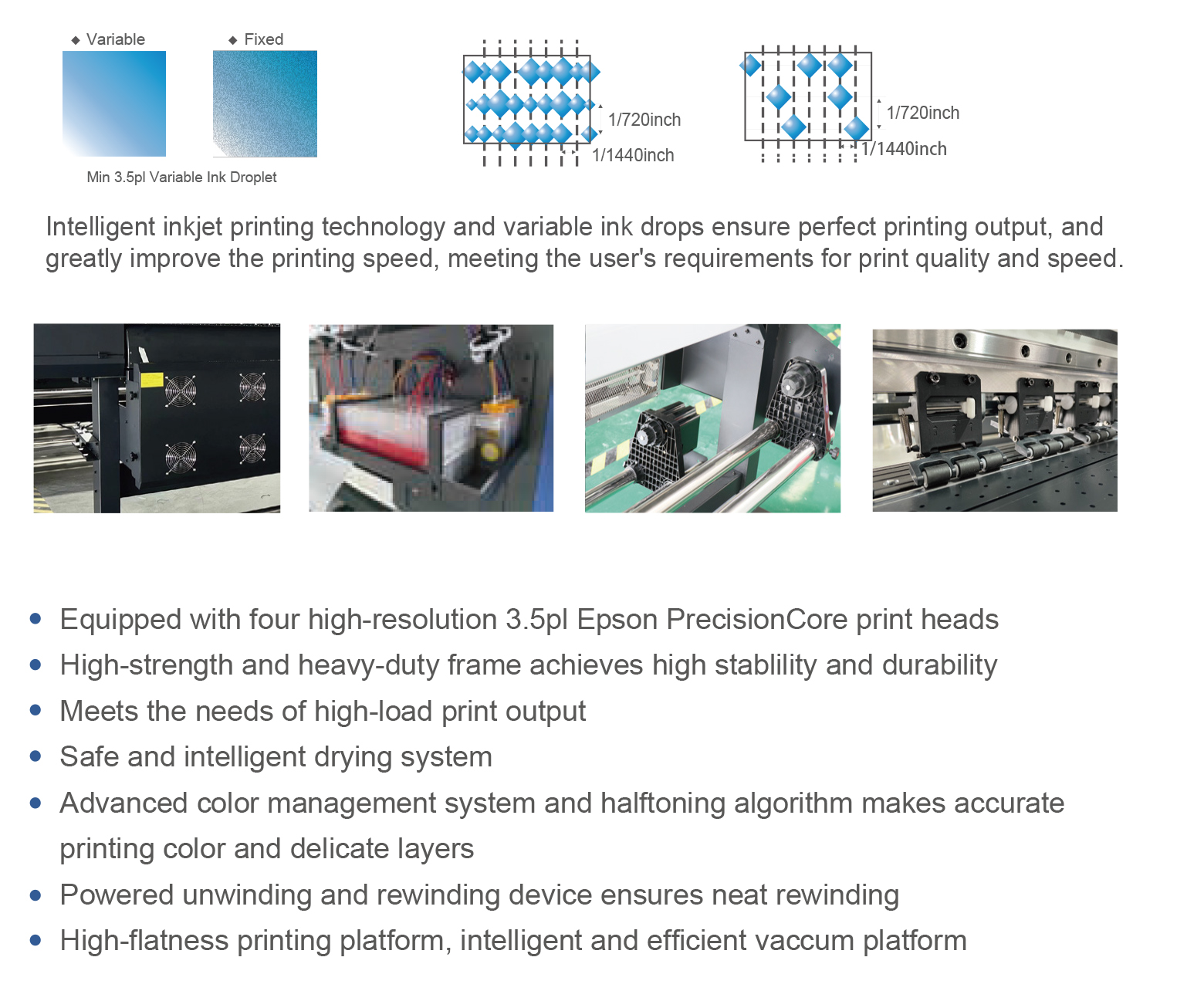

Key Features
- 4 × Epson I3200-E1 PrecisionCore heads (3.5 pl) – up to 35 m²/h
- High-strength, heavy-duty frame for high-load daily output
- Advanced colour management & halftoning algorithm – accurate colour, fine gradients
- High-flatness intelligent vacuum platform – wrinkle-free printing on thin media
- Powered unwinding and rewinding for neat, tight rolls
- Safe, intelligent drying system (post heater + IR dryer + fans)
- Wide application range: signage, posters, car wrap, image post-production, art frames
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 35 m²/h |
| 6 pass (720×1800 dpi) | 25 m²/h |
| 8 pass (720×2400 dpi) | 18 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.

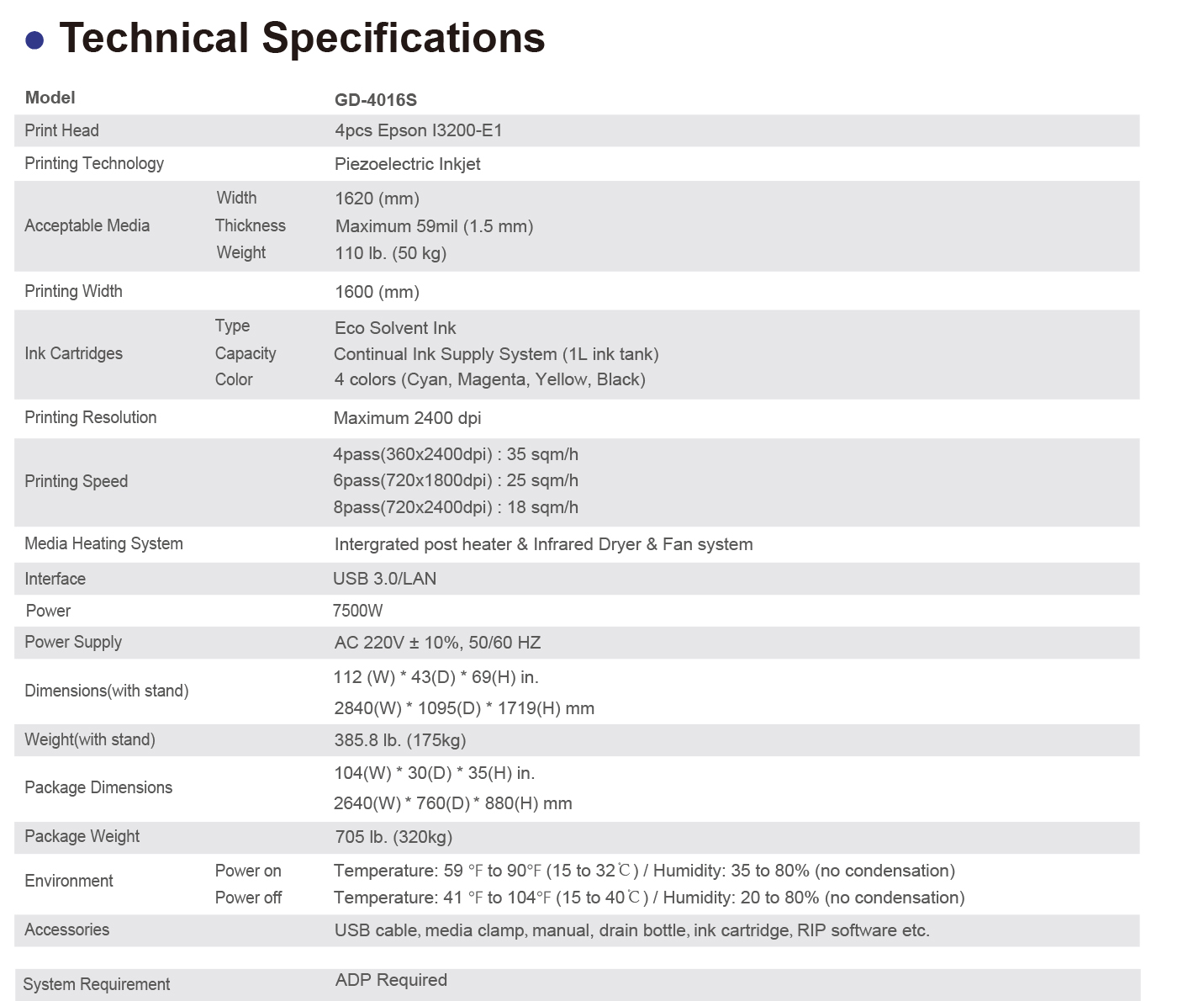

Technical Specifications
| Model | GD-4016S |
| Print Head | 4 × Epson I3200-E1 (3.5 pl variable droplet) |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 1600 mm |
| Acceptable Media | Width 1620 mm · Thickness max. 1.5 mm · Weight max. 50 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | Continuous ink supply system (1 L ink tank) |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Integrated post heater + infrared dryer + fan system |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz · 7500 W |
| Dimensions (with stand) | 2840 (W) × 1095 (D) × 1719 (H) mm |
| Weight (with stand) | 175 kg |
| Package Dimensions | 2640 (W) × 760 (D) × 880 (H) mm |
| Package Weight | 320 kg |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | USB cable, media clamp, drain bottle, ink cartridges, RIP software, manual |
Applications
The GD-4016S is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
