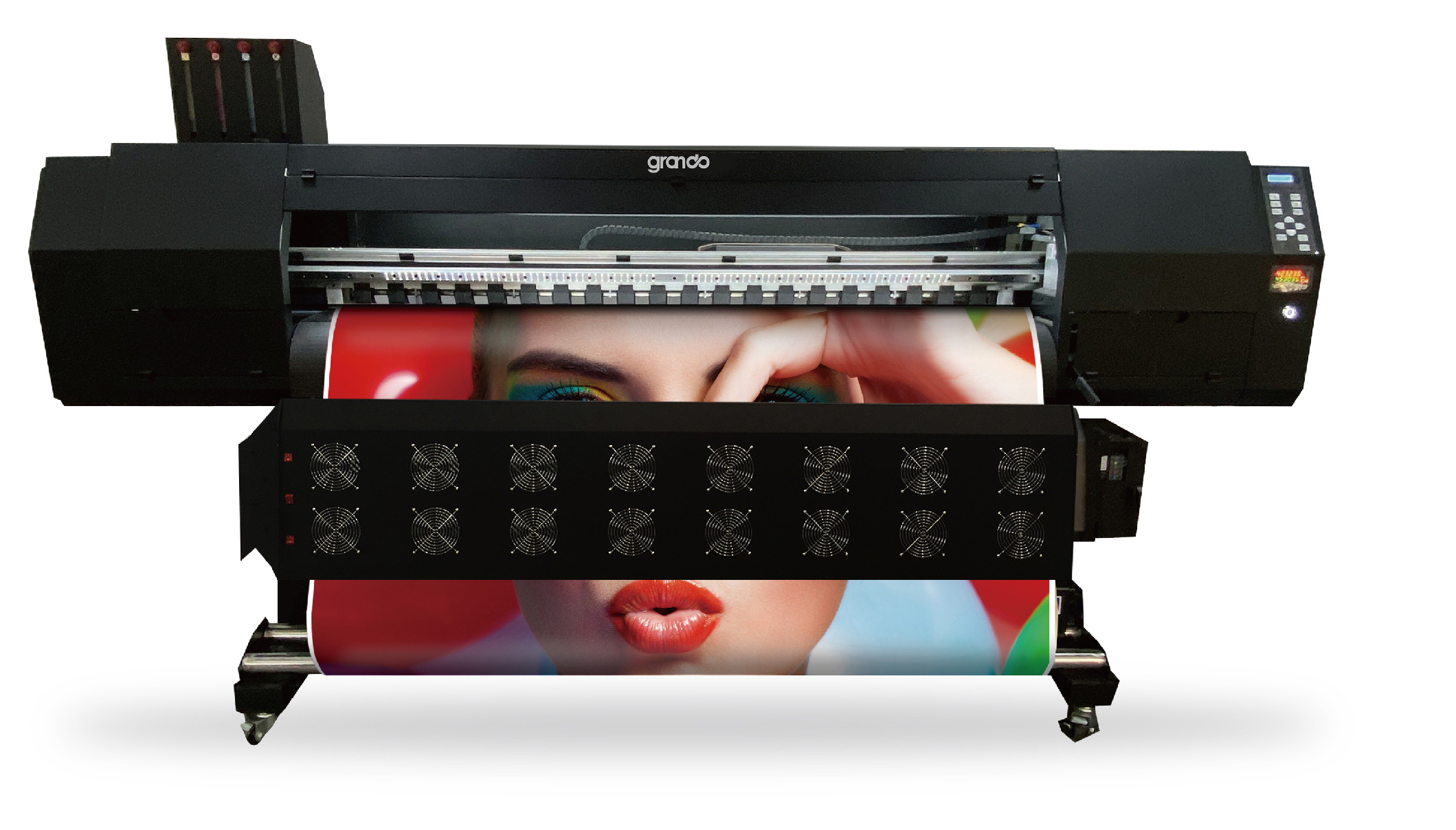

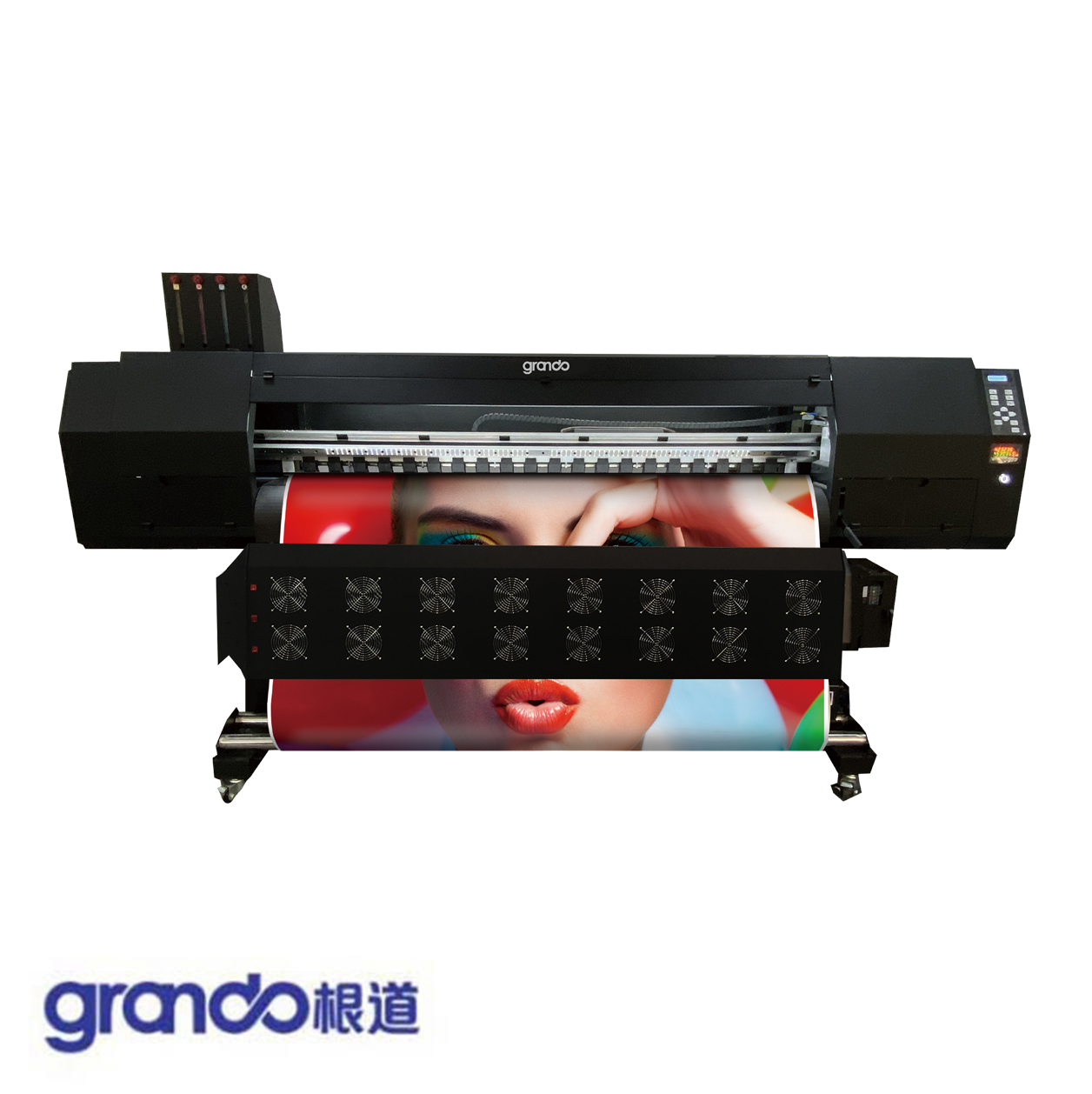

GRANDO BEJ-1804 Eco Solvent Printer – Overview
The GRANDO BEJ-1804 Eco Solvent Printer is where 1.8 m convenience meets production speed. Four authorised Epson I3200-E1 heads – high precision, high speed, high stability – push 84 m²/h in 4-pass mode, so a full day of dual-head output finishes before lunch. Roll-to-roll indoor prints and long-term outdoor signs come out roll-ready thanks to three-stage heating (pre / print / rear), adjustable platform vacuum and the infrared dryer + fan system.
Designed as a true roll-to-roll production machine, the BEJ-1804 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.
Key Features
- 4 × Epson I3200-E1 heads – up to 84 m²/h production speed
- Three-stage heating system with adjustable platform vacuum
- Bulky ink bottle system with low-ink alarm – industrial ink management
- Automatic cleaning assembly with single-way valve for stable ink delivery
- High-precision tensioning pulley system – no media drift on 50 m rolls
- Triple-in-group pinch rollers for high feeding precision
- External power supply with intelligent rolling / take-up system
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 84 m²/h |
| 6 pass (720×1800 dpi) | 62 m²/h |
| 8 pass (720×2400 dpi) | 47 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.

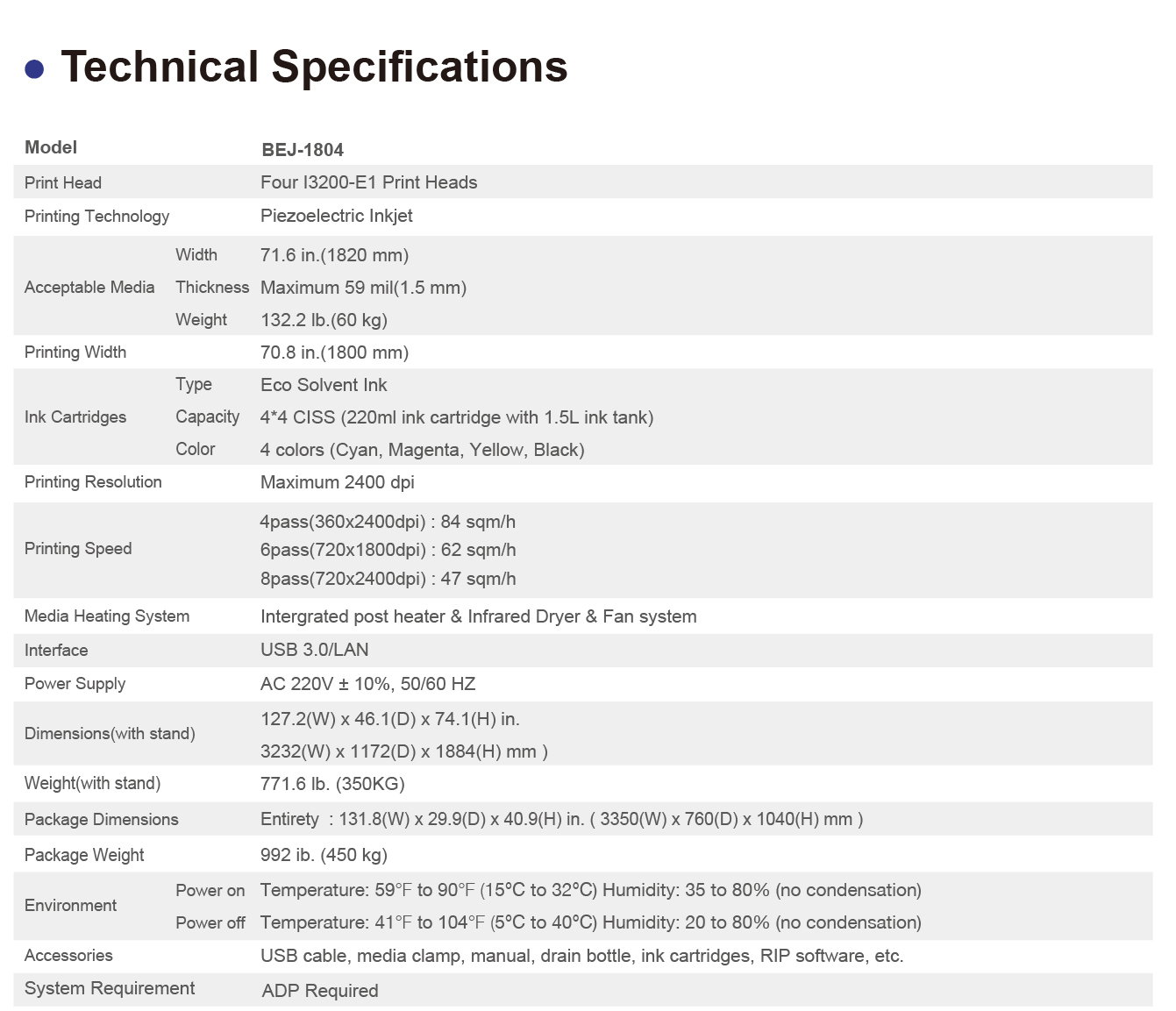

Technical Specifications
| Model | BEJ-1804 |
| Print Head | Four Epson I3200-E1 print heads |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 1800 mm |
| Acceptable Media | Width 1820 mm · Thickness max. 1.5 mm · Weight max. 60 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 4×4 CISS (220 ml cartridges + 1.5 L tank) |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Three-stage heating (pre / print / rear) + vacuum platform + IR dryer & fan |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Dimensions (with stand) | 3232 (W) × 1172 (D) × 1884 (H) mm |
| Weight (with stand) | 350 kg |
| Package Dimensions | 3350 (W) × 760 (D) × 1040 (H) mm |
| Package Weight | 450 kg |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | USB cable, media clamp, drain bottle, ink cartridges, RIP software, manual |
Applications
The BEJ-1804 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
