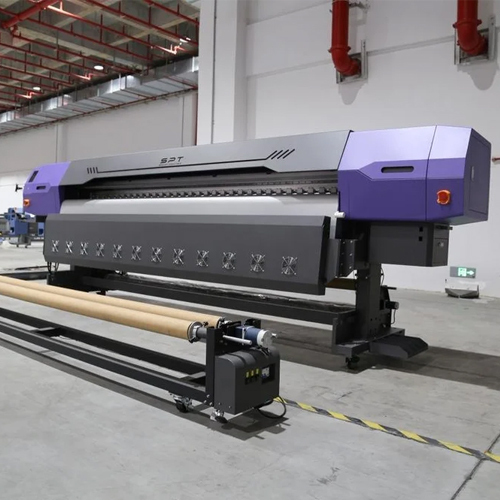

SPT T8 PRO PLUS 512i Flex Printing Machine (8× Konica 512i) – Overview
The SPT T8 PRO PLUS 512i doubles the T8 platform to eight Konica Minolta 512i 30PL heads across a 3300mm carriage: a true production monster for high-volume flex plants. Its negative-pressure ink system keeps all eight heads fed at full firing frequency, the BYHX board drives a colour touch screen, and segmented intelligent infrared heating dries heavy-coverage hoardings at up to 280 m²/h in 2-pass mode.
The SPT-T8PROPLUS-512I runs daily production on flex banners, vinyl hoardings, backlit flex displays, one-way vision film, mesh banners, PVC vinyl stickers & vehicle graphics, canvas, reflective media and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 8 × Konica Minolta KM512i 30PL heads – maximum production output
- 3300mm print width – takes every 10 ft media roll with margin
- Negative-pressure ink supply – no dropouts at full speed, less maintenance
- BYHX control board with touch screen & bracket
- Segmented intelligent infrared heating + front & rear heaters
- Official speeds (8-head, KM512i-30PL): 280 m²/h @ 2-pass 360×360, 180 m²/h @ 3-pass 360×540
- Automatic feed & take-up with segmented drying for heavy coverage
- Heavy 1200kg-class industrial frame, 220V supply
Print Speed (8× KM512i 30PL · official SPT spec sheet)
| Print Mode | Output Speed |
|---|---|
| 2 pass, 360×360 dpi | up to 280 m²/h |
| 2 pass, 480×360 dpi | up to 240 m²/h |
| 3 pass, 360×540 dpi | up to 180 m²/h |
| 3 pass, 480×540 dpi | up to 140 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.

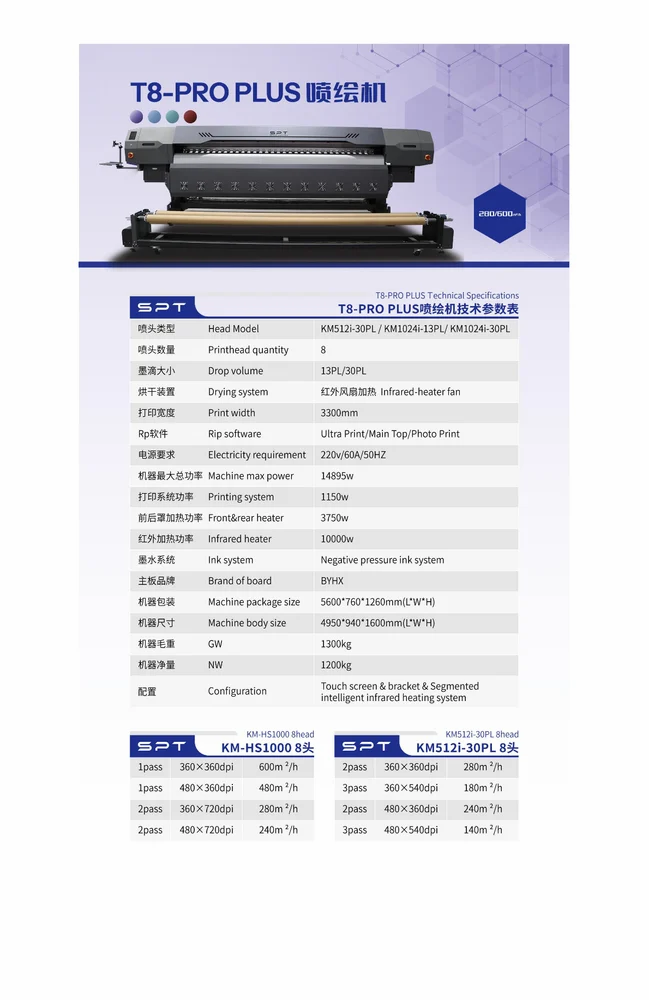

Technical Specifications
| Model | SPT T8 PRO PLUS (KM512i-30PL, 8-head) |
| Print Heads | 8 × Konica Minolta KM512i 30PL |
| Print Width | 3300 mm |
| Colours | 4 colours – CMYK |
| Ink Type | Solvent ink |
| Ink System | Negative-pressure ink system |
| Control Board | BYHX |
| Drying System | Infrared heater fan; front & rear heaters 3750W; IR heater up to 10000W (segmented) |
| RIP Software | UltraPrint / MainTop / PhotoPrint |
| Operator Panel | Touch screen & bracket |
| Power Supply | 220V / 60A / 50Hz (machine max 14895W; printing system 1150W) |
| Machine Size | 4950 × 940 × 1600 mm (L×W×H) |
| Weight | Net ~1200 kg / Gross ~1300 kg |
| Package Size | 5600 × 760 × 1260 mm |
| Operating Environment | 20–28 °C recommended, 20–80% RH (non-condensing) |
Applications
Typical work: flex banners, vinyl hoardings, backlit flex displays, one-way vision film, mesh banners, PVC vinyl stickers & vehicle graphics, canvas, reflective media and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Genuine imported SPT machines – original factory configuration with standard electronics and manufacturer-backed warranty support, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
