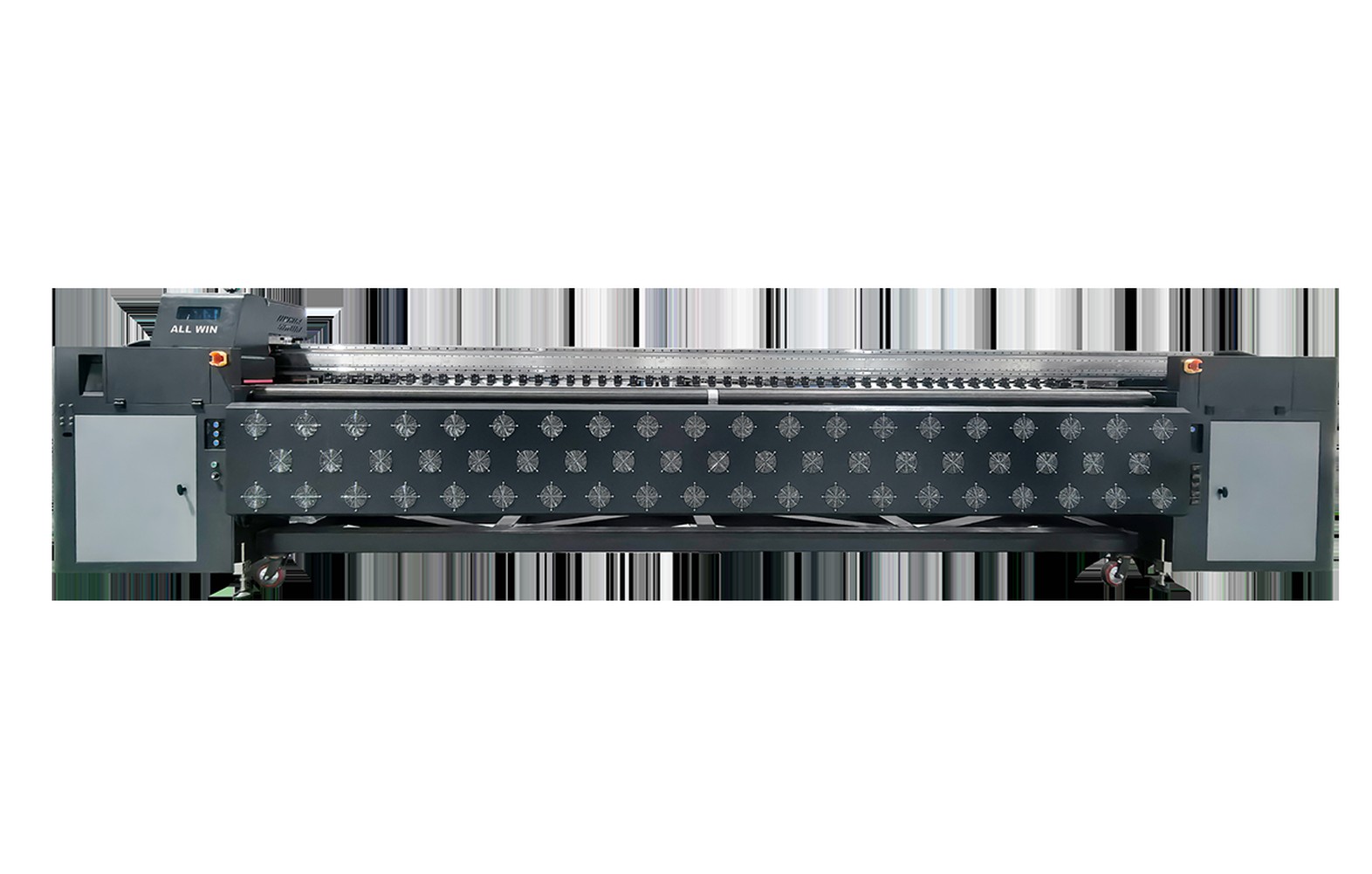

UED 5.3m Giant Solvent Printer (12× HS1000 Heads) – Overview
The UED – marketed as the – is the biggest horsepower in the 5-metre line: twelve Konica high-speed heads deliver up to 900 m²/h in 1-pass draft (nearly 9700 sqft/hr) and a factory-believable 360 m²/h at sale-quality 480×720 dpi 2-pass. Even with the economical 12× KM512i 30PL headset it sustains 450 m²/h at 360×360 dpi. HS1000 heads add their 72.2mm coverage and dense 360dpi physical precision for band-free solids at speed. Built on the ‘s 7800mm, 2100 kg industrial chassis with three-phase-class 380V power, infrared drying and a media collecting system that keeps up with a 900 m²/h appetite.
The UED-53-12H-HS runs daily production on 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 12 heads: KM HS1000/6988H 30PL/13PL (up to 900 m²/h) or 12 × KM512i 30PL
- 900 m²/h 1-pass draft; 360 m²/h at 480×720 dpi 2-pass
- KM512i-30PL option: 450 / 300 / 350 / 240 m²/h by mode
- HS1000-class dense 360dpi physical precision – low-pass printing without banding, +50% speed
- 5285mm print width; 5-metre rolls at full production pace
- 380V / 60A industrial power, 13595W envelope, 7800mm chassis
- Professional external take-up/collecting system for 200 kg-class rolls
- Mute dual guide rails, negative-pressure ink, anti-collision, stepless head height
Print Speed ( (12 heads) · official UED data (HS1000 / KM512i))
| Print Mode | Output Speed |
|---|---|
| HS1000 · 1 pass, 360×360 dpi | 900 m²/h / (KM512i: 450 m²/h, 2 pass) |
| HS1000 · 1 pass, 480×360 dpi | 720 m²/h / (KM512i: 350 m²/h, 2 pass) |
| HS1000 · 2 pass, 360×720 dpi | 450 m²/h / (KM512i: 300 m²/h, 3 pass) |
| HS1000 · 2 pass, 480×720 dpi | 360 m²/h / (KM512i: 240 m²/h, 3 pass) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED 5.3m Giant Solvent Printer (12× HS1000 Heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | 12 × Konica HS1000 / 6988H (30PL/13PL) or 12 × KM512i 30PL |
| Print Width | 5285 mm max |
| Media | 5m flex, frontlit/backlit banner, vinyl, black-back, mesh |
| Ink | Solvent ink, CMYK; bulk supply |
| Drying System | Infrared heater fan; front & rear heaters 5500W |
| RIP Software | MainTop / PhotoPrint |
| Power | AC 380V / 60A / 50Hz – machine max power 13595W (printing 1495W, IR 6600W) |
| Body / Package | 7800 × 1270 × 1835 mm body; 7850 × 1150 × 2100 mm package |
| Weight | Net 2100 kg / Gross 2350 kg |
| Operating Environment | 20–30 °C, 20–80% RH |
Applications
Typical work: 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation?Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
