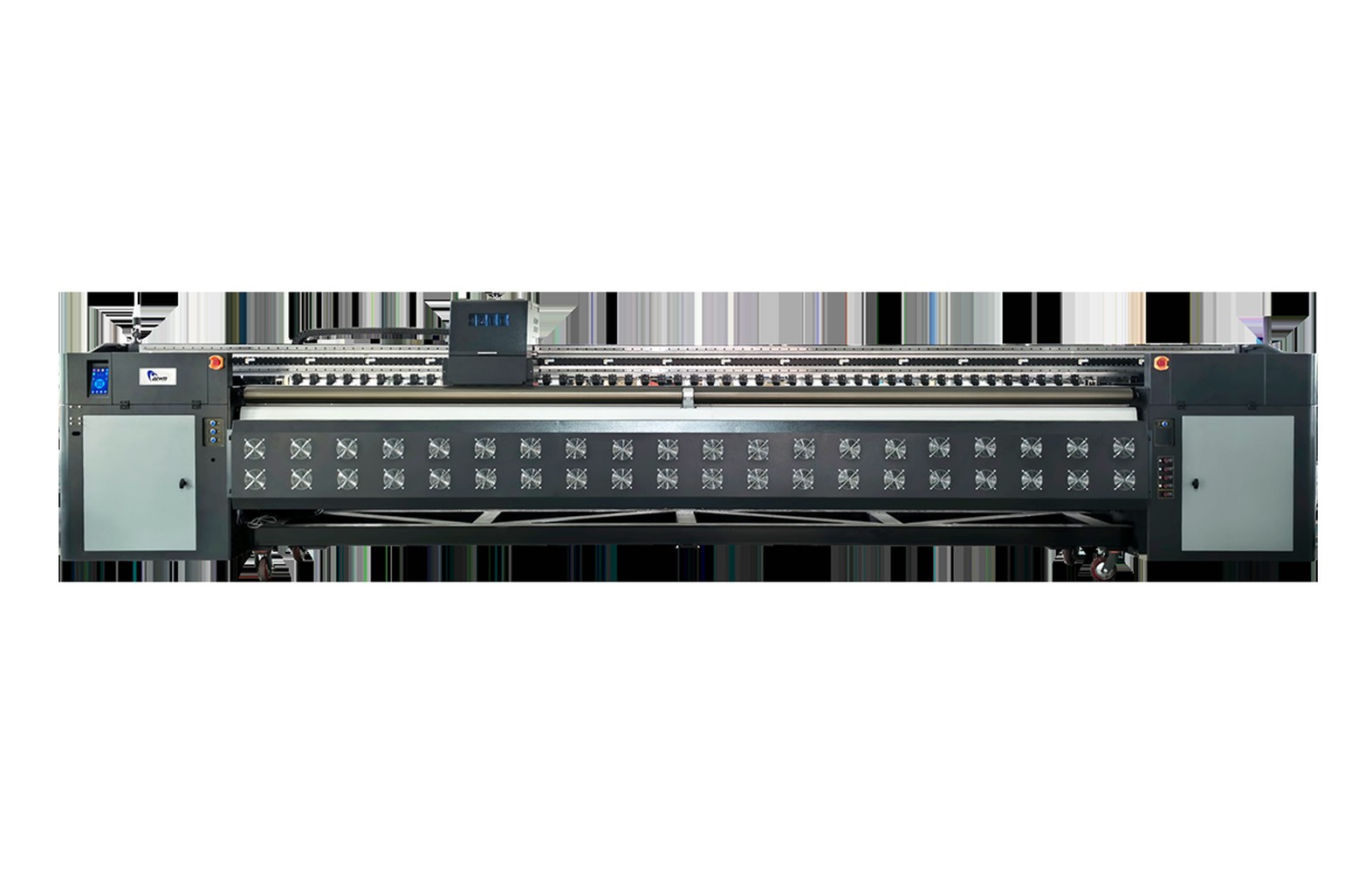

UED 5.3m Giant Solvent Printer (8× KM512i Heads) – Overview
The UED is the 5-metre production floor standard: a 5285mm print width industrial solvent giant configured with 8 heads – Konica KM512i 30PL for economy, or HS1000/6988H high-speed heads when you need 600 m²/h of billboards per shift. It runs on 380V three-phase-class power with a 13.6kW machine envelope including infrared drying, and its 2100 kg chassis with mute dual guide rails and metal grating keeps full-width registration true at speed. The professional external collecting system takes the heaviest dried rolls straight to finishing.
The UED-53-08H-K512 runs daily production on 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 8 heads – Konica KM512i 30PL / HS1000 / 6988H options
- Up to 600 m²/h (HS1000, 1-pass); 280 m²/h (KM512i, 2-pass)
- 5285mm print width – 5-metre hoardings in one piece
- Heavy 2100 kg net industrial frame; 7800mm body length
- 380V / 60A industrial power with 13595W machine envelope
- Professional external media collecting system for fast drying
- Mute dual guide rails with metal grating; stepless head height
- Negative-pressure supply, anti-collision, waste-ink capping station
Print Speed ( (8 heads) · official UED data (KM512i / HS1000))
| Print Mode | Output Speed |
|---|---|
| KM512i 8H · 2 pass, 360×360 dpi | 280 m²/h / 600 m²/h (HS1000, 1 pass) |
| KM512i 8H · 3 pass, 360×540 dpi | 180 m²/h / 480 m²/h (HS1000, 1 pass) |
| KM512i 8H · 2 pass, 480×360 dpi | 240 m²/h / 280 m²/h (HS1000, 2 pass) |
| KM512i 8H · 3 pass, 480×540 dpi | 140 m²/h / 240 m²/h (HS1000, 2 pass) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED 5.3m Giant Solvent Printer (8× KM512i Heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | 8 × Konica KM512i 30PL or HS1000 / 6988H (30PL/13PL) |
| Print Width | 5285 mm max |
| Media | 5m flex, frontlit/backlit banner, vinyl, black-back, mesh |
| Ink | Solvent ink, CMYK; bulk supply |
| Drying System | Infrared heater fan; front & rear heaters 5500W |
| RIP Software | MainTop / PhotoPrint |
| Power | AC 380V / 60A / 50Hz – machine max power 13595W (printing 1495W, IR 6600W) |
| Body / Package | 7800 × 1270 × 1835 mm body; 7850 × 1150 × 2100 mm package |
| Weight | Net 2100 kg / Gross 2350 kg |
| Operating Environment | 20–30 °C, 20–80% RH |
Applications
Typical work: 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation?Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
