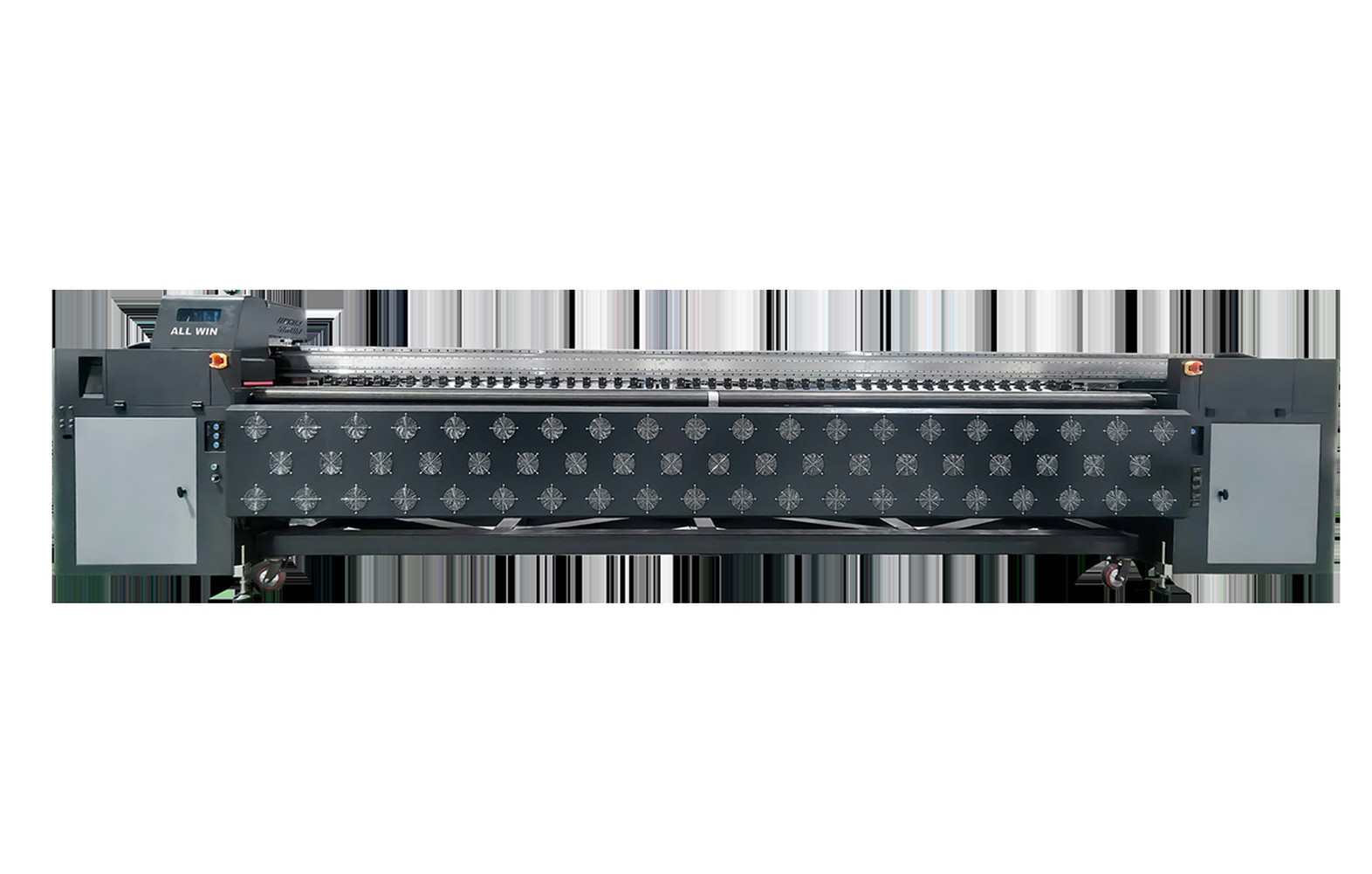

UED 5.3m Solvent Printer (6× 9888H Heads) – Overview
The UED is the high-throughput member of the 9888H high-resolution 5.3m family. Six new-generation Konica heads in a 3-row layout put over 10,600 nozzles across the web, so razor-sharp 2-row-class image quality now arrives at production pace. Variable 5/10/15PL droplets keep skin tones and backlit gradients smooth, while the industrial 2100 kg frame, THK mute dual rails and infrared heater-fan system hold registration across full 5-metre, 200 kg-class rolls.
The UED-53-06H-9888 runs daily production on 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 6 × Konica 9888H heads in 3-row array – ~10,656 nozzles total
- 5PL minimum dot, 8-level grayscale, 600NPI-class precision
- 3-row architecture – higher speed at the same fine-detail class
- 1-head-2-colour configuration for compact colour density
- THK mute dual guide rails + optional carriage linear motor
- Standard negative-pressure ink supply with electronic valve
- Intelligent infrared drying; front & rear heaters for 5m media
- Stepless head height; capping station with waste-ink collection tank
Print Speed ( · 9888H platform (3-row 6H); official UED 9888H mode data)
| Print Mode | Output Speed |
|---|---|
| 2 pass, 400×600 dpi | ≈270 m²/h (class-scaled from official 9888H 2-row data) |
| 3 pass, 400×900 dpi | ≈180 m²/h (class-scaled from official 9888H 2-row data) |
| 4 pass, 400×1200 dpi | ≈135 m²/h (class-scaled from official 9888H 2-row data) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED 5.3m Solvent Printer (6× 9888H Heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | 6 × Konica 9888H (1776 nozzles, 1-head-2-colour) |
| Drop Volume | 5PL / 10PL / 15PL variable, 8-level grayscale |
| Print Width | 5285 mm max |
| Media | 5m flex, banner, backlit board, vinyl, mesh, fabric (solvent base) |
| Ink | Solvent CMYK; negative-pressure bulk supply |
| Drying System | Infrared heater fan; front & rear heaters 5500W |
| RIP Software | MainTop / PhotoPrint |
| Power | AC 220V / 60A / 50Hz – machine max power 13595W (printing 1495W, IR 6600W) |
| Body / Package | 7800 × 1200 × 1650 mm body; 7850 × 1150 × 2100 mm package |
| Weight | Net 2100 kg / Gross 2350 kg |
| Operating Environment | 20–30 °C, 20–80% RH |
Applications
Typical work: 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation?Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
