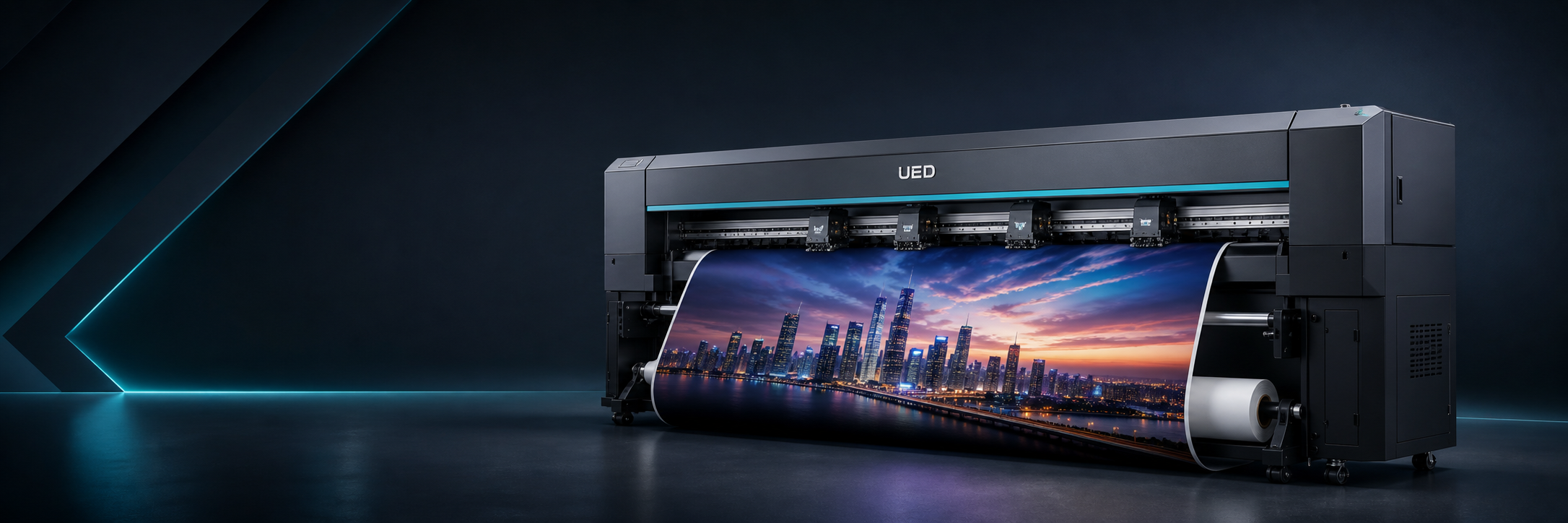

UED Meridian Solvent Printer (F3204, 4 Heads, 3.2m) – Overview
The UED Meridian is the low-investment, ultra hi-speed, business-maximizing solvent printer – perfect for the indoor and outdoor signage industry. It redefines print speed by delivering superb quality at a supersonic 1232 sqft/hr while accommodating all sizes of media on its 3.2m roll capability. Smart Make in India engineering ensures delivery-on-time value and super-saver operating costs: heavy-duty new-tech industrial print heads engineered for long-lasting performance, plus big savings on ink and labour with pressure purge for individual colours.
The UED-MRD-F3204 runs daily production on floor standees, flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, fabric (solvent base), vehicle wraps and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 4 heavy-duty new-tech industrial KM heads – long-lasting performance
- Supersonic 1232 sqft/hr (114 m²/h) maximum production speed
- Lowest investment class in UED’s solvent line – maximum business potential
- Automatic bulk ink supply system + trouble-free gravity-fed ink control
- AJC technology for consistent jetting in varying environments
- Per-colour pressure purge – big savings on ink and downtime
- Adjustable vacuum bed platen holds varied media flat; intelligent interweave pass control
- Flash-fired colour studio: pre/post heating + high-speed fan evaporative dryer
- Auto media feeding for normal and black-backed media; dual-roller feed saves space
Print Speed (F3204 (4 heads) · manufacturer test data)
| Print Mode | Output Speed |
|---|---|
| 2 pass, 360×360 dpi | 114 m²/h (1232 sqft/hr) |
| 3 pass, 360×540 dpi | 77 m²/h (830 sqft/hr) |
| 4 pass, 360×720 dpi | 62 m²/h (664 sqft/hr) |
| 4 pass, 720×720 dpi | 33 m²/h (348 sqft/hr) |
| 6 pass, 720×1080 dpi | 22 m²/h (232 sqft/hr) |
| 8 pass, 720×1440 dpi | 17 m²/h (177 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED Meridian – F3204 (4 heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | Heavy-duty new-tech industrial KM jetting assemblies |
| Media Width | 3300 mm (129 in) |
| Print Width | 3200 mm (126 in) max |
| Media | SAV, PAV Banner, Backlit Film, Window Film, Fabric (solvent base) |
| Roll Capacity | Outer Ø 300 mm, weight to 90 kg, 76.2 mm (3 in) core |
| Ink | Solvent / mild-solvent, 4 colours CMYK; bulk ink supply |
| Max Resolution | 1440 dpi |
| Distance Accuracy | ±0.3% of travel or ±0.3 mm |
| Heating | Pre/post heaters 30–60 °C + high-speed fan evaporative dryer |
| Connectivity | High-speed USB |
| Power | AC 220V ±10%, 20A, 50/60Hz |
| Dimensions / Weight | 4700 × 1050 × 1550 mm / ~595 kg |
| Operating Environment | 18–28 °C, 20–80% RH (non-condensing) |
Applications
Typical work: floor standees, flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, fabric (solvent base), vehicle wraps and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
