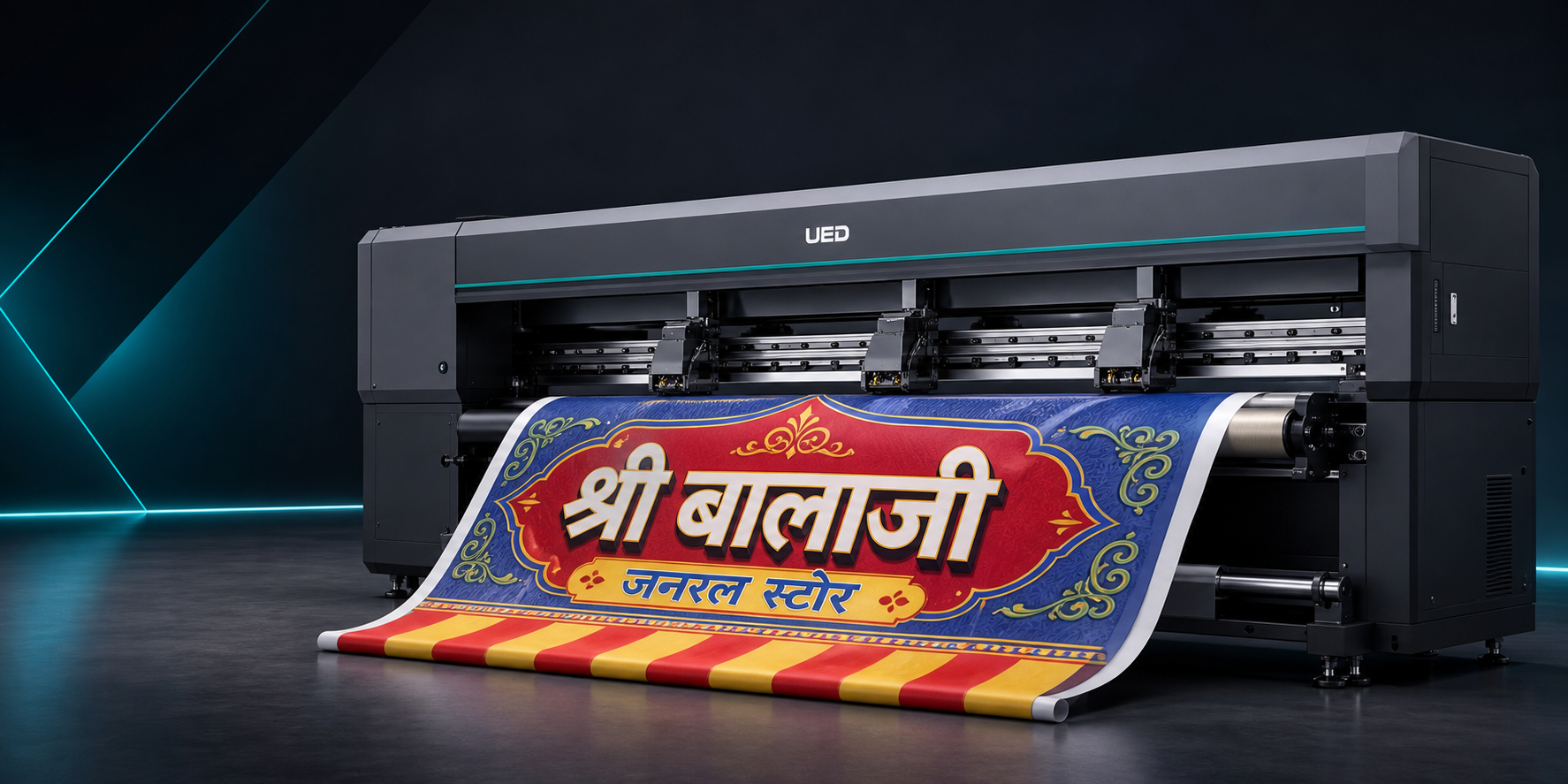

UED Bolt Solvent Printer (KM512, 4/8 Heads) – Classic – Overview
The UED Bolt is the machine that built India’s solvent printing industry – a 3.2-metre roll-to-roll flex and banner printer around industrial Drop-on-Demand Japanese print head technology. With its renowned robust body, pneumatically controlled automatic media handling and Konica 512 42PL heads in 4 or 8-head configuration, the Bolt remains a dependable, value-for-money production platform with a huge installed base across India. Looking for the current-generation upgrade? See our UED Striker F3248.
The UED-BLT-F3248 runs daily production on flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 4 or 8 Konica Minolta KM512 42PL industrial heads for flex and banner
- Up to 753 sqft/hr (70 m²/h) on 8 heads; 452 sqft/hr (42 m²/h) on 4 heads
- 3300mm media width / 3200mm print width; rolls up to 90 kg
- Pneumatically controlled automatic take-up and feed system
- Vacuum bed + pre/post heating with fan evaporative dryer
- Bulk ink supply with gravity-fed ink control; AJC consistent jetting
- Automatic media feeding sensor for normal and black-backed media
- PhotoPrint RIP, high-speed USB connectivity; Made in India
Print Speed (KM512 42PL · UED official listing data (4H / 8H))
| Print Mode | Output Speed |
|---|---|
| 2 pass, 180×720 dpi | 42 m²/h (452 sqft/hr) / 70 m²/h (753 sqft/hr) |
| 3 pass, 240×720 dpi | 28 m²/h (300 sqft/hr) / 55 m²/h (592 sqft/hr) |
| 4 pass, 360×720 dpi | 24 m²/h (259 sqft/hr) / 40 m²/h (430 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED Bolt – 4-head / 8-head Konica 512 configuration |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | Industrial KM512 42PL jetting assemblies |
| Media Width | 3300 mm (129 in) |
| Print Width | 3200 mm (126 in) max |
| Media | SAV, PVC Banner, Backlit Film, Window Film, Fabric (solvent base) |
| Roll Capacity | Outer Ø 300 mm, weight to 90 kg, 76.2 mm (3 in) core |
| Ink | Solvent / mild-solvent, 4 colours CMYK; bulk ink supply |
| Max Resolution | 1440 dpi |
| Heating | Pre/post heaters 30–60 °C + fan evaporative dryer, vacuum bed |
| Connectivity | High-speed USB |
| Power | AC 220V ±10%, 20A, 50/60Hz |
| RIP Software | PhotoPrint |
| Dimensions / Weight | 4510 × 1022 × 1355 mm / ~470 kg (with stand) |
| Operating Environment | 18–28 °C, 35–80% RH (non-condensing) |
Applications
Typical work: flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
