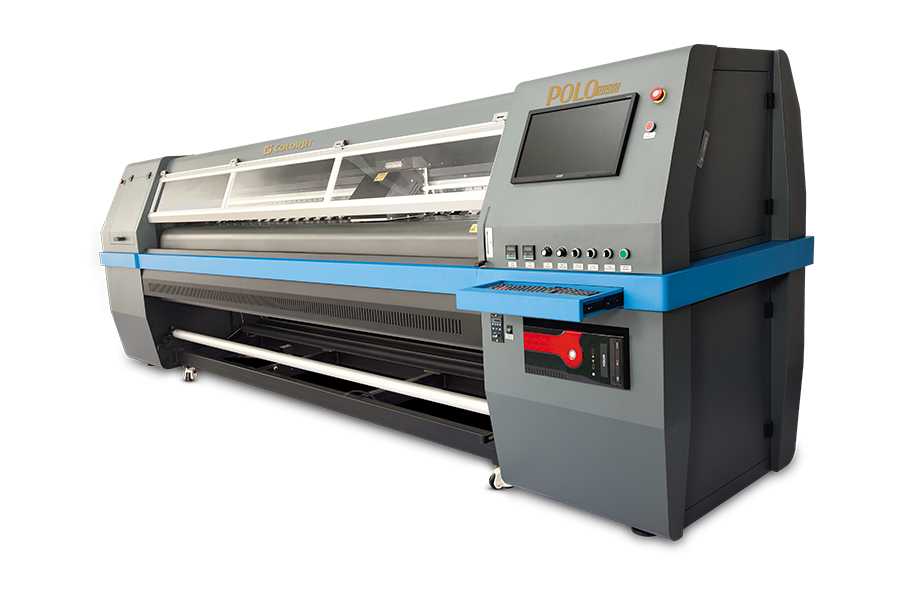

ColorJet Polo Turbo Solvent Printer (KM512i, 4/8 Heads) – Overview
The ColorJet Polo Turbo is built for one thing: maximum output per hour. Its heavy-duty 1500kg frame carries 4 or 8 Konica Minolta 512i grayscale heads with independent drive technology that fires each nozzle individually – the secret behind production speeds up to 2818 sqft/hr (263 m²/h) without losing accuracy. An IR-based evaporative drying system keeps pace with the heaviest coverage, making it the profit-maximizing answer for high-volume flex and vinyl plants.
The CJ-POLOTURBO runs daily production on flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 4 / 8 Konica Minolta KM512i 30PL grayscale industrial heads (G4412 / G8412)
- Up to 2818 sqft/hr (263 m²/h) 8-head 2-pass; 1614 sqft/hr (150 m²/h) 4-head
- Independent drive technology – each nozzle driven independently for speed + sharpness
- Proprietary AIVC maintains constant jetting in varying environments
- Motorized pinch roller & capping system
- IR-based effective evaporative drying for high-volume output
- 1500kg heavy-duty structure; 150kg rolls, 352mm OD
- ONYX ColorJet Edition RIP; pre/post heaters 30–60 °C
Print Speed (KM512i 30PL grayscale · official ColorJet data (4H / 8H))
| Print Mode | Output Speed |
|---|---|
| 2 pass, 360×360 dpi | 150 m²/h (1614 sqft/hr) / 263 m²/h (2818 sqft/hr) |
| 3 pass, 360×540 dpi | 102 m²/h (1093 sqft/hr) / 187 m²/h (2000 sqft/hr) |
| 4 pass, 360×720 dpi | 75 m²/h (806 sqft/hr) / 138 m²/h (1476 sqft/hr) |
| 8 pass, 720×1440 dpi | 23 m²/h (249 sqft/hr) / 46 m²/h (490 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | ColorJet Polo Turbo – G4412 (4 heads) / G8412 (8 heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | Grayscale industrial KM512i 30PL jetting assemblies |
| Media Width | 3300 mm |
| Print Width | 3200 mm max |
| Roll Capacity | Outer Ø 352 mm max, weight to 150 kg, 76.2/50.8mm cores |
| Ink | Solvent-based pigment inks, 4 colours |
| Max Resolution | 1440 dpi |
| Heating | Pre-heater + post-heater 30–60 °C, dryer 30–60 °C; IR evaporative drying |
| Connectivity | High-speed USB |
| Power | AC 220V ±10%, 40A, 50Hz |
| Dimensions / Weight | 4960 × 950 × 1580 mm / ~1500 kg |
| RIP Software | ONYX (ColorJet Edition) |
| Operating Environment | 18–28 °C, 35–80% RH (non-condensing) |
Applications
Typical work: flex banners, vinyl hoardings, backlit film & displays, one-way vision film, window film, SAV/PVC banner, wall & building wraps, fabric (solvent base), vehicle wraps and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Genuine ColorJet machines – official configuration from India’s largest wide-format printer manufacturer, with full warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
