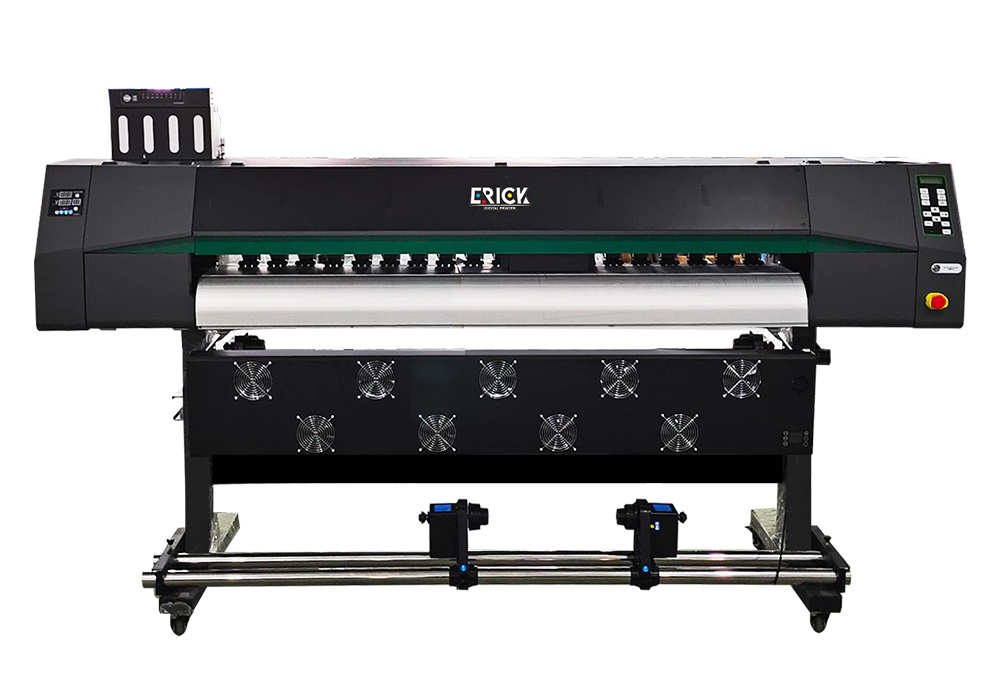

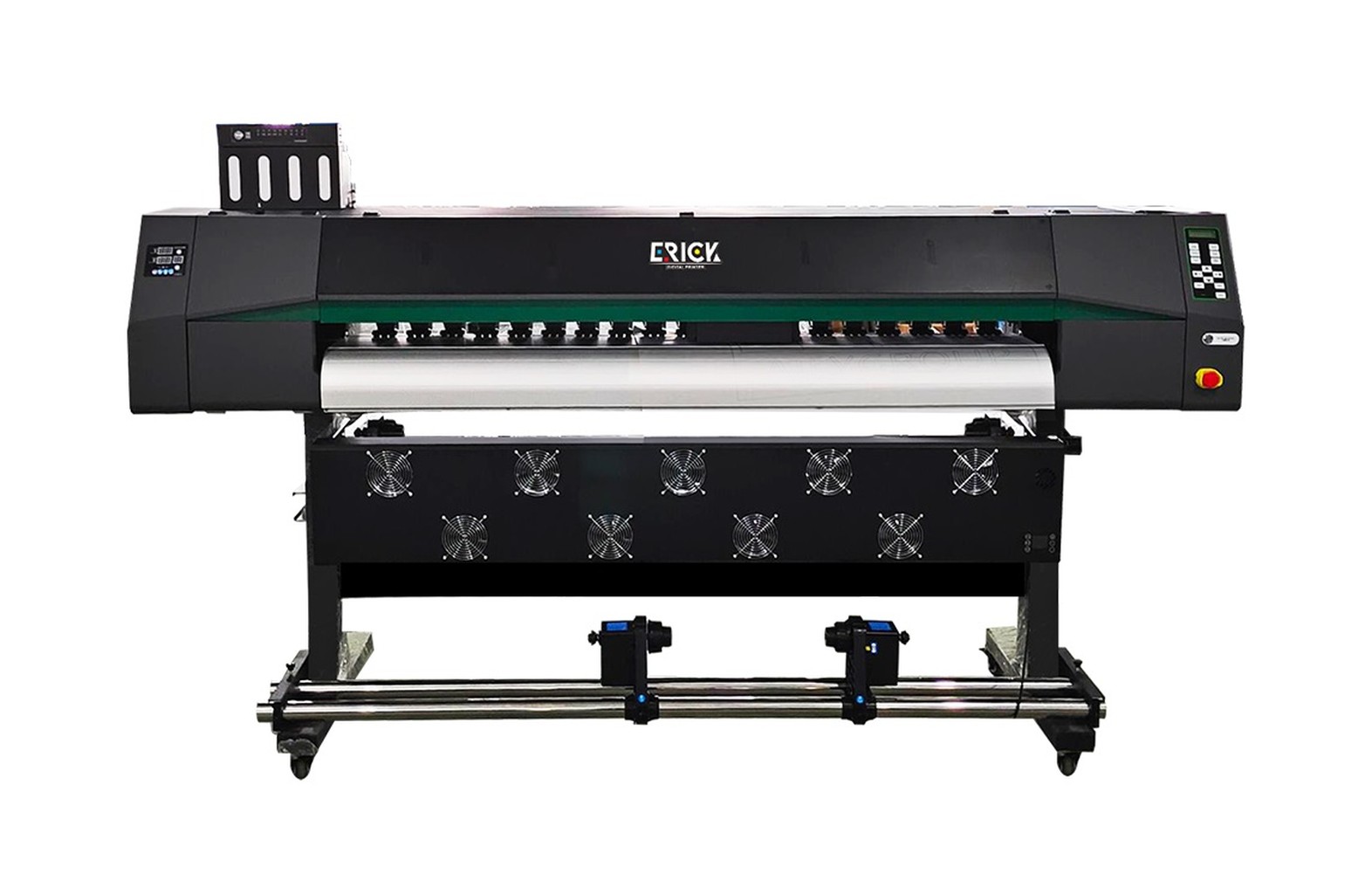

eRICK ER-ECO 1802/1804 PRO Eco Solvent Printer (2/4× Epson i3200-E1) – Overview
The eRICK ER-ECO 1802/1804 PRO is the professional tier of the ERICK eco-solvent line: a heavier, stiffer 1.85-metre machine that runs 2 Epson i3200-E1 heads at 30 m²/h or – as the 1804 PRO – four heads at 60 m²/h 4-pass (≈646 sqft/hr). The carriage rides a genuine THK linear guide on a precision-milled bridge, three-feet pinch rollers hold media flat and true, and a dedicated ink pump plus 2.5L positive-pressure tanks keep all four heads jetting. Colour scales from standard CMYK to an 8-colour CMYK+LcLmLkllk photographic set, with Maintop, PhotoPrint, ONYX or Colorgate RIP options for colour-managed workflows.
The ER-ECO-1802-1804-PRO targets professional houses running self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. Four-head speed plus the 8-colour photo set covers both banner throughput and premium photographic work on one chassis.
Key Features
- Choose 2 × Epson i3200-E1 (1802 PRO) or 4 × i3200-E1 (1804 PRO)
- Up to 60 m²/h (≈646 sqft/hr) 4-pass on the 4-head PRO
- 1850mm print width; standard 720×1200 dpi production mode
- CMYK or 8-colour CMYK Lc Lm Lk llk ink configurations
- Genuine THK linear guide + precision-milled carriage bridge

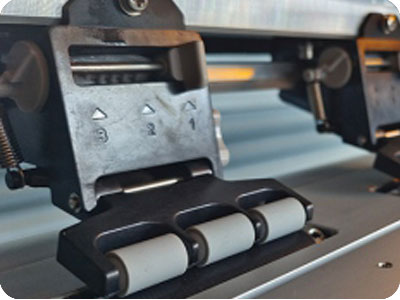

- Three-feet pinch rollers – heavy banner to thin film tracking
- 2.5L positive pressure bulk ink with dedicated ink pump
- ONYX / Colorgate / PhotoPrint / Maintop RIP support
Print Speed (ER-ECO 1802/1804 PRO · official ERICK/Aily data)
| Print Mode | Output Speed |
|---|---|
| 1802 PRO (2 heads) · 4 pass | 30 m²/h (≈323 sqft/hr) |
| 1802 PRO (2 heads) · 6 pass | 20 m²/h (≈215 sqft/hr) |
| 1804 PRO (4 heads) · 4 pass | 60 m²/h (≈646 sqft/hr) |
| 1804 PRO (4 heads) · 6 pass | 40 m²/h (≈431 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-ECO 1802 PRO / ER-ECO 1804 PRO |
| Print Head | 2 or 4 × Epson i3200-E1 |
| Max Print Size / Height | 1850 mm / 1–5 mm |
| Printing Resolution | Standard 720×1200 dpi; true photographic quality |
| Ink Colours | 4-colour CMYK / 8-colour CMYK + Lc Lm Lk llk |
| Ink Supply | 2.5L ink tanks, positive pressure continuous supply + ink pump |
| Mechanics | THK guide, milling carriage bridge, three-feet pinch rollers, anti-collision device |
| Materials | PP paper, backlit film, wallpaper, vinyl, one-way vision, flex banner |
| RIP Software | Maintop / PhotoPrint / ONYX / Colorgate; TIFF, JPEG, EPS, PDF |
| Interface | LAN |
| Power | Machine 1500W + heating 5000W |
| Machine Size / Weight | 3050 × 850 × 1410(H) mm / 230 kg |
| Package | 3700 × 800 × 850(H) mm (2.5 CBM) / 280 kg |
| Working Environment | 15–30 °C |
Applications
Typical work: self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. The machine is at home in signage shops, flex printing units, advertising agencies, event & exhibition graphics workshops and vehicle-wrap studios.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK eco-solvent printers (Aily Group factory configuration), supplied with full warranty and genuine Epson print heads.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Epson print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
