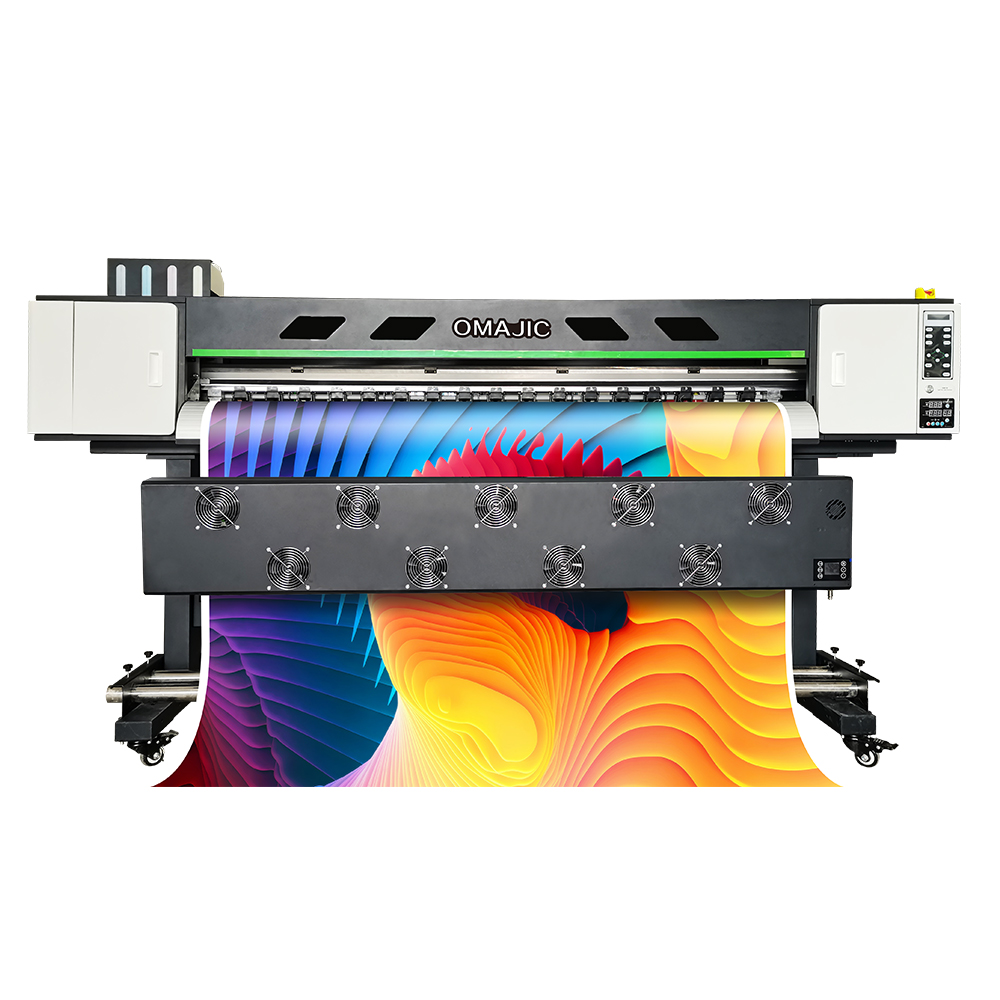

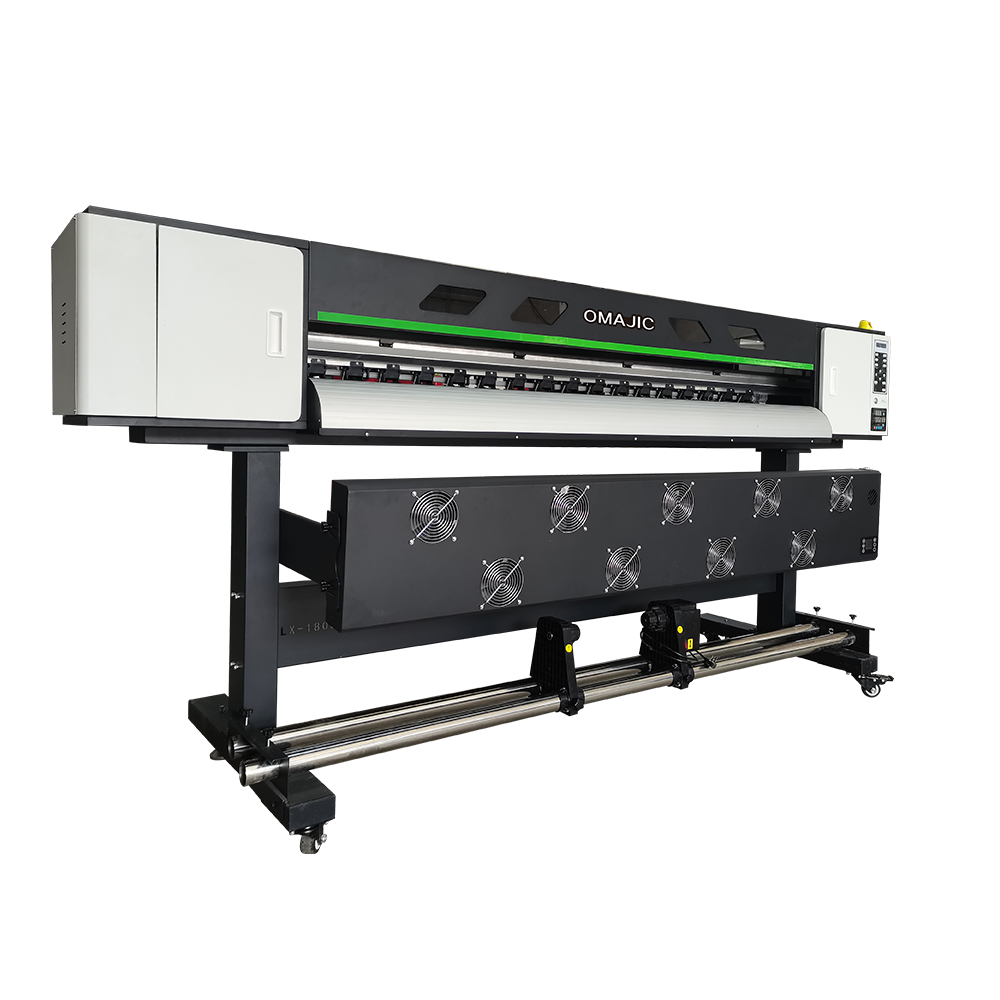

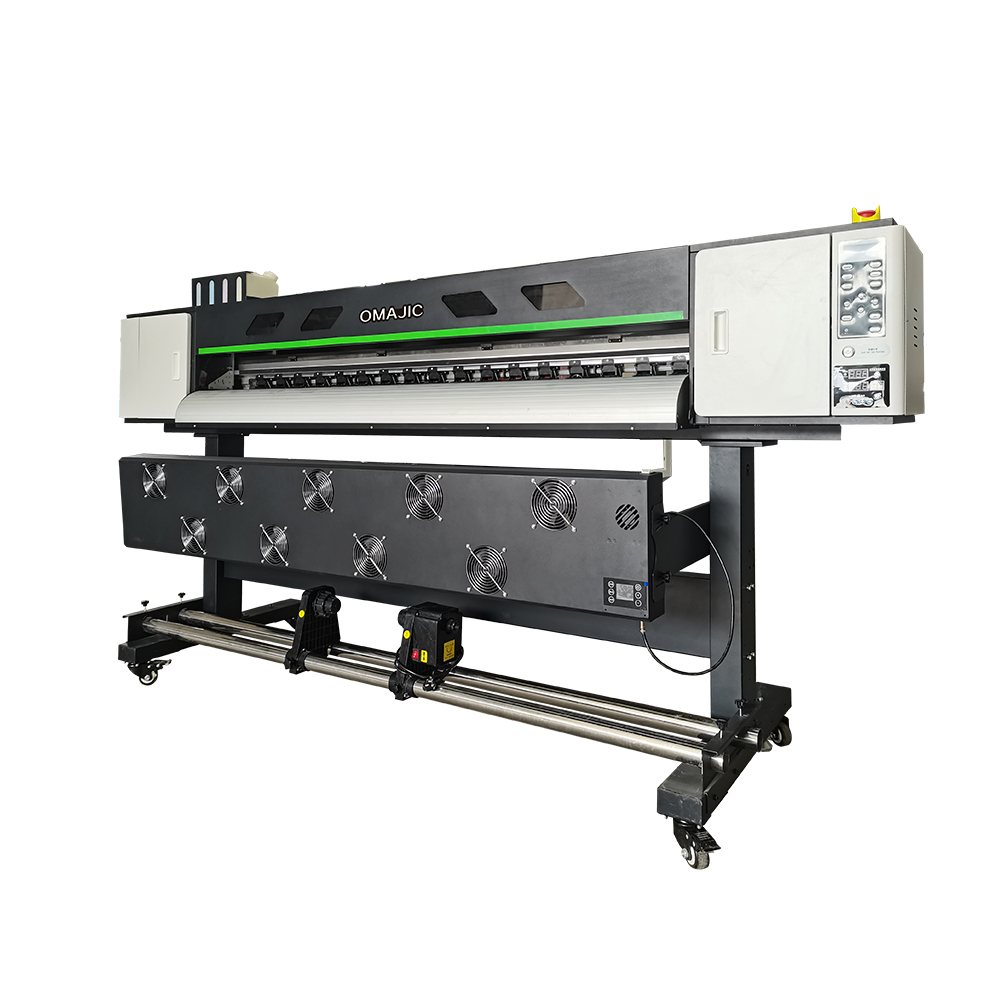

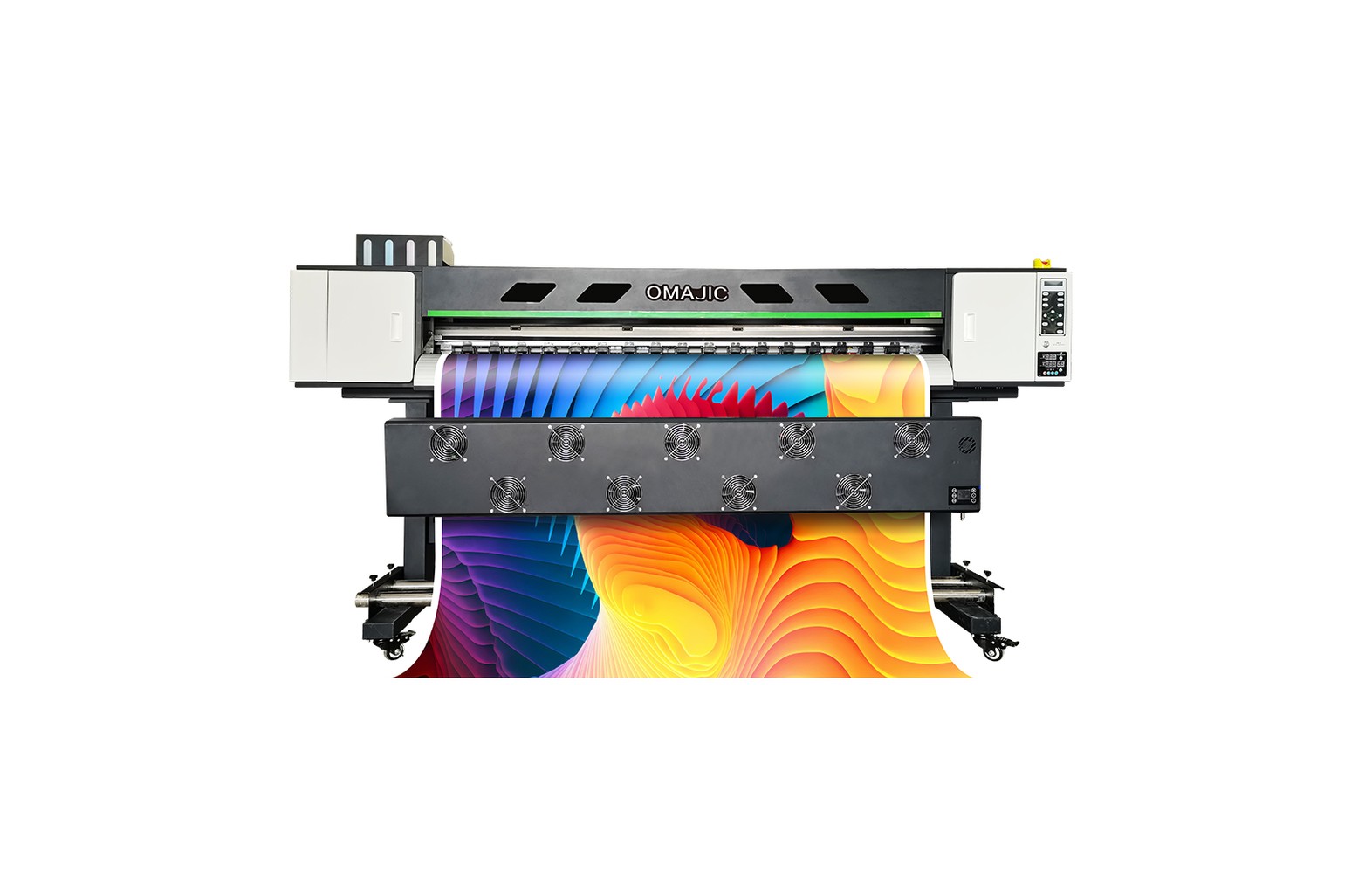

OMAJIC OM 1802E Eco Solvent Printer – Overview
The OMAJIC OM 1802E Eco Solvent Printer doubles the single-head machine’s productivity without doubling the footprint or the power bill. Two Epson heads under OMAJIC’s advanced board control give you genuine production speed – a full day of single-head sticker output finishes before lunch. Feed calibration can be tuned during printing, so long banner runs stay aligned, and the automatic ink-tube cleaning plus lifting ink station keep both heads healthy with minutes of daily maintenance.
The OM-ECO1802E runs all day on self-adhesive vinyl stickers, car decals & vehicle graphics, PP & photo paper posters, backlit / lightbox film, canvas prints, non-woven fabric, wallpaper, one-way vision and flex banner work. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Advanced board-control technology with industrial-grade printhead protection design
- Automatic or manual print setup; feeding calibration adjustable during printing
- Control from computer or directly from the printer panel
- Automatic continuous ink-tube cleaning – less clogging, longer head life
- Stable continuous ink supply (2 L bulk tank, positive pressure)
- Convenient, intuitive operation interface – new operators learn in a day
- Up / down lifting ink station for reliable head capping & moisture
- MainTop 6.1 / PhotoPrint 19 RIP – Windows 7 / 10, LAN connectivity
Print Speed (by head configuration, manufacturer conditions)
| Print Mode | Output Speed |
|---|---|
| 2 × i3200-E1 · 4 pass (720×1200 dpi) | up to 40 m²/h |
| 2 × i3200-E1 · 6 pass (720×2400 dpi) | up to 30 m²/h |
| 2 × XP600 · 4 pass (720×600 dpi) | up to 17 m²/h |
| 2 × XP600 · 6 pass (720×900 dpi) | up to 12 m²/h |
| 2 × XP600 · 8 pass (720×1200 dpi) | up to 9 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.
Technical Specifications
| Model | OM-ECO1802E |
| Print Head | 2 × Epson i3200-E1 or 2 × Epson XP600 (choose at order) |
| Printing Technology | Piezoelectric inkjet |
| Max. Print Width | 1750 mm (media up to 1800 mm) |
| Media Thickness | 1–5 mm, adjustable |
| Ink Type | Eco-solvent ink |
| Ink Supply | Bulk ink system, 2 L tank, positive-pressure continuous supply |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi (with i3200-E1) |
| Media | Indoor/outdoor PP, photo paper, car sticker, eco-solvent lightbox film, canvas, non-woven, digital textile, vinyl, flex banner, wallpaper |
| RIP Software | MainTop 6.1 / PhotoPrint 19 (multi-language UI) |
| Interface | LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz · 1350 W |
| Machine Size | 3025 × 824 × 1476 mm |
| Weight | 250 kg (approx.) |
| Package | 2930 × 760 × 850 mm · approx. 300 kg, wooden box |
| Computer | Windows 7 / Windows 10 |
| Operating Environment | 27–35 °C recommended, 40–60% RH |
Applications
Typical work: self-adhesive vinyl stickers, car decals & vehicle graphics, PP & photo paper posters, backlit / lightbox film, canvas prints, non-woven fabric, wallpaper, one-way vision and flex banner work. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
