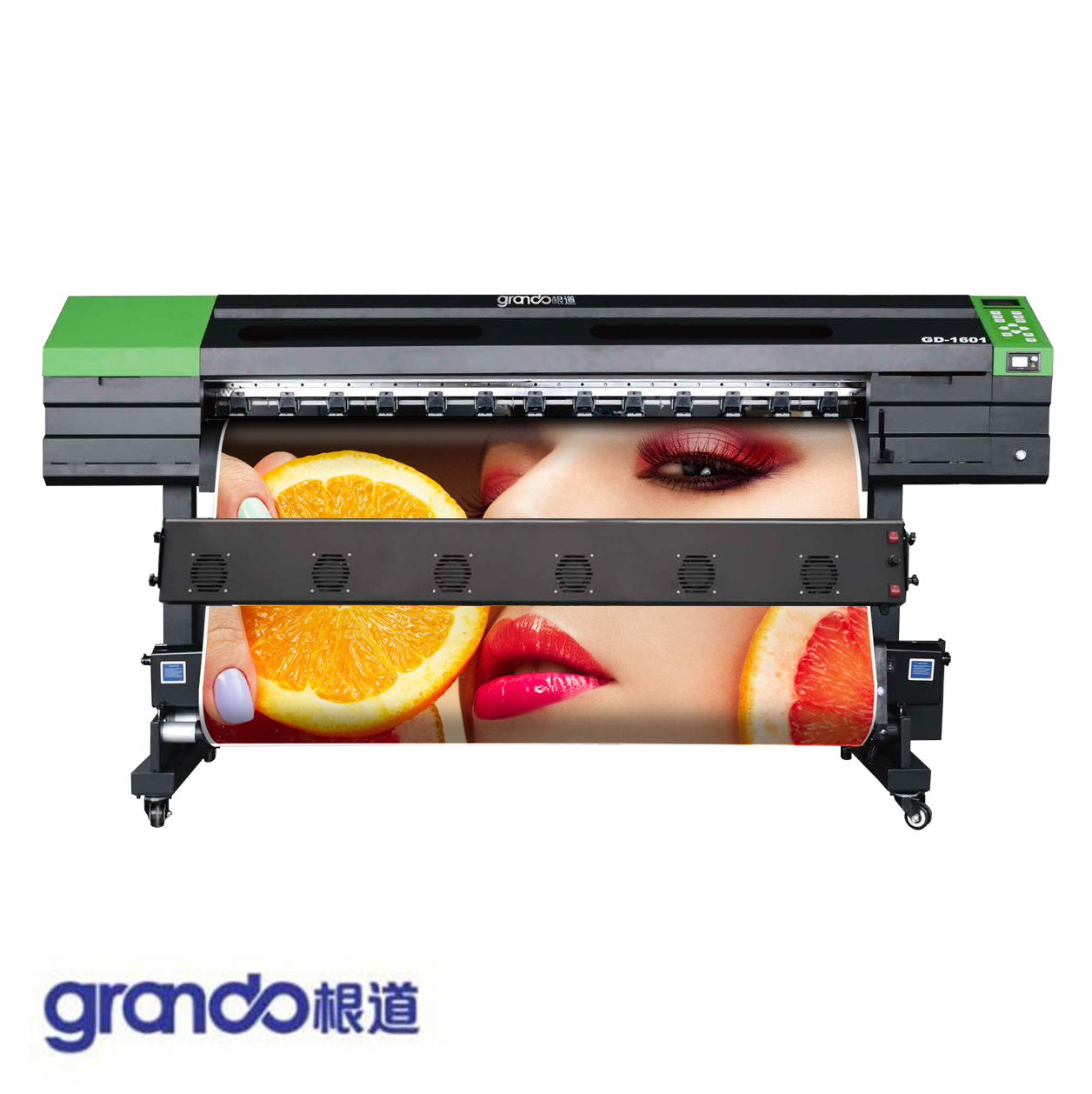

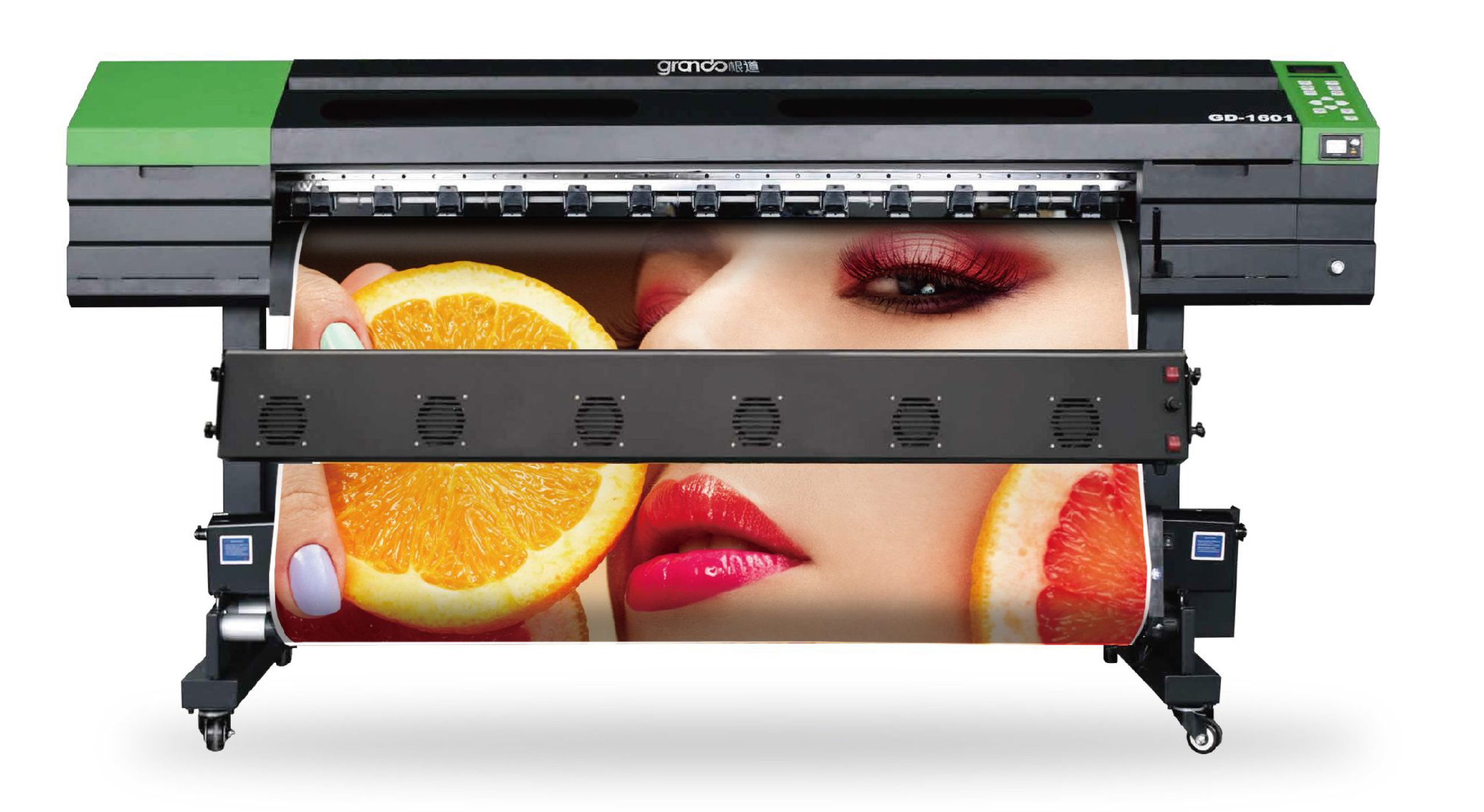

GRANDO GD-1601 Eco Solvent Printer – Overview
The GRANDO GD-1601 Eco Solvent Printer is the most affordable way into genuine Epson I3200-class print quality. Despite being the entry model, nothing about the chassis is “entry”: you get the same THK high-precision mute rail, DC servo drive, three-stage heating (pre-heater, print heater, rear heater) and adjustable platform vacuum as the bigger models. For startups, vehicle-wrap studios and photo labs, the GD-1601 produces sellable banners, stickers, backlit film and canvas from day one — at the lowest cost per print in the range.
Designed as a true roll-to-roll production machine, the GD-1601 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.

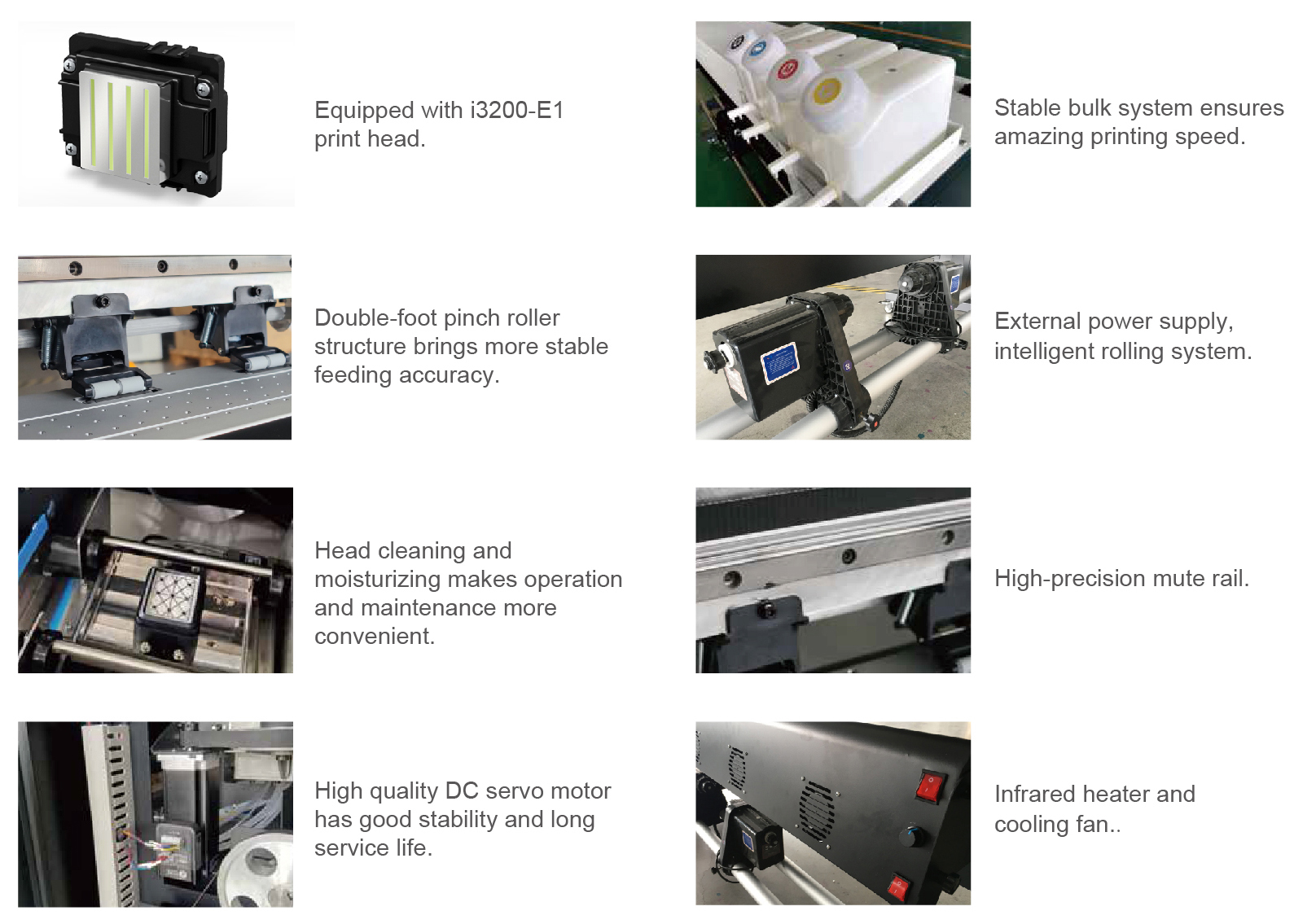

Key Features
- Single Epson I3200-E1 head – up to 21 m²/h with 2400 dpi maximum resolution
- 1.5 L continuous ink supply system – low running cost, easy refilling
- Three-stage heating + platform vacuum with adjustable power
- Head cleaning & moisturising station for convenient daily maintenance
- Double-foot pinch roller structure for stable feeding accuracy
- Built-in infrared heater and cooling fan accelerate media drying
- High-precision mute rail + DC servo motor for long service life
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 21 m²/h |
| 6 pass (720×1800 dpi) | 15 m²/h |
| 8 pass (720×2400 dpi) | 10 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.

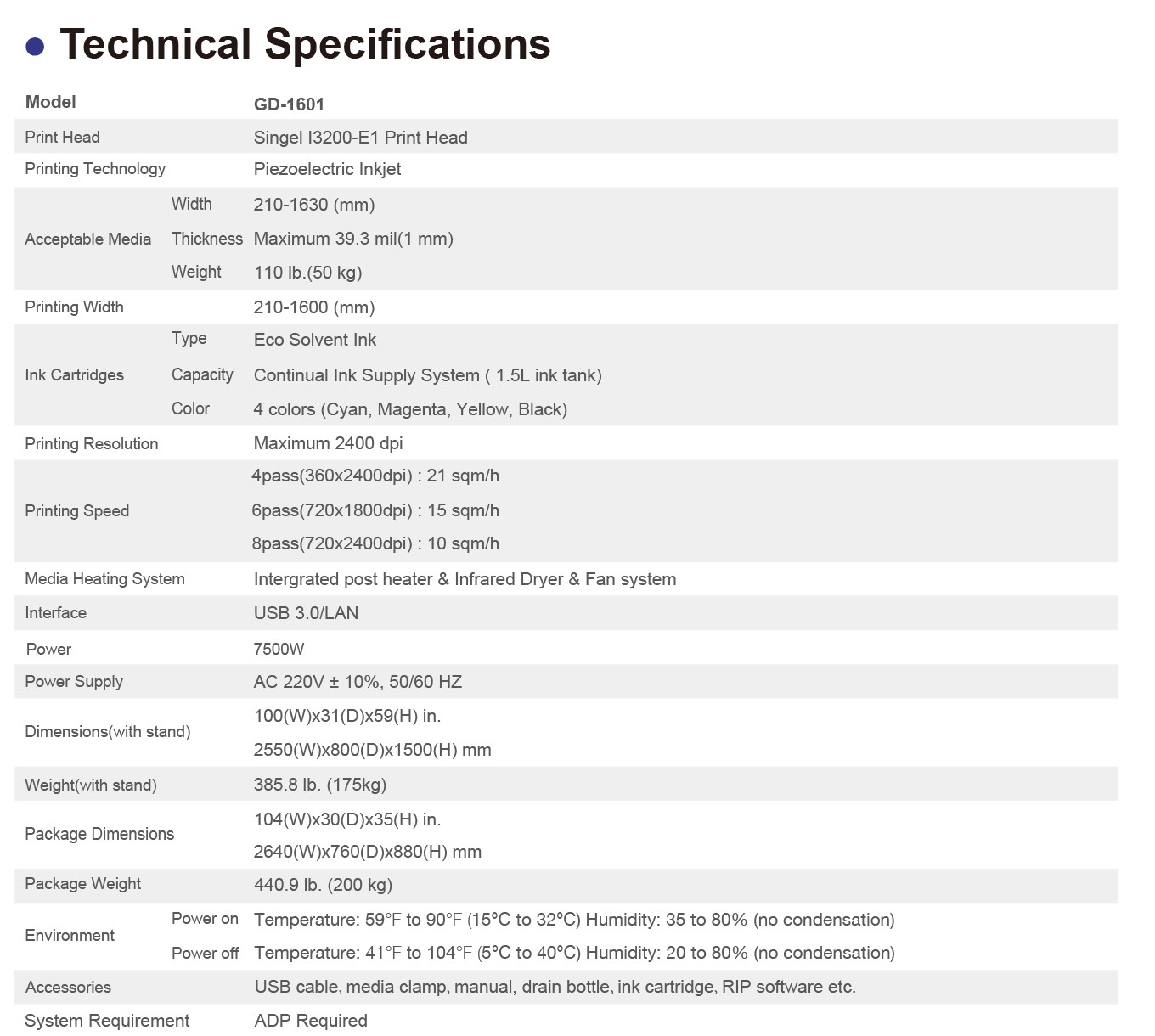

Technical Specifications
| Model | GD-1601 |
| Print Head | Single Epson I3200-E1 print head |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 210–1600 mm |
| Acceptable Media | Width 210–1630 mm · Thickness max. 1 mm · Weight max. 50 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | Continuous ink supply system (1.5 L ink tank) |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Three-stage heating (pre / print / rear) + IR dryer & fan |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Dimensions (with stand) | 2550 (W) × 800 (D) × 1500 (H) mm |
| Weight (with stand) | 175 kg |
| Package Dimensions | 2640 (W) × 760 (D) × 880 (H) mm |
| Package Weight | 200 kg |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | USB cable, media clamp, drain bottle, ink cartridges, RIP software, manual |
Applications
The GD-1601 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
