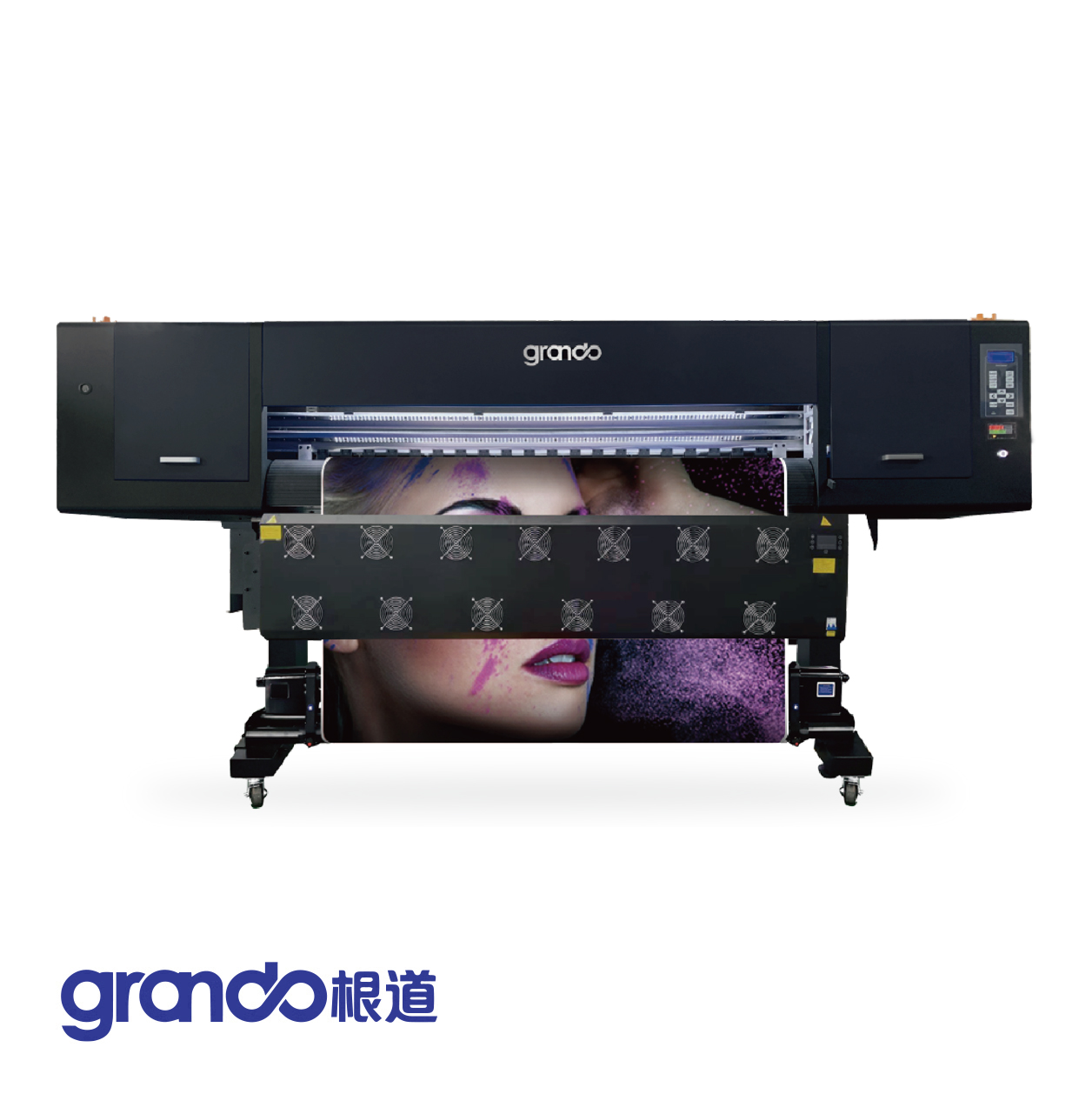

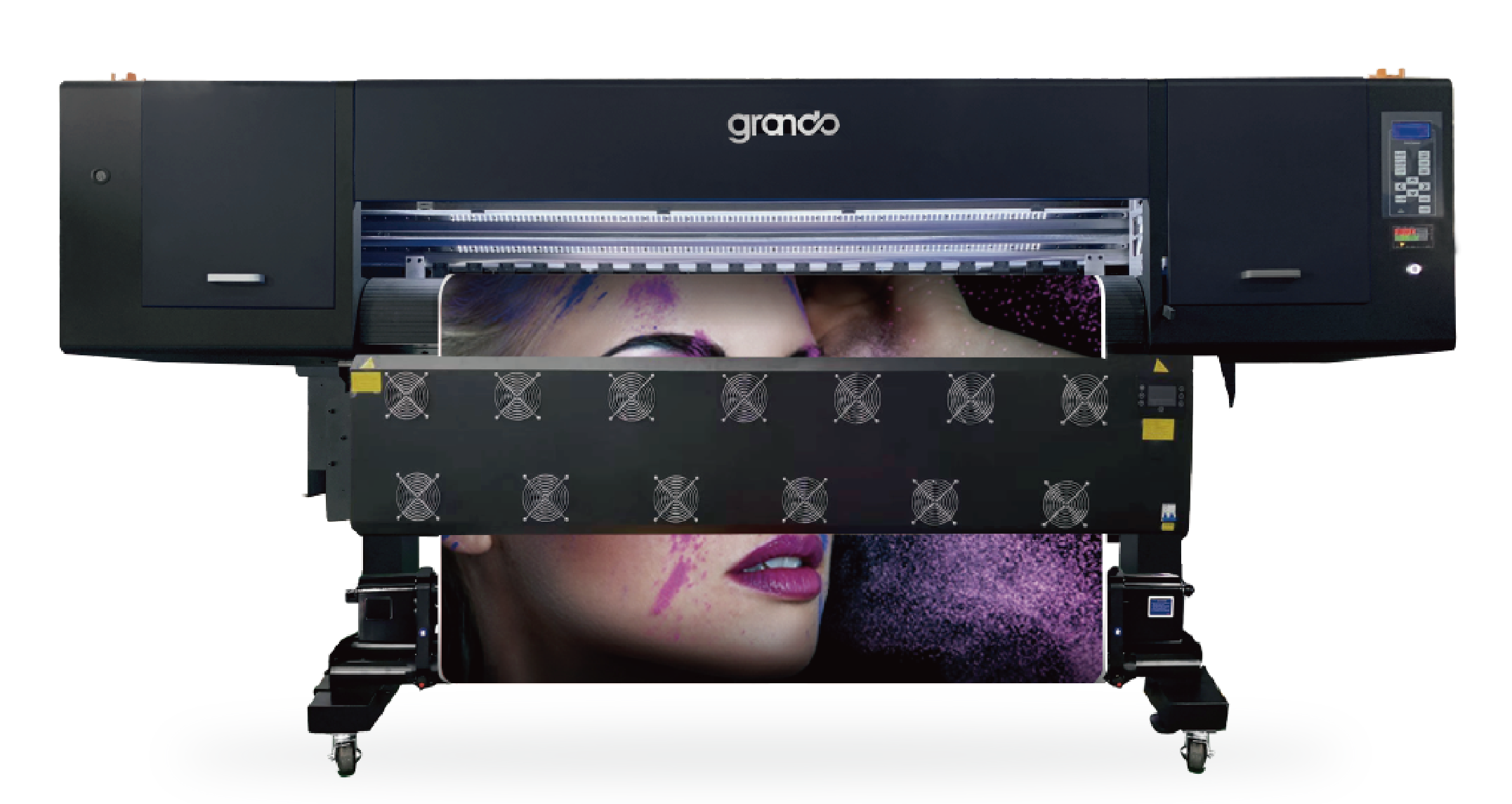

GRANDO BEJ-1806 Eco Solvent Printer – Overview
The GRANDO BEJ-1806 Eco Solvent Printer is built for premium work at volume: six Epson I3200-E1 heads arranged for CMYK + Light Cyan + Light Magenta printing. That 6-colour gamut is what photo labs, fine-art reproducers and high-end exhibition printers need for smooth skin tones and band-free gradients — at 80 m²/h production speed. The industrial-grade board control, super-wide thickened main beam, THK silent dual rails and carriage anti-collision device keep the machine accurate shift after shift.
Designed as a true roll-to-roll production machine, the BEJ-1806 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.
Key Features
- Six Epson I3200-E1 heads – 4-pass output up to 80 m²/h
- CMYK Lc Lm 6-colour printing – photographic image quality
- Choice of automatic or manual print setup; feed calibration on the fly
- Control from computer or printer panel – flexible workflow
- Temperature & humidity meter for environment monitoring
- Accurate platform suction and front/rear heating control
- 3 L bulk ink CISS with low running cost per m²
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 80 m²/h |
| 6 pass (720×1800 dpi) | 62 m²/h |
| 8 pass (720×2400 dpi) | 45 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | BEJ-1806 |
| Print Head | Six Epson I3200-E1 print heads |
| Printing Technology | High-speed micro-piezo inkjet |
| Max. Printing Width | 1800 mm |
| Acceptable Media | Width 1830 mm · Thickness max. 1 mm · Weight max. 100 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 4×4 CISS (220 ml cartridges + 3 L ink tank) |
| Colours | 6 colours: CMYK + Lc + Lm |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Three-stage heating (pre / print / rear) + adjustable vacuum platform |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz · Host 2500 W + dryer max. 7200 W |
| Weight (with stand) | 500 kg |
| Package Dimensions | 3650 × 1100 × 1860 mm (entirety) · 3400 × 900 × 1800 mm (split) |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | USB cable, media clamp, drain bottle, ink cartridges, RIP software, manual |
Applications
The BEJ-1806 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
