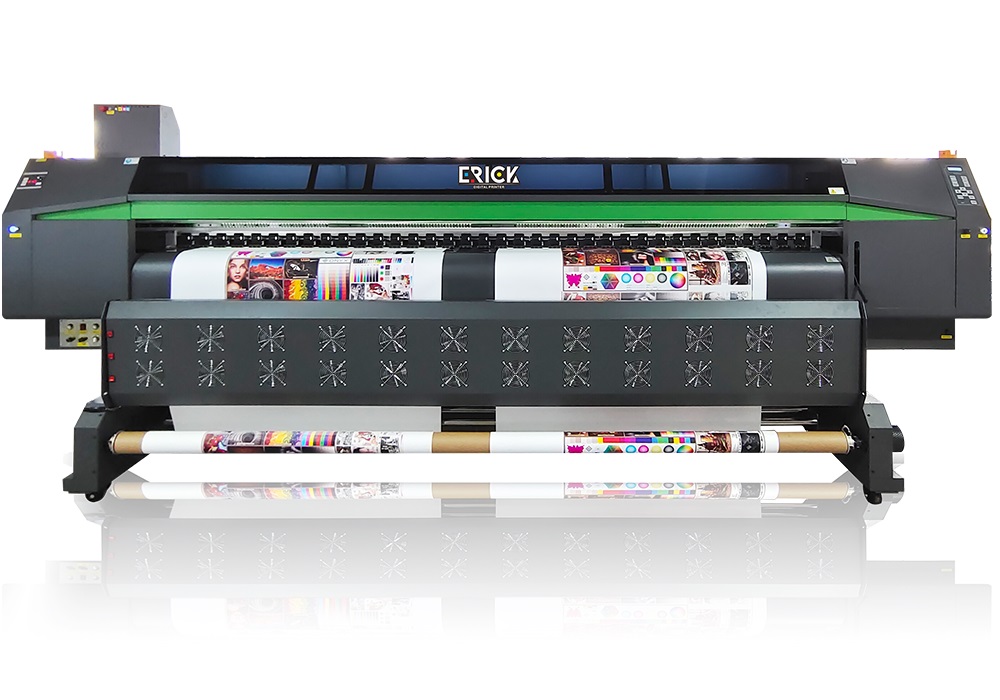

eRICK ER-ECO 3204 PRO Eco Solvent Printer (4× i3200-E1, 3.2m) – Overview
The eRICK ER-ECO 3204 PRO – factory designation ER-ECO3204PLUS – is the 3.2-metre industrial flagship of the ERICK eco-solvent range. Four Epson i3200-E1 PrecisionCore heads deliver a genuine 100 m²/h at 720×1200 dpi 4-pass, with 85 m²/h at 720×1800 dpi for premium work. The electronics are specification-grade: Hoson mainboard, Leadshine servo motor and THK 2.0 linear rail, plus four 3L secondary ink tanks with automatic low-ink alarm and a 4-head lifting capping station. A suction printing platform and a 21-tube 4500W heating array dry heavy banner stock instantly, and carriage level anti-collision protects the head bank at full speed.
The ER-ECO-3204PRO is industrial plant for self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics – expect 3.2m billboard and hoarding panels, bus and vehicle wraps and full-roll banner production at genuinely industrial hourly output.
Key Features

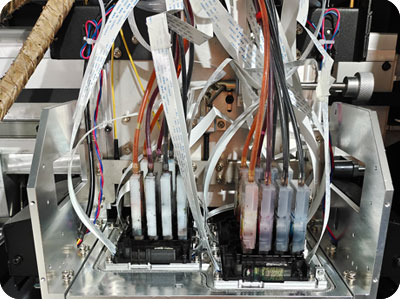

- 4 × Epson i3200-E1 PrecisionCore heads – up to 100 m²/h (≈1076 sqft/hr)
- 3.2m print width for full-size flex, banner and wrap media

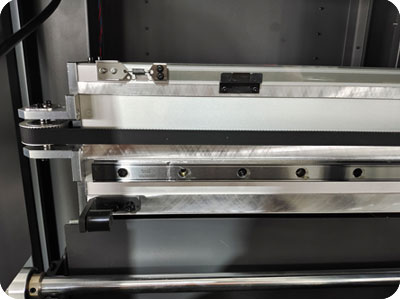

- Hoson mainboard + Leadshine servo + THK 2.0 linear guide rail

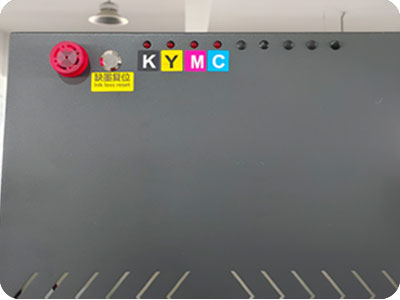

- 4 × 3L secondary ink tanks with automatic low-ink alarm
- 4-head lifting capping station – one-touch maintenance
- Suction printing platform holds heat-softened media flat
- 21 × 450W heating tubes – 9450W-class drying system
- Carriage & printhead anti-collision system; drop-on-demand micro-piezo
Print Speed (ER-ECO 3204 PRO (3204PLUS) · official ERICK/Aily data)
| Print Mode | Output Speed |
|---|---|
| 4× i3200-E1 · 720×1200 dpi · 4 pass | 100 m²/h (≈1076 sqft/hr) |
| 4× i3200-E1 · 720×1800 dpi · 6 pass | 85 m²/h (≈915 sqft/hr) |
| 4× i3200-E1 · 720×2400 dpi · 8 pass | 70 m²/h (≈753 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-ECO 3204 PRO (ER-ECO3204PLUS) |
| Printing Technology | Drop-on-demand micro-piezoelectric inkjet |
| Print Head | 4 × Epson i3200-E1 (3200 nozzles each) |
| Max Print Size / Height | 3200 mm (125.98 in) / 5 mm |
| Electronics | Hoson mainboard, Leadshine servo motor, THK 2.0 guide rail |
| Ink | Eco solvent ink, CMYK; 3L secondary tank per head + automatic ink alarm |
| Anti-collision | Carriage & printheads |
| Capping | 4-head lifting capping station |
| Drying | 21 heating tubes, 450W each (≈9000W dryer power) |
| RIP Software | Maintop / Ripprint; TIFF, JPEG, Postscript, EPS, PDF |
| OS / Environment | Windows 7 / 8 / 10; 20–28 °C, 40–60% RH |
| Voltage / Power | AC 220V/110V 50/60Hz; total 14500W (incl. drying 9000W) |
| Machine Size / Weight | 4800 × 1100 × 1770 mm / 700 kg |
| Package | 5100 × 760 × 1140 mm / 720 kg (with parts), wooden case |
Applications
Typical work: self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. The machine is at home in signage shops, flex printing units, advertising agencies, event & exhibition graphics workshops and vehicle-wrap studios.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK eco-solvent printers (Aily Group factory configuration), supplied with full warranty and genuine Epson print heads.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Epson print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
