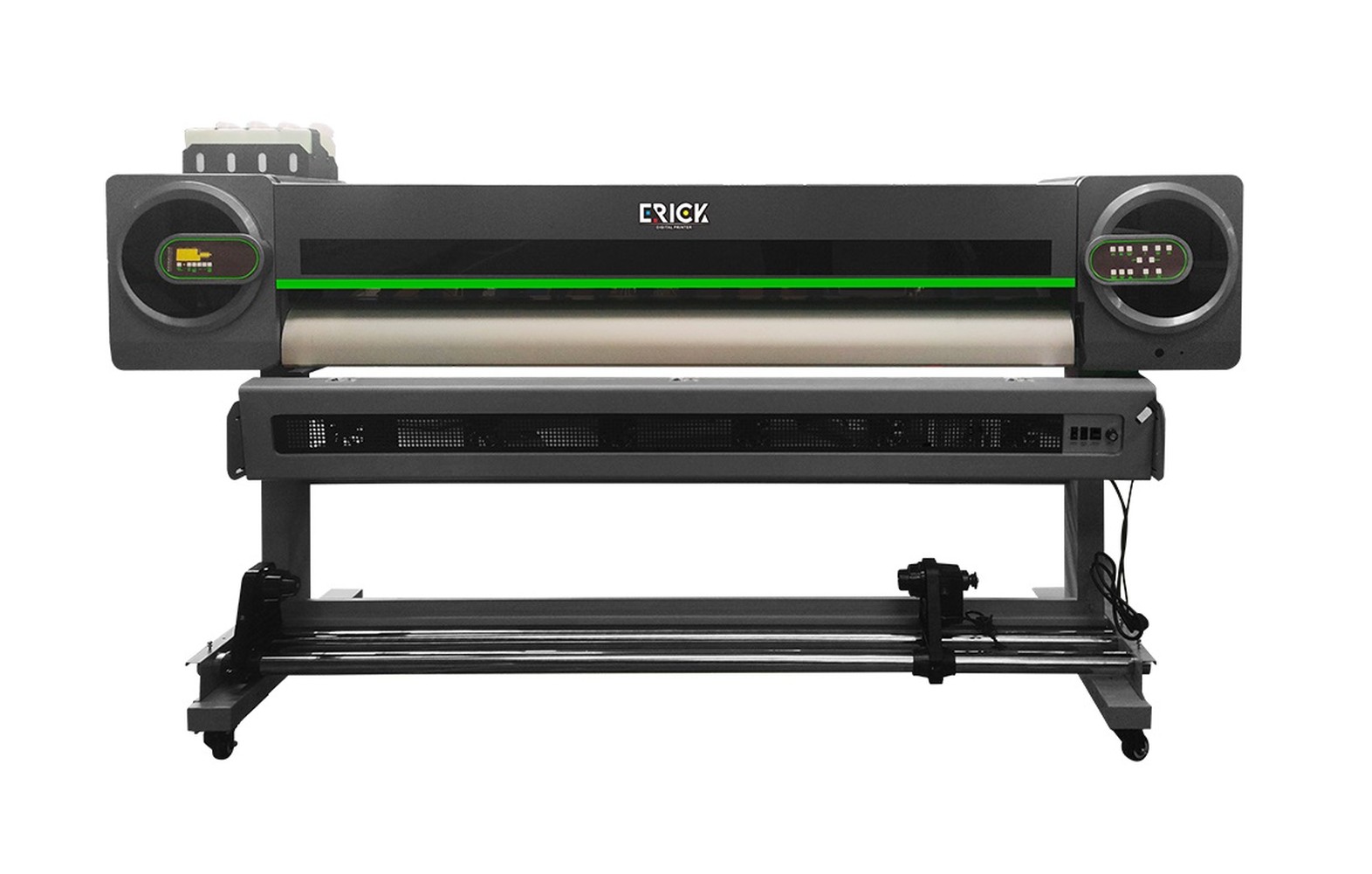

eRICK ER-ECO 1901H Eco Solvent Printer (1× Epson i3200, 1.9m) – Overview
The eRICK ER-ECO 1901H moves the eco-solvent range onto ERICK’s new-design H platform – the same chassis family the factory uses for its UV roll-to-roll machines, so rigidity and media handling are a clear step above budget designs. This single-head 1.9-metre model accepts Epson i3200, i1600 or XP600 heads, fed by a 1.5L positive-pressure bulk ink system. Adjustable two-foot pinch rollers grip thin films and heavy banner stock evenly, the lifting capping station seals the head automatically, and a lack-of-material alarm stops overnight rolls running dry. Exterior heating plus the collector under the platen make daily production genuinely hands-off.
The ER-ECO-1901H suits shops printing self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. The H-platform body carries the same frame ERICK uses for its UV roll-to-roll line, so registration and media control stay tight job after job.
Key Features
- 1 × Epson i3200 / i1600 / XP600 head on the new H platform body
- 1.9m print width – covers standard 6ft media with margin
- 720×1200 dpi production at 15 m²/h; 720×1800 dpi quality at 10 m²/h
- 1.5L bulk ink tank, positive pressure continuous supply
- High-quality DC servo motor for smooth bi-directional motion
- Adjustable two-foot pinch rollers – thin film to heavy flex
- Lifting capping station & anti-collision device protect the head
- Lack-of-material alarm, exterior heating & media collector
Print Speed (ER-ECO 1901H · official ERICK/Aily data)
| Print Mode | Output Speed |
|---|---|
| i3200-E1 · 720×1200 dpi · 4 pass | 15 m²/h (≈161 sqft/hr) |
| i3200-E1 · 720×1800 dpi · 6 pass | 10 m²/h (≈108 sqft/hr) |
| i1600-E1 · 720×1200 dpi · 8 pass | 8 m²/h (≈86 sqft/hr) |
| i1600-E1 · 720×1800 dpi · 12 pass | 5 m²/h (≈54 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-ECO 1901H (new-design H platform) |
| Print Head | 1 × Epson i3200 / i1600 / XP600 |
| Max Print Width | 1900 mm class |
| Print Colours | CMYK |
| Ink Supply | 1.5L ink tank, positive pressure continuous supply (bulk ink system) |
| Machine Functions | Anti-collision device, lifting capping station, adjustable pinch rollers, lack-material alarm |
| Materials | Vinyl, flex banner, wallpaper, PP paper, backlit film, one-way vision film |
| RIP Software | Maintop / Ripprint |
| Power | 1500–1900 W |
| Body Footprint | 2827 × 770 × 1478 mm (working space) |
| Package | 2900 × 710 × 720 mm / 220 kg |
| Working Environment | 20–28 °C |
Applications
Typical work: self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. The machine is at home in signage shops, flex printing units, advertising agencies, event & exhibition graphics workshops and vehicle-wrap studios.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK eco-solvent printers (Aily Group factory configuration), supplied with full warranty and genuine Epson print heads.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Epson print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
