eRICK ER-ECO 1902H Eco Solvent Printer (2× Epson i3200, 1.9m) – Overview
The eRICK ER-ECO 1902H is the dual-head version of ERICK’s new-design 1.9-metre H platform: two Epson i3200 heads run CMYK at 30 m²/h in 720×1200 dpi production mode, or 20 m²/h at 720×1800 dpi when quality leads. The chassis is shared with the factory’s UV roll-to-roll machines, bringing UV-grade stiffness to eco-solvent pricing. A 1.5L positive-pressure bulk ink system keeps jetting stable, two-foot adjustable pinch rollers track media true, and the lifting capping station plus anti-collision device look after both heads. Exterior heating, a front display board and the powered collector complete a machine that runs full rolls without babysitting.
The ER-ECO-1902H is built for volume work on self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. Twin-head CMYK at 1.9m covers the widest Indian roll stocks with speed to spare for same-day finishing.
Key Features
- 2 × Epson i3200 heads (i1600 / XP600 platform options)
- 30 m²/h (≈323 sqft/hr) at 720×1200 dpi 4-pass; 20 m²/h at 720×1800 dpi
- New-design H platform – UV-class chassis rigidity
- 1.5L bulk ink system with positive pressure supply

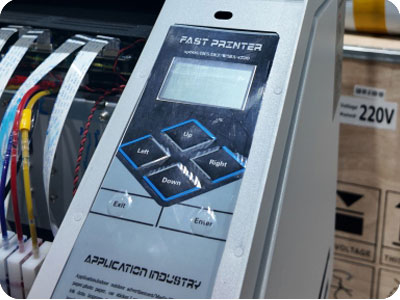

- High-quality DC servo motor + stable display board
- Adjustable two-foot pinch rollers for even media grip
- Lifting capping station, anti-collision, lack-material alarm

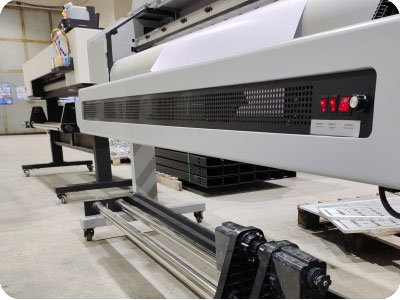

- Exterior heating + powered media collector for full-roll runs
Print Speed (ER-ECO 1902H · official ERICK/Aily data)
| Print Mode | Output Speed |
|---|---|
| 2× i3200-E1 · 720×1200 dpi · 4 pass | 30 m²/h (≈323 sqft/hr) |
| 2× i3200-E1 · 720×1800 dpi · 6 pass | 20 m²/h (≈215 sqft/hr) |
| 2× i1600-E1 · 720×1200 dpi · 8 pass | 15 m²/h (≈161 sqft/hr) |
| 2× i1600-E1 · 720×1800 dpi · 12 pass | 10 m²/h (≈108 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-ECO 1902H (new-design H platform) |
| Print Head | 2 × Epson i3200 / i1600 / XP600 |
| Max Print Width | 1900 mm class |
| Print Colours | CMYK (H platform also offered as UV UR variant with CMYK W V) |
| Ink Supply | 1.5L ink tank, positive pressure continuous supply (bulk ink system) |
| Machine Functions | Anti-collision device, lifting capping station, adjustable pinch rollers, lack-material alarm |
| Materials | Vinyl, flex banner, wallpaper, PP paper, backlit film, one-way vision film |
| RIP Software | Maintop / Ripprint |
| Power | 1500–1900 W |
| Body Footprint | 2827 × 770 × 1478 mm (working space) |
| Package | 2900 × 710 × 720 mm / 220 kg |
| Working Environment | 20–28 °C |
Applications
Typical work: self-adhesive vinyl stickers & decals, vehicle wraps, flex & PVC banners, backlit film & backlit boards, one-way vision film, window & glass graphics, wallpaper & wall wraps, PP paper / photo posters, canvas prints and exhibition graphics. The machine is at home in signage shops, flex printing units, advertising agencies, event & exhibition graphics workshops and vehicle-wrap studios.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK eco-solvent printers (Aily Group factory configuration), supplied with full warranty and genuine Epson print heads.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Epson print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
