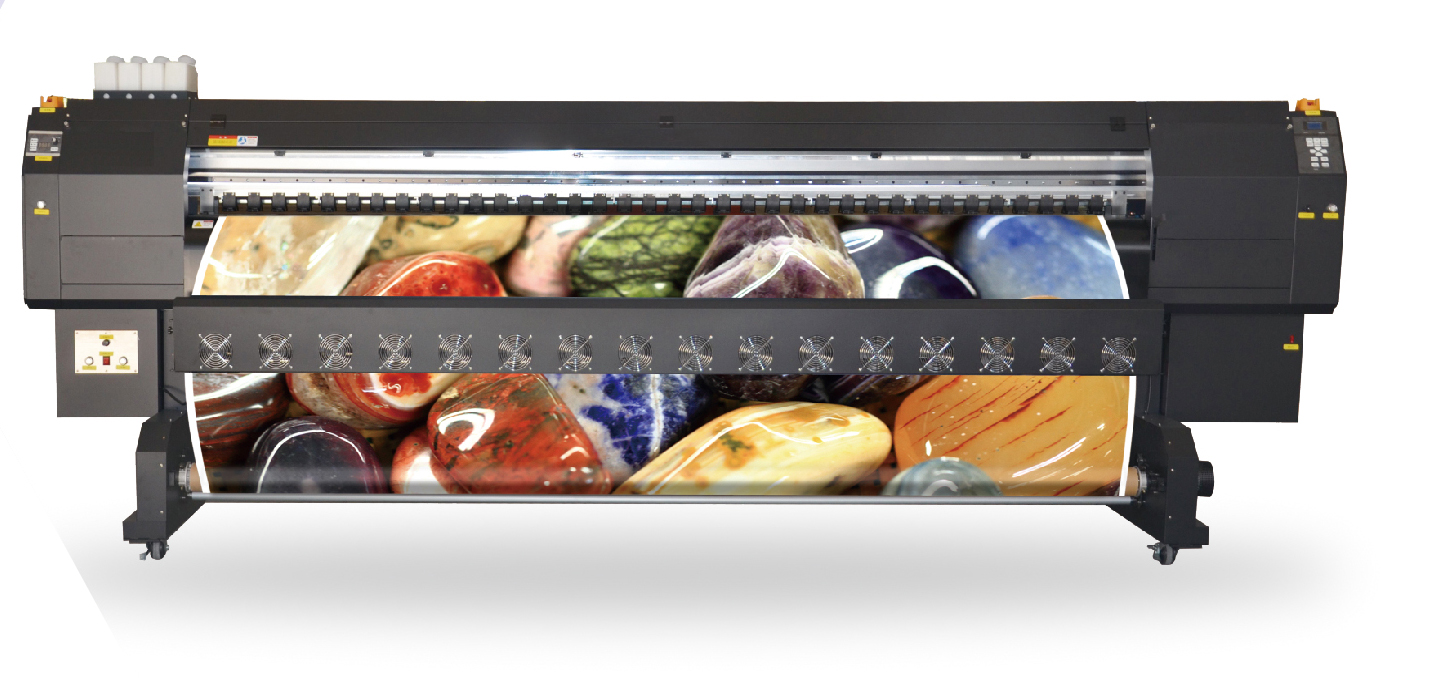

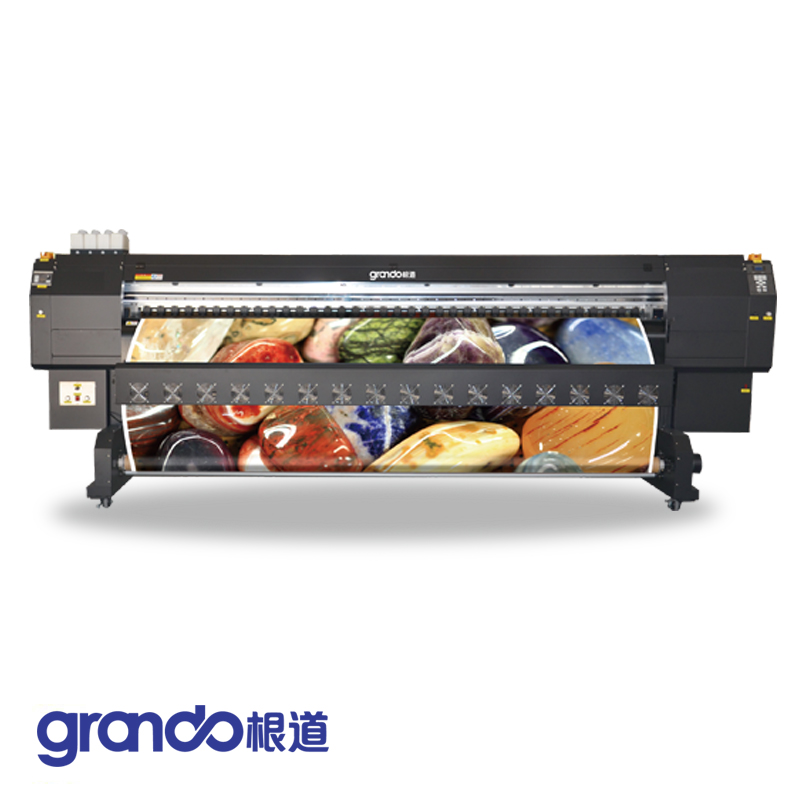

GRANDO BEJ-3202 Eco Solvent Printer – Overview
The GRANDO BEJ-3202 Eco Solvent Printer is the affordable bridge into 3.2 m production. Traditional 3.2 m solvent machines with Konica 512i heads max out around 720 dpi; the BEJ-3202’s dual Epson I3200 heads print up to 2400 dpi eco-solvent quality at up to 62 m²/h — so outdoor graphics that will also be viewed up close (mall branding, metro advertising, showroom backdrops) finally get one machine that does both width and quality.
Designed as a true roll-to-roll production machine, the BEJ-3202 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.
Key Features
- 3.2 m super-wide eco-solvent output – replaces a solvent machine for premium jobs
- Dual Epson I3200 heads – up to 62 m²/h (3 pass)
- 4×4 CISS standard, 6×6 / 8×8 optional for extended colour gamut
- Handles 1.5 mm thick media and 80 kg rolls

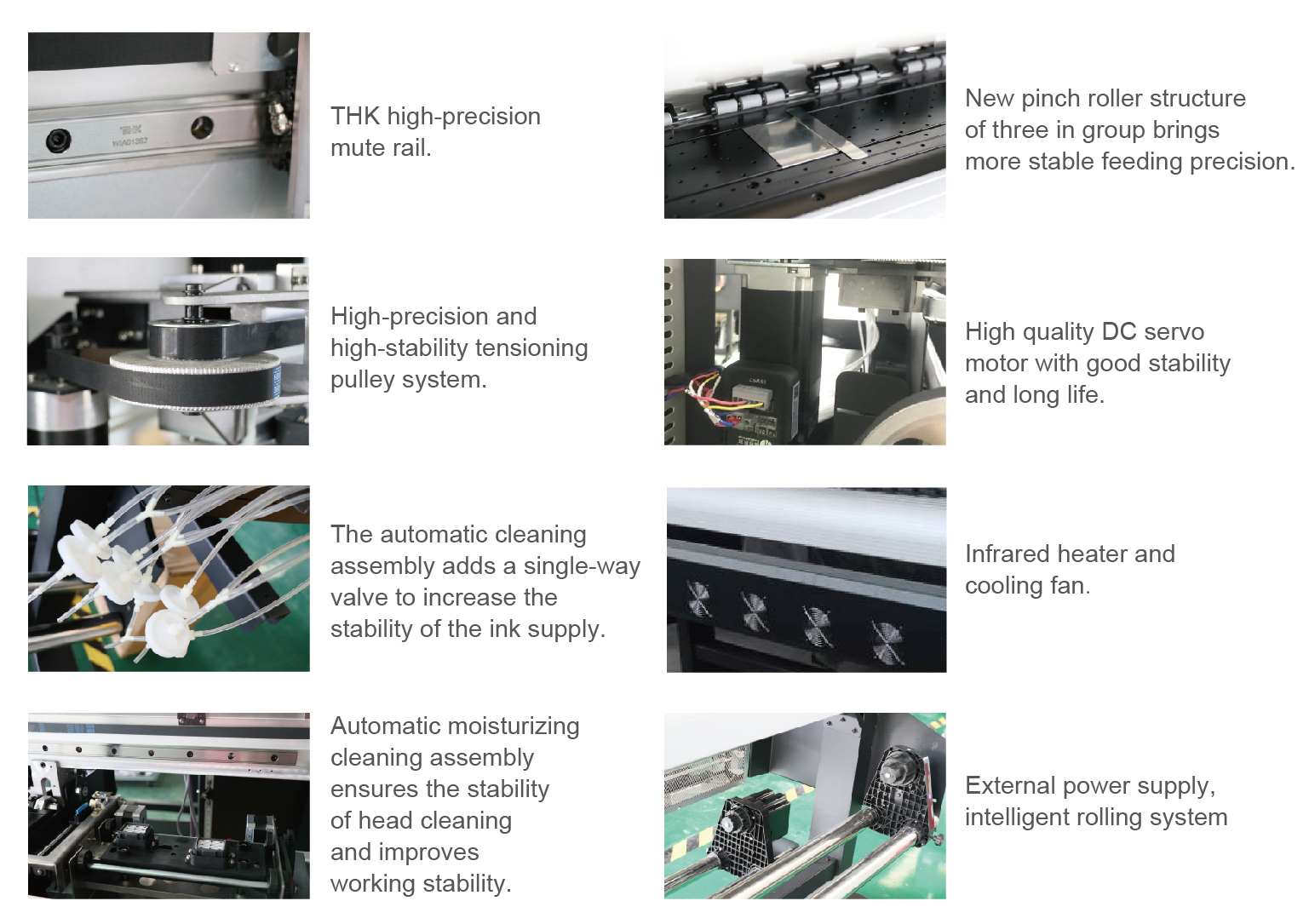

- Automatic moisturising cleaning assembly with single-way valve
- Tensioning pulley system + triple pinch rollers for 3.2 m feeding accuracy
- Integrated post heater, IR dryer & fan for immediate finishing
Print Speed
| Print Mode | Output Speed |
|---|---|
| 3 pass (360×1800 dpi) | 62 m²/h |
| 4 pass (720×1200 dpi) | 47 m²/h |
| 6 pass (720×1800 dpi) | 31 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | BEJ-3202 |
| Print Head | Dual Epson I3200 print heads |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 3200 mm |
| Acceptable Media | Width 3250 mm · Thickness max. 1.5 mm · Weight max. 80 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 4×4 CISS (220 ml cartridges + 1.5 L tank); 6×6 / 8×8 CISS optional |
| Colours | 4 colours CMYK (6-colour / 8-colour optional) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Integrated post heater + infrared dryer + fan system |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Dimensions (with stand) | 4609 (W) × 988 (D) × 1763 (H) mm |
| Weight (with stand) | 1000 kg |
| Package Dimensions | 4800 × 1100 × 1770 mm (entirety) · 5400 × 750 × 1160 mm (split) |
| Package Weight | 1150 kg |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | USB cable, media clamp, drain bottle, ink cartridges, RIP software, manual |
Applications
The BEJ-3202 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
