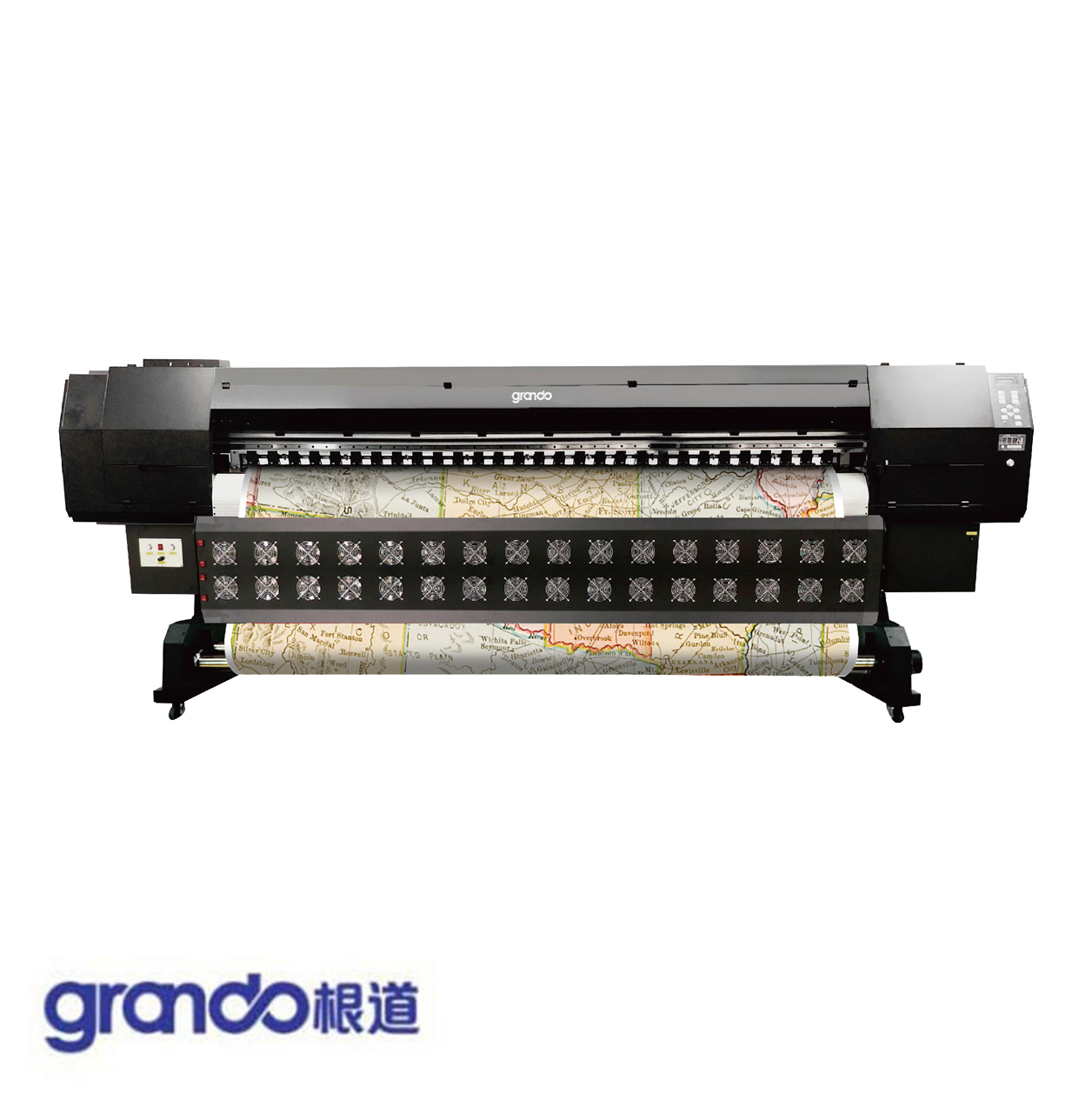

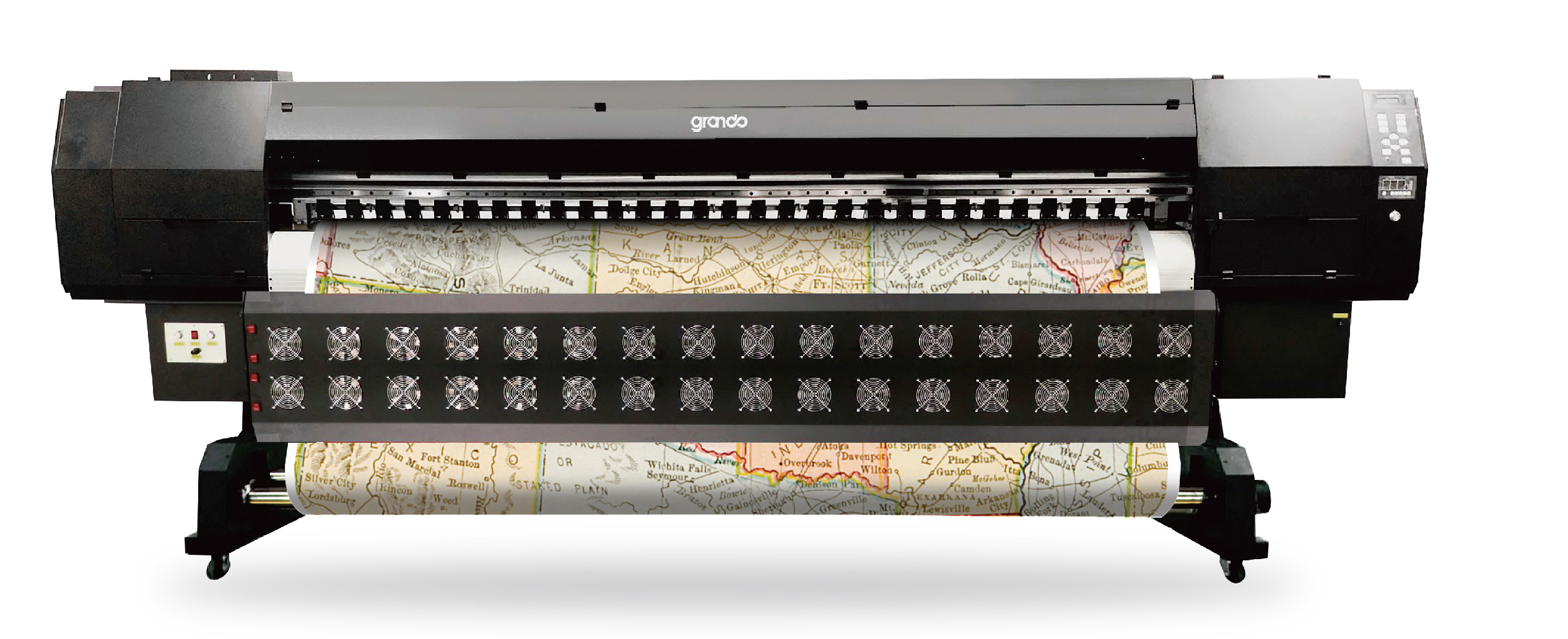

GRANDO BEJ-3204 Eco Solvent Printer – Overview
The GRANDO BEJ-3204 Eco Solvent Printer is the top of the eco-solvent line: four Epson I3200-E1 heads on a 3.2-metre chassis producing up to 100 m²/h in 4-pass mode. That combination of width, speed and 2400 dpi quality is exactly what Indian hoarding and transit advertising contractors need to win premium work — super-wide graphics that still look sharp at viewing distance. The stable 3 L bulk system and automatic moisturising/cleaning components keep it running through multi-shift schedules.
Designed as a true roll-to-roll production machine, the BEJ-3204 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.

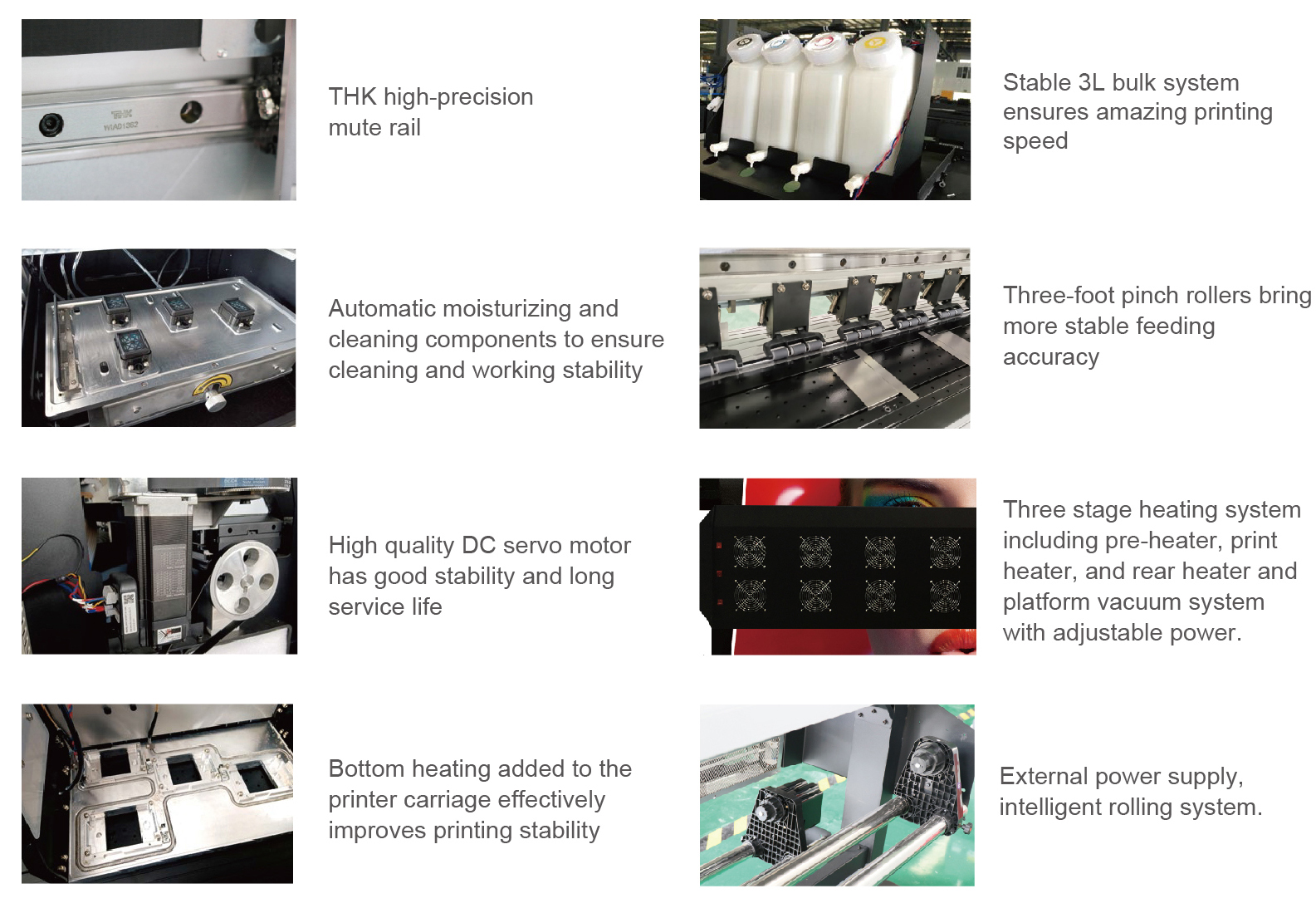

Key Features
- 4 × Epson I3200-E1 heads – up to 100 m²/h production speed
- 3.2 m width for hoardings, building wraps, transit & mall media
- Carriage base-plate heating improves print stability on flex
- Automatic moisturising and cleaning components – protected heads, less downtime
- 3 L bulk ink system for uninterrupted long runs
- Three-foot pinch rollers + THK mute rail for accurate 3.2 m feeding
- Three-stage heating with adjustable vacuum platform
Print Speed
| Print Mode | Output Speed |
|---|---|
| 4 pass (360×2400 dpi) | 100 m²/h |
| 6 pass (720×1800 dpi) | 75 m²/h |
| 8 pass (720×2400 dpi) | 50 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | BEJ-3204 |
| Print Head | Four Epson I3200-E1 print heads |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 3200 mm |
| Acceptable Media | Width 3220 mm · Thickness max. 1 mm · Weight max. 80 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 4×4 CISS (220 ml cartridges + 3 L ink tank) |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Three-stage heating (pre / print / rear) + vacuum platform + IR dryer & fan |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Dimensions (with stand) | 4609 (W) × 988 (D) × 1763 (H) mm |
| Weight (with stand) | 700 kg |
| Package Dimensions | 4800 × 1100 × 1770 mm |
| Package Weight | 800 kg |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | Stand, media loading & take-up system, air-cooling system, bulk ink cartridge system, RIP software |
Applications
The BEJ-3204 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
