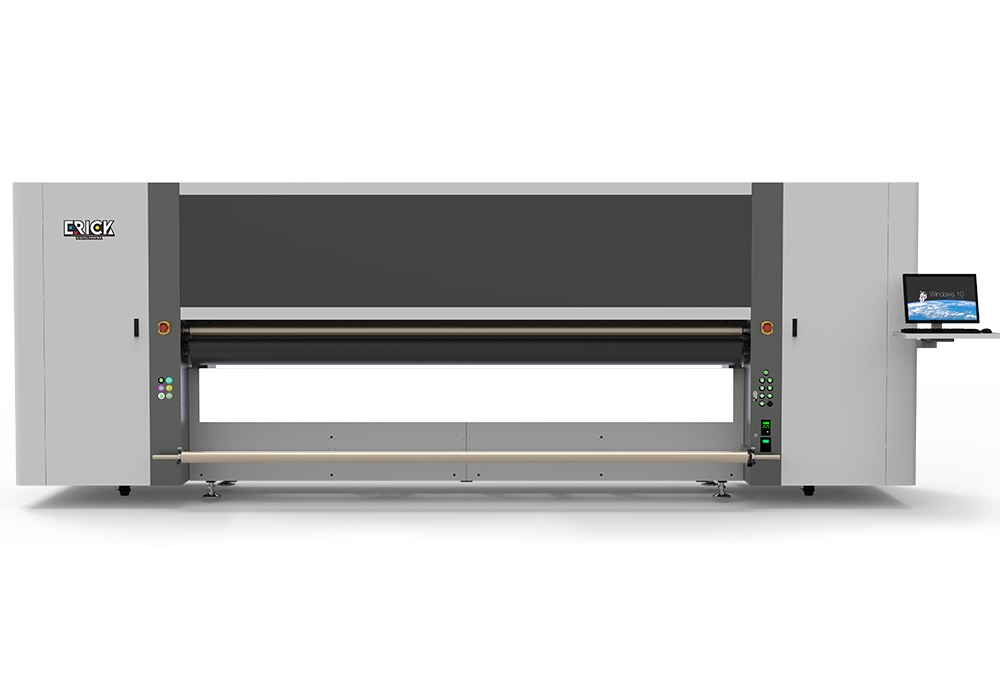

eRICK ER-HR3200 UV Hybrid Printer (Ricoh/Konica, 3.2m) – Overview
The eRICK ER-HR3200 is the high-throughput heart of the ERICK hybrid line: a 3.2-metre UV platform running 4–12 Ricoh Gen5/Gen6 or Konica 1024i/1024A heads. The factory’s official platform figure for this width is 78 m²/h on Konica heads (63 m²/h Gen6, 47 m²/h Gen5), enough to run roll banners all day and switch to acrylic or sunboard at night. BYHX control electronics, THK rails, Leadshine servos and a German tank chain carry the carriage, constant-temperature heating stabilises every ink channel, and the negative-pressure supply runs maintenance-free. Auto height sensing, anti-collision and low-ink alarms come standard; colours scale to CMYK + White + Varnish or fluorescent sets.
The ER-HR-3200 covers acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels at production-house speed. Dual-use 3.2m architecture replaces a flatbed plus a roll printer with one supported machine.
Key Features
- 4–12 × Ricoh Gen5/Gen6 or Konica 1024i/1024A heads
- Official platform output: 78 m²/h Konica · 63 m²/h G6 · 47 m²/h G5
- 3.2m rigid boards + full rolls on one chassis
- BYHX control board, THK rails, Leadshine servo, German tank chain
- Constant-temperature ink heating per channel
- Maintenance-free negative-pressure ink supply
- Auto height sensor, anti-collision device, low-ink alarm
- CMYK W V / fluorescent; Caldera / PhotoPrint RIP
Print Speed (ER-HR3200 · 3200PRO row, official ERICK/Aily platform data)
| Print Mode | Output Speed |
|---|---|
| Konica heads · production | 78 m²/h (≈840 sqft/hr) |
| Ricoh Gen6 heads · production | 63 m²/h (≈678 sqft/hr) |
| Ricoh Gen5 heads · production | 47 m²/h (≈506 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-HR3200 (HD-PRO platform, 3.2m) |
| Print Heads | 4–12 × Ricoh Gen5 / Gen6 / Konica 1024i / 1024A |
| Print Width | 3.2 m |
| Ink Colours | CMYK W V / fluorescent colours (UV LED curable) |
| Machine Functions | Movable front platform, lack-ink alarm, anti-collision device, independent ink heating control, negative ink supply, print height sensor |
| Machine Configuration | THK guideway, Leadshine motor, BYHX board, German imported tank chain, all-in-one computer (optional) |
| All-in-One Computer (optional) | 8th-gen i7-8750H, 64/128 GB, 15.6-in 1920×1080 touchscreen |
| RIP Software | Caldera / PhotoPrint |
| Power / Environment | 5000–8000W; 25–30 °C, 50–70% RH |
| Package | 5560 × 1500 × 1780 mm, 3000 kg (3200 row, official) |
Applications
Typical work: acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV hybrid printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh / Konica print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
