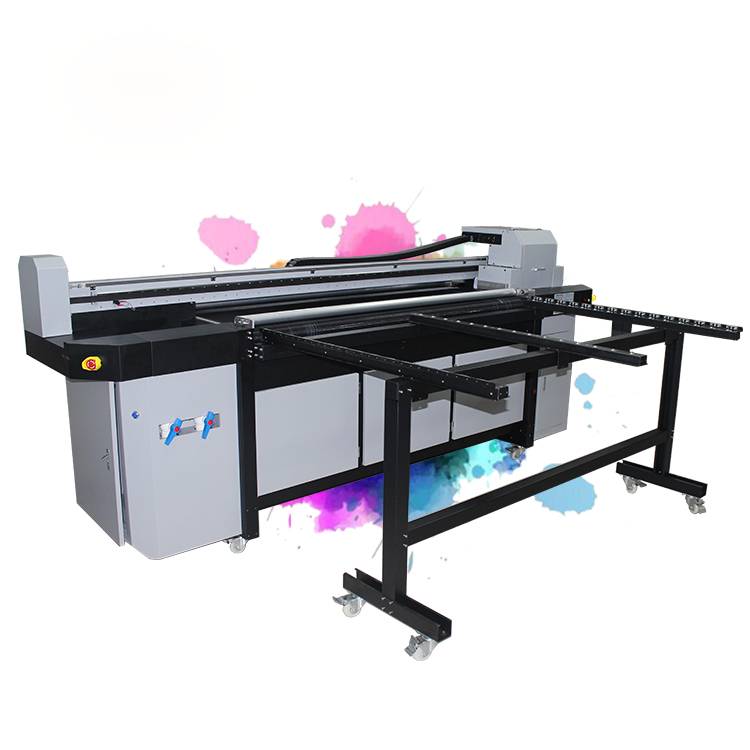

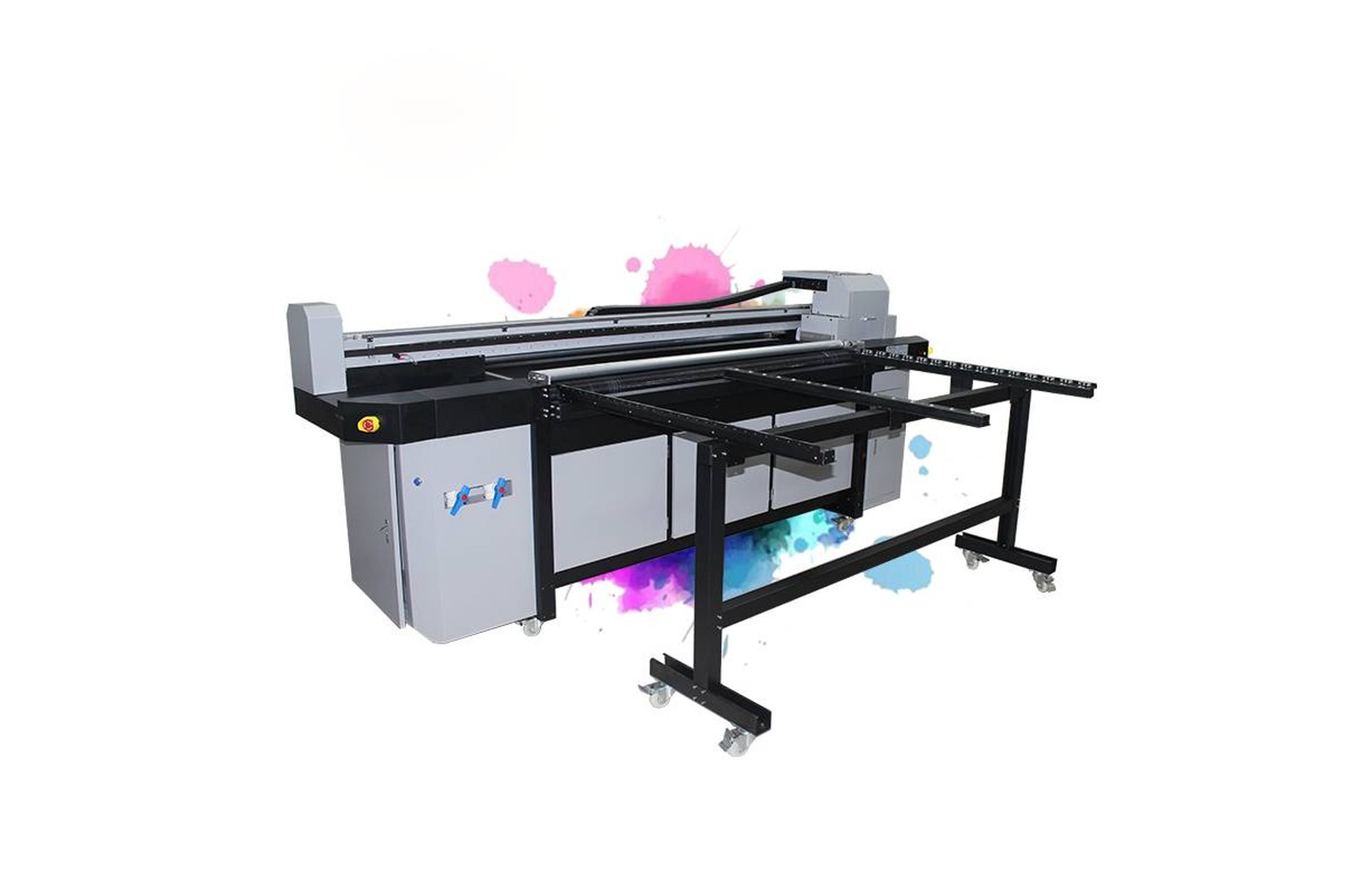

OMAJIC 1.8m Hybrid UV Printer Pro (4× i3200-U1) – Overview
The OMAJIC 1.8m Hybrid UV Pro merges a roll printer and a flatbed in one chassis: a belt-feed system carries banner film, soft ceiling film, wallpaper and leather, while the height-adjustable gantry (up to 80mm clearance) takes PVC board, acrylic, glass and KT board directly. Four Epson i3200-U1 heads deliver up to 54 m²/h with water-cooled UV LED curing.
The OM-UVHY18 handles daily production on flex banners, vinyl stickers, soft film & ceiling film, wallpaper, leather, canvas, polyester fabric as well as rigid boards like PVC, acrylic, KT board and foam sheet. UV-cured prints come off the machine instantly dry, waterproof and scratch-resistant, and the machine’s service ecosystem is supported across India.
Key Features
- Hybrid design – roll-to-roll flexible media AND rigid boards in one machine
- 4 × Epson i3200-U1 UV heads – up to 54 m²/h sketch / 43 m²/h production
- 1800mm print width – head clearance up to 80mm for thick boards
- Ink sets: CMYK+Lc+Lm+W, CMYK+W, CMYK+W+V
- Water-cooled UV LED curing – instant dry, scratch-proof output
- Platform adsorption system holds thin films and boards flat
- Prints banner film, ceiling soft film, wallpaper, leather, floor leather, PVC board, metal, glass, ceramic tile, acrylic, KT board
- AC 220V single machine power 1800W + 750W platform
Print Speed (4× i3200-U1 · manufacturer conditions)
| Print Mode | Output Speed |
|---|---|
| Sketch mode | up to 54 m²/h |
| Production mode | up to 43 m²/h |
| Sample / high-quality mode | up to 36 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | OMAJIC 1.8m Hybrid UV Pro |
| Print Heads | 4 × Epson i3200-U1 (UV) |
| Max Print Width | 1800 mm |
| Media Handling | Roll-to-roll + rigid board (belt/hybrid feed) |
| Max Head Clearance | 80 mm |
| Ink Type | UV LED curable ink (flexible & rigid sets) |
| Ink Colours | C/M/Y/K/Lc/Lm + W, C/M/Y/K + W, C/M/Y/K + W + V |
| Curing | Water-cooled UV LED |
| Media | Banner film, soft/ceiling film, wallpaper, leather, floor leather, PVC board, metal, glass, ceramic tile, acrylic, KT board |
| RIP Software | Maintop / Photoprint / Ripprint, Windows 7 / 10 |
| Power | Machine AC 220V 50Hz 1800W; platform adsorption AC 220V 750W |
| Machine Size / Weight | 3750 × 1250 × 1600 mm / ~800 kg |
| Package Size / Weight | 3800 × 1160 × 1800 mm / ~920 kg (wooden case) |
| Operating Environment | 20–28 °C, 40–60% RH |
Applications
Typical work: flex banners, vinyl stickers, soft film & ceiling film, wallpaper, leather, canvas, polyester fabric as well as rigid boards like PVC, acrylic, KT board and foam sheet. The machine is at home in sign & display units, glass and ACP fabricators, gift personalization shops, packaging studios and industrial décor lines.
Why Buy from Unified Engineering Dynamics?
- Authorized OMAJIC supply in India – genuine machines with official factory configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and UV print heads in stock, remote diagnostics.
- Consumables supply – matched UV inks, varnish, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
