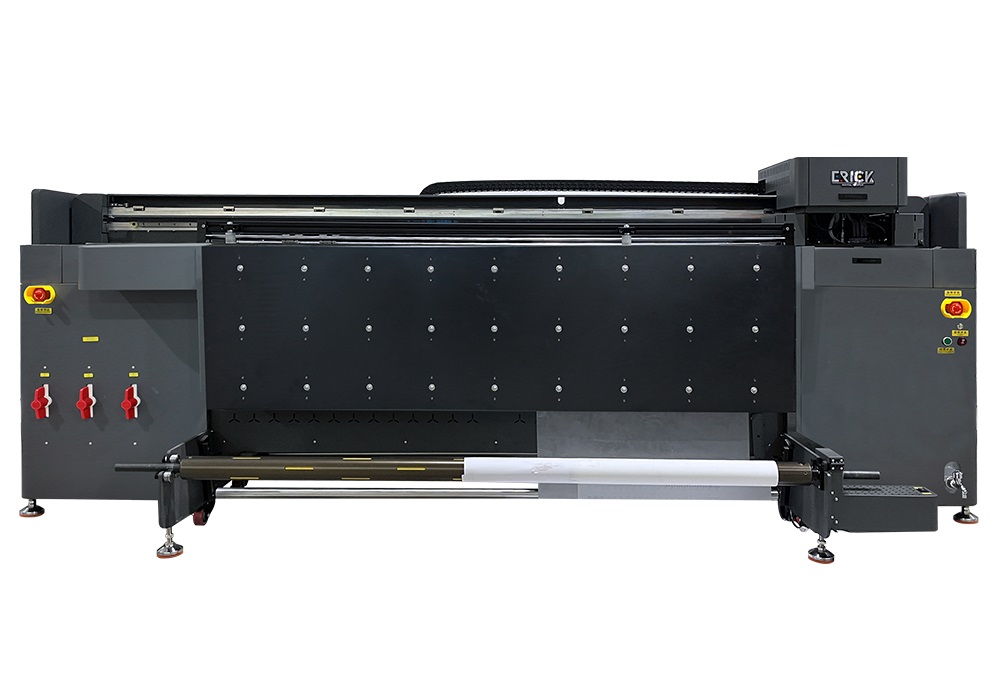

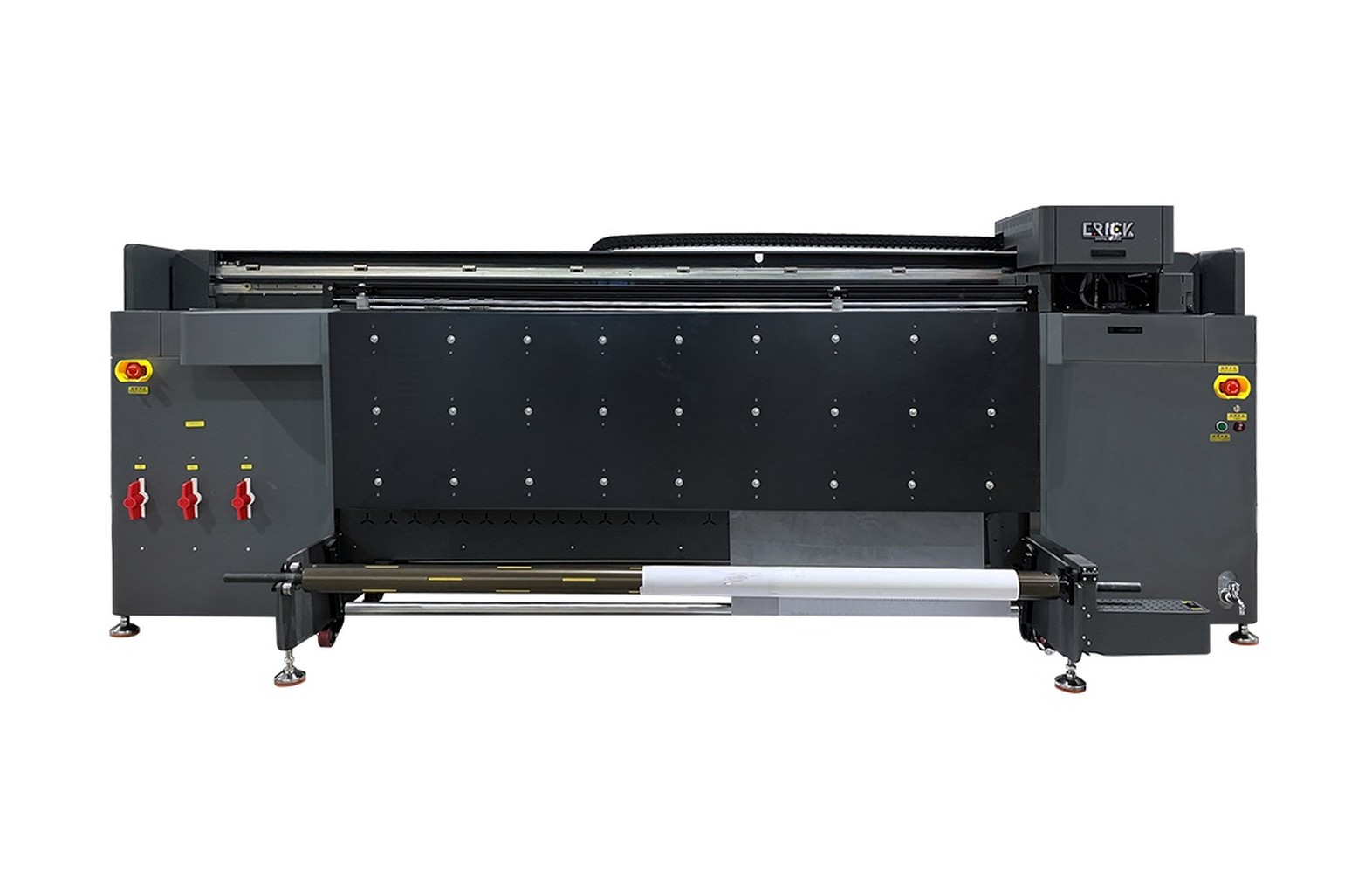

eRICK ER-HD1904H UV Hybrid Printer (4× Epson i3200-U1, 1.9m) – Overview
The eRICK ER-HD1904H is the compact way into true hybrid UV production: one 1.9-metre machine that prints rigid sheets – acrylic, glass, wood, PVC and KT board – and roll media like vinyl, flex and wallpaper without swapping platforms. Four Epson i3200-U1 UV heads lay down CMYK plus White at 720×1200 dpi, 16 m²/h in 4-pass production. The carriage carries double anti-collision protection with adjustable height for thick substrates, Hiwin linear rails keep motion precise, and the adjustable suction bed holds thin films and boards equally flat. An intelligent LED drying system cures ink instantly, and the optional all-in-one computer ships with an 8th-gen i7, 16/32 GB RAM, 512 GB SSD and a 15.6-inch touchscreen.
The ER-HD-1904H earns daily on acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels. UV-LED ink cures instantly – boards come off the machine scratch-resistant, waterproof and ready to finish, with no drying wait.
Key Features
- 4 × Epson i3200-U1 UV heads – CMYK + White printing
- One machine for rigid boards AND roll media – true hybrid
- 16 m²/h (≈172 sqft/hr) at 720×1200 dpi 4-pass; 13 m²/h at 6-pass
- Adjustable printing height for different material thicknesses
- Double anti-collision carriage – double-safe head protection

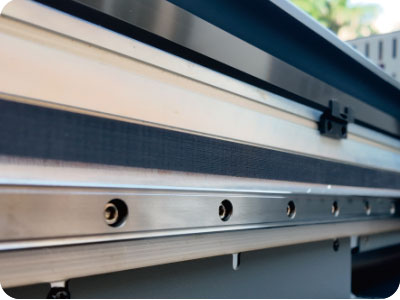

- Hiwin precision linear guide rails for accurate positioning
- Adjustable suction bed – thin film to thick board stays flat

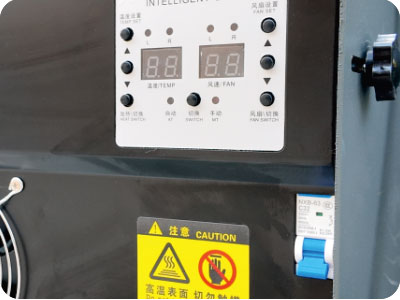

- Intelligent LED drying; adjustable capping station; low-ink alarm
Print Speed (ER-HD1904H · official ERICK/Aily data)
| Print Mode | Output Speed |
|---|---|
| 4× i3200-U1 · 720×1200 dpi · 4 pass | 16 m²/h (≈172 sqft/hr) |
| 4× i3200-U1 · 720×1200 dpi · 6 pass | 13 m²/h (≈140 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-HD1904H |
| Print Heads | 4 × Epson i3200-U1 (UV) |
| Print Width | 1.9 m class |
| Ink Colours | CMYK + White (UV LED curable) |
| Rigid + Roll Media | Acrylic, glass, wood, PVC, KT board, vinyl, flex banner, wallpaper, films |
| Machine Functions | Multifunctional printing, lack-ink alarm, adjustable capping station |
| Machine Configuration | Double anti-collision system, Hiwin guideway, adjustable suction, adjustable printing height |
| All-in-One Computer (optional) | 8th-gen i7-8750H, 16/32 GB RAM + 512 GB SSD, 15.6-in 1920×1080 touchscreen |
| RIP Software | PhotoPrint / MainTop |
| Power / Environment | Machine 4500W + heating 2000W; 15–30 °C, 50–70% RH |
| Package | L3400 × W1300 × H1580 mm |
Applications
Typical work: acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV hybrid printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh / Konica print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
