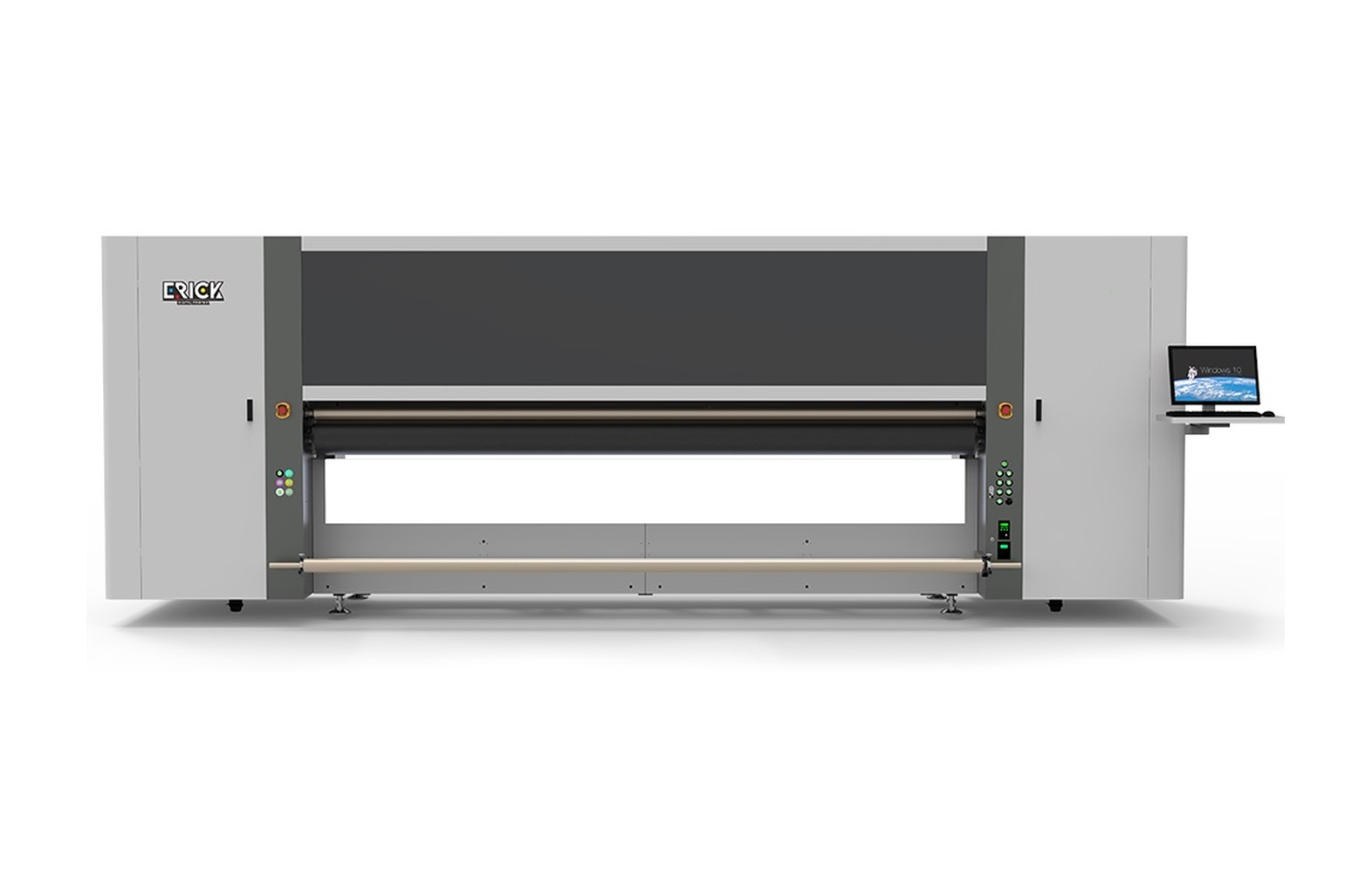

eRICK ER-HD3200PRO UV Hybrid Printer (Ricoh/Konica, 3.2m) – Overview
The eRICK ER-HD3200PRO is the 3.2-metre industrial answer to the print-everything brief: a UV hybrid that runs 4–12 heads of your choice – Ricoh Gen5, Ricoh Gen6, Konica 1024i or Konica 1024A – reaching 78 m²/h on Konica heads (63 m²/h Gen6, 47 m²/h Gen5). A BYHX inkjet control board, THK precision rails, Leadshine servo motors and a German-imported tank chain give it factory-floor stamina, while independent constant-temperature ink heating and a none-maintenance negative-pressure ink supply keep jetting stable through long runs. The auto height-detection device senses each board, the anti-collision system protects the head bank, and ink channels support CMYK + White + Varnish or fluorescent spot colours. Optional all-in-one i7 touchscreen computer; Caldera or PhotoPrint RIP.
The ER-HD-3200PRO is built for heavy shops running acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels. Twelve-head Konica configurations turn 3.2m board and roll work into genuine industrial throughput.
Key Features
- 4–12 × Ricoh Gen5/Gen6 or Konica 1024i/1024A industrial heads
- Up to 78 m²/h (≈840 sqft/hr) Konica; 63 m²/h Gen6; 47 m²/h Gen5
- 3.2m width – rigid boards and full rolls on one platform
- BYHX control board, THK rails, Leadshine servo, German tank chain
- Independent constant-temperature ink heating per channel
- None-maintenance negative-pressure ink supply system
- Auto material-height sensor + anti-collision + low-ink alarm
- CMYK W V / fluorescent colour configurations; Caldera/PhotoPrint
Print Speed (ER-HD3200PRO platform · official ERICK/Aily data)
| Print Mode | Output Speed |
|---|---|
| Konica heads · production | 78 m²/h (≈840 sqft/hr) |
| Ricoh Gen6 heads · production | 63 m²/h (≈678 sqft/hr) |
| Ricoh Gen5 heads · production | 47 m²/h (≈506 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-HD3200PRO (HD-PRO platform, 3.2m) |
| Print Heads | 4–12 × Ricoh Gen5 / Gen6 / Konica 1024i / 1024A |
| Print Width | 3.2 m |
| Ink Colours | CMYK W V / fluorescent colours (UV LED curable) |
| Machine Functions | Movable front platform, lack-ink alarm, anti-collision device, independent ink heating control, negative ink supply, print height sensor |
| Machine Configuration | THK guideway, Leadshine motor, BYHX board, German imported tank chain, all-in-one computer (optional) |
| All-in-One Computer (optional) | 8th-gen i7-8750H, 64/128 GB, 15.6-in 1920×1080 touchscreen |
| RIP Software | Caldera / PhotoPrint |
| Power / Environment | 5000–8000W; 25–30 °C, 50–70% RH |
| Package | 5560 × 1500 × 1780 mm, 3000 kg |
Applications
Typical work: acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV hybrid printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh / Konica print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
